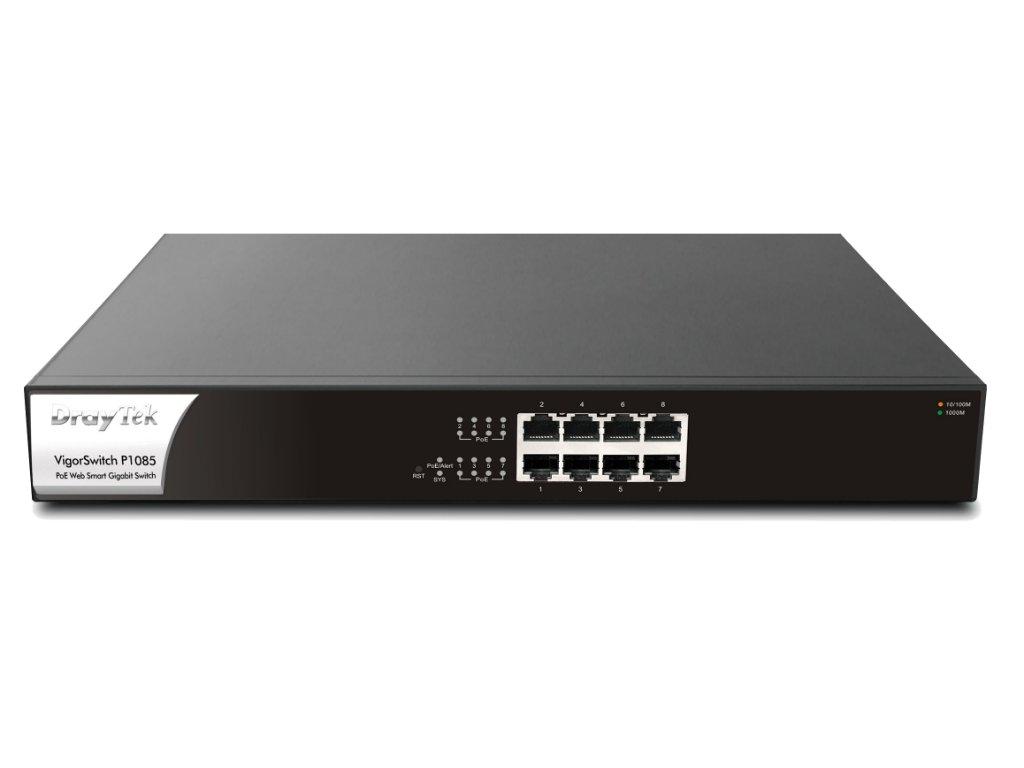

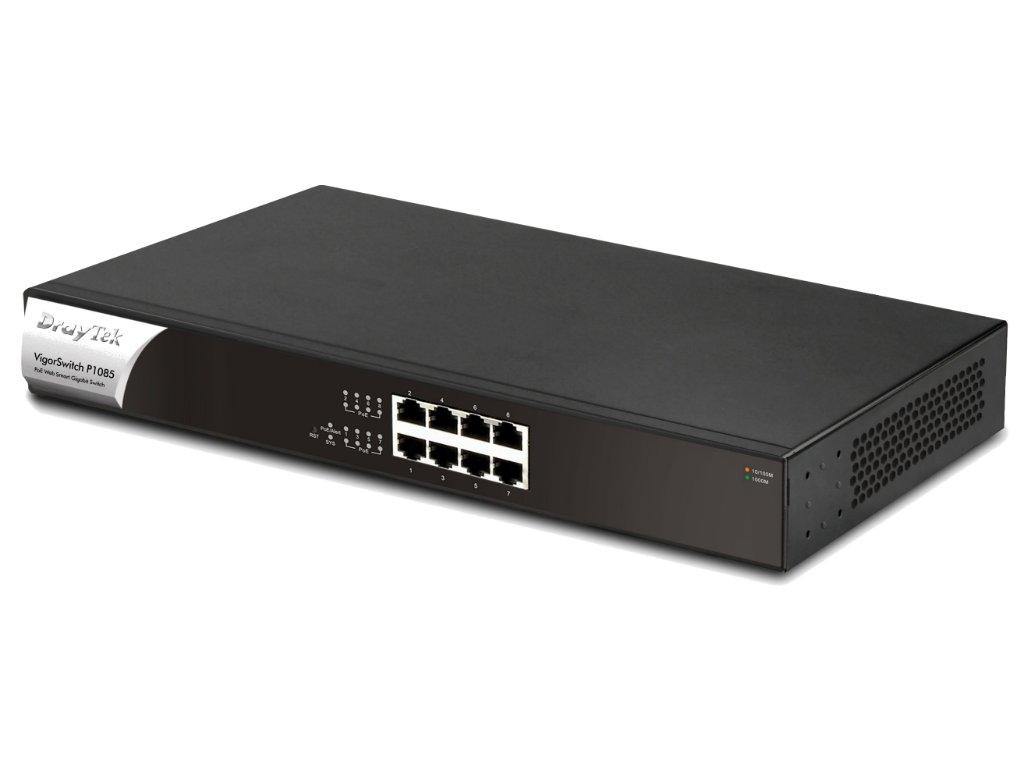

DrayTek VigorSwitch P1085 8-Port Web Smart Gigabit PoE+ Switch
Part Number: P1085
Discontinued
This product has been discontinued. See the latest model: Draytek VigorSwitch P2100
The DrayTek VigorSwitch P1085 is an 8-Port Web Smart Gigabit PoE+ Switch. The VSP1085 is a compact switch features 8 x Gigabit Ethernet PoE/PoE+ ports with a PoE power budget of 140 watts. Offering enterprise-level features it can help improve network security and stability.
Description
All 8 ports of the VP1085-K are PoE capable, allowing you to deliver power and data over one ethernet cable, and turn your PoE device on or off periodically with PoE Schedule. Enable Ping Watchdog for all PoE devices, if they lose their network connection, automatically restart them by a power cycle. This switch can also recognise traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritisation.
With the DrayTek Central Switch Management you can set up VLAN easily from the router and get a centralised hierarchy view of the switches. You can also set up multiple admin accounts with two levels of administrator privilege.
Key Highlights
- 8 x 10/100/1000 Mbps Gigabit Ethernet, RJ-45
- 8 x PoE Capable Ports
- PoE Standards PoE/PoE+(802.3af/802.3at)
- PoE Power Budget: 140 watts
- Max. Power Consumption: 162 watt
- Max.Number of VLAN: 256
- Energy-Efficient Ethernet: Compliant with IEEE 802.3az to reduce power consumption
- Buffer Size 4.1 Mbit
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps (64 bytes)
- IP Conflict Prevention
- Central Switch Management
- Multiple Admin Accounts
- Rackmountable
What’s in the box?
- 1 x DrayTek VigorSwitch P1085
- Rack Mount Kit
- Power Cord
- Quick Start Guide
Documents
Data Sheet:P1085 Datasheet
