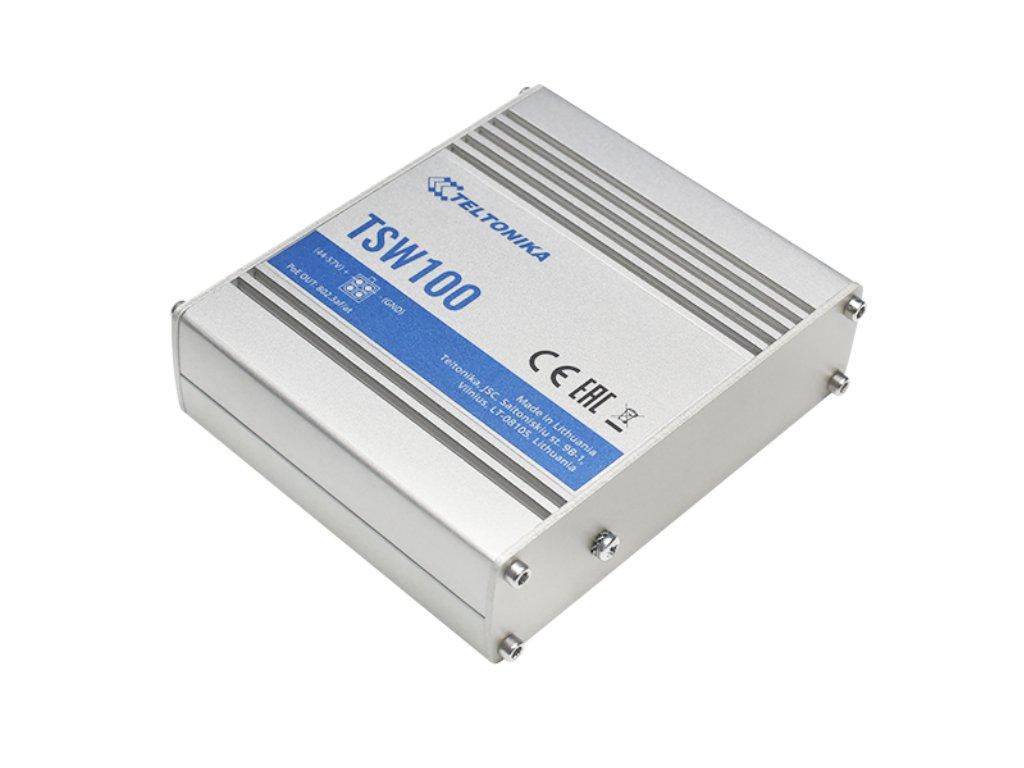

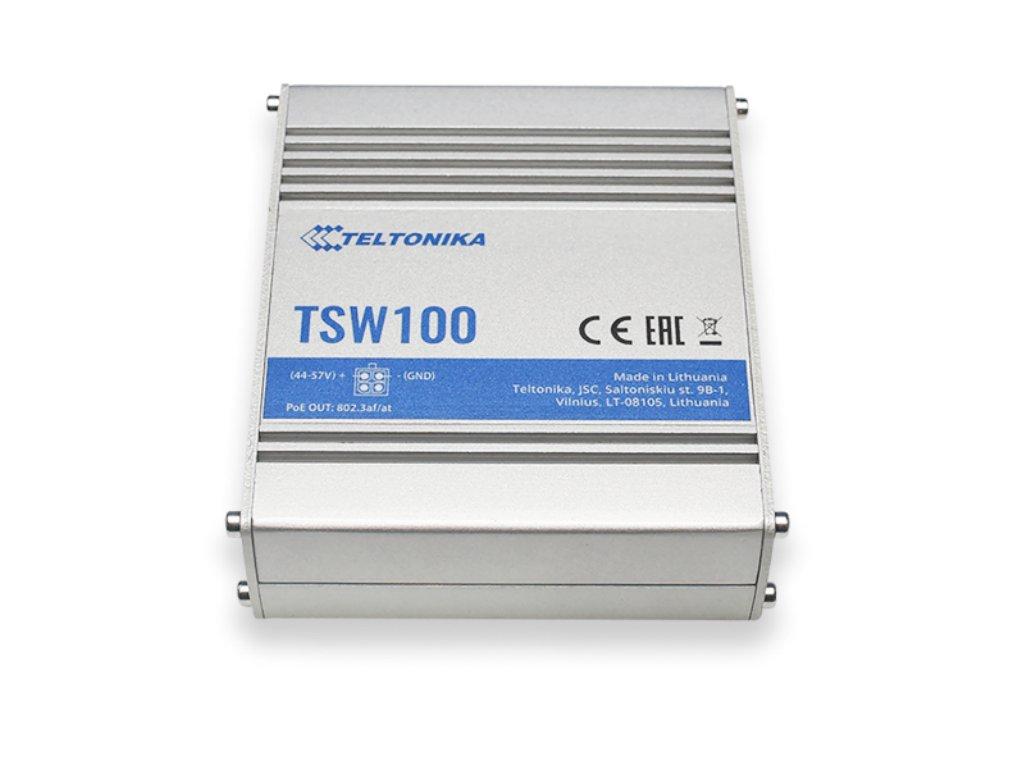

Teltonika TSW100 Unmanaged Gigabit 5-Port PoE+ Industrial Switch
Part Number: TSW100
5 In Stock
Bulk Pricing
1+
£91.49
5+
Call to quote
10+
Call to quote
The TSW100 is the first industrial unmanaged switch from Teltonika Networks. TSW100 is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE). This rugged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both reliable data connection and power supply.
Description
The TSW100 is a 5-port, unmanaged full Gigabit Ethernet switch supporting Power-over-Ethernet (802.3af and 802.3at standards). This device is classified as power source equipment (PSE), and when used in this way, TSW100 switch enables centralisation of the power supply, providing up to 30 watts of power per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
Key Highlights
- Plug-n-Play, no additional configuration needed

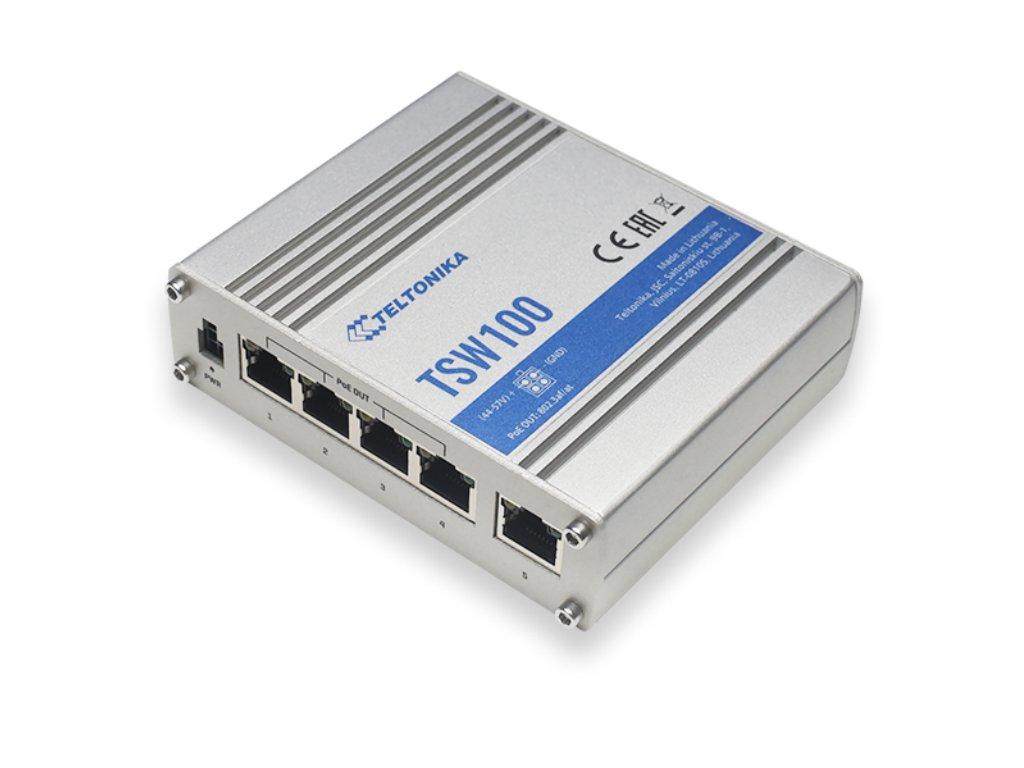

- 5 x RJ45 Gigabit Ethernet with speeds up to 1000 Mbps
- 4 x PoE ports with 802.3af and 802.3at support (Ports 1 - 4)
- PoE standards: 802.3af and 802.3at
- PoE Max Power per Port (at PSE): 30W
- Total PoE Power Budget (at PSE): 120W
- Bandwidth (Non-blocking): 10 Gbps
- Packet buffer: 128 KB
- Jumbo frame support: 9216 bytes
- MAC address table size: 2K entries
- Rugged aluminium housing
- Mounting: DIN rail or wall mounting (additional kit needed), or flat surface placement
What’s in the box?
- Teltonika TSW100 Switch
- Quick Start Guide
Specification
| Supports Gigabit | 1 |
|---|---|
| Supports PoE | 1 |
| Gigabit Ports | 5 |
| PoE Ports | 4 |
| RJ45 Ports | 5 |
| SFP Ports | 0 |
| Managed | 0 |
