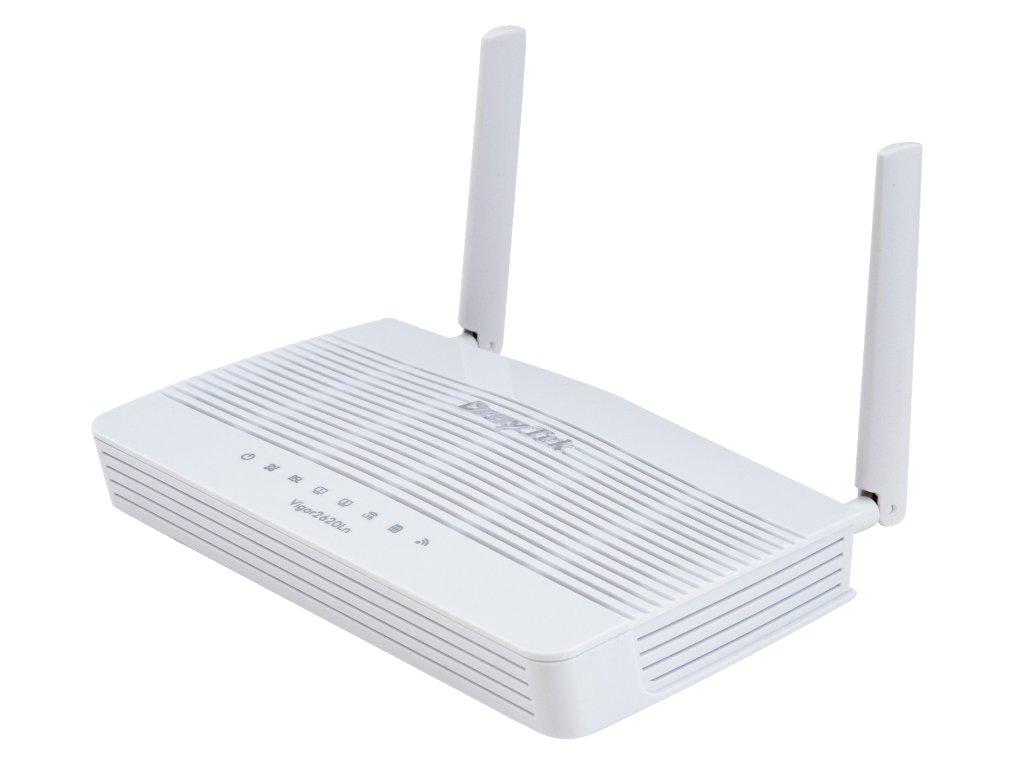

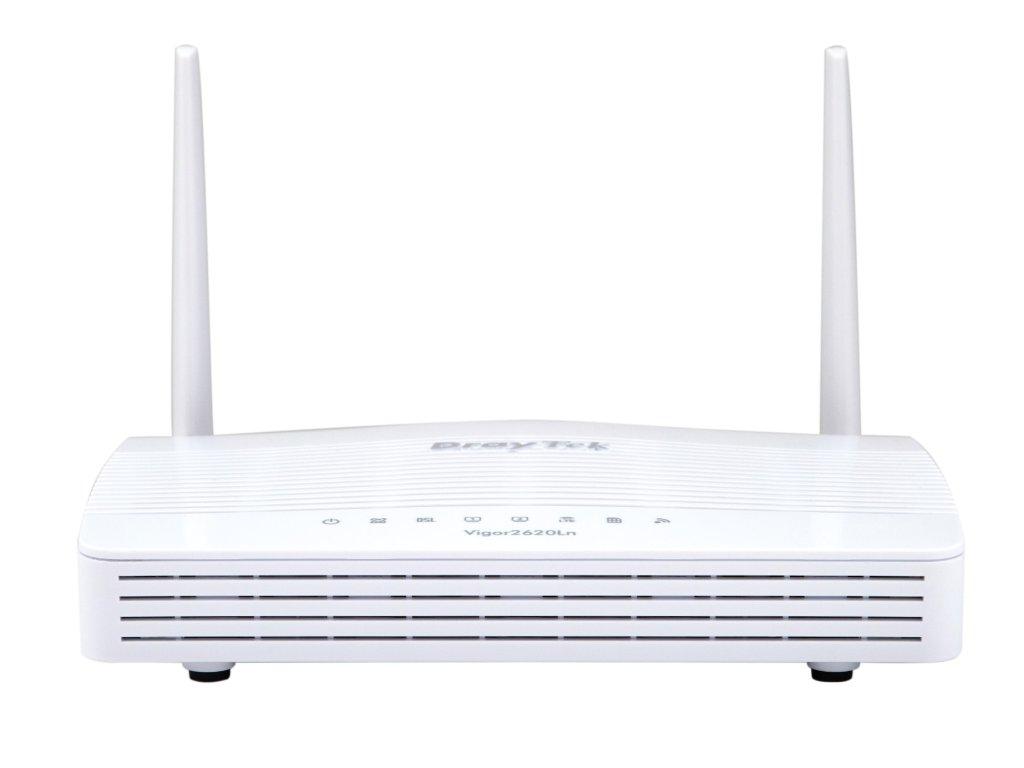

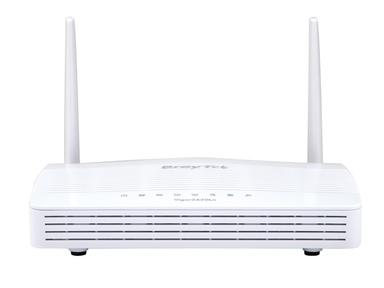

DrayTek Vigor 2620LN 4G LTE Multi-WAN Router
Part Number: V2620LN-K
Discontinued
This product has been discontinued.
The DrayTek Vigor 2620Ln Router has VDSL and LTE modems in one box, with 2 embedded SIM card slots for 4G/LTE failover and versatile Multi-WAN failover for guaranteed ultra-resilient service. The V2620Ln has downloading speeds of up to 150Mbps and Uploading at up to 50Mbps. This router monitors for Internet connectivity and latency; If the primary 4G SIM's network can't access a required location, or is too slow, it switches over to the backup SIM to resume connectivity.
Description
The two aerials on the V2620LN-K for the LTE/cellular connectivity provide increased gain and signal diversity for improved reception and a robust connection. The aerials can also be removed and replaced with specialist aerials (higher gain, outdoor) or an optional extension base used to position them most optimally.
As a cellular network device, the Vigor 2620Ln takes advantage of text messaging (SMS) to allow remote interrogation and control. Send simple text message commands to the router from your phone to have it reply with its status (IP addresses, data usage), or reboot the router.
The Vigir 2620LN router has full support for 802.1Q VLAN tagging, so that these subnets can be passed to other devices that support VLAN tags, such as the DrayTek VigorSwitch VSG1080 8-port switch, for additional network ports.
For further information about using the V2620LN-K in marine settings, read our blog!
This unit can also be custom pre-configured. Click here for details, or call us on 0330 043 4000 for more information.
***Please Note: The DrayTek Vigor 2620LN includes a 240VAC to 12VDC power supply unit.
Key Highlights
- VDSL2 & ADSL2+ Modem
- Gigabit LAN Ports and VLANs
- 2 x Gigabit Ethernet (1000Mb/s) Ports (P2 switchable to WAN2 port)
- Ethernet (RJ45)
- Wireless LAN
- LTE Bridge
- Full support for 802.1Q VLAN tagging
- 802.11n wireless network connectivity
- Up to 300Mbps throughput
- Operating on 2.4GHz - compatible with 802.11b/g clients
- Up to 4 separate wireless networks (SSIDs) can be used, with individual security settings
- Access Control lists (blacklist / whitelist)
- IPv4 / IPv6 Firewall
- LAN to LAN VPN
- DrayTek SSL VPN
- QoS
- DrayTek Dynamic DNS Address
- Central AP Management
- Integrated LTE 4G/3G Modem
- Ideal for Mission Critical Backup
- Dual-SIM LTE
- SMS Text Message Control & Reporting
- Robust and Comprehensive Firewall
- Multi-WAN Router with Failover

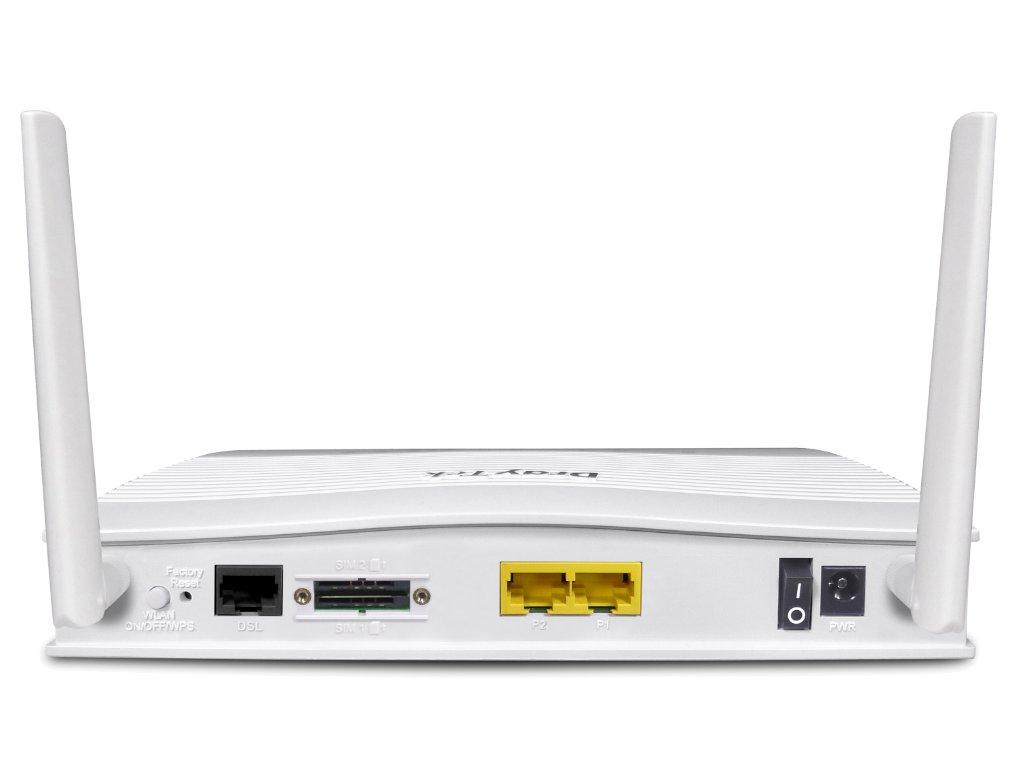

- WAN Ports (one as primary, others as failover) WAN1: ADSL/VDSL - RJ-11, WAN2: Gigabit Ethernet - RJ-45, LTE: 3G/4G/LTE modem - Dual-SIM Slot
What’s in the box?
- 1 x 2620Ln router
- 1 x UK power supply
- 2 x LTE aerials
- 1 x RJ45 cable
- 1 x RJ11 cable
- Quick start guide
- 2 x screws
- 2 x raw plugs
Documents
Data Sheet:Vigor 2620Ln Router Data Sheet
