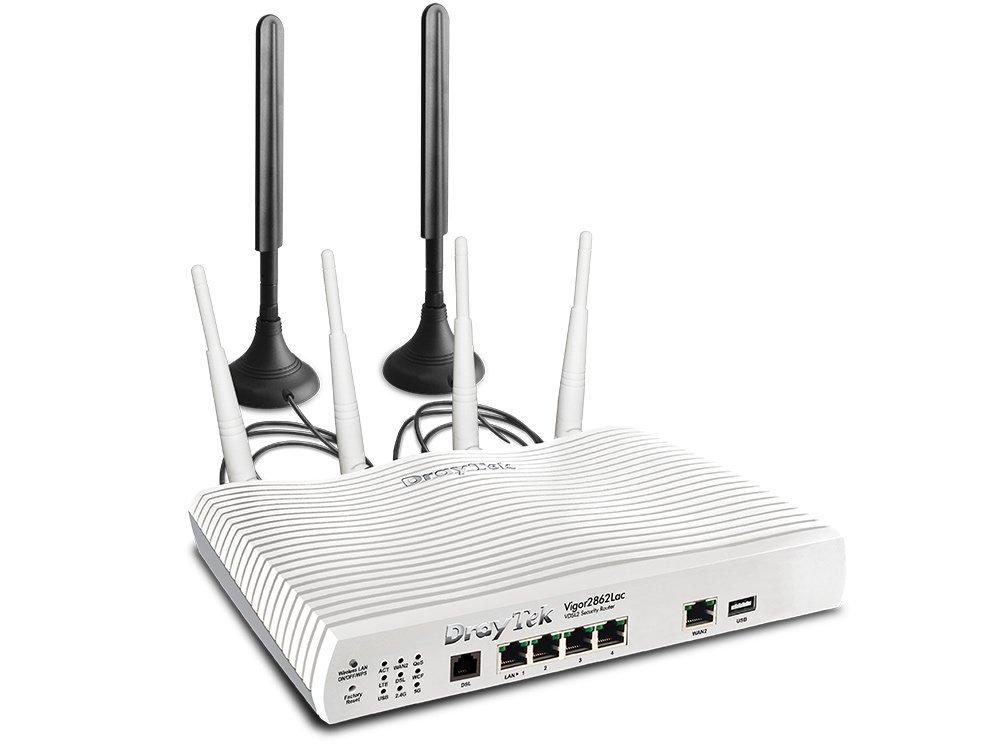

DrayTek Vigor 2862LAC ADSL VDSL, WAN, 3G, 4G AC WiFi Router
Part Number: 2862LAC
Discontinued
This product has been discontinued. See the latest model: DrayTek Vigor 2866Lac Router
The DrayTek Vigor 2862LAC is the AC Wifi version 3G/4G successor to the popular Draytek Vigor 2860LN. It is the 'Ultimate DSL router' supporting both ADSL/VDSL (BT Infinity/FTTC), Ethernet and 4G/3G via a built in standard size SIM card slot, but at 4x4 Multi-User-MIMO (5Ghz) 802.11AC Wifi Speed . The throughput is around 30% faster than its predecessor with a 400 Mb/s capacity. It's full of professional level features to increase security, flexibility and functionality, allowing it to survive any disaster for the ultimate in load balanced connectivity. BGP support (Border Gateway Protocol) and USB ports supporting a 2nd 4G/3G compatible optional modem make this router the ultimate choice.
Description
This latest router series includes support for other professional features such as VLAN tagging, QoS (Quality of Service Assurance), High Availability between hot spare routers, DNS Filters, Policy Based Routing, and User Access Control. Hotspot features with customisable branding and wording can be applied to guest network VLANs & SSIDs. If you deploy DrayTek Wireless Access Points or Draytek Switches, the Vigor 2862LN can act as the Central Management controller.
For further information about using the 2862LAC in marine settings, read our blog!
Key Highlights
- Built-in 3G/4G LTE Cellular Connectivity
- LTE Speed Up to 150/50 Mbs/s (RX/TX)

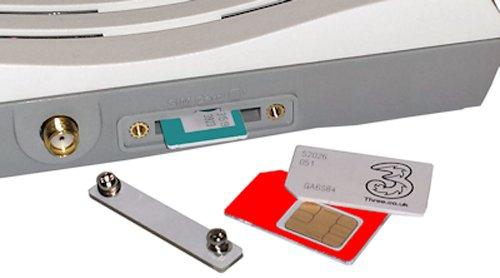

- Built-in standard SIM slot
- 4-WAN Simultaneous : VDSL/ADSL, Ethernet, Built in 3G/4G and optional USB 3G/4G
- BT SIN 498 MCT Approved
- Built in 4x4 Multi-User-MIMO (5Ghz) 802.11AC Wifi Speed)
- Dual band Wifi at 1733Mb/s Total Link Rate (5Ghz) + 300Mb/s (2.4Ghz)
- Extended DFS frequency range with Band Steering
- Can be centrally Managed by VigorACS
- Wireless Management of compatible DrayTek APs
- Switch Management of compatible DrayTek Switches
- DrayDDNS Service Support
- Hotspot Web Portal
- IPv4/IPv6 Dual-Stack
- High Availability (Hardware failover)
- 4-Port Gigabit Ethernet LAN Switch
- Up to 8 Private LAN Subnets
- Larger Subnets - up to 1022 IPs per subnet (LAN1-3)
- Temperature Monitoring (optional USB Thermometer)
- SMS (Text Message) Alert
- VLANs (Port, 802.1q & Wireless) - Info
- Content Filtering (by keyword, data type or category)
- Internal RADIUS Server
- LDAP Integration for VPN and user access
- QoS (Layer 2&3, 802.1p & TOS/DCSP)
- Up to 32 VPN tunnels for LAN-to-LAN or teleworkers
- VPN Trunk/Backup to remote sites
- SSL VPN - Tunnel or Proxy (16 users)
- USB Port for Printer, memory stick or further 3G/4G/LTE Modems
- Optional VigorCare Available
What’s in the box?
- Vigor Router
- Quick Start Guide
- Power Adaptor
- Ethernet Cable
- 2 Detachable Wifi Antennas
- 2 Detachable 4G/3G Antennas with standard 8mm SMA connections
Specification
| 3G/4G Built In | 1 |
|---|---|
| 3G/4G (via USB Dongle) | 1 |
| WiFi | 1 |
| WiFi Dual Band (2.4/5Ghz) | 1 |
| Supports Gigabit | 1 |
| LAN Ports | 4 |
| WAN Ports | 1 |
| Supports VDSL | 1 |
| Supports PoE | 0 |
| PoE Ports | 0 |
| SFP Ports | 0 |
Documents
Quick Start Guide:Vigor 2862LAC Router QSG
Data Sheet:Vigor 2862LAC DataSheet
