Poynting PUCK-7 Transportation & IOT, M2M Antenna

Part Number: PUCK-7

Poynting PUCK-7 Antenna 1

Hover to zoom

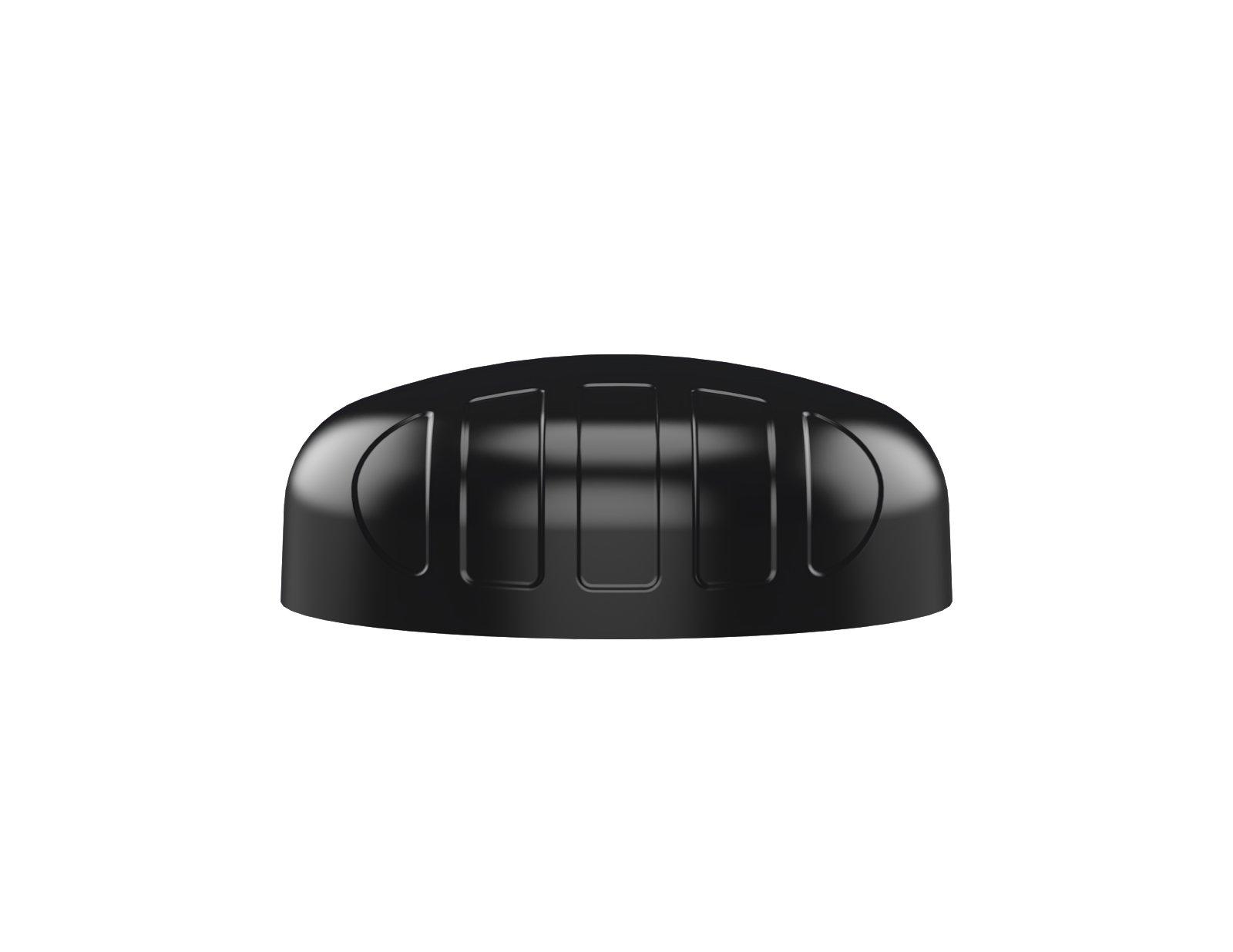

Poynting PUCK-7 Antenna 1

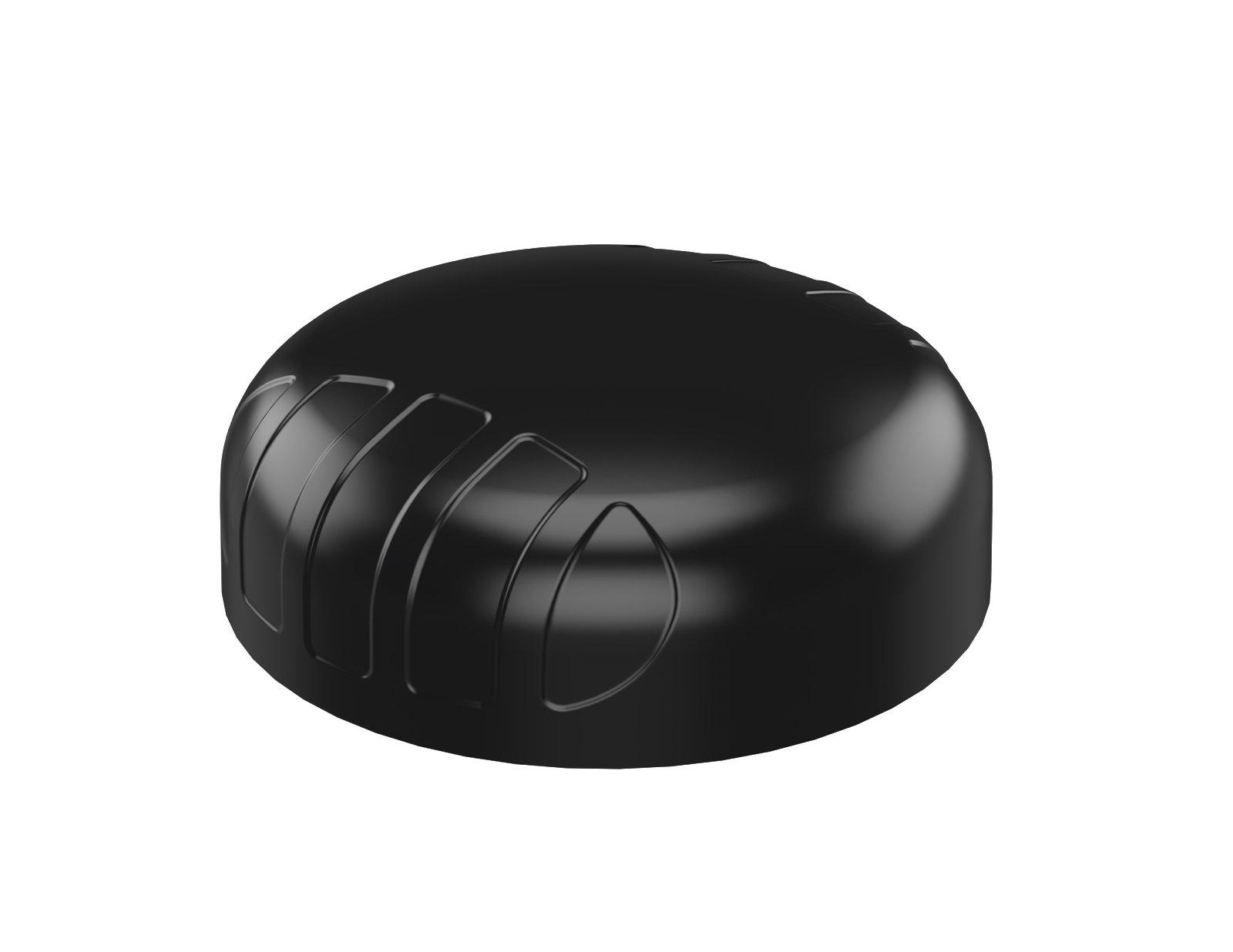

Poynting PUCK-7 Antenna 2

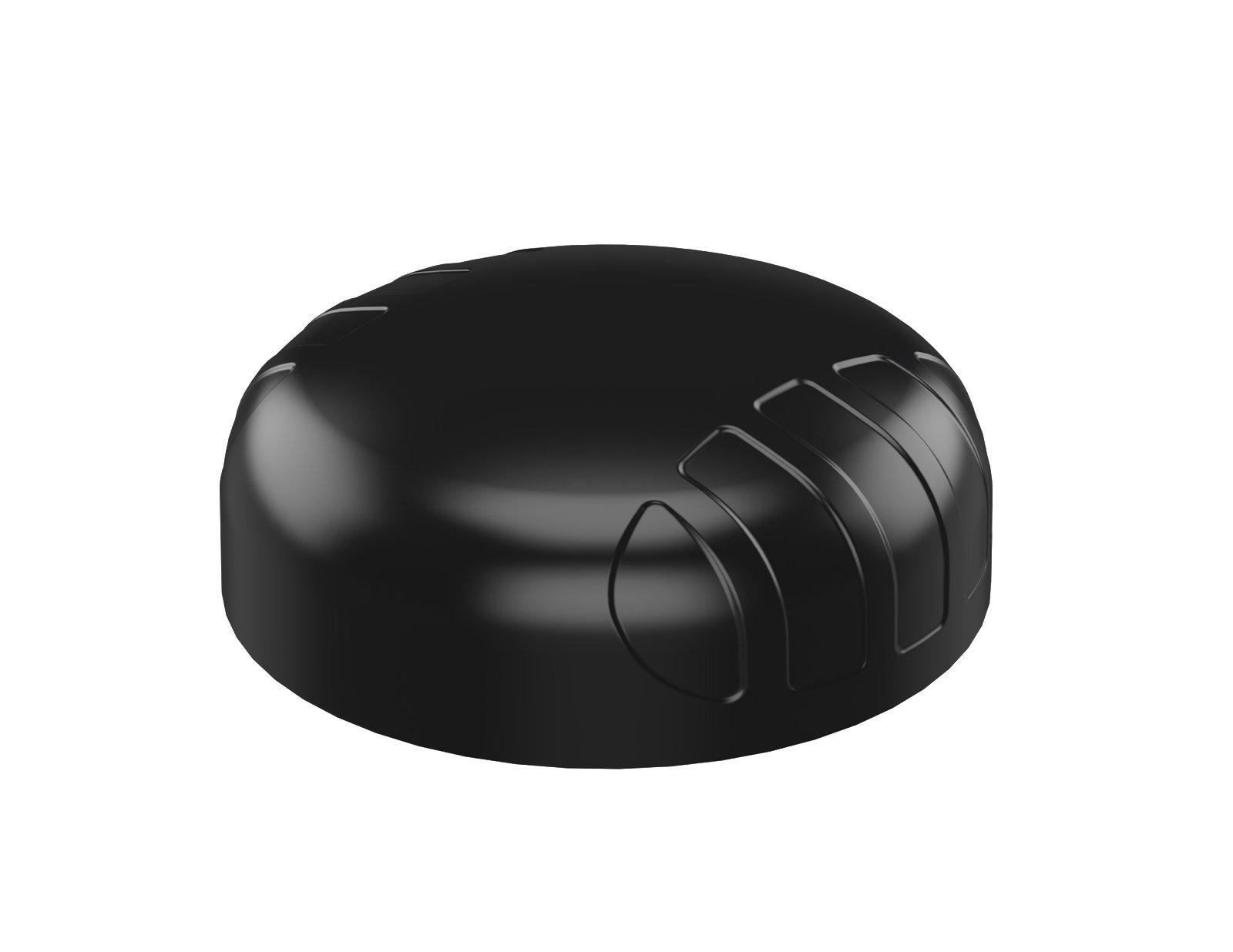

Poynting PUCK-7 Antenna 3

Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets.

Out of stock

This product is out of stock. Please call on 0330 043 3000 to confirm availability.

£109.19inc VAT

Shipping from £4.79

Free Returns (Ts&Cs apply)

Price Breaks

  • 1 =

    £109.19

  • 5+ =

    £107.63

  • 10+ =

    £106.05

More Information - Poynting PUCK-7 Antenna

The PUCK-7 consists of a 4-in-1 antenna system within a single housing, featuring 2x2 MIMO LTE and 2x2 MIMO Wi-Fi (Dual-band 2.4GHz & 5GHz) The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 698MHz to 3800MHz band, this includes the most popular international LTE bands.

The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4GHz and 5GHz bands, capable of 802.11n and 802.11ac/ax with 2x2 MIMO. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna.

Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance.

Poynting PUCK-7 Antenna Key Highlights

  • 4-in-1 high performance multi frequency
  • 2G/3G/4G/LTE antenna (5G Ready)
  • LTE (2 x MiMo), Dualband Wi-Fi (2 x MiMo)
  • Wideband – covers wide frequency band, incl. the CBRS band
  • Ground plane independent
  • Robust, vandal resistant and water proof (IP68) antenna
  • Ideal for transportation, marine and IoT/M2M use
  • Ultra-versatile mounting options for easy installation
