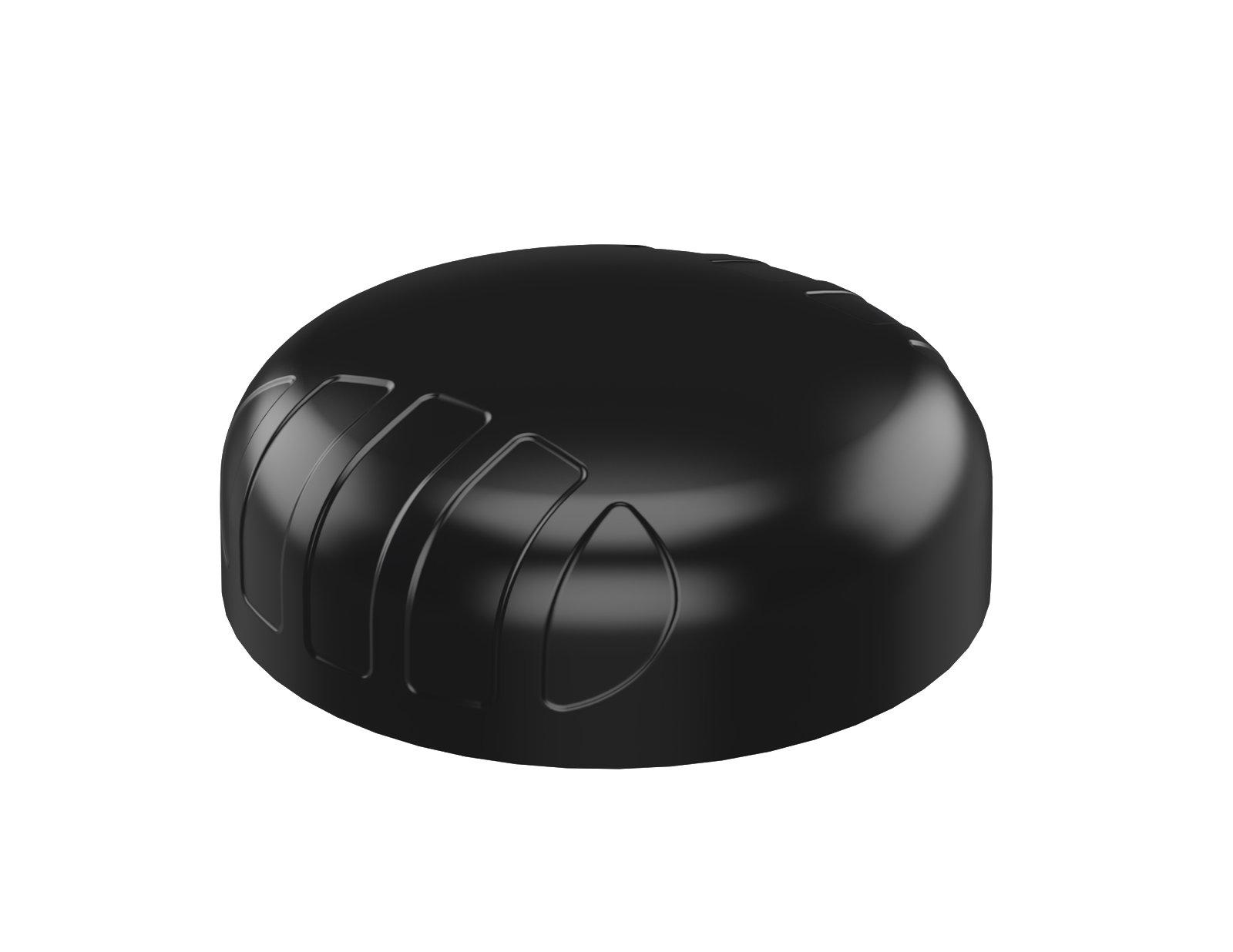

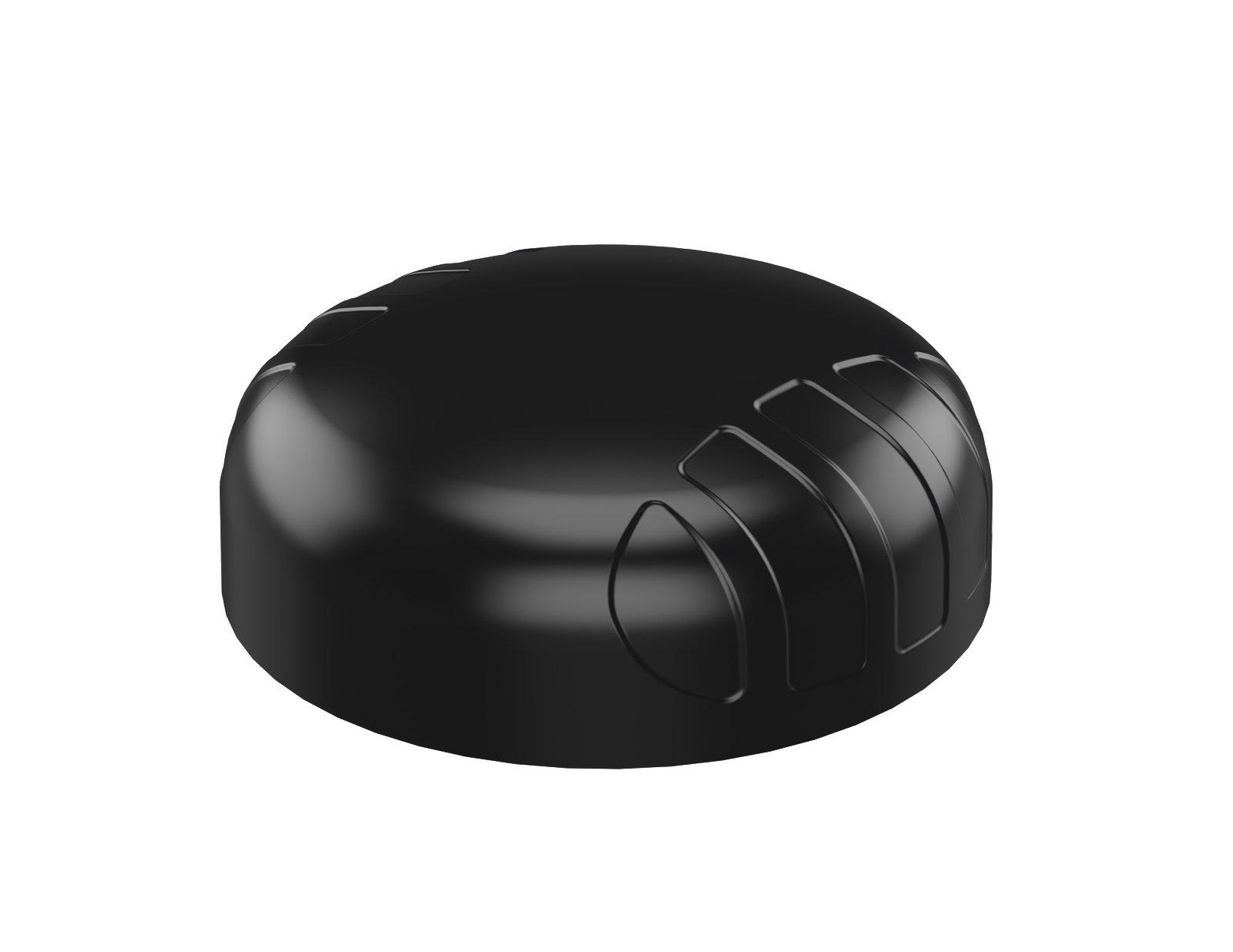

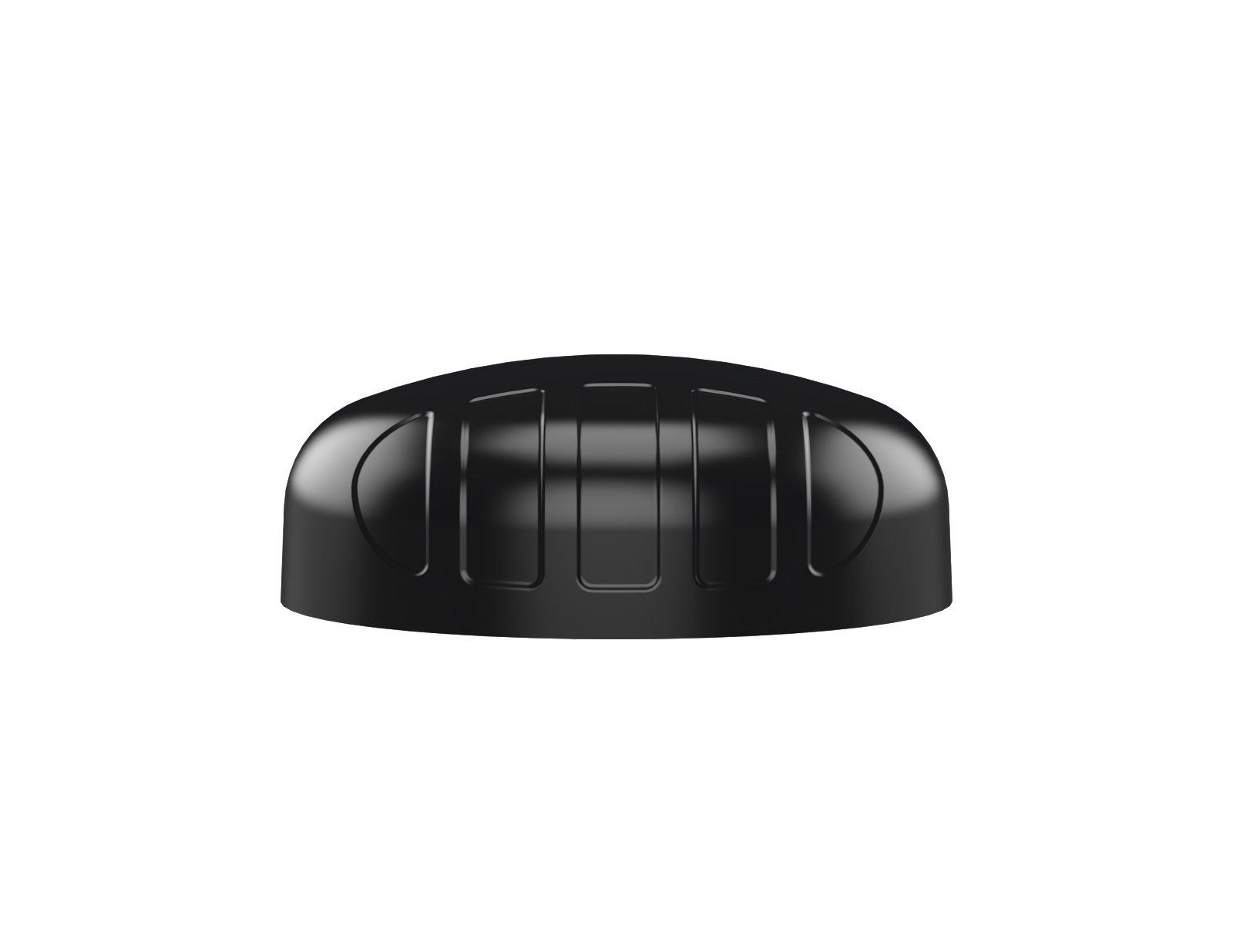

Poynting PUCK-5 Transportation, IOT & M2M Omni-Directional Antenna

Part Number: PUCK-5

Poynting’s PUCK-5 Antenna offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-5 consists of a 5-in-1 antenna system within a single housing, featuring 2x2 MIMO LTE, 2x2 MIMO Wi-Fi (Dual-band 2.4GHz & 5GHz) and GPS/GLONASS. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance.

Out of stock

This product is out of stock. Please call on 0330 043 3000 to confirm availability.

£123.49inc VAT
£79.16ex VAT

Free Returns (Ts&Cs apply)

Price Breaks

  • 1 =

    £123.49

  • 5+ =

    £123.49

  • 10+ =

    £123.49

More Information - Poynting PUCK-5 Antenna

The PUCK-5 provides two separate dual-band Wi-Fi antennas offering concurrent 2.4GHz and 5GHz bands, capable of 802.11n and 802.11ac/ax with 2x2 MIMO. The fifth antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC.

For further information about our antennas see our blog about MIMO solutions.


PUCK-5 dimensions: 94 mm x 94 mm x 38 mm


A-PUCK-0005-V1-01 Key Highlights

  • Small & Low-Profile
  • 2G/3G/4G/LTE antenna (5G Ready)
  • 5-in-1 High Performance multi Frequency
  • Cellular Frequency Bands: 690-960 MHz | 1710 2700 MHz | 3200 - 3800 MHz
  • Wi-Fi Frequency Bands: 2400 - 2500 MHz | 5000 - 6000 MHz
  • Ruggedness, corrosion, water, dust resistance (IP68)
  • Fire Resistant (complies with ECE-R 118.02)
  • UV Stable Enclosure
  • Max Gain: LTE 6dBi | Wi-Fi 7.5dBi | GPS 21 dBi
  • Coax Cable Length: 2m
  • Connector Type: SMA (male)

Applications

  • Smart Utilities: Smart Power, Gas & Water Metering
  • Smart Buildings: Climate control, access control, security, irrigation
  • Digital Signage
  • Warehouses & Logistic systems
  • Industrial factory automation, robotic machinery and other M2M systems
  • Transport (Busses, Utility & Public Safety)
  • Mining Vehicles & Machinery Communications, Telemetry and Automation (M2M & IoT)
  • Agricultural Machinery
  • Marine: small boats, yachts near to coastlines or inner waters

What's in the Box?

  • A-PUCK-0005-V1-01
  • Ø20 Threaded Spigots (Up to 60mm clamping thickness)
  • Adhesive Surface Mount
  • Mounting & Magnetic Mount
