Poynting MIMO-3-V2-17-B Transportation & Automotive Antenna in Black

Part Number: MIMO-3-V2-17-B

Poynting MIMO-3-V2-17-B Antenna Front Angle

Hover to zoom

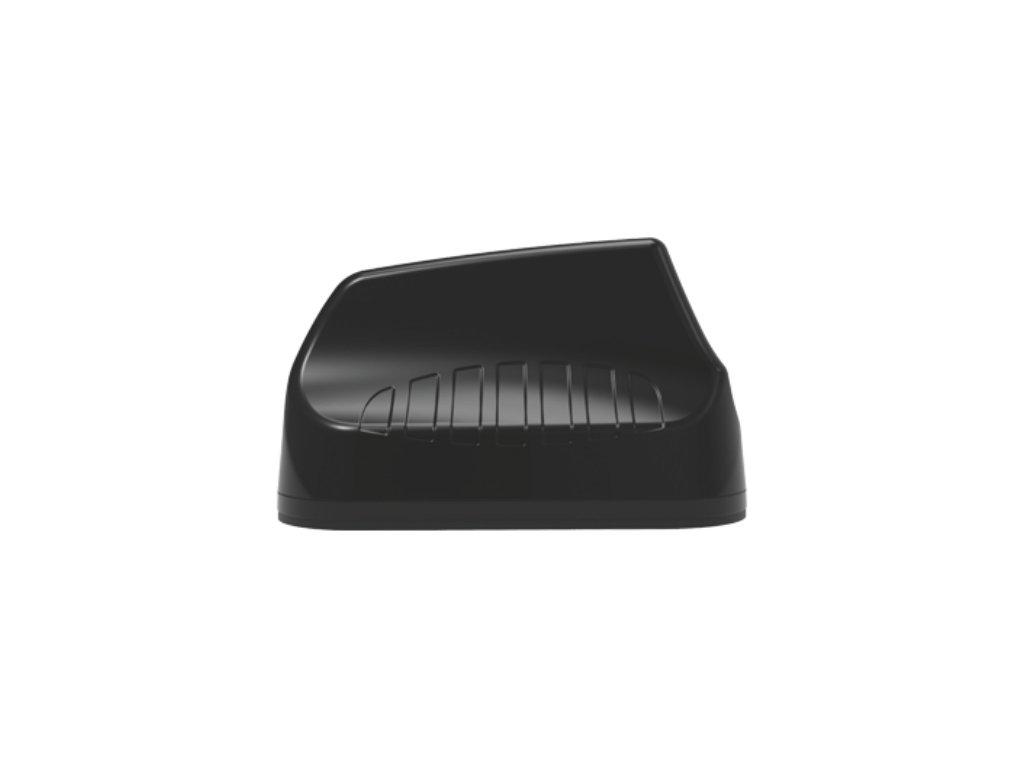

Poynting MIMO-3-V2-17-B Antenna Front Angle

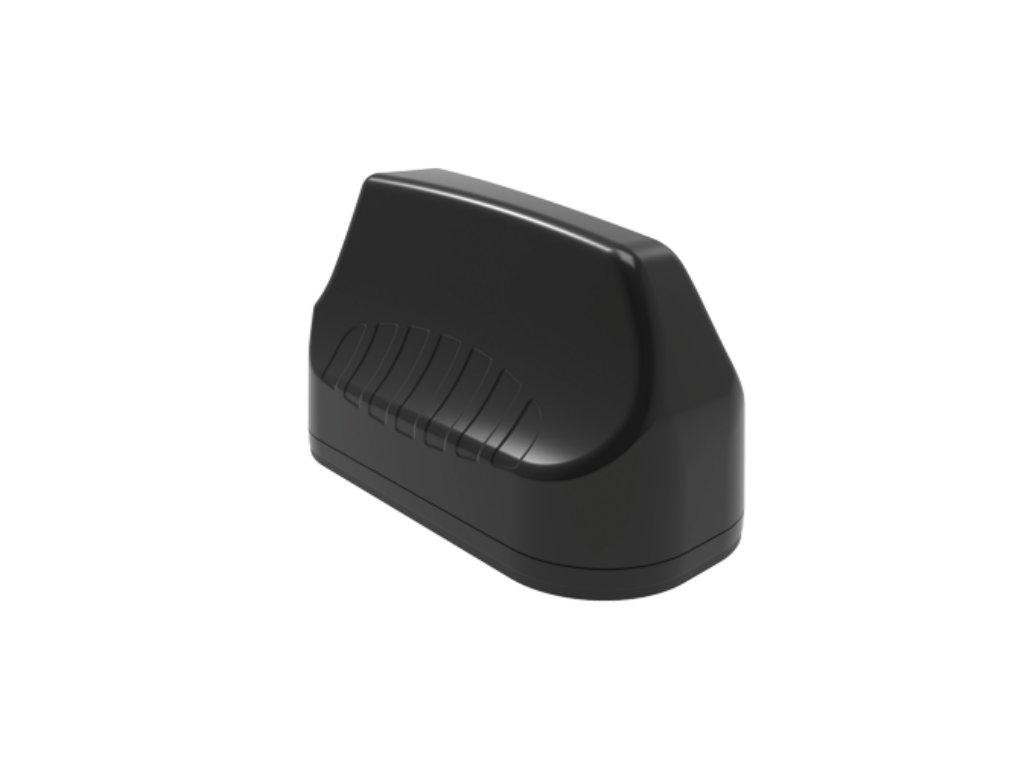

Poynting MIMO-3-V2-17-B Antenna Side

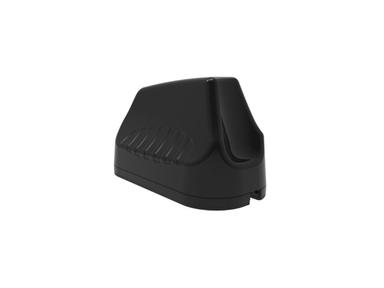

Poynting MIMO-3-V2-17-B Antenna Back Angle

Poynting MIMO-3-V2-17-B Transportation & Automotive Antenna in Black

Part Number: MIMO-3-V2-17-B

The Poynting MIMO-3-V2-17 Black Antenna is a 7-in-1 high performance multi frequency antenna within a single housing, providing four cellular, two Wi-Fi and a GPS/GLONASS antenna. The four cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 698 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE.

Out of stock

This product is out of stock. Please call on 0330 043 3000 to confirm availability.

£328.24inc VAT

Shipping from £4.79

Free Returns (Ts&Cs apply)

Price Breaks

  • 1 =

    £328.24

  • 5+ =

    £322.65

  • 10+ =

    £317.07

More Information - Poynting MIMO-3-17-B Antenna

The ultra-wideband performance of the MIMO-3-V2-17 allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The antenna also provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 GHz on each antenna with 2x2 MIMO capability. The seventh antenna is a high performance active GPS/GLONASS system operating down to -40°C. The MIMO-3-17 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna.

The radiation patterns of all radiating elements provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market. which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining future-proof over the wide frequency band.


Poynting MIMO-3-V2-17-B Antenna Key Highlights

  • 2G/3G/4G/LTE
  • 5G Ready
  • 4X4 MIMO LTE, 2X2 MIMO Wi-Fi & GPS/GLONASS
  • Ultra-wideband 410MHz to 470MHz, 698MHz to 2700MHz and 3400MHz to 3800MHz bands
  • Connector Type SMA (M)
  • Coax Cable Length 2m
  • Polarisation: Linear Vertical
  • Cleverly designed de-correlated antennas give superior MIMO performance in both Wi-Fi (dual band) and cellular bands
  • Careful mechanical design provides ruggedness, corrosion, water, dust resistance with IP68 rating
  • Ground plane independent: The MIMO-3 is designed with an internal ground plane, making this antenna suitable for implementation on all surface types
  • Ideal for transportation and marine use
  • Multi mounting options for easy installation

Application Areas

  • Transport broadband and Wi-Fi distribution, automation and telemetry for busses, utility, trucking & public safety vehicles
  • Industrial factory automation, robotic machinery and other M2M systems telemetry
  • Farming & Agricultural automation such as M2M & IoT
  • Broadband cellular to Wi-Fi distribution for Marine / Boats (inland and near coastal vessels)
  • Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)

What's in the Box?

  • 1 x Poynting A-MIMO-0003-V2-17-B
  • Adapters: RPSMA(m) To SMA (f)
  • Mounting bracket: Threaded Spigots (Up to 60mm clamping thickness), Adhesive Surface Mounting & Optional Magnetic Mount
  • User Guide

Related Content

How can TP-Link's OC200 Omada Cloud Controller make my life easier?

How can TP-Link's OC200 Omada Cloud Controller make my life easier?

Searching for a smart networking management solution? Look no further. Read to find out how TP-Links OC200 can make your life easier.

10 Nov 2022 | 2min read

How is Bold Smart Lock so secure?

How is Bold Smart Lock so secure?

Smart access to your property whilst keeping safe and secure? We've got you.

6 Oct 2022 | 4min read

Why do I need a Bold Smart Lock?

Why do I need a Bold Smart Lock?

Finding the right products to smarten up your property can be a struggle. Read on to find out why a smart lock is the perfect option.

6 Sep 2022 | 3min read

Spotlight On the DrayTek Vigor 2763 Router Series

Spotlight On the DrayTek Vigor 2763 Router Series

DrayTek’s new Vigor 2763 series of routers bring feature-packed, reliable connectivity to Small Office and Home Office (SoHo) networks.

14 Jul 2022 | 3min read

Introducing The New Grandstream GWN7664LR AP and WP825 IP Phone

Introducing The New Grandstream GWN7664LR AP and WP825 IP Phone

Introducing the GWN7664LR outdoor access point and WP825 WiFi IP phone which are both now available to purchase online.

6 Jul 2022 | 3min read

Network and WiFi Analyzer for iOS and Android | Fing Review

Network and WiFi Analyzer for iOS and Android | Fing Review

Fing is a network and WiFi analyzer for iOS and Android. We discuss its strengths and weaknesses as well as alternatives like Ubiquiti's Wifiman.

17 May 2022 | 9min read

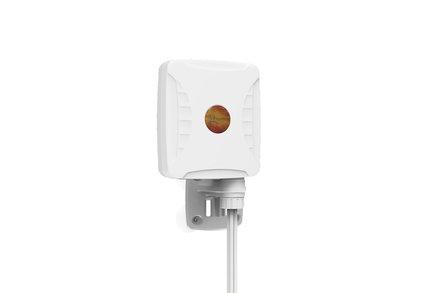

A Primer on Poynting XPOL Antennas
