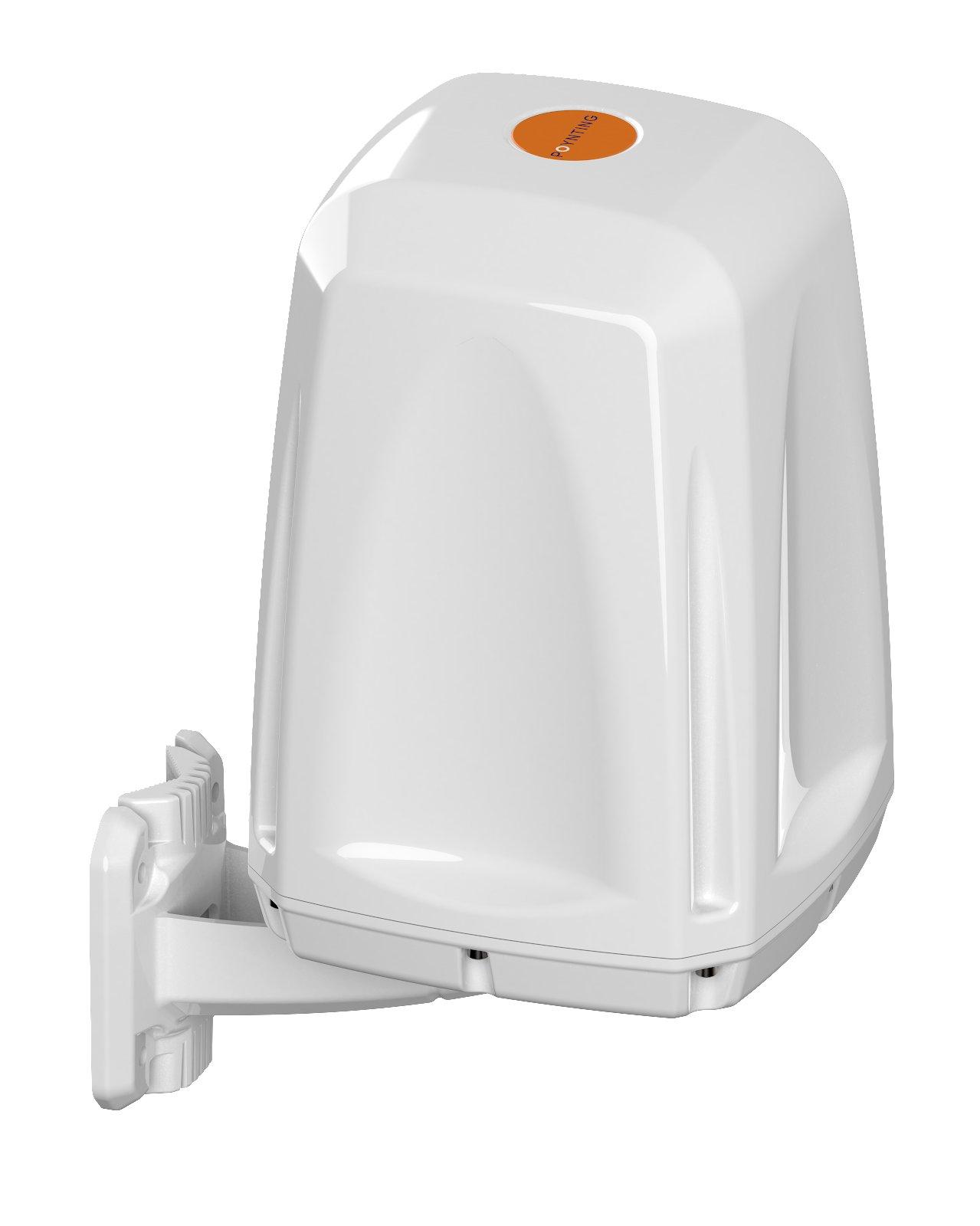

Poynting EPNT-4 V1-17 X-Polarised Omni 5G LTE WiFi CPE Antenna
Part Number: EPNT-4-17
4 In Stock
Want it by Monday 14th October? Order within 1 day 4 hours 22 minutes and choose DPD Next Working Day delivery at checkout.
Bulk Pricing
1+
£276.49
5+
£244.71
10+
£212.93
The Poynting EPNT-4-V1-17 is an X-Polarised, omni-directional, customer-premises equipment (CPE). The V1-17 version features 4x4 MIMO and 7 ports, for LTE, Wi-Fi and GPS.
Description
The EPNT-4 offers a variety of antennas in one package, such as 4x4 5G/LTE MIMO, 2x2 Wi-Fi MIMO, as well as an additional GPS antenna. The cellular 5G/LTE antennas are wideband and operate from 617 to 4200 MHz, covering the major 5G/LTE bands with excellent gain across all frequencies, enhancing the 5G performance features, such as multi carrier aggregation (CA) for communication. While the Wi-Fi antennas offer dual band operation and cover the 2.4 GHz and 5 to 7.2 GHz Wi-Fi bands with a peak gain of 5 dBi. In addition, the antenna elements within the enclosure are cross-polarised, further improving the overall performance of the antenna. The combination of our cellular and Wi-Fi antennas, with a router will deliver a CPE with exceptional performance along with increased data throughput.
Key Highlights
- Wideband cellular coverage from 617 to 4200 MHz, with up to 4x4 MIMO/li>
- 2x2 MIMO dual-band Wi-Fi at 2.4 & 5 to 7.2 GHz/li>
- Cleverly designed decorrelated antennas give superior MIMO performance in both cellular and Wi-Fi bands/li>
- Includes high-performance GPS/GLONASS antenna/li>
- Precise mechanical design provides ruggedness, water, and dust resistance (IP67)/li>
- Wall, pole, and surface mountable
What’s in the box?
- EPNT-4-0004-V1-17
- Quick start guide
- Wall knock in screws x4
- 3mm allen key x1
- 5mm allen key x1
- pipe clamp x2
- surface mount gasket x1
- M6 x 90mm U-bolts x2
- PCB mounting screws x4
- cable ties x4
- M6 nyloc and standard stainless steel nuts x4 (of each)
- M6 flat washers x4
Documents
Brochure:Poynting EPNT-4 Series Datasheet
