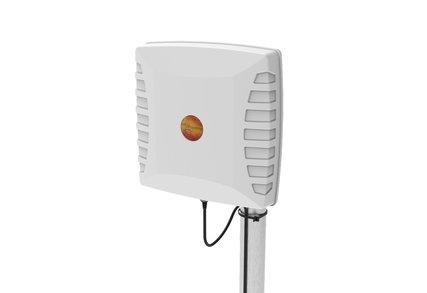

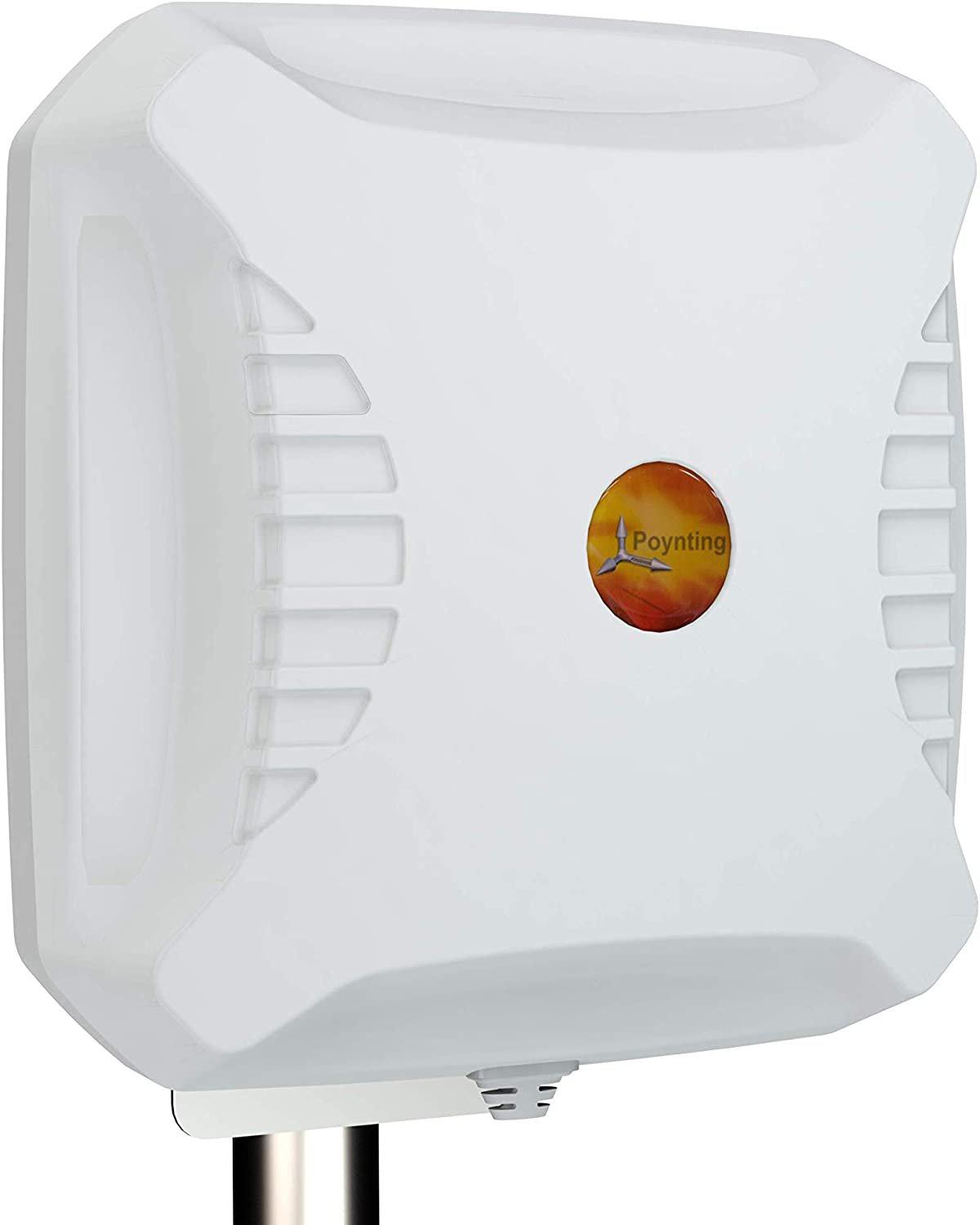

Poynting XPOL-2-5G-V3-02 Directional Cross Polarised LTE MIMO Antenna
Part Number: XPOL-2-5G-V3-02
23 In Stock
Want it by tomorrow? Order within 5 hours for next business day delivery.
Bulk Pricing
1+
£135.49
5+
£131.28
10+
£129.18
Poynting's XPOL-2-5G Directional LTE MIMO Antenna is a third generation “V3” of the very popular XPOL antennas. XPOL-2-5G's enclosure looks the same as the "V2" generation's XPOL-2, but has been completely redesigned on the inside. The V3-02 version of the XPOL-2-5G features a N-Type (F) connector and does not come with factory-mounted cable.
Description
The XPOL-2-5G antenna includes newer 3400 - 3800 MHz bands, which were not previously covered by the "V2" XPOL-2 antenna. This updated antenna version is suitable for 2G, 3G, 4G as well as 5G. XPOL-2-5G will perform well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands.
Please note: the XPOL-2-5G (V3) does not support Three's new 4G frequency band, whereas the XPOL-2 V2 does.
Product Dimensions (L x W x D): 255mm x 255 mm x 80 mm
Key Highlights
- 2-3dB higher over all the bands compared to XPOL-2
- New 3400MHz-3800MHz, 5G band with 11dBi gain
- Broadband, including the latest 3.5GHz bands
- X-Polarised 2x2 MIMO Antenna
- Wall or pole mountable
- Lightweight & Rugged
- Weatherproof & waterproof (IP65)
- High pattern consistency across bands for 4G/5G carrier aggregation
- Connector Type: N-Type (F)
- Coax cable type: N/A
- Coax cable length: N/A
What’s in the box?
- A-XPOL-0002-V3-01
- User Guide
- Z-shaped mounting bracket
- Z-shaped mounting bracket
- 4 x M6x12mm Bolts
- 2 x M6 Nuts
- 1 x bracket backing plate
- 6 x M6 Washers
- 1 x Econo Bracket
- 1 x U-bolt
Documents
Data Sheet:Poynting XPOL-2-5G Series Datasheet
