Poynting XPOL-2-5G V3 Directional Cross Polarised LTE MIMO Antenna

Part Number: XPOL-2-5G

Poynting XPOL-2-5G Antenna Front Angle

Hover to zoom

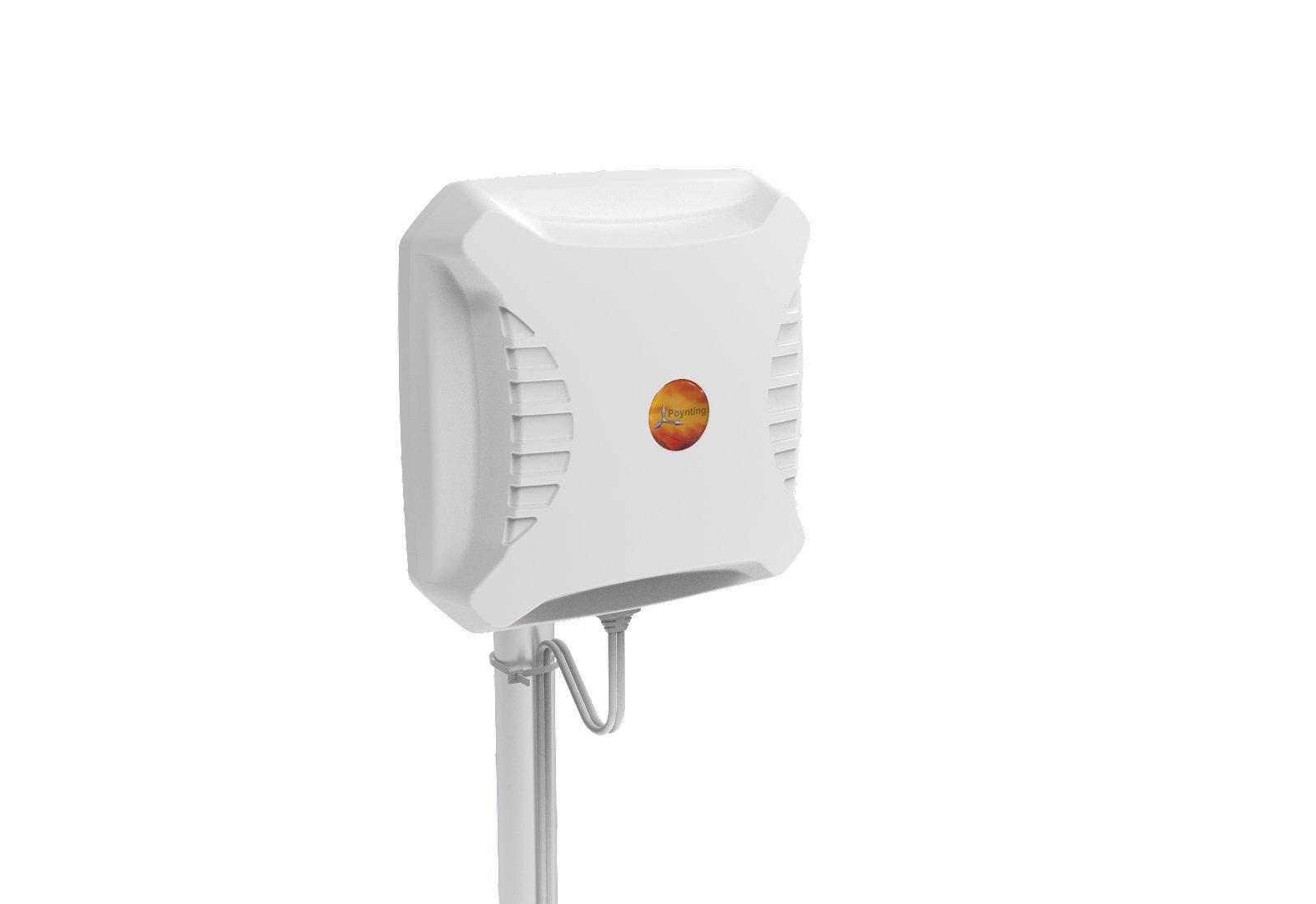

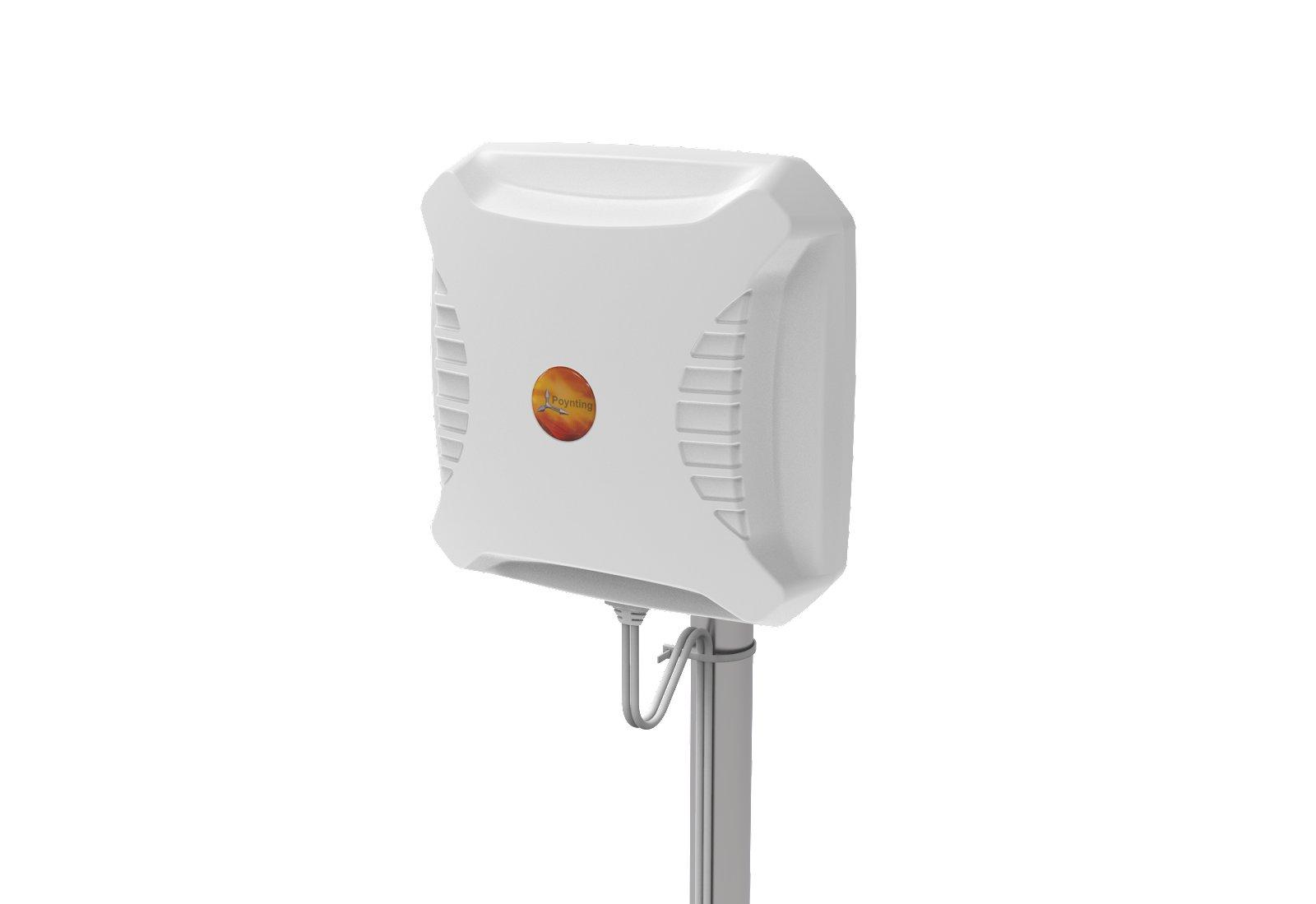

Poynting XPOL-2-5G Antenna Front Angle

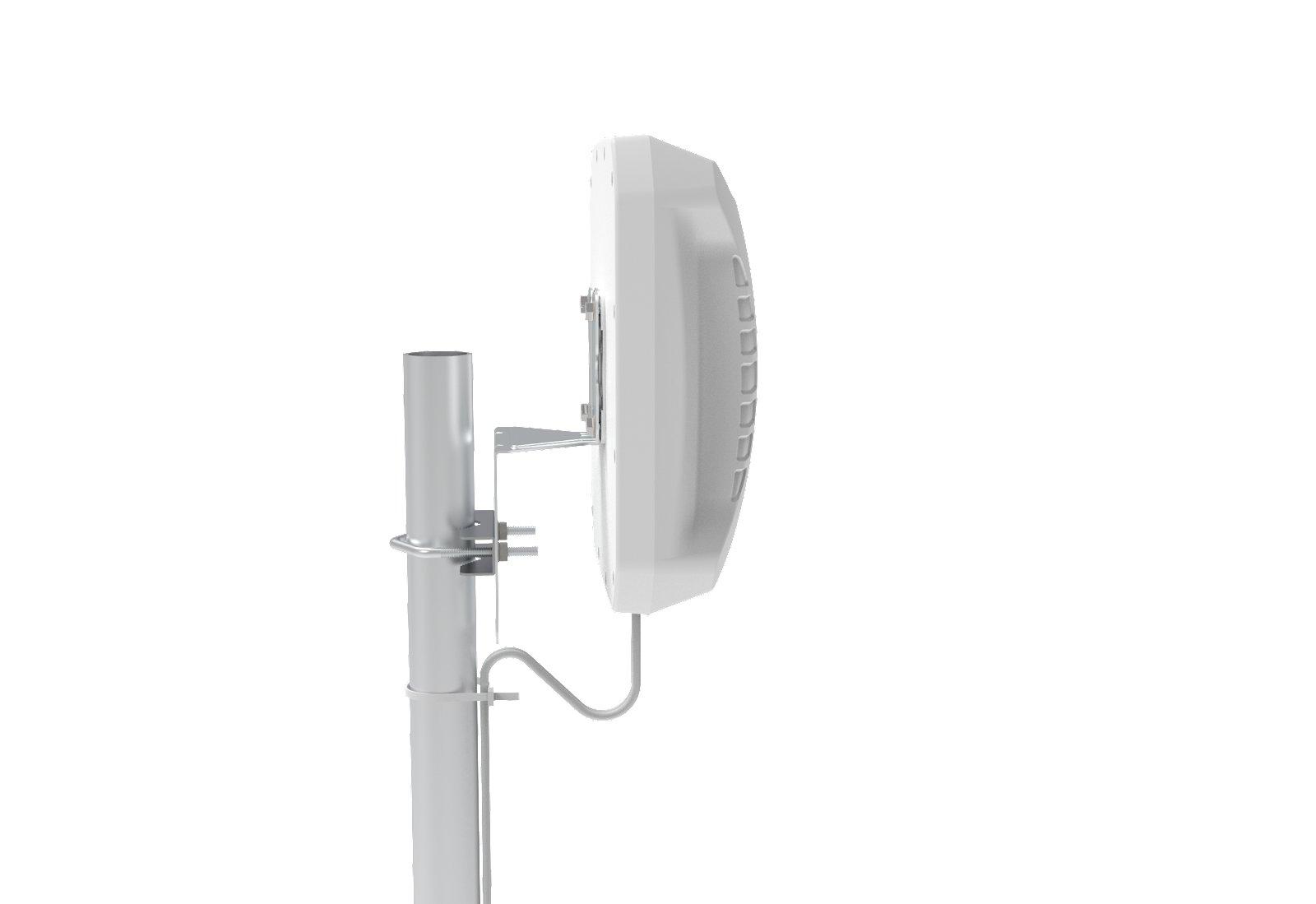

Poynting XPOL-2-5G Antenna Side View

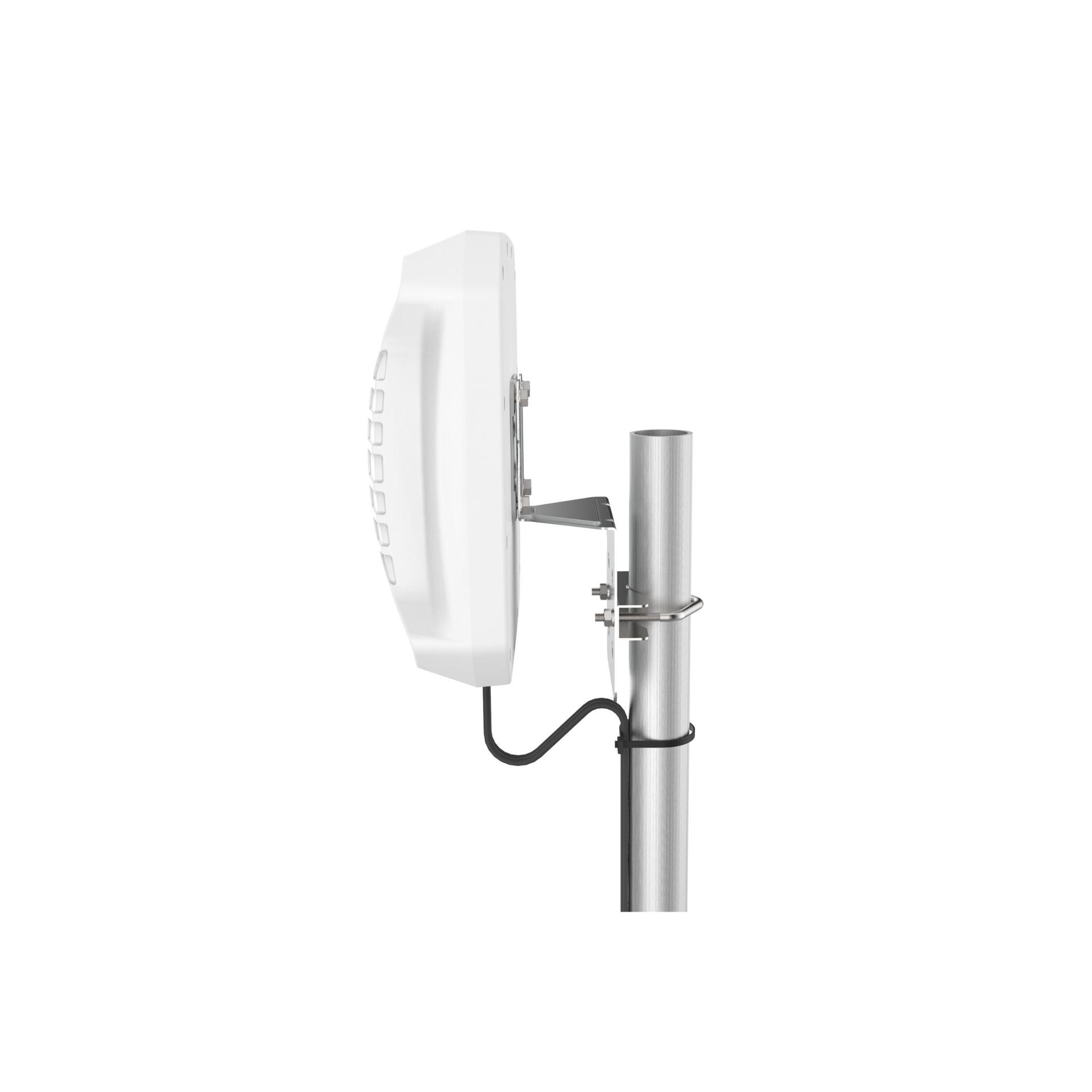

Poynting XPOL-2-5G Antenna Side Angle

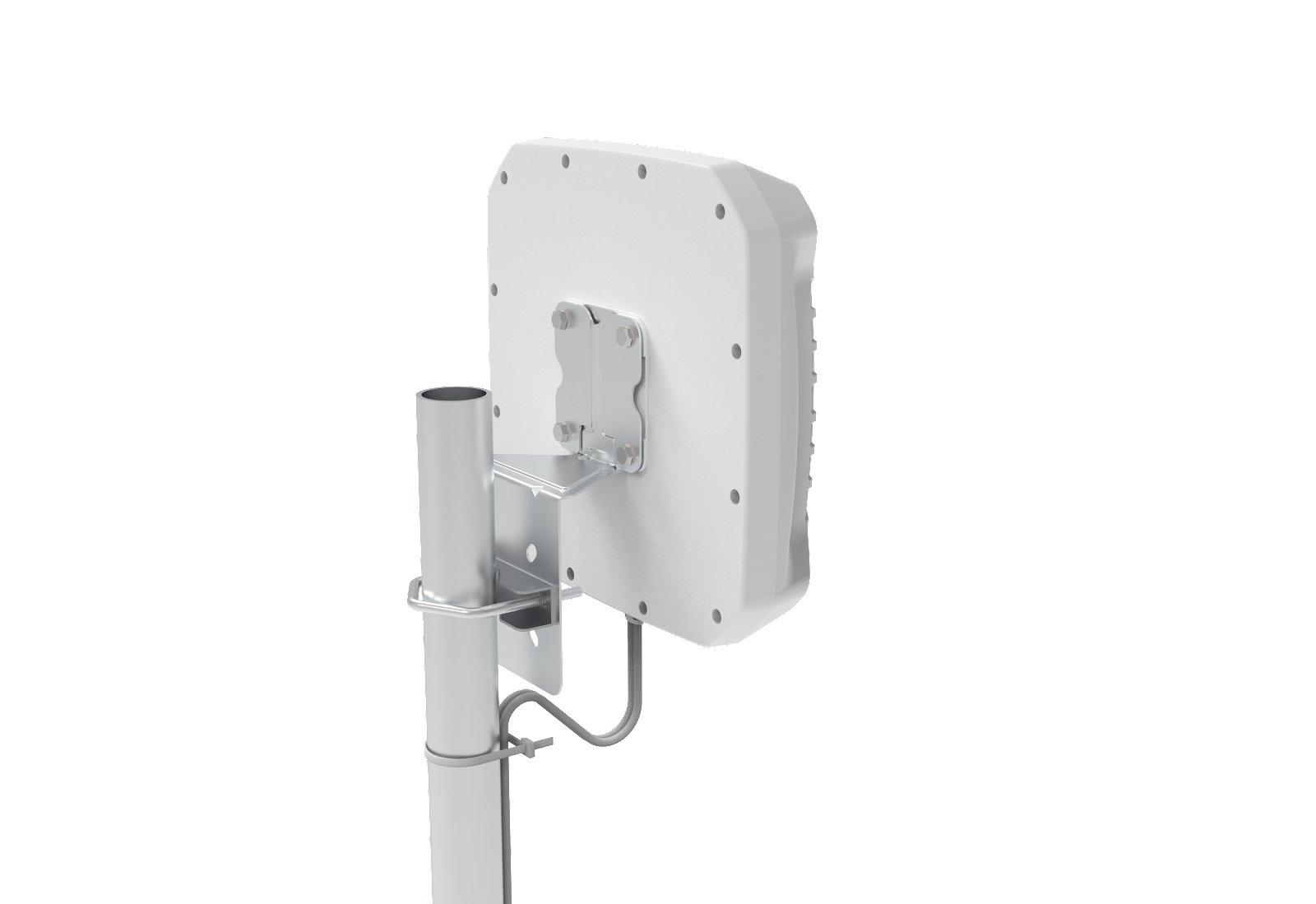

Poynting XPOL-2-5G Antenna Back View

Poynting XPOL-2-5G V3 Directional Cross Polarised LTE MIMO Antenna

Part Number: XPOL-2-5G

Poynting's XPOL-2-5G Directional LTE MIMO Antenna is a third generation “V3” of the very popular XPOL antennas. XPOL-2-5G's enclosure looks the same as the "V2" generation's XPOL-2, but has been completely redesigned on the inside.

In stock

20 Available

£220.99inc VAT

Want it by Monday 12th December? Order within 1 day 15 hours 24 minutes and choose DPD Next Working Day delivery at checkout.

Qty

Shipping from £4.79

Free Returns (Ts&Cs apply)

Price Breaks

  • 1 =

    £220.99

  • 5+ =

    £216.67

  • 10+ =

    £212.36

More Information - Poynting XPOL-2-5G Antenna

The XPOL-2-5G antenna includes newer 3400 - 3800 MHz bands, which were not previously covered by the "V2" XPOL-2 antenna. This updated antenna version is suitable for 2G, 3G, 4G as well as 5G. XPOL-2-5G will perform well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands.

For further information about whether the XPOL-1 or XPOL-2 is best for you, read our FAQ!

Product Dimensions (L x W x D): 255mm x 255 mm x 80 mm

XPOL-2-5G Key Highlights

  • 2-3dB higher over all the bands compared to XPOL-2
  • New 3400MHz-3800MHz, 5G band with 11dBi gain
  • Frequency Bands: 698-960 MHz; 1710-2700 MHz; 3400-3800 MHz
  • Broadband, including the latest 3.5GHz bands
  • X-Polarised 2x2 MIMO Antenna
  • Wall or pole mountable
  • Lightweight & Rugged
  • Weatherproof & waterproof (IP65)
  • High pattern consistency across bands for 4G/5G carrier aggregation

Application Areas

  • 5m of factory mounted SMA cable
  • Outdoor antenna for Fixed Wireless Access (FWA)
  • Consumer LTE/5G internet connectivity
  • Industrial & Commercial LTE/5G deployments
  • Urban and rural household reception enhancement
  • Agricultural & Farming LTE/5G data distribution
  • Power, Energy & Water telemetry access
  • Oil & Gas communication systems
  • Municipal & Government systems
  • Repeaters & coverage enhancement amplifiers

What's in the Box?

  • A-XPOL-0002-V3-01
  • Z-shaped Mounting Bracket
  • Coax Cable included
