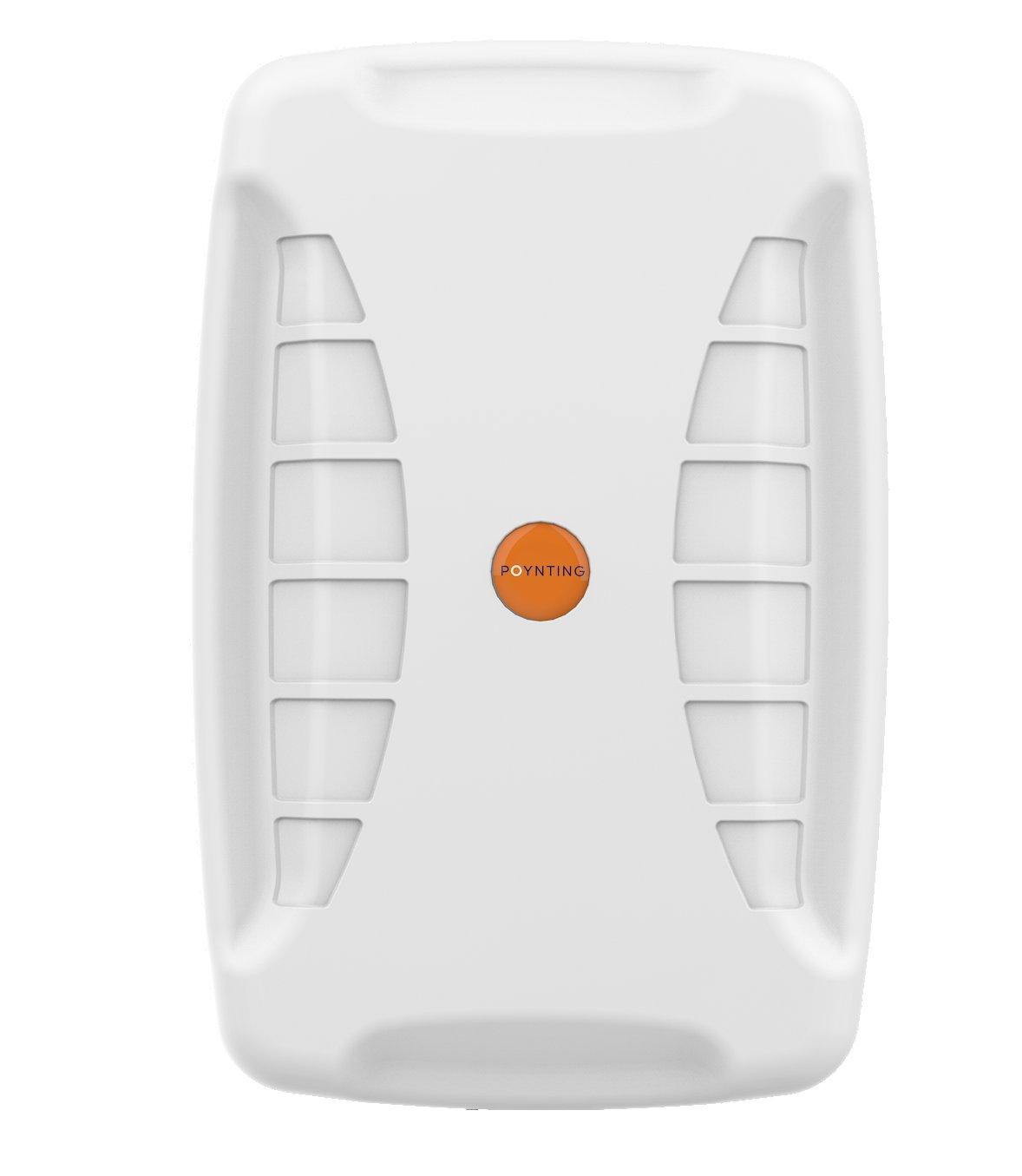

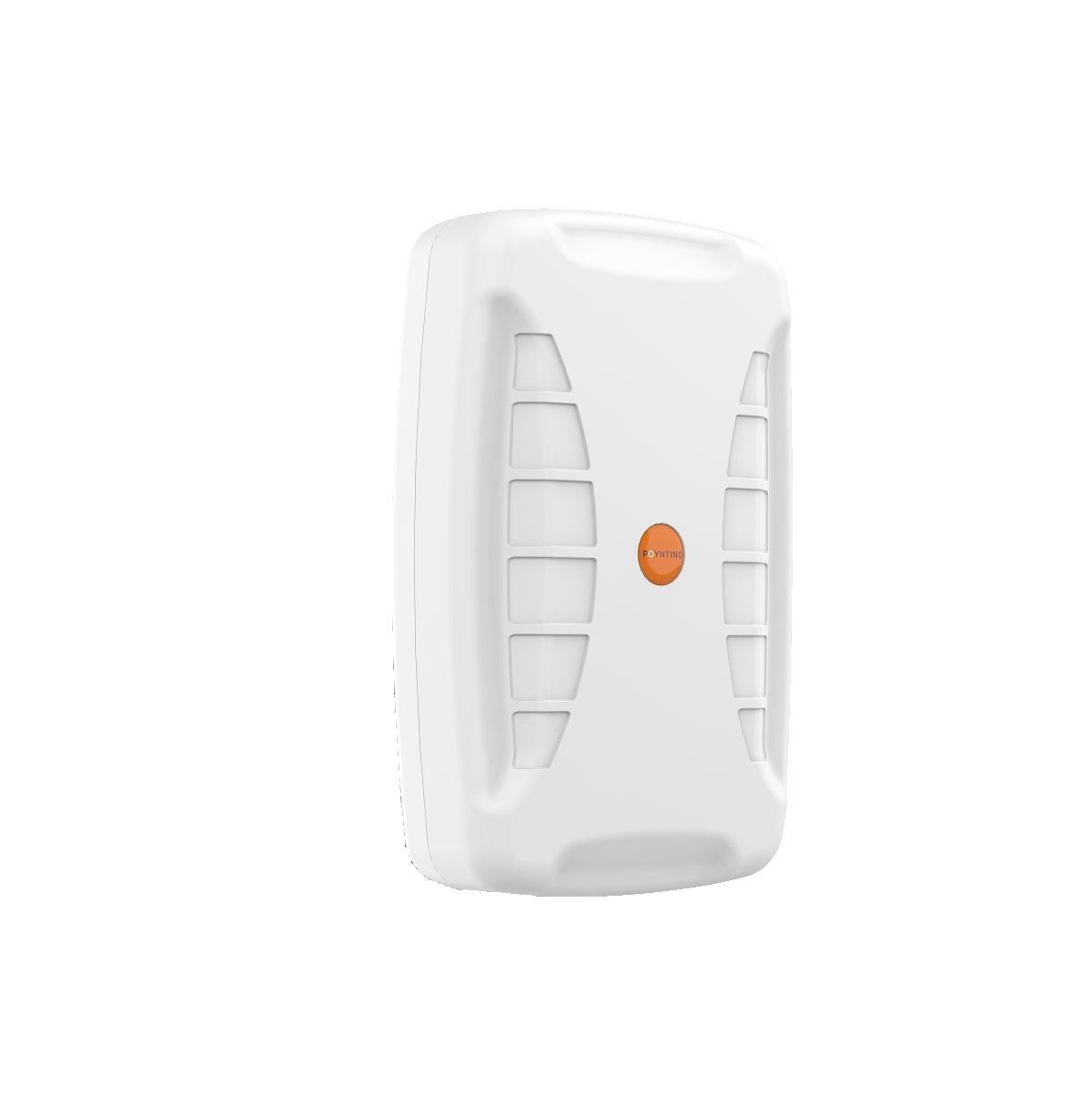

Poynting XPOL-24 Uni-Directional 5G/LTE Antenna (without cable)
Part Number: XPOL-24-V1-02
1 In Stock
Want it by tomorrow? Order within 3 hours 30 minutes for next business day delivery.
Bulk Pricing
1+
£345.49
5+
£309.40
10+
£273.30
The XPOL-24 expands Poynting’s very popular Cross Polarised (XPOL) antenna range. The XPOL-24 is their first ever uni-directional 4x4 MIMO 5G/LTE bands with exceptional performance. This is due to the incorporation of advanced meta material technology, making use of an Artificial Magnetic Conductor (AMC) and new registered/patent configuration, which has proven to yield exceptional improvements in bandwidth and gain. The radiation patterns of this antenna are exceptionally well controlled, which further adds to exceptional performance of the antenna.
Description
The XPOL-24 offers wide-band frequency coverage from 617 to 4200 MHz, with a peak gain of 11dBi across the bands of operation. The antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz.
The exceptional wide-band performance is an important factor for 5G/LTE technologies, as these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously. This makes the XPOL-24 the go to solution for current and future 5G/LTE antenna deployments.
Key Highlights
- X-Polarised 4x4 MIMO for current and future technologies
- Wideband coverage with exceptional performance
- Operates from 617 to 4200 MHz with 11dBi gain
- Consistent broadband performance
- Various mounting options for ease of installation (Wall or pole)
- Weatherproof & waterproof (IP65)
- Connector Type: N-Type (F)
What’s in the box?
- 1 x Allen Key
- 4 x M6 nuts
- 1 x UBolt
- User guide
- 4 x M6 x 12mm bolts
- 4 x Wall Knock-in Screws
- BRKT-062 Bracket
- 4 x M6 washers
- XPOL-24 Antenna
