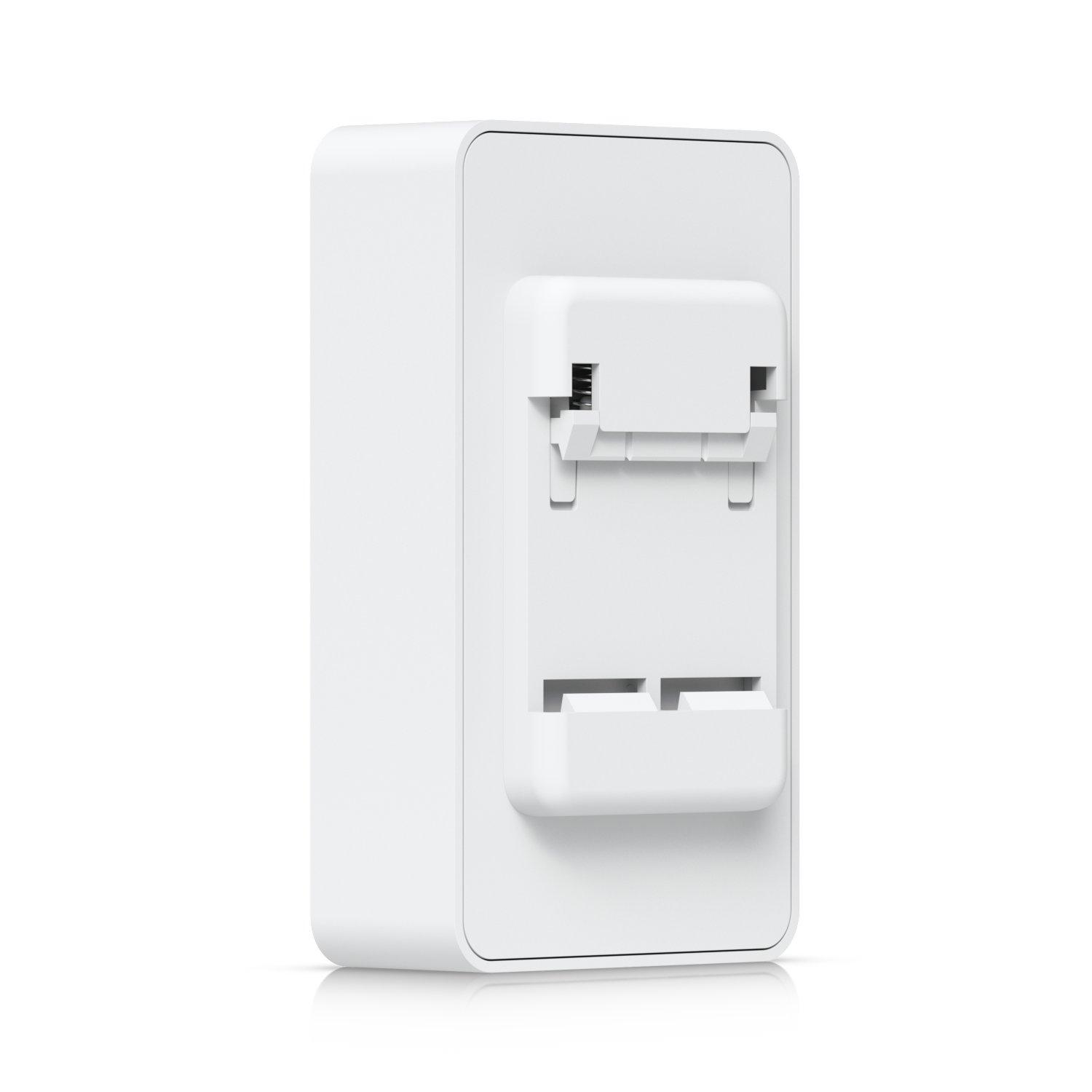

Ubiquiti UniFi Mini IP Door Access Hub (UA-HUB-DOOR-MINI)
Part Number: UA-HUB-DOOR-MINI
Out of stock
This product is out of stock. Please call on 0330 043 3000 to confirm availability.
Bulk Pricing
1+
£116.99
5+
£113.32
10+
£109.65
Ubiquiti's UA Hub Door Mini is a compact, single-door access control hub designed for seamless integration with the UniFi Access system. Supporting up to 3,000 users, this DIN-rail mountable device features GbE connectivity, PoE++ input, and dual PoE+ outputs to power readers, making it an efficient solution for modern indoor security setups.
Description
The Door Hub Mini (UA-Hub-Door-Mini) is an ultra-compact, indoor access control hub designed to manage a single door within a UniFi Access network. Capable of supporting up to 3,000 users, this highly efficient device is ideal for businesses looking to streamline their physical security infrastructure without sacrificing performance.

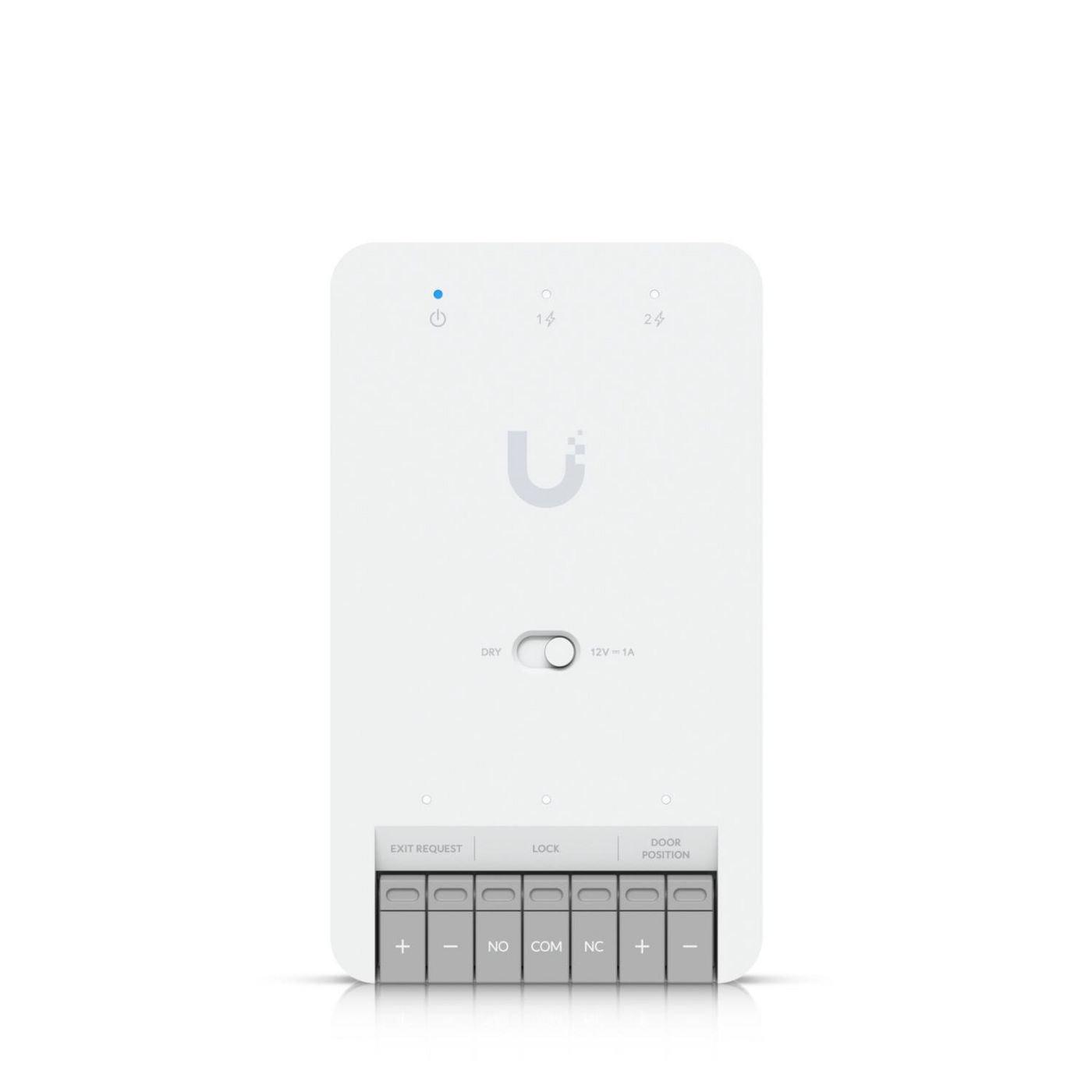

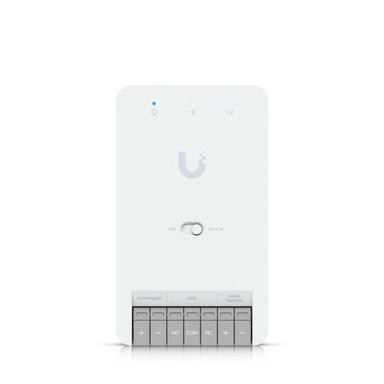

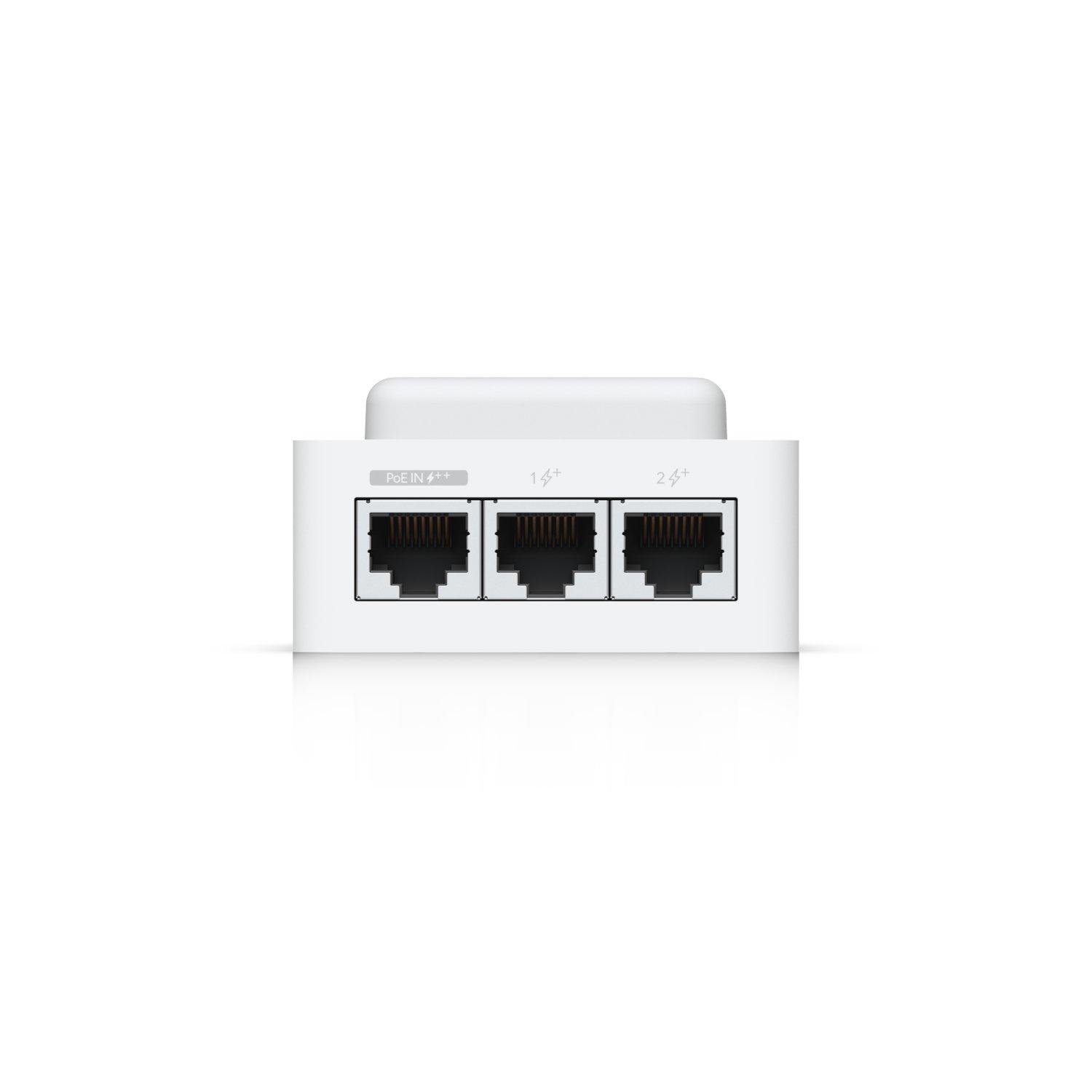

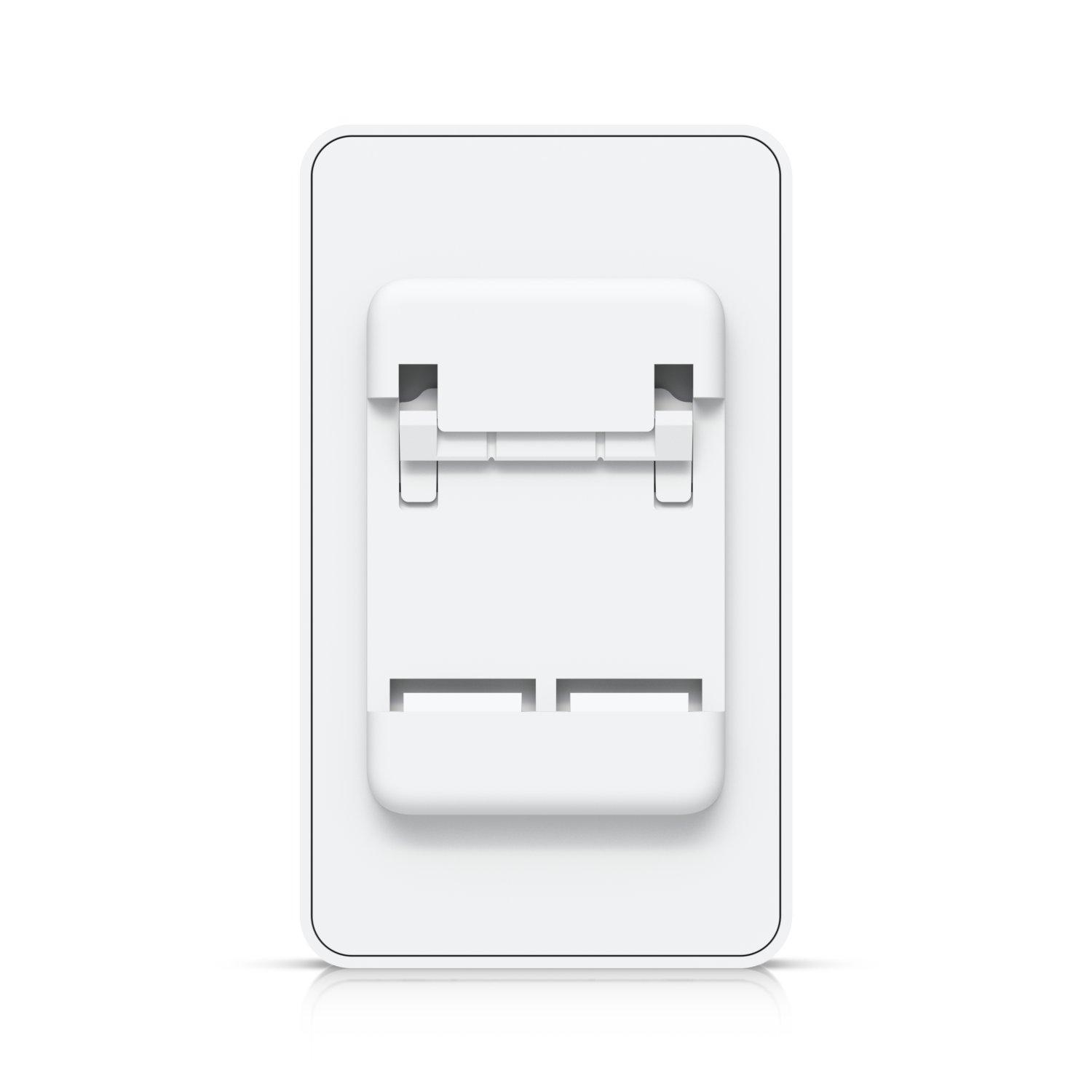

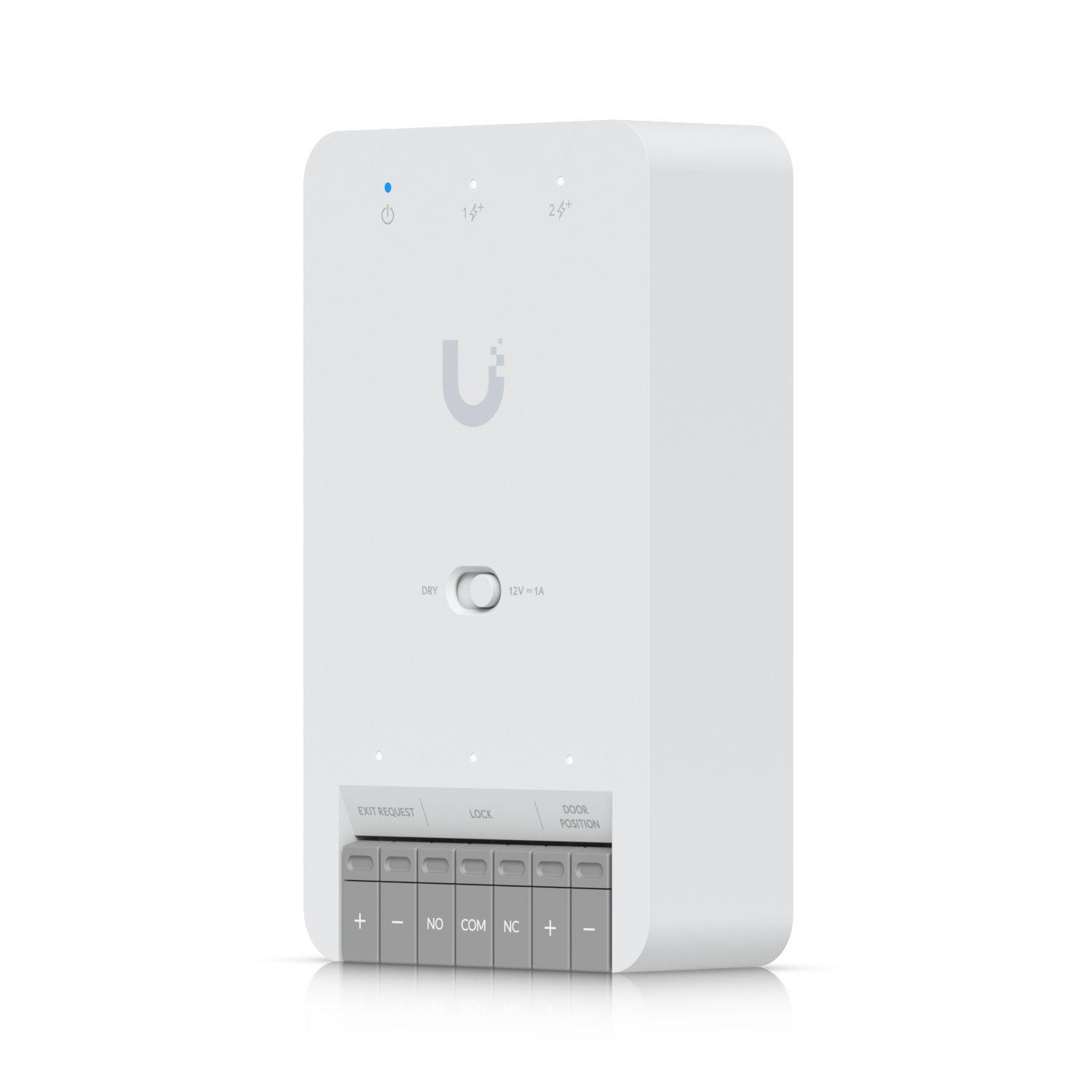

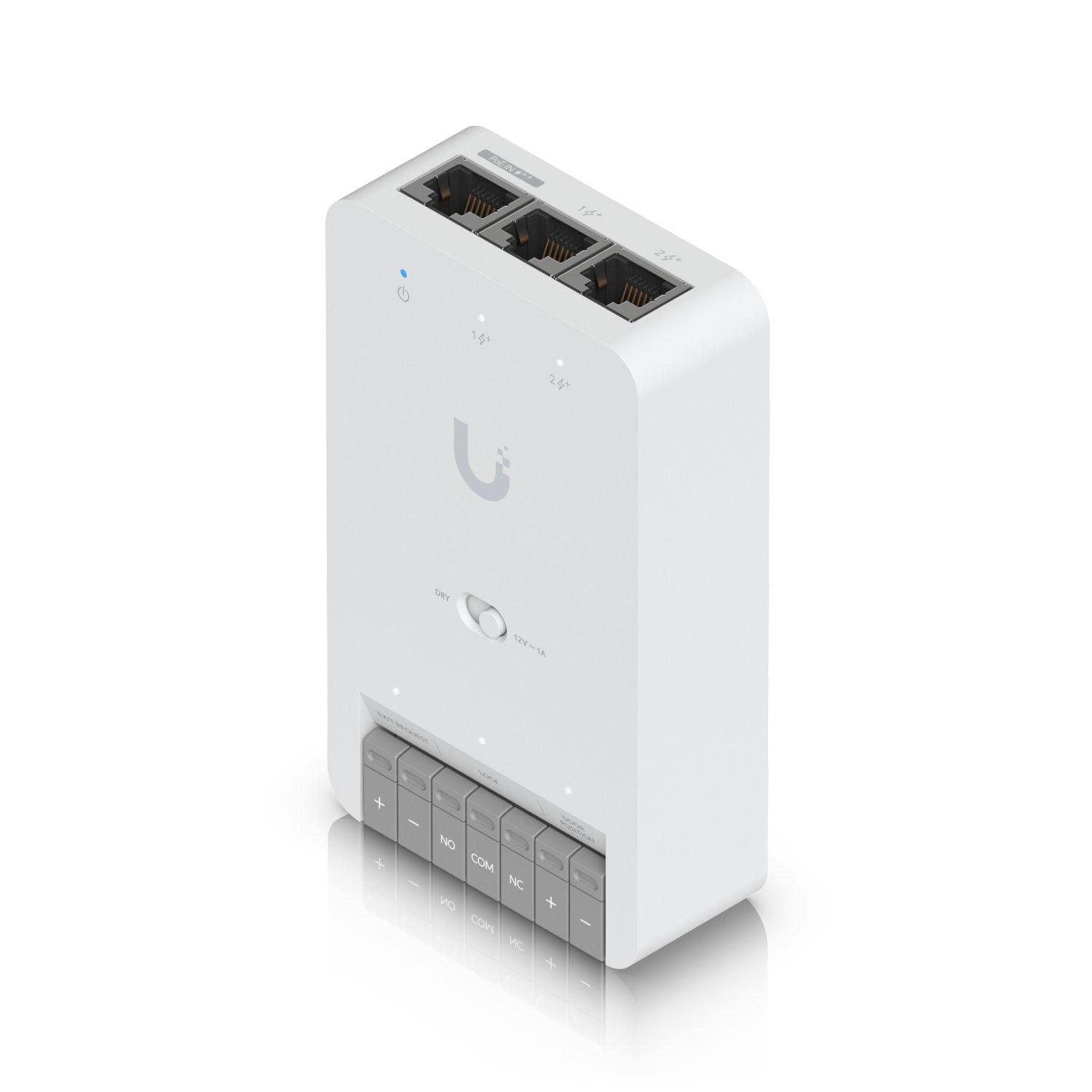

Equipped with three Gigabit Ethernet RJ45 ports, the hub features a PoE++ input and two PoE+ outputs to power connected door readers. It includes dedicated input terminals for an exit request button and a door position sensor, alongside a switchable 12V dry/wet lock terminal. Designed for easy installation, the unit comes with a DIN rail mount and features a lightweight polycarbonate and metal enclosure. It is managed via the UniFi Access application, ensuring centralised control and easy configuration.
Key Highlights
- Supports 1 door and up to 3,000 users
- Three Gigabit Ethernet RJ45 ports
- PoE++ input with dual PoE+ outputs
- Switchable 12V dry/wet lock terminal
- Dedicated exit request and door position inputs
- Compact DIN rail mountable design
- UL 294 compliant for safety and security
What’s in the box?
- 1 x Mounting Kit
- 1 x UA-HUB-DOOR-MINI
- 1 x Installation Guide
