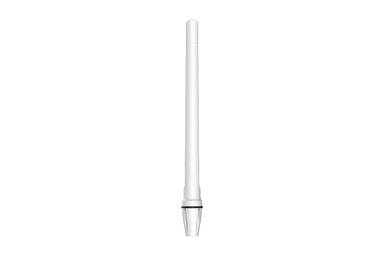

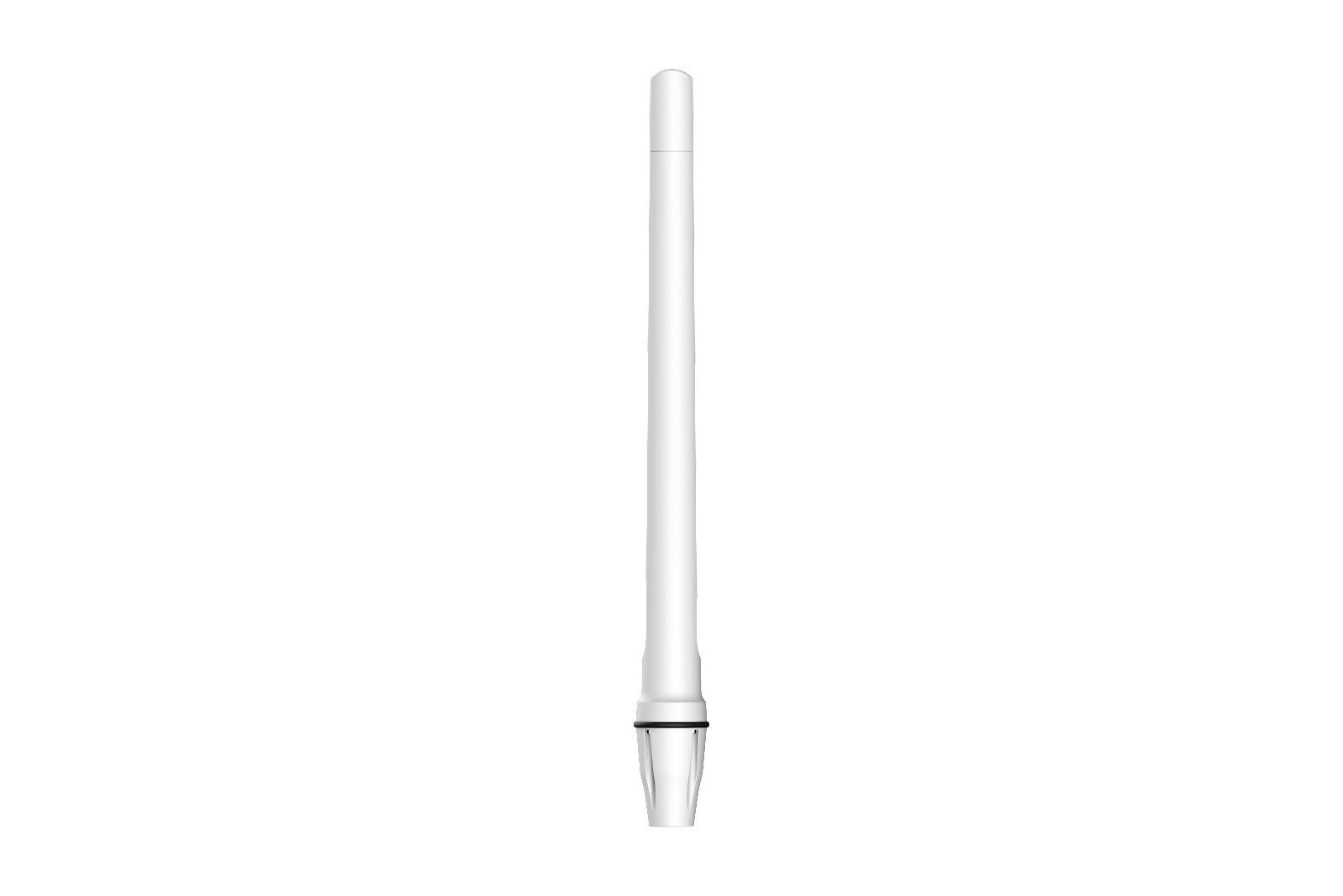

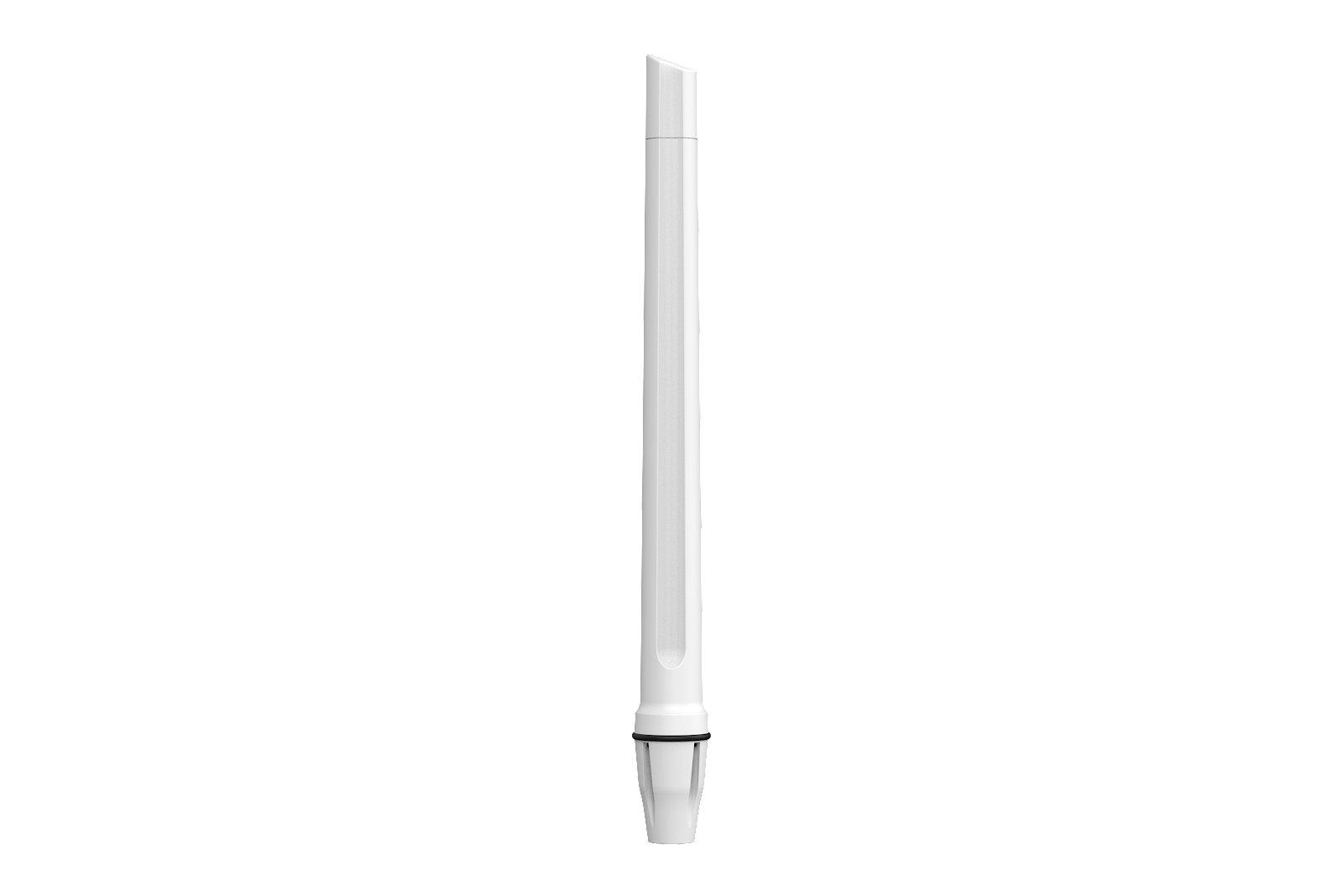

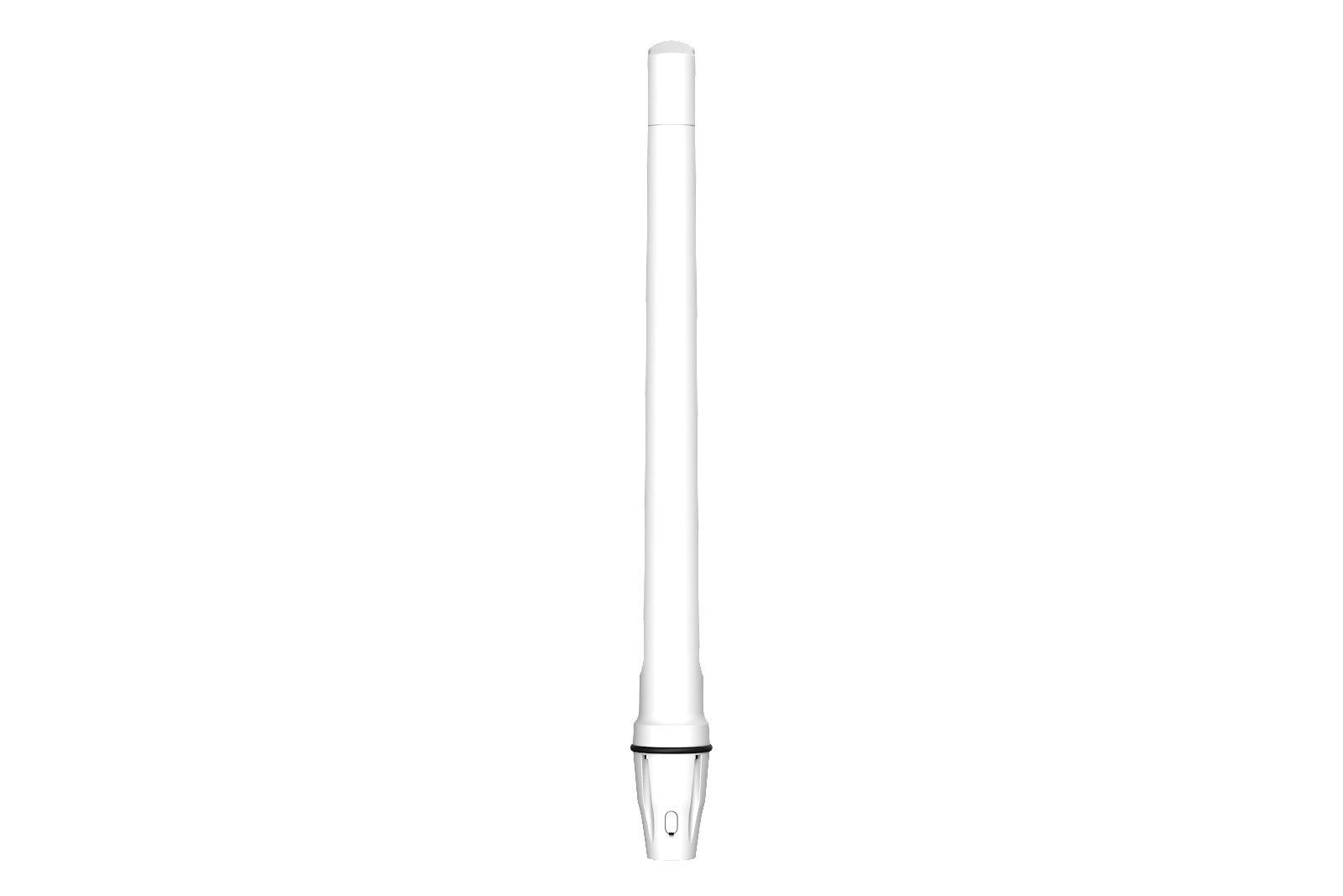

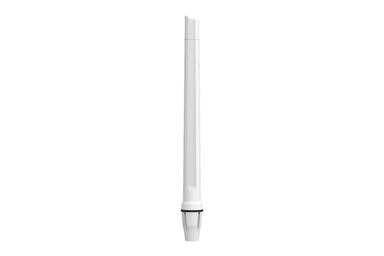

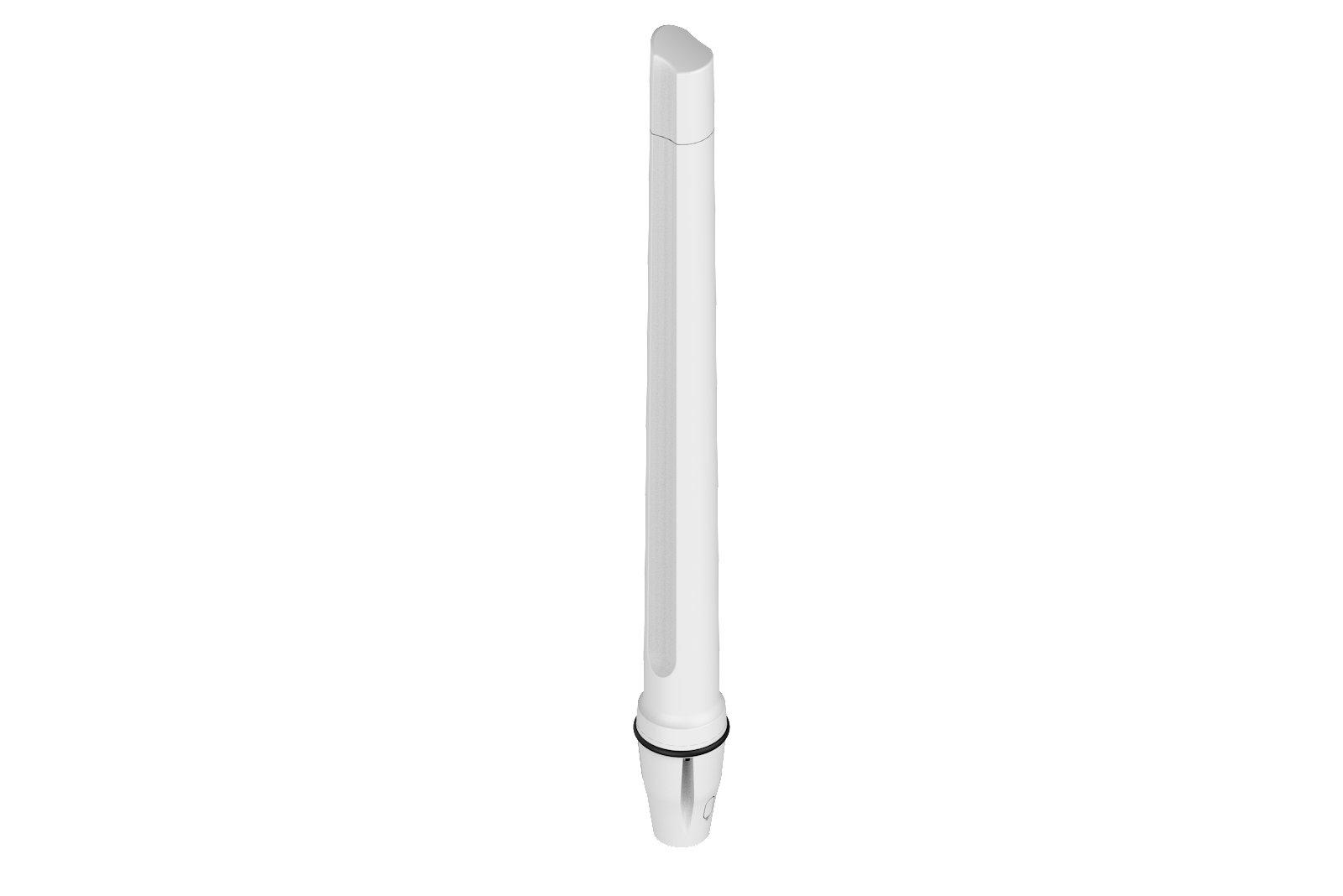

Poynting OMNI-402 Omni-Directional MIMO Marine Antenna
Part Number: OMNI-402
1 In Stock
Want it by Monday 9th June? Order within 1 day 3 hours 1 minute and choose DPD Next Working Day delivery at checkout.
Bulk Pricing
1+
£303.99
5+
£295.42
10+
£291.13
Poynting's OMNI-402 is an ultra-wide band antenna that covers all contemporary LTE operating frequencies with balanced gain across all frequencies, while providing 2x2 MIMO capability from its vertically separated radiating elements, all in the same radome. The antenna design allows the antenna to have superior pattern control over the entire frequency range, making the OMNI-402 a true high performance omni-directional MIMO antenna, suitable for marine and coastal applications.
Description
The OMNI-402 is future proof as it covers the 450 MHz LTE frequency band.
OMNI-402 dimensions: 648 mm x 45 mm x 48 mm
Key Highlights
- 5G Ready; includes 3.2GHz - 3.8GHz CBRS Band
- 2x2 MIMO Marine Quality High-Performance Omni-Directional Antenna
- Easy mounting with feed through 1-inch marine standard adapter bracket (included)
- Robust and All-weather proof for harsh conditions at sea
- UV and Saltwater protected against tempestuous weather conditions
- Protected against water and dust ingress (IP68)
- Max Gain: 6.2 dBi
- Wideband - Frequency Bands: 410 - 470 MHz | 690 - 960 MHz | 1710 - 2170 MHz | 2300 - 2700 MHz
- 2.4 - 2.5 GHz band can be used as Wi-Fi antenna
- Factory Mounted 2m Coax Cable
- Factory Mounted Connector Type: 2 x SMA (male)
- Please note - the OMNI-402 comes with a Marine Adapter (1'' -14 TPI) & L-bracket as standard. It also supports mounting to the following brackets which are sold separately: *|URL:BRKT-37|* (flat mount), *|URL:BRKT-38|* (ratchet mount), *|URL:BRKT-39|* (rail mount)
What’s in the box?
- A-OMNI-0402-V1-01
- Marine Adapter Mount (1" - 14 TPI)
- L Bracket Mount (ø30-50mm Pole)
