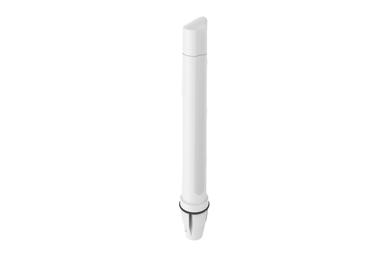

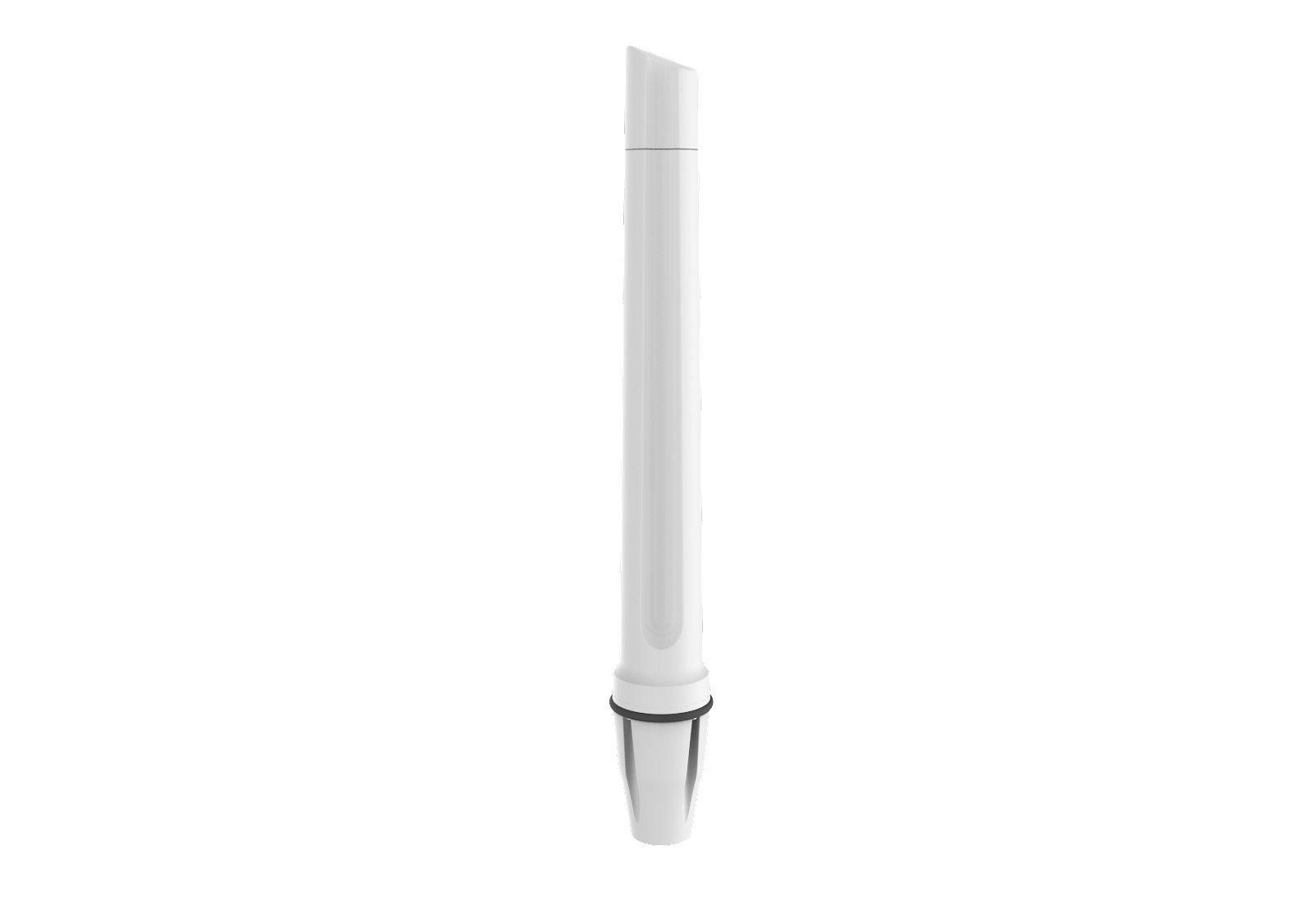

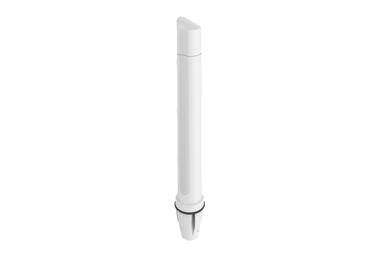

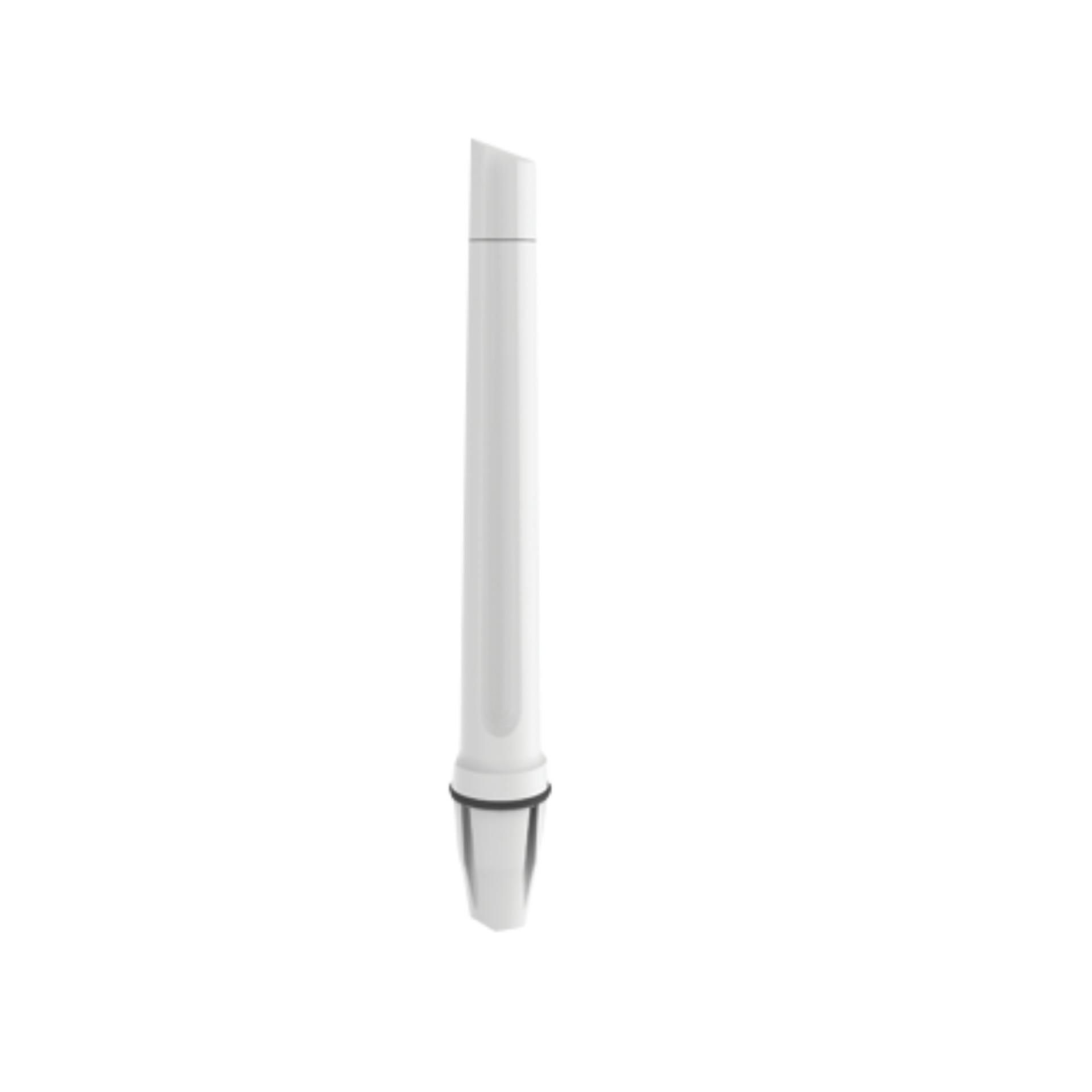

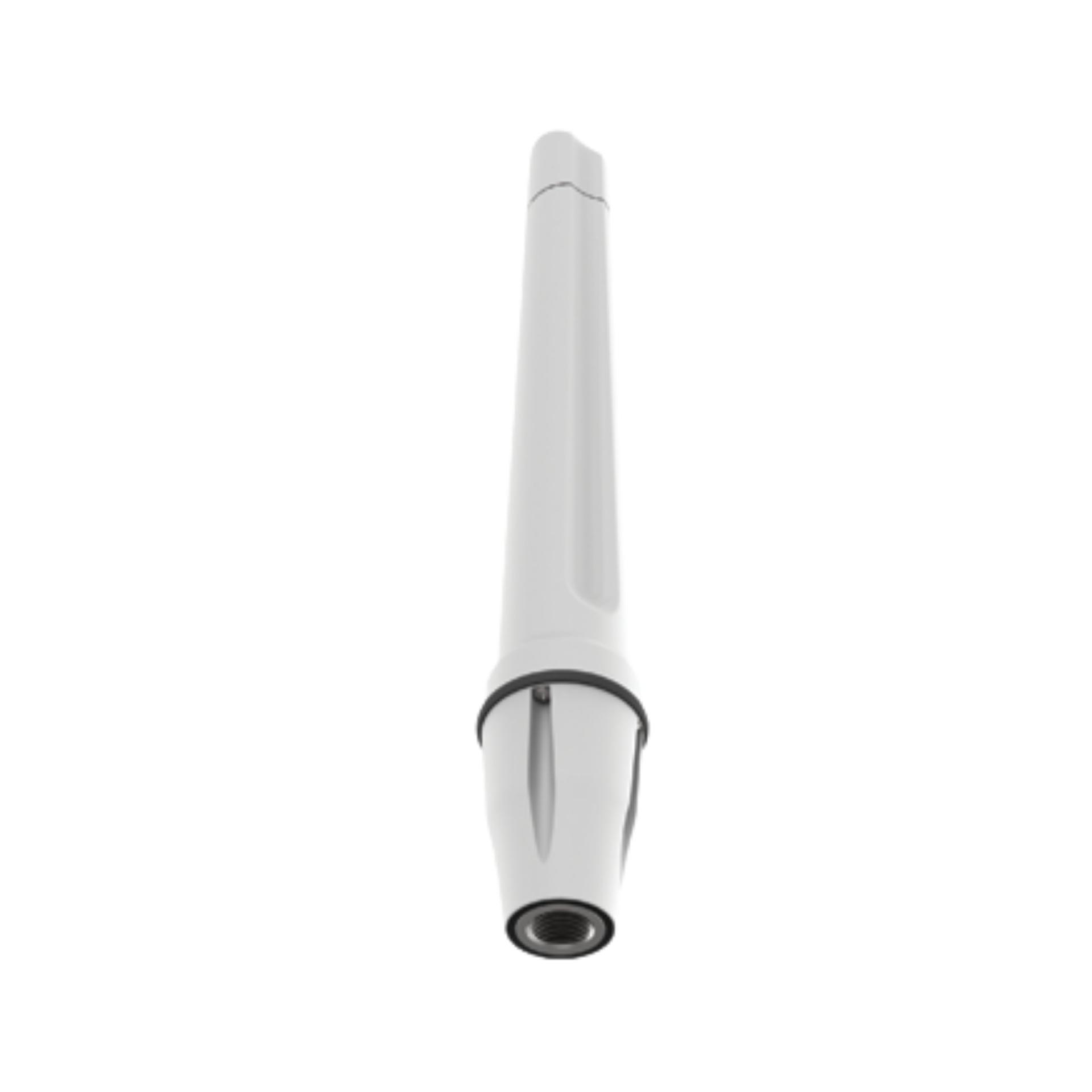

Poynting OMNI-291-V2 Ultra-Wide Omni-Directional LTE and WiFi Antenna
Part Number: OMNI-291-V2
4 In Stock
Want it by tomorrow? Order within 8 hours 1 minute and choose Saturday Delivery at checkout for next day delivery.
Bulk Pricing
1+
£154.49
5+
£145.07
10+
£143.19
Poynting's OMNI-291 is a High-Performance Linear Marine and Coastal 450-2700 MHz Antenna which uses a standard 1-inch (14 TPI) marine mount for simplified installation to most marine attachments.
Description
The OMNI-291's ultra-wide frequency band covers all contemporary LTE operating frequencies with good and balanced gain across all frequencies, including the LTE and CDMA 450 MHz bands which are common requirements for marine applications.
Product dimensions: 453 mm x 40 mm x 46 mm
Key Highlights
- Ultra-Wideband
- Frequency Bands: 450 - 470 MHz | 690 - 960 MHz | 1710 - 2170 MHz | 2300 - 2700 MHz
- Medium gain antenna (Max: 7 dBi)
- Purpose-built for marine and coastal applications
- Lightweight
- UV and Salt-water resistant
- 2.4 - 2.5 GHz band can be used as Wi-Fi antenna
- Factory-Mounted Connector type: N-Type (Female)
- Please note - the OMNI-291 comes with a Marine Adapter (1'' -14 TPI) & L-bracket as standard. It also supports mounting to the following brackets which are sold separately: *|URL:BRKT-37|* (flat mount), *|URL:BRKT-38|* (ratchet mount), *|URL:BRKT-39|* (rail mount)
What’s in the box?
- Antenna: A-OMNI-0291-V2
- 1-inch Marine standard adapter bracket
Documents
Data Sheet:OMNI-291 Data Sheet
User Manual:OMNI-291-V2 - User Manual
EU DoC:OMNI-291-V2 - EU DoC
UK DoC:OMNI-291-V2 - UK DoC
