Poynting Vandal Resistant PUCK-12 Omni-Directional IOT/M2M Antenna

Poynting's PUCK-12 consists of a 2-in-1 antenna system within a single housing. It provides two separate dual-band WiFi antennas offering concurrent 2.4GHz and 5GHz bands, capable of 802.11n and 802.11ac/ax with 2x2 MIMO.

Price Breaks

1
= £57.19
inc VAT
5+
= £53.21
inc VAT
10+
= £49.24
inc VAT

Availability: Out of Stock

This product is out of stock. We do not have a restock date at this time.

Manufacturer Part Number: PUCK-12

Description
Documents

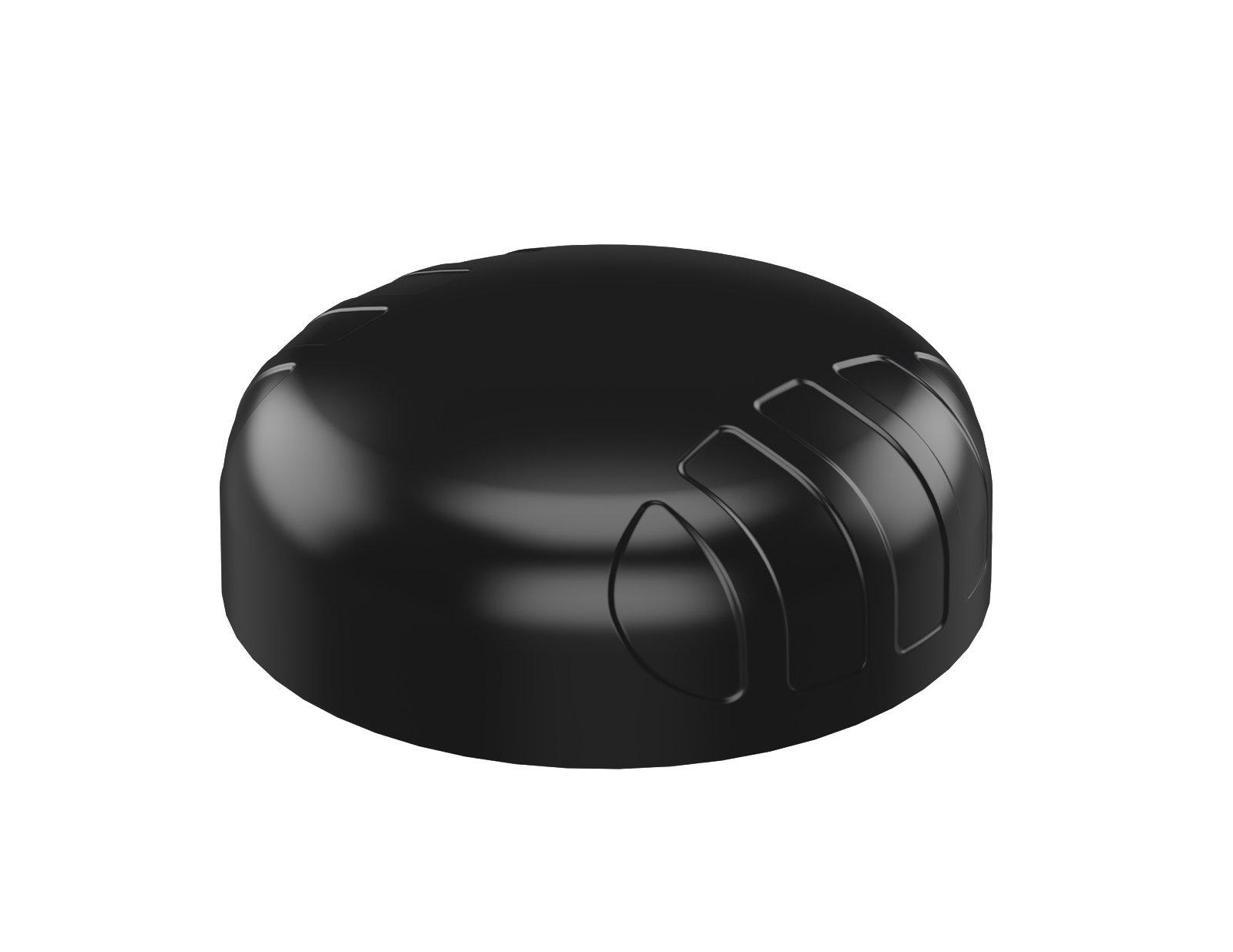

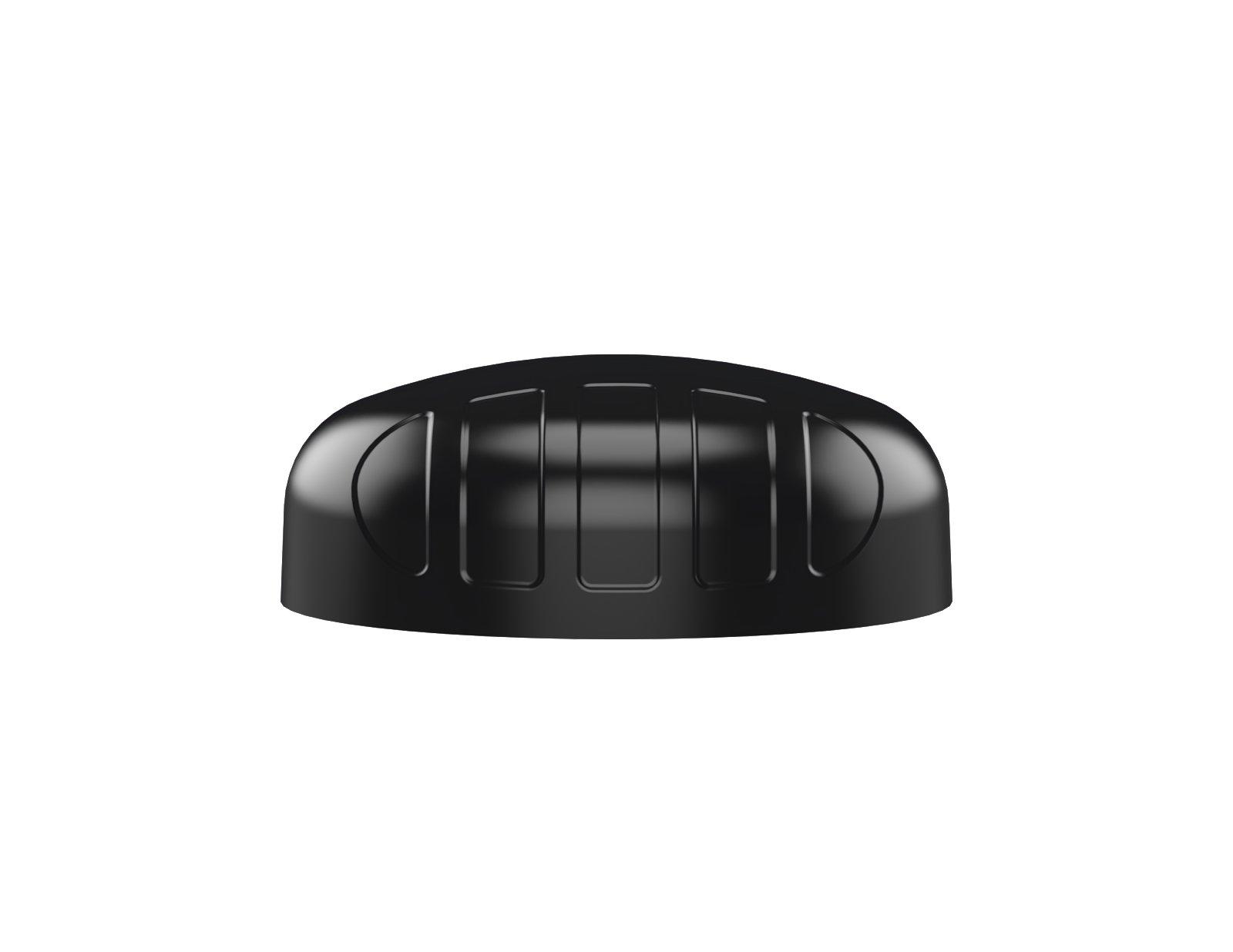

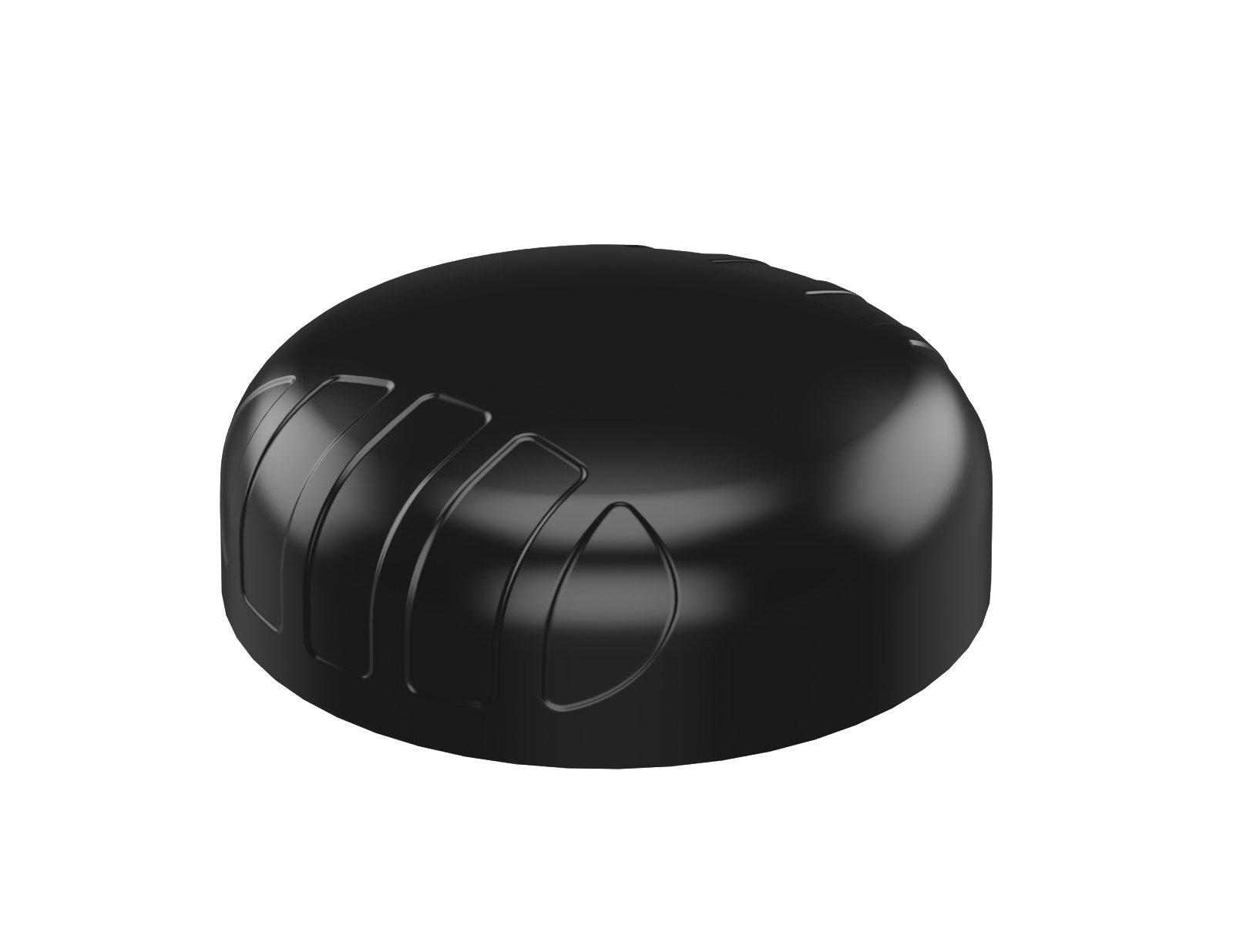

Poynting PUCK-12 Antenna

The PUCK-12's radiation patterns of all radiating elements provide a good balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This antenna gives great performance at the higher frequency bands.

For further information about using the PUCK-12 in marine settings, read our blog!

Product dimensions: Ø99.3 mm x h 36 mm

PUCK-12 Key Highlights

Industrial Omni-Directional Wi-Fi PUCK Antenna
Small and low-profile
2-in-1 IOT/M2M multi frequency
2X2 Dualband WiFi (MIMO)
2.4 & 5 GHz
Gain (Max): 7 dBi
SMA-RP
Ground plane independent - performs consistently with and without a ground plane
Robust, vandal resistant and water proof (IP68) antenna
Fire Resistant (complies with ECE-R 118.02)
UV stable enclosure
Versatile mounting options for easy installation
Mounting Type: Ø20 Threaded Spigot, Pole, Wall, Surface and Magnetic mount (not all included - see 'What's in the Box?' section below)

Application Areas

Smart Utilities: Smart Power, Gas & Water Metering
Smart Buildings: Climate control, access control, security, irrigation
Digital Signage
Warehouses & Logistic systems
Industrial factory automation, robotic machinery and other M2M systems
Transport (Busses, Utility & Public Safety)
Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)
Agricultural machinery
Marine: small boats, yachts near to coastlines or inner waters

What's in the Box?

Poynting A-PUCK-0012-V1-01 Antenna

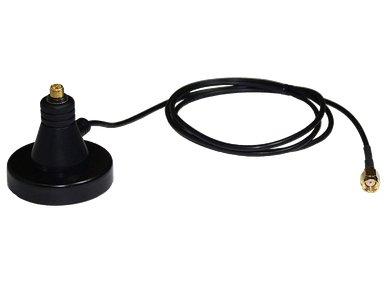

Mounting brackets: Ø20 Threaded Spigots (Up to 60mm clamping thickness) with Surface and Magnetic mounts
Adapters: 2x RPSMA(m) To SMA (f)
