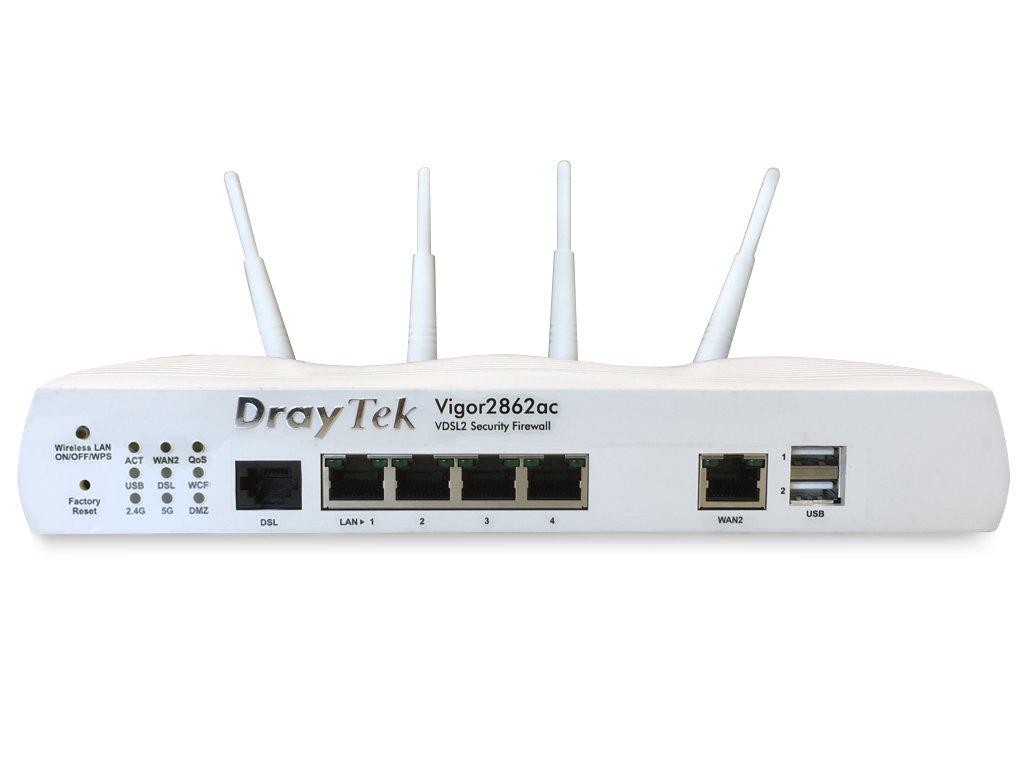

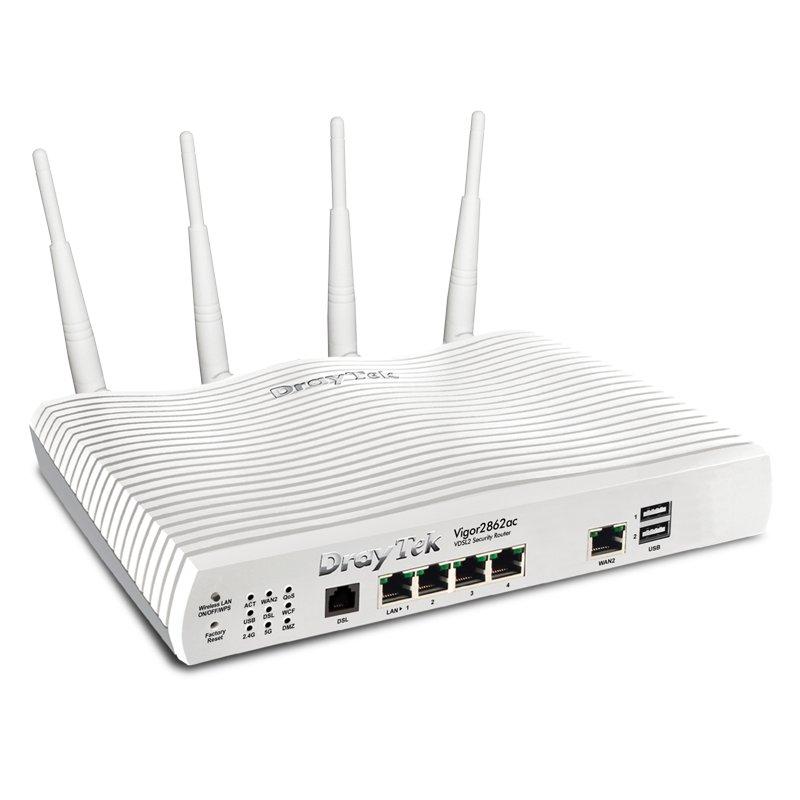

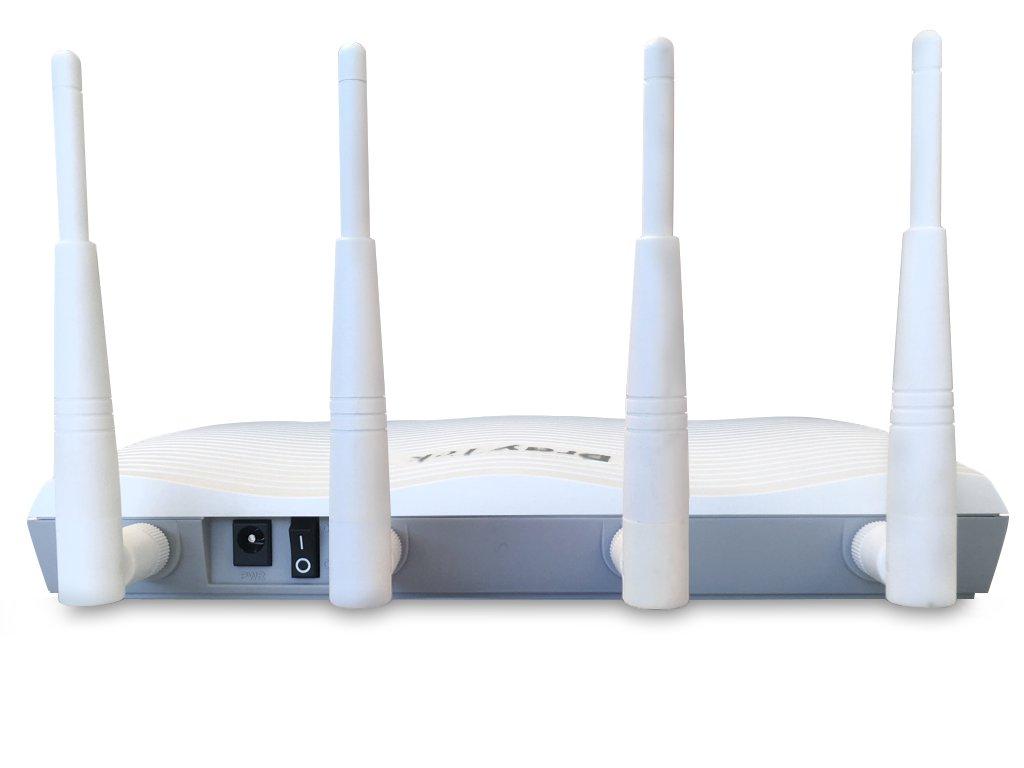

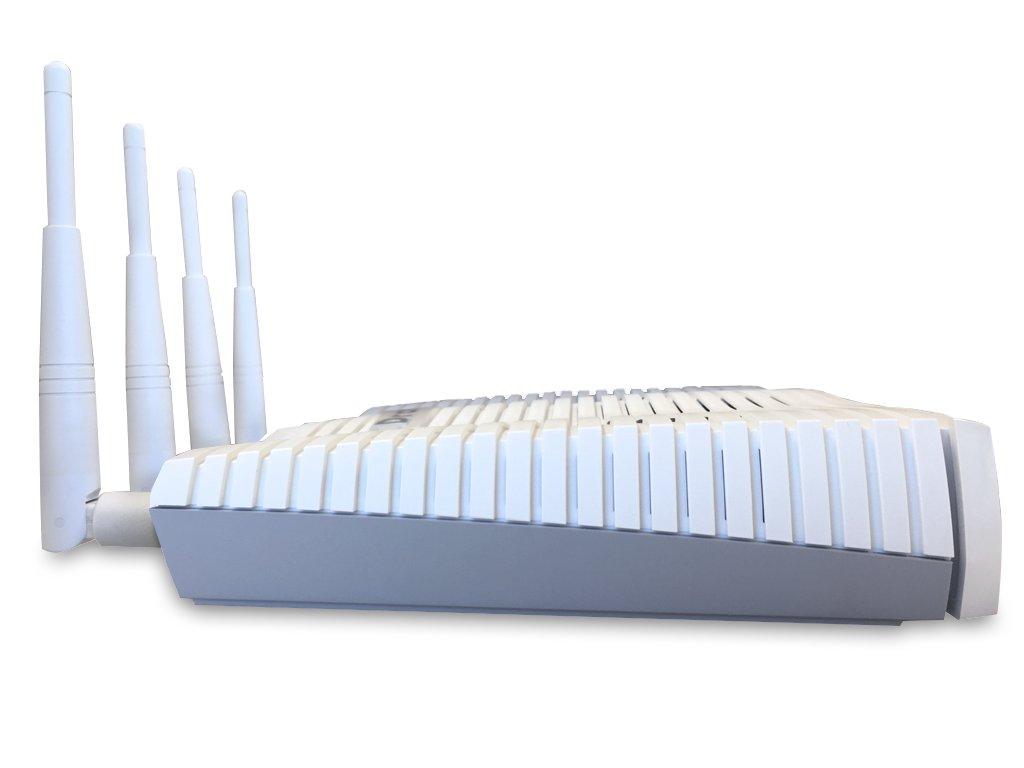

DrayTek Vigor 2862AC Triple-WAN WiFi Router VPN, 3G, 4G, LTE Support
Part Number: V2862AC-K
Discontinued
This product has been discontinued. See the latest model: DrayTek V2865AC VDSL2/ADSL2+ VPN Router
The DrayTek Vigor 2862AC is the successor of the popular Draytek Vigor 2860 series. It is the 'Ultimate DSL router' supporting both ADSL/VDSL (BT Infinity/FTTC). It is full of professional level features to increase security, flexibility and functionality, making it ideal as your standard router for any scenario. Alternative WAN ports can provide connectivity to the ethernet feeds instead (Gigabit WAN2 is switchable with LAN Port 5). This Draytek Vigor 2862AC supports BGP (Border Gateway Protocol). The throughput is around 30% faster that its predecessor.
Description
This latest router series includes support for other professional features such as VLAN tagging, QoS (Quality of Service Assurance), High Availability, DNS Filter, Policy Based Routing, and User Access Control. Hotspot features with customisable branding and wording which can be applied to guest network VLANs & SSIDs. If you deploy DrayTek Wireless Access Points, the Vigor 2862 series can act as the Central Management controller.
Key Highlights
- Supports VDSL, ADSL, 3G and Ethernet-based Broadband.
- Supports either VDSL or ADSL, ideal if you have ADSL now and might get VDSL later.
- VDSL with compatible BT Infinity.
- Triple-WAN ports for VDSL/ADSL, cable modem and 3G/4G LTE.
- IPv6 Ready - See below for feature support.
- High performance - up to 300Mb/s firewall throughput.
- DrayTek Firewall with huge flexibility.
- 6-Port Gigabit Ethernet LAN Switch.
- Wireless Guest Portal.
- Multiple Private LAN Subnets.
- SMS (Text Message) Alert.
- VLANs (Port or 802.1q based).
- IGMP v3 MultiCast.
- Includes SmartMonitor software.
- Content Filtering (by keyword, data type or category).
- Ethernet and WiFi VLANs (common/distinct groups).
- LDAP Integration for VPN and user access.
- QoS (Layer 2&3, 802.1p & TOS/DCSP).
- Up to 32 VPN tunnels for LAN-to-LAN or teleworkers.
- VPN Trunk/Backup to remote sites.
- SSL VPN - Tunnel or Proxy (5 users).
- USB Port for Printer, Logs or 3G Modem.
- Optional VigorCare Available.

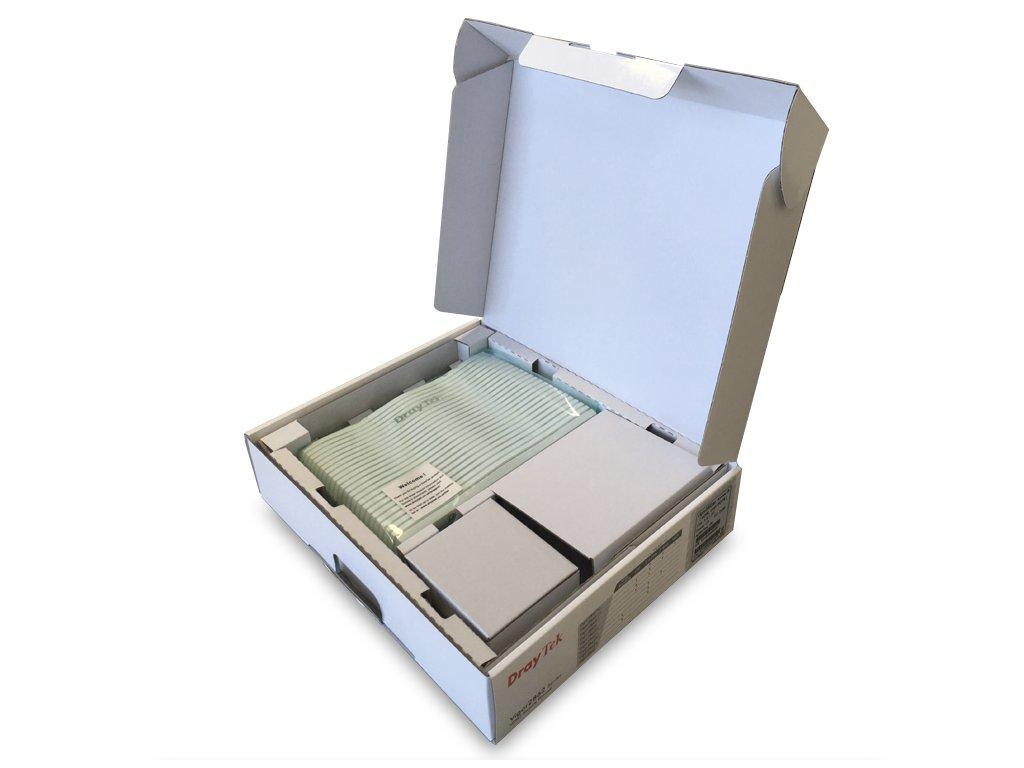

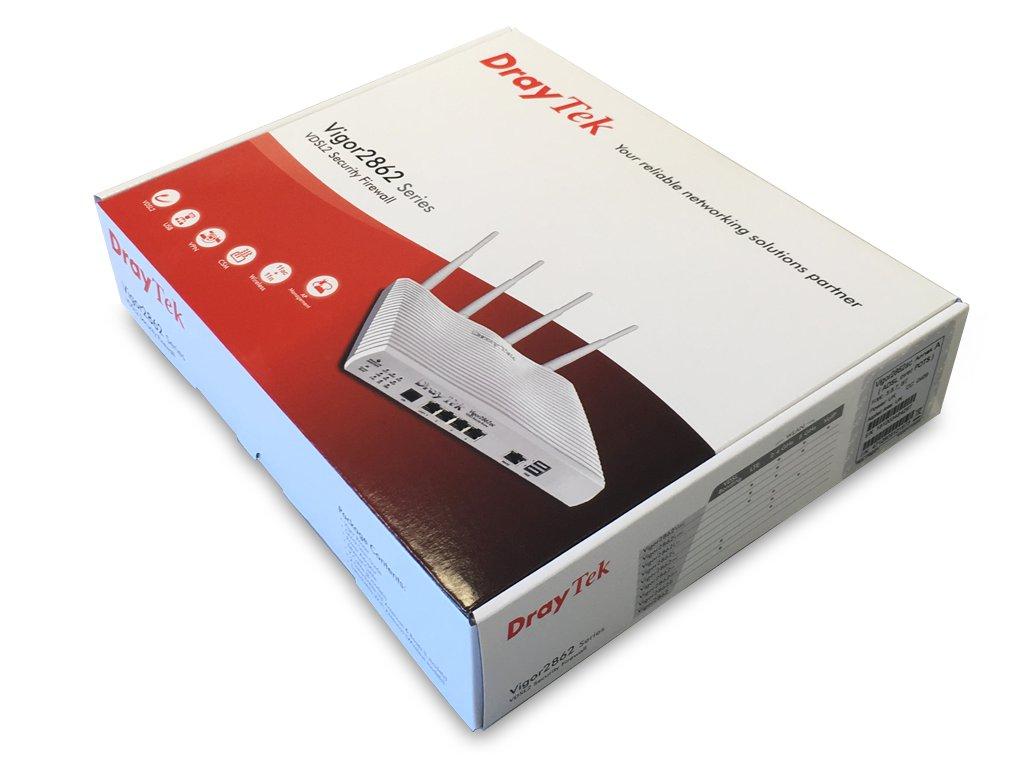

What’s in the box?
- Vigor Router
- Quick Start Guide
- Power Adaptor
- Ethernet Cable
- 4 Detachable Antennas
Specification
| 3G/4G Built In | 0 |
|---|---|
| 3G/4G (via USB Dongle) | 1 |
| WiFi | 1 |
| WiFi Dual Band (2.4/5Ghz) | 0 |
| Supports Gigabit | 1 |
| LAN Ports | 6 |
| WAN Ports | 2 |
| Supports VDSL | 1 |
| Supports PoE | 0 |
| PoE Ports | 0 |
Documents
Quick Start Guide:Vigor 2862AC Router QSG
Data Sheet:Vigor 2862AC DataSheet
