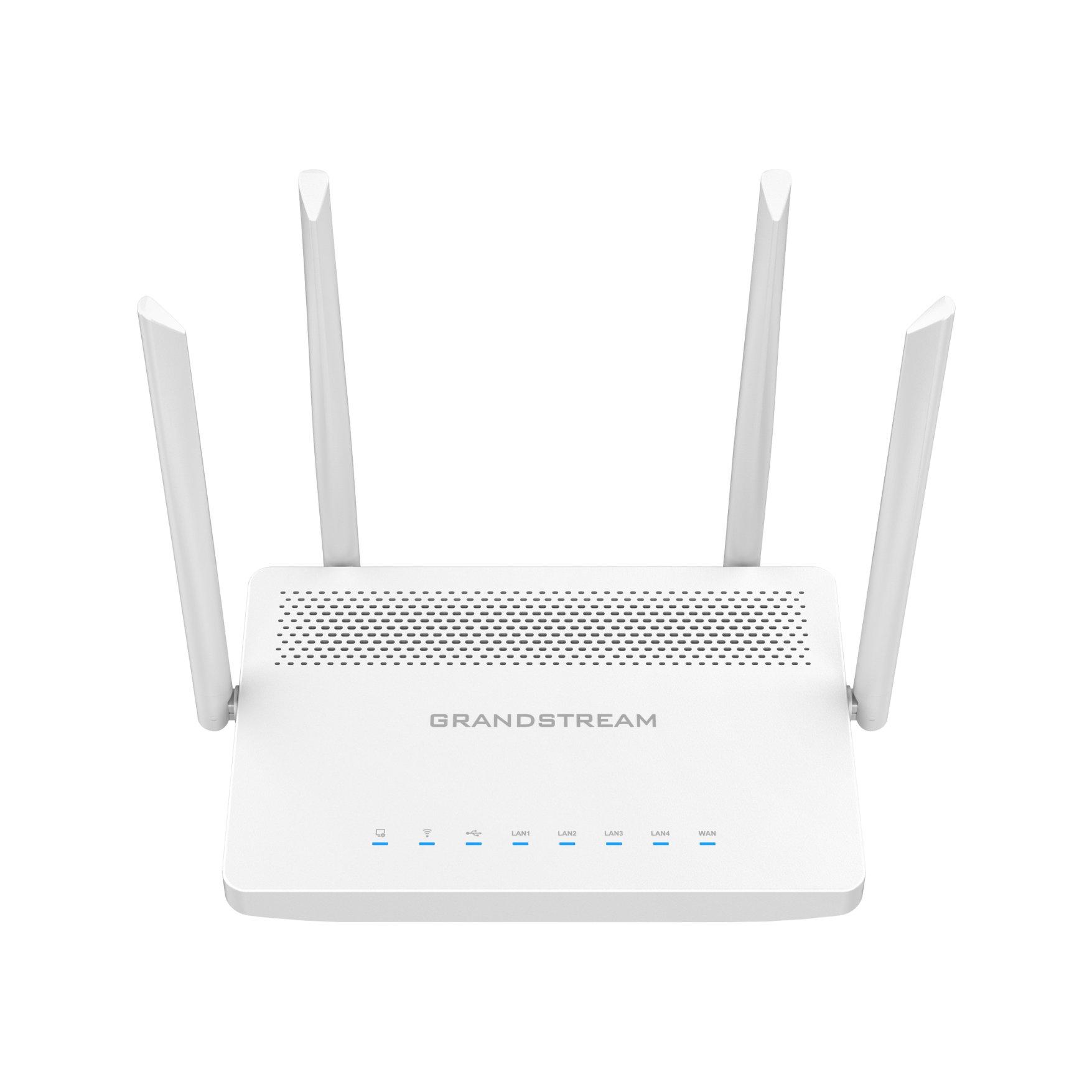

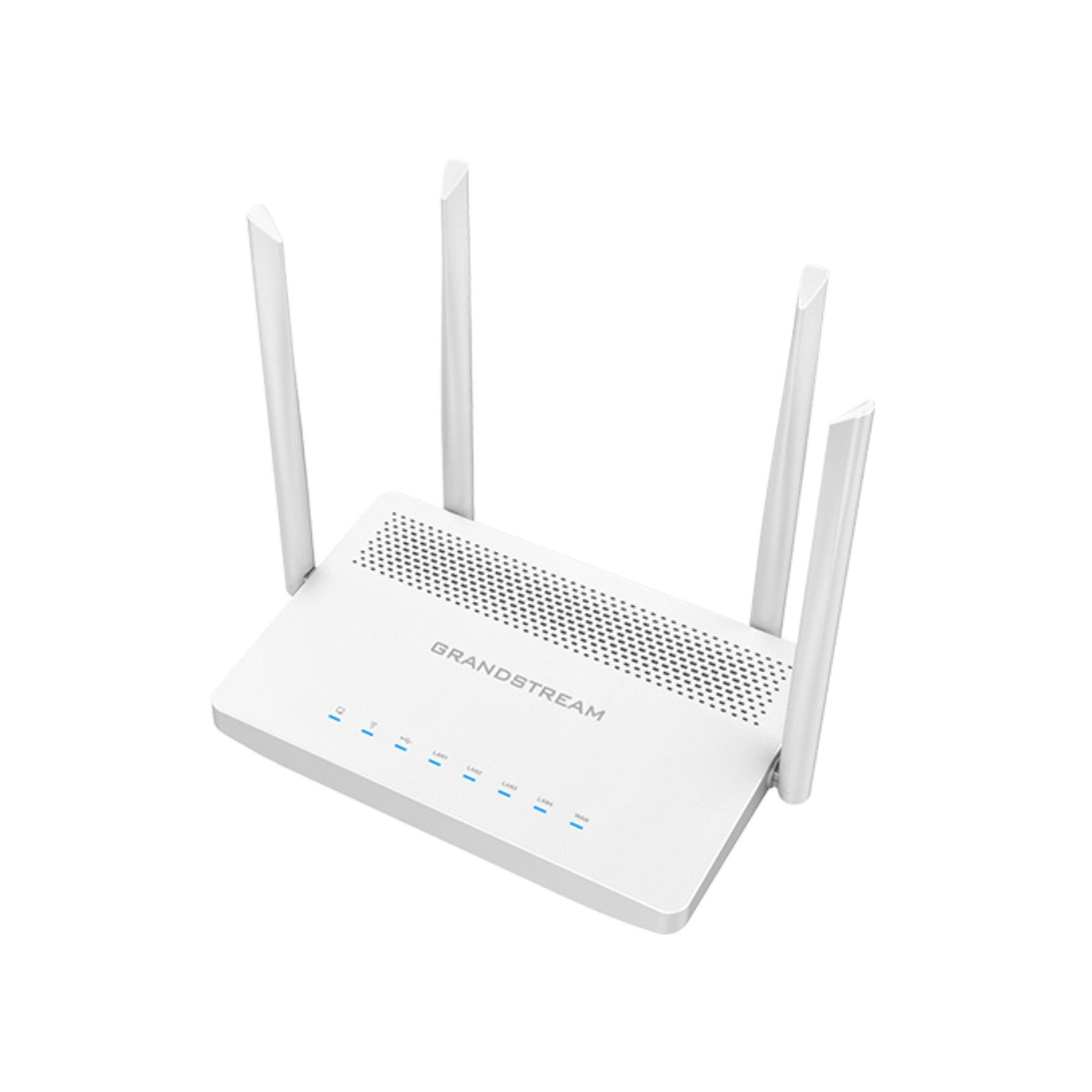

Grandstream GWN7052F Gigabit VPN WiFi 5 Router
Part Number: GWN7052F
Discontinued
This product has been discontinued.
The Grandstream GWN7052F is a WiFi 5 (802.11ac) network router, able to provide up to 1.7 Gbps over-the-air speed to up to 100 connected devices through its innovative 2x2:2 MU-MIMO radio array. The GWN7052F incorporates a suite of security features such as guest networks, blacklists and secure anti-hacker boot protocols, and features 5 x auto-sensing WAN/LAN switchable Gigabit ethernet ports.
Description
Grandstream's GWN7052F is ideally positioned to support the networks of home offices and small-to-medium sized companies who require high-speed WiFi 5 connectivity and robust security protocols at a budget-friendly price point. With throughput speeds of up to 300 Mbps on the 2.4 GHz band and 800 Mbps on the 5 GHz, the GWN7052F can deliver dependable WiFi to up to 100 devices through its 2x2:2 MU-MIMO aerials, providing optimised performance in areas with a high density of connected devices.

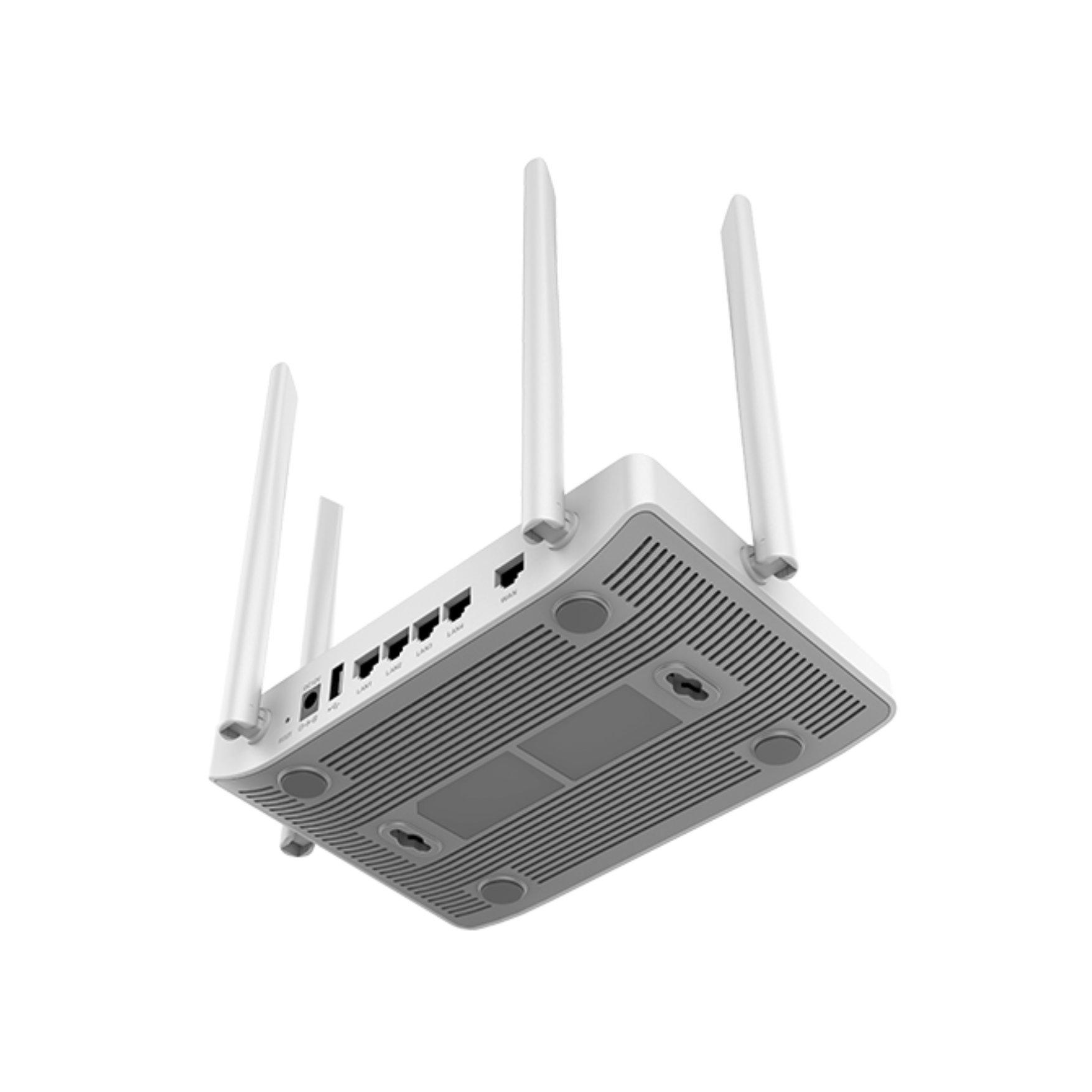

The GWN7052F supports a wide range of network interface ports, featuring 1 x Gigabit Ethernet WAN, 1 x Gigabit LAN, and 4 x WAN/LAN configurable Gigabit ethernet ports. Also featured is 1 x USB 2.0 slot for connecting auxiliary devices or extra storage, and an array of LEDs for device tracking and status indication.
Grandstream's GWN7052F also has an embedded VPN for allowing secure connection to corporate resources by remote staff. The GWN7052F is also fully compatible with remote provisioning and monitoring through GWN.Cloud, Grandstream's remote management platform.
Key Highlights
- WiFi 5 (802.11ac) technology
- 2.4 GHz band (2x2 MIMO) with throughput of 300 Mbps
- 5 GHz band (2x2 MIMO) with throughput of 867 Mbps
- 1 x Gigabit WAN port
- 1 x Gigabit LAN port
- 4 x LAN/WAN configurable ports
- Supports up to 100 clients
What’s in the box?
- 1 x GWN7052F
- 1 x PSU
- 1 x Network Cable
- 1 x Quick Start Guide
Specification
| 3G/4G Built In | 0 |
|---|---|
| 3G/4G (via USB Dongle) | 0 |
| WiFi | 1 |
| WiFi Dual Band (2.4/5Ghz) | 1 |
| Supports Gigabit | 1 |
| LAN Ports | 4 |
| WAN Ports | 2 |
| Supports PoE | 0 |
| 2.4Ghz Technology | Wi-Fi 5 (802.11ac) |
| PoE Ports | 5 |
| 2.4Ghz Throughput | 800 Mbps |
| SFP Ports | 0 |
| 5Ghz Technology | Wi-Fi 5 (802.11ac) |
| 5Ghz Throughput | 300 Mbps |
Documents
Data Sheet:GWN7052F Data Sheet
Quick Start Guide:GWN7052F Quick Start Guide
