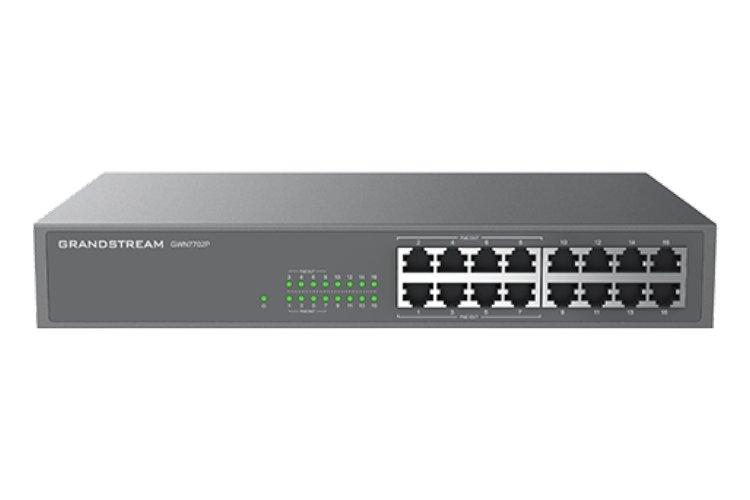

Grandstream GWN7702P 16-Port PoE Network Switch
Part Number: GWN7702P
48 In Stock
Want it by tomorrow? Order within 12 hours 9 minutes and choose Saturday Delivery at checkout for next day delivery.
Bulk Pricing
1+
£114.49
5+
£110.92
10+
£107.35
The Grandstream GWN7702P is an unmanaged network switch featuring a total of 16 x RJ45 ports, eight of which can deliver dependable 802.3af/at compliant PoE to connected devices up to a total budget of 138W. Providing 32Gbps of switching capacity and AUTO MDI/MDIX on all ports to minimise crossover, the GWN7702P is both robust and easily maintained, requiring minimal setup and maintenance to easily expand network and PoE capacity.
Description
The Grandstream GWN7702P is a network switch, part of Grandstream's unmanaged portfolio engineered to provide a budget-friendly and low maintenance solution to businesses looking to expand networking capacity. The switch itself includes 16 x Gigabit RJ45 ports offering a total of 32Gbps switching capacity, with each port featuring both AUTO MDI/MDIX to eliminate crossover requirements and auto-sensing capacity.
Ports 1-8 also offer 802.3 af/at compliant PoE delivery to connected devices, capable of delivering 30W per port up to a maximum budget of 138W. Ports are organised in order of priority, with port 1 taking highest priority and remaining the last to be cut off in case of overload.
Despite the switch being unmanaged, the GWN7702P does include some sophisticated switching features such as Mac address auto-learning, IEEE 802.3x Flow Control to prevent overloading and half duplex backpressure. The switch also features illuminating LEDs to indicate status and activity at a glance for each port, and is compatible with both desktop and wall mounting.
Key Highlights
- Unmanaged switch
- 16 x RJ45 ports
- 8 x PoE+ ports
- 16 x Gigabit RJ45 ports
- Total available PoE: 138W
- Max. PoE wattage per port: 30W
- Switching capacity: 32 Gbps
- Auto MDI/MDIX
- Auto negotiation
- Desktop and wall mountable
What’s in the box?
- 1 x GWN7702P
- 1 x AC Power Cable (1.2m)
- 1 x Mounting Kit
- 4 x Rubber Feet
- 1 x Quick Start Guide
Specification
| Gigabit Ports | 16 |
|---|---|
| PoE | 1 |
| PoE Ports | 8 |
| PoE Budget | 138W |
| RJ45 Ports | 16 |
| SFP Ports | 0 |
| Managed | 0 |
| PoE Type | PoE+ |
Documents
Data Sheet:GWN7702P Data Sheet
Installation Guide:GWN7702P Installation Guide
