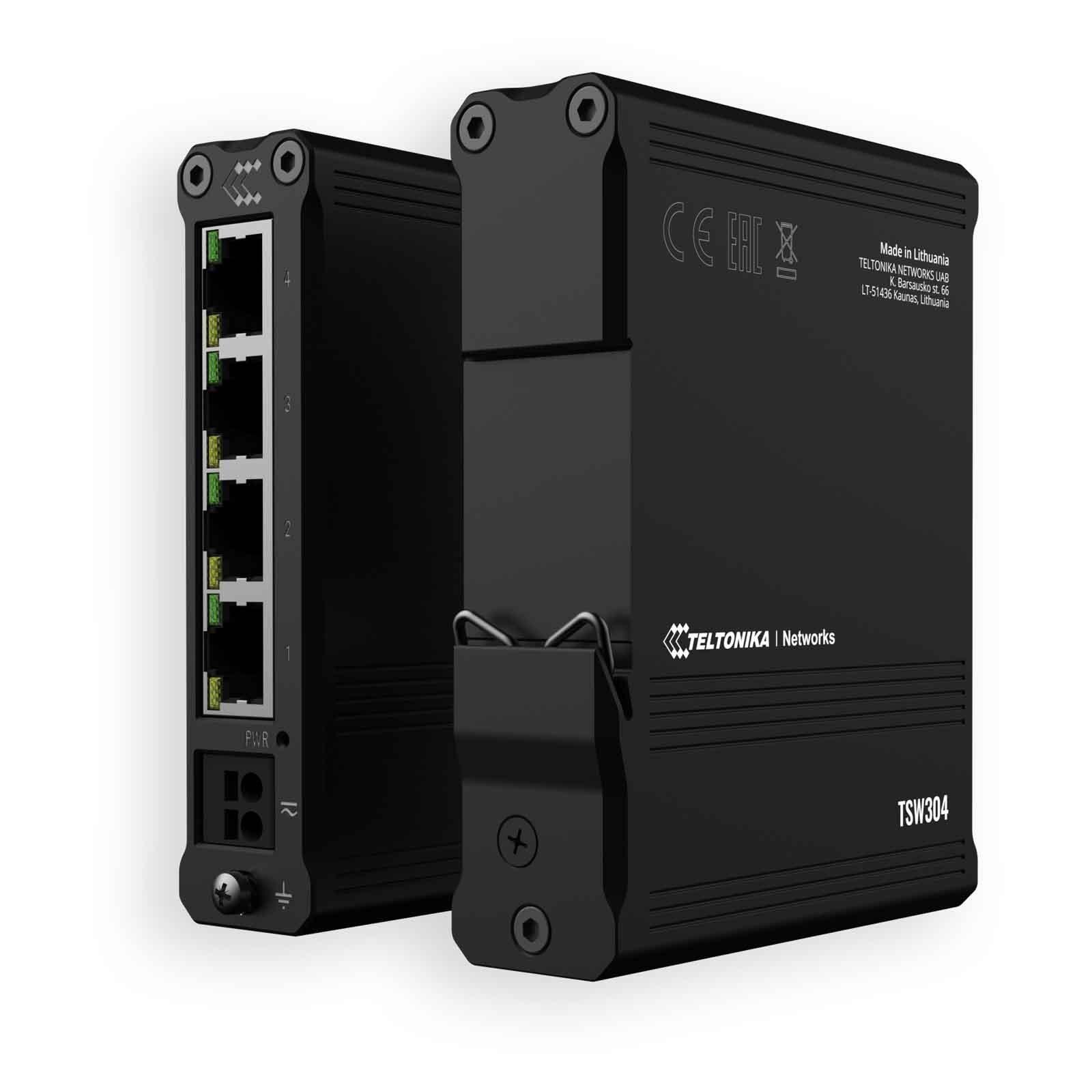

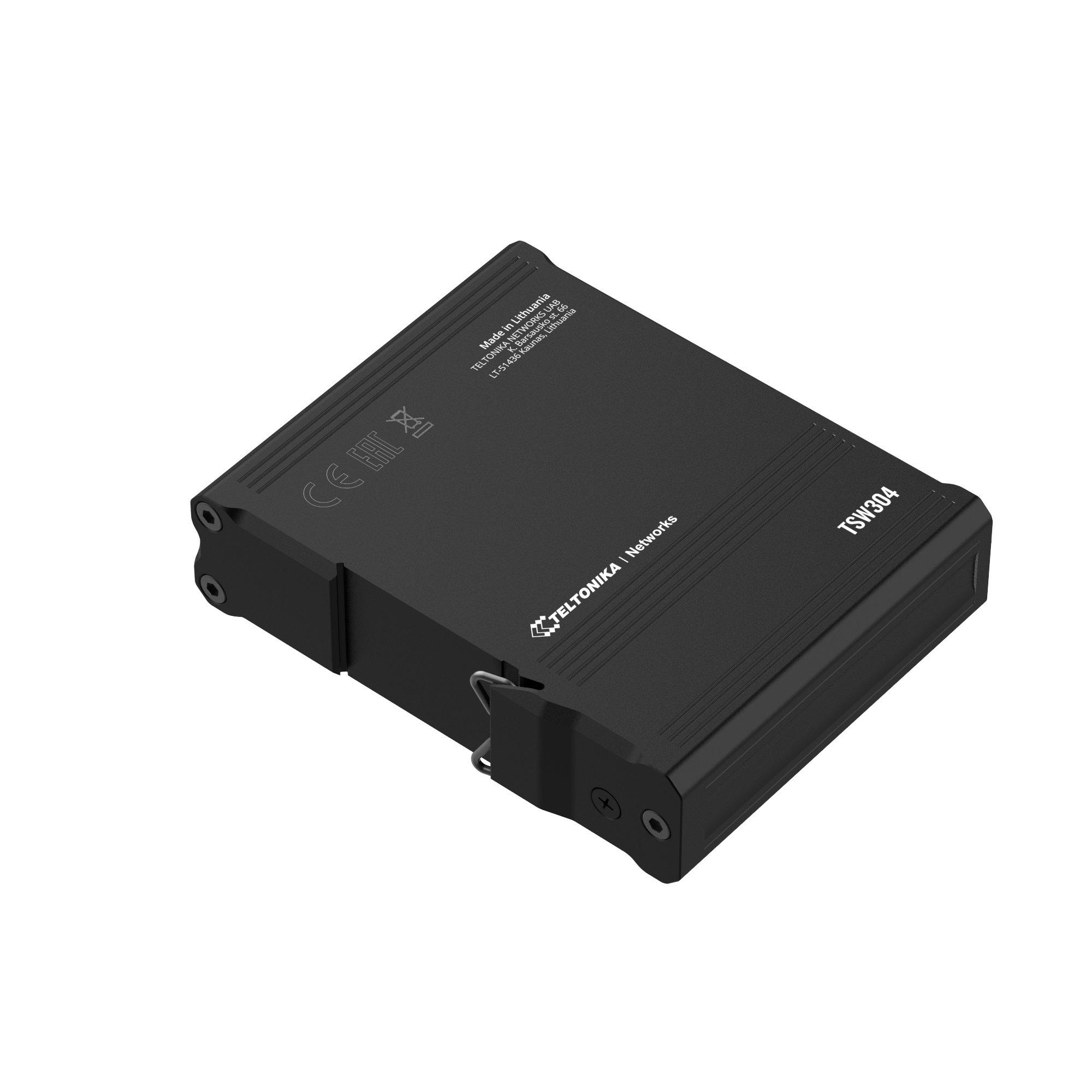

Teltonika TSW304 Unmanaged Switch with Integrated DIN Rail Mount
Part Number: TSW304
The TSW304 is Teltonika Networks’ first unmanaged switch with an integrated, built-in DIN rail mount. Equipped with four Gigabit Ethernet ports supporting the IEEE 802.3, IEEE 802.3u, and 802.3az Ethernet standards.
Description
The Teltonika TSW304 is designed with easy installation in mind, featuring a compact size with a shock-resistant casing to go along with its integrated DIN mount. The TSW304 also features 10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions to provide reliable data throughput, and a 2-pin industrial power socket with a wide range of supported power supply voltages (7-57 VDC and 9-40 VAC).
Key Highlights
- 4 x Gigabit Ethernet with speeds of up to 1000 Mbps
- Built-in, integrated DIN rail mounting
- Compact size: 102 x 25 x 81.5 mm
- Status LEDs: 8 x Ethernet, 1 x Power
- Ingress protection rating: IP30
- Bandwidth: 8 Gbps
- Jumbo frame support: 9216 bytes
- Packet buffer: 128 KB
- MAC address table size: 2K entries
- Auto MDI/ MDI-X Cable Detection: Yes
Specification
| Supports Gigabit | 1 |
|---|---|
| Supports PoE | 0 |
| Gigabit Ports | 4 |
| PoE Ports | 0 |
| SFP Ports | 0 |
| Managed | 0 |
