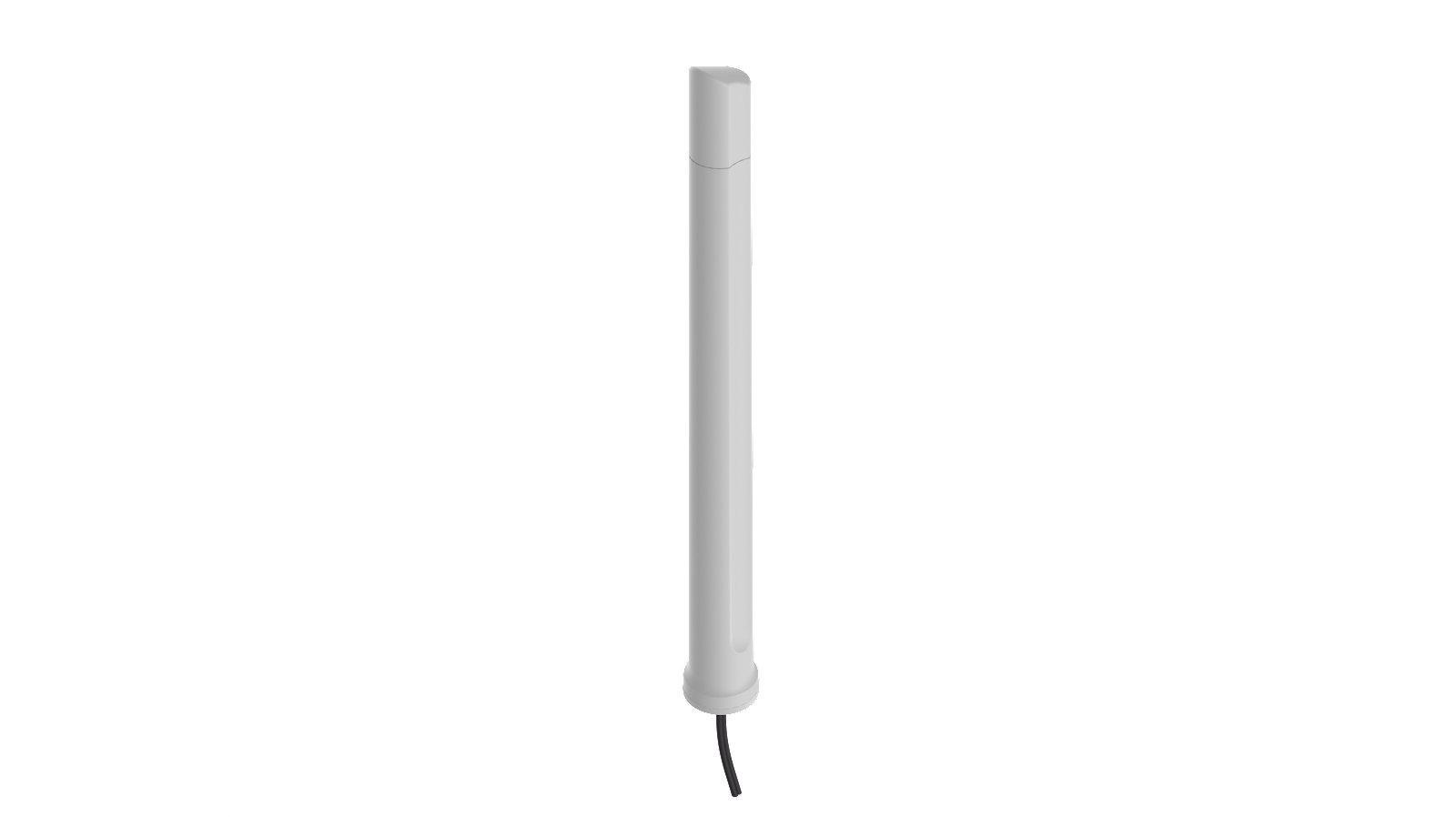

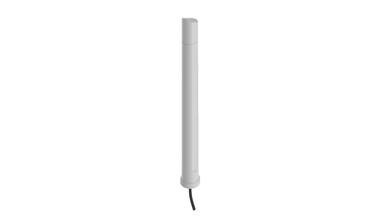

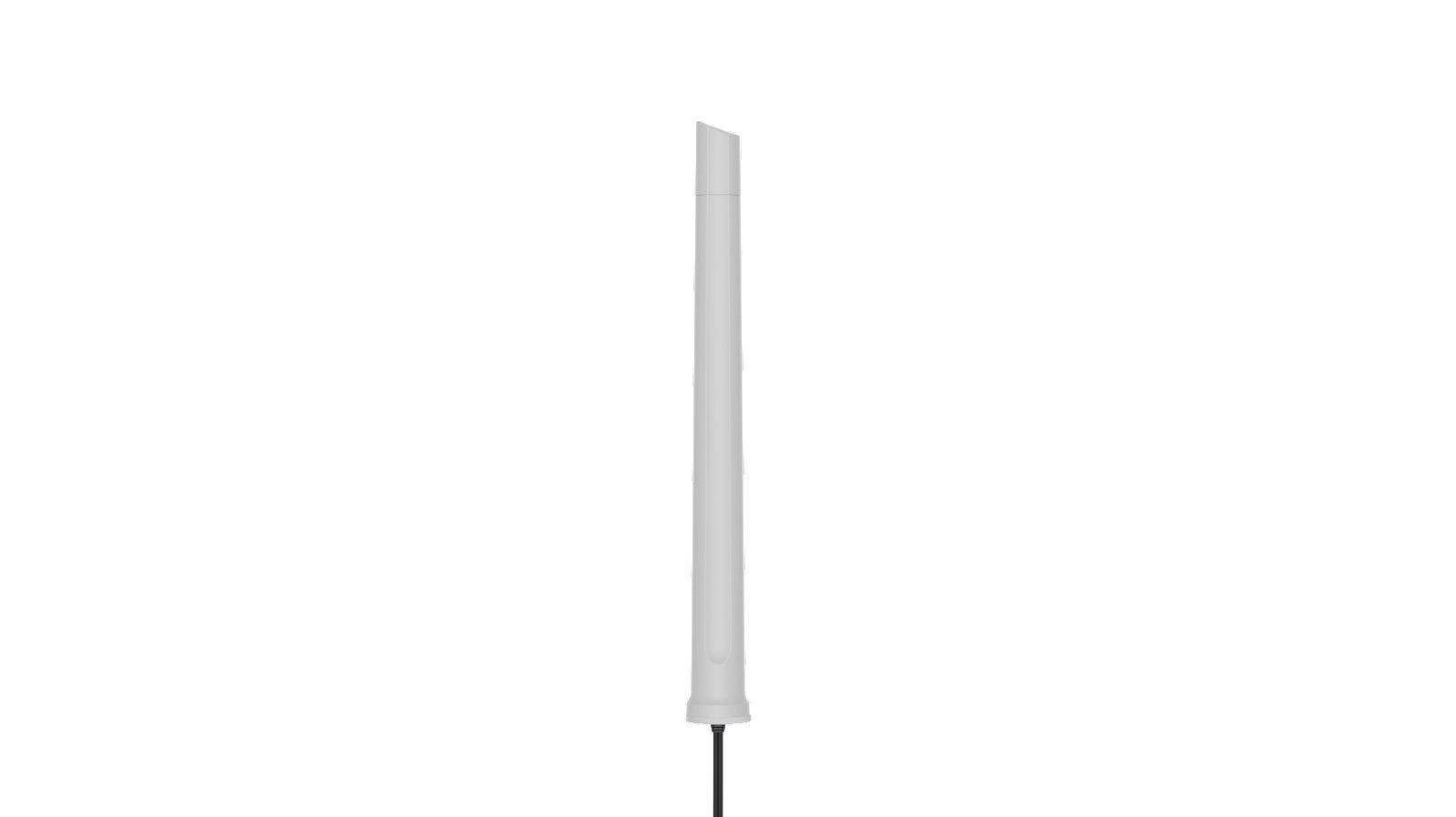

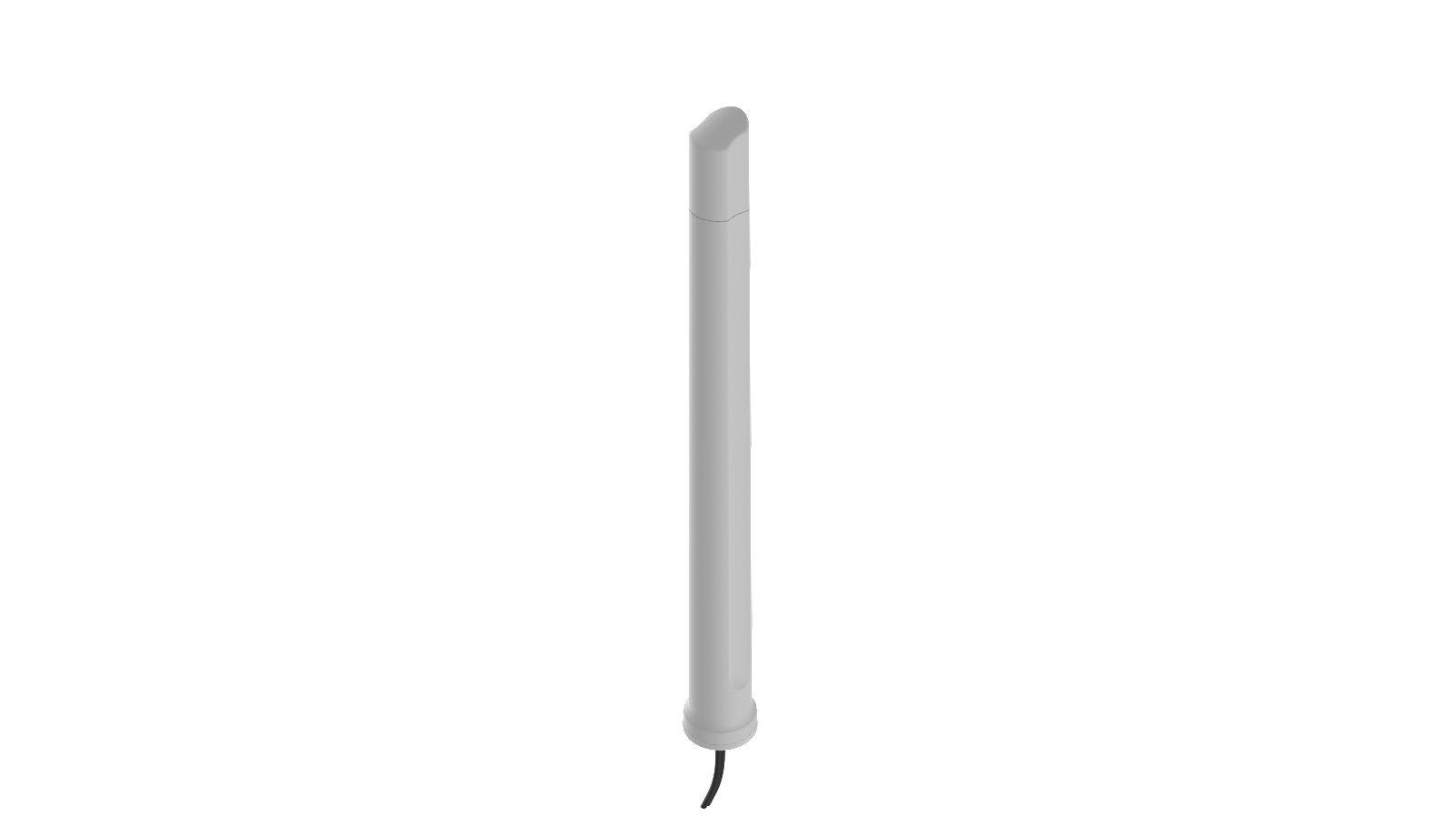

Poynting OMNI-600 2X2 MIMO Linear 410–3800MHz OmniDirectional Antenna
Part Number: OMNI-600
Discontinued
This product has been discontinued. See the latest model: Poynting OMNI-600-5G Antenna
Poynting's OMNI-600 is a unique new design with improved 2x2 MIMO electrical performance. The ultra-wide band covers all contemporary operating frequencies with good balanced gain across all frequencies with no compromise.
Description
***Please note: This product is now End of Life. For a current replacement, we recommend the OMNI-600-5G.
Usable in all parts of the world, the OMNI-600 guarantees signal reception almost everywhere through Poynting's new antenna configuration, using multiple dipoles and a unique (patented) feed network. The OMNI-600 is a future proof antenna because it covers the 450MHz frequency and 3.5GHz CBRS band.
Product dimensions: 645 mm x 45 mm x 48 mm
Key Highlights
- 5G Ready; includes 3.2GHz - 3.8GHz CBRS Band
- Medium Gain Omni-Directional Antenna (max. Gain: 6.2 dBi)
- 2x2 MIMO
- LTE & WiFi
- Robust and Weather Resistant
- Consistent Gain over a very Wide Frequency Band
- 2.4 - 2.5 Ghz band can be used as WiFi Antenna
- Frequency Bands: 410 - 470 MHz | 690 - 960 MHz | 1710 - 2700 MHz | 3400 - 3800 MHz
- Stainless steel pole mount (max. 50mm)
- Cable Type: 5m HDF-195
- Connector Type: 2 x SMA (Male)
- Increased Connectivity Stability
- Mount included for wall and pole
What’s in the box?
- Antenna: A-OMNI-0600-V1-02
- Mounting Brackets: Wall and Pole mount stainless steel bracket
Documents
Data Sheet:OMNI-600 Data Sheet
