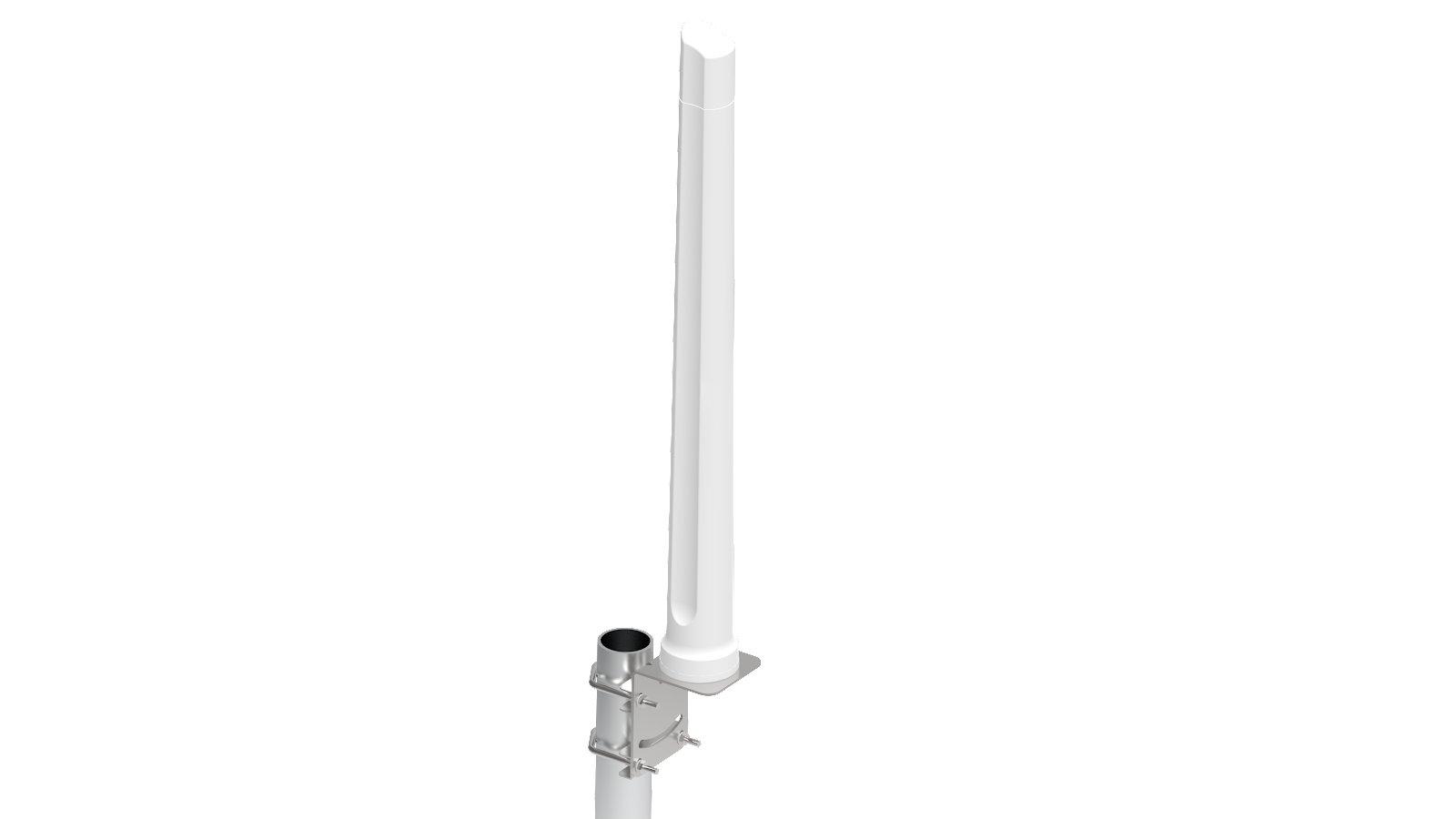

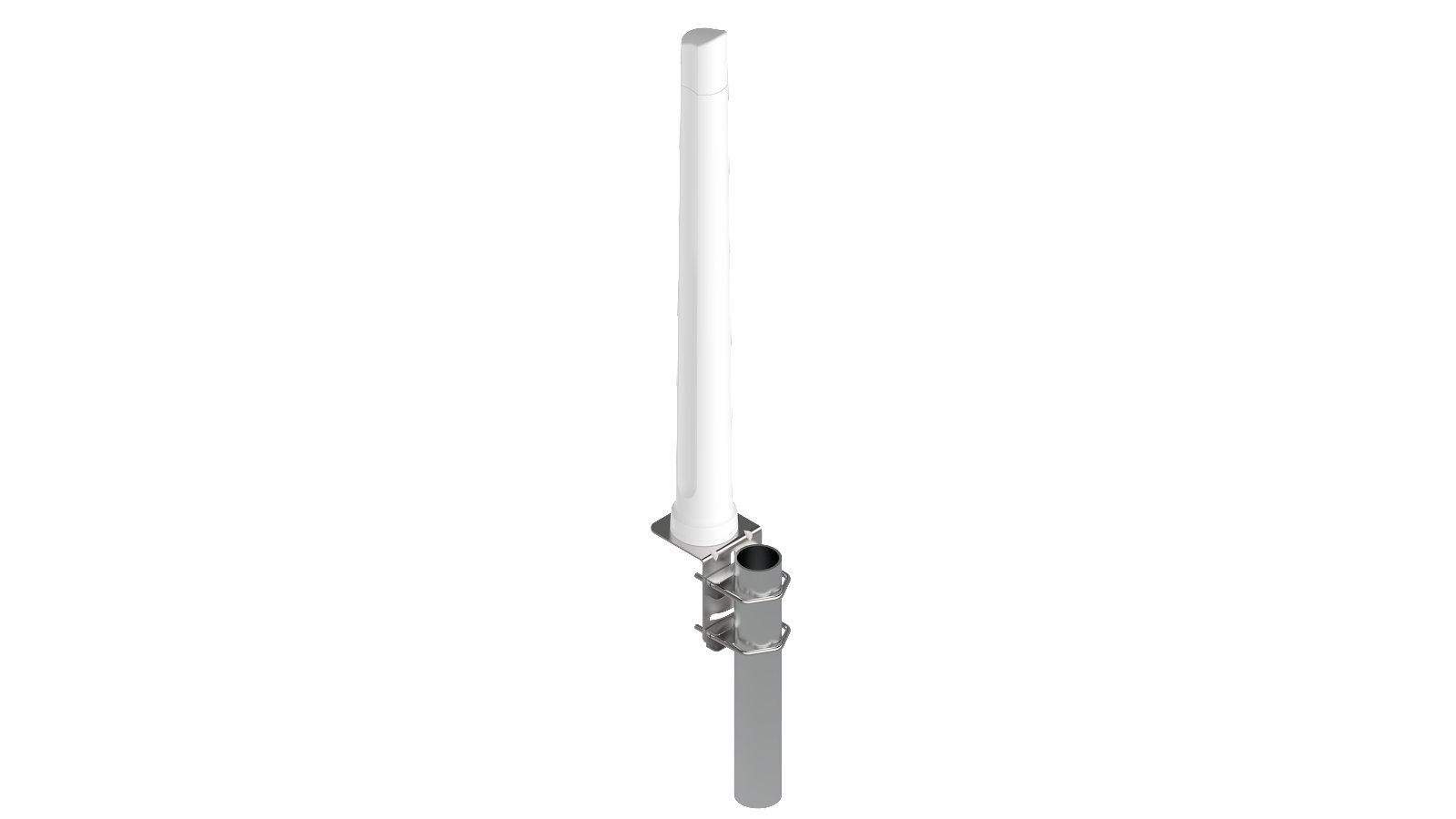

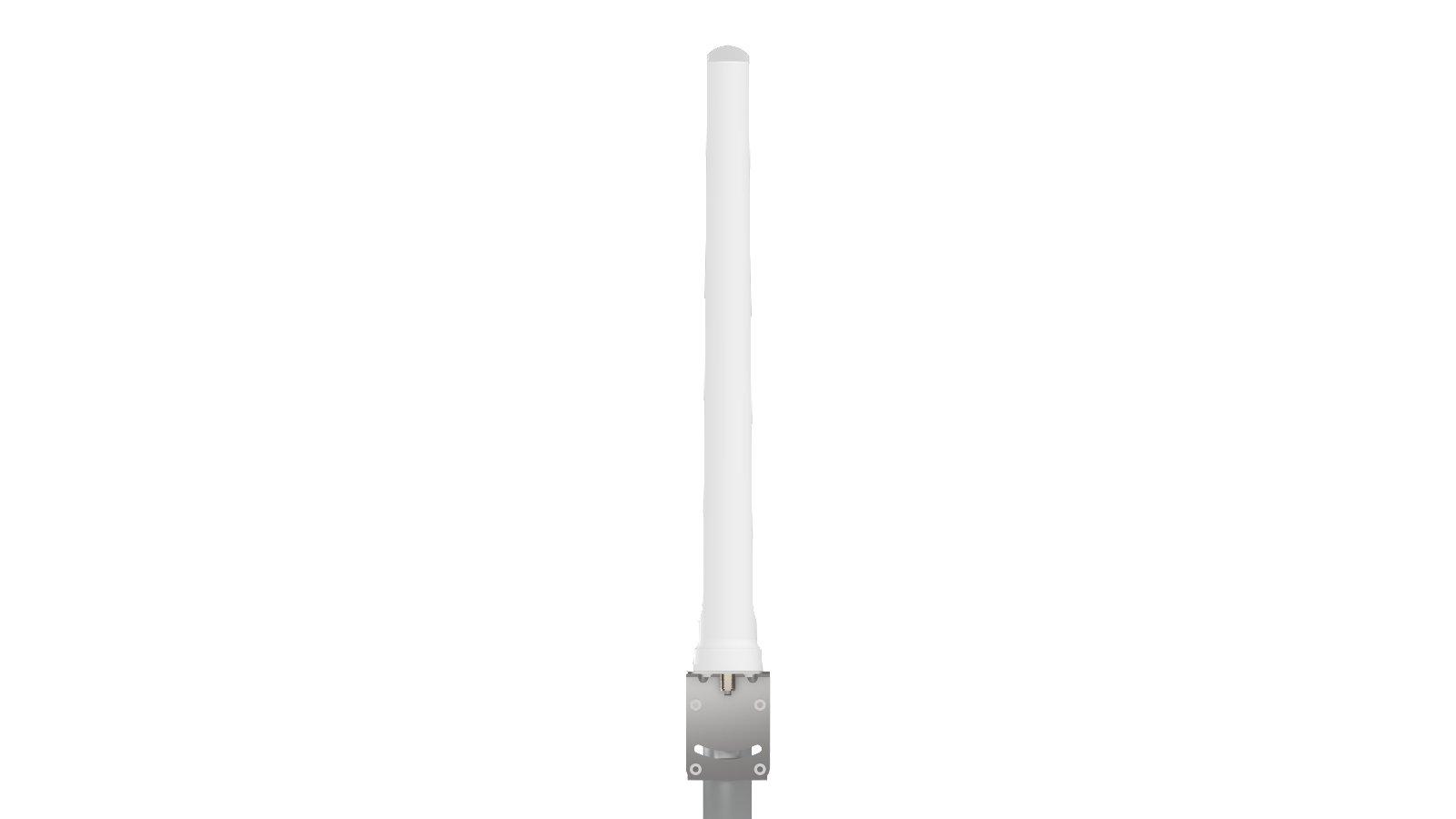

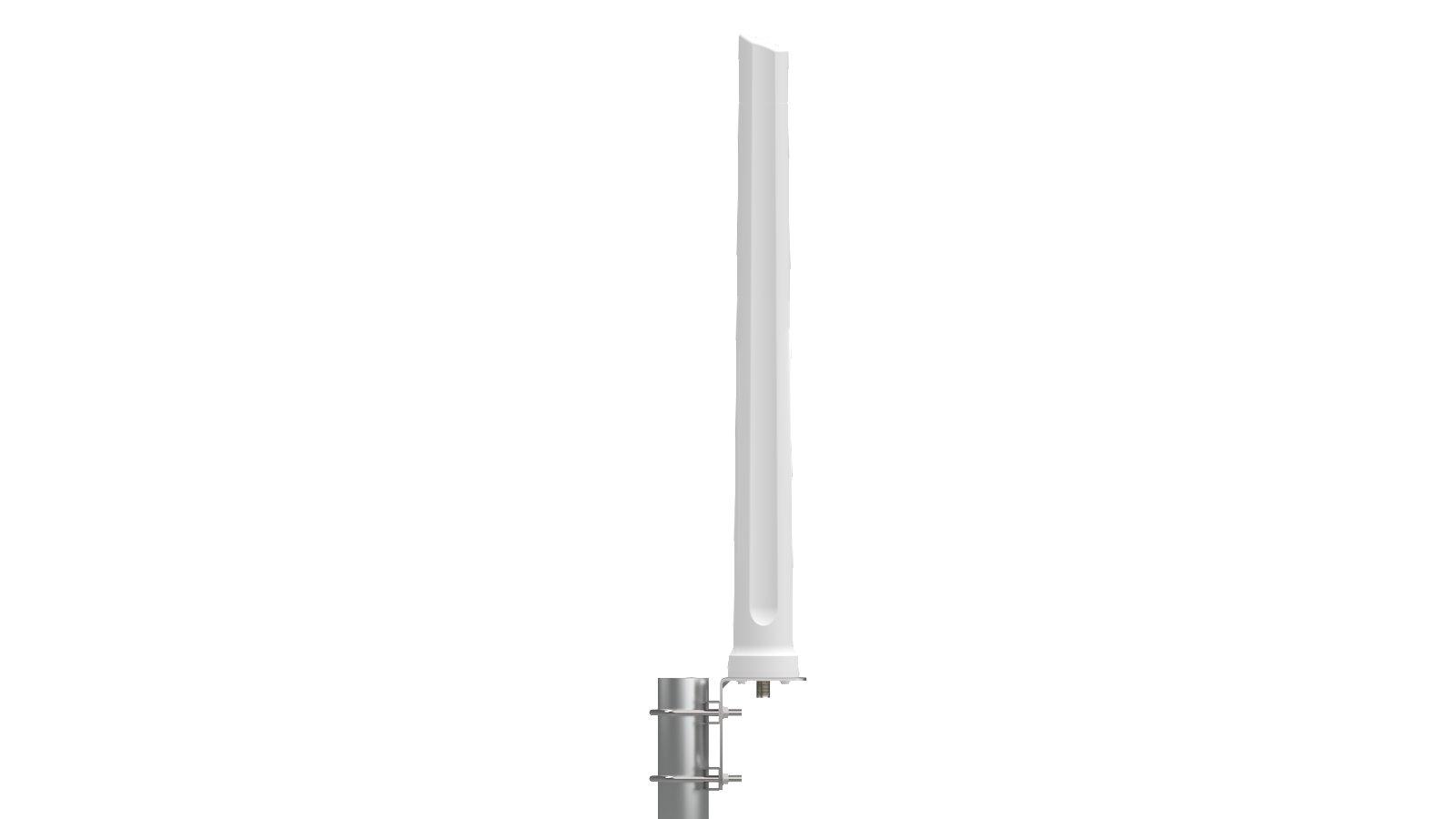

Poynting OMNI-293 Antenna
Part Number: OMNI-293
4 In Stock
Want it by tomorrow? Order within 14 hours 55 minutes for next business day delivery.
Bulk Pricing
1+
£152.49
5+
£150.21
10+
£147.93
The Poynting OMNI-293 is an ultra-wideband, high performance, omni-directional antenna that covers the contemporary 4G/LTE and future 5G operating frequencies with excellent balanced gain across all frequencies. The ultra-wideband performance from the antenna allows it to operate from 617 to 3800 MHz, with a peak gain of 9 dBi.
Description
The OMNI-293 antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilised for future 5G applications. This makes the antenna usable in all parts of the world and guarantees signal reception almost everywhere. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-293 a true high performance omni-directional antenna, suitable for urban and rural applications.
The exceptional wideband performance is an important factor for LTE and future 5G technologies, where these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
Key Highlights
- High performance, ultra-wideband omni-directional antenna
- Consistent high gain over wide frequency band
- Excellent broadband quality antenna
- Ideal for Machine to Machine (M2M) and IoT applications
- Dust and water-resistant enclosure with IP65 rating
What’s in the box?
- 1 x Wall and pole mount stainless steel bracket
- 1 x Pole up to 50mm diameter
- 1 x A-OMNI-0293
Documents
Data Sheet:Poynting OMNI-293 Antenna Datasheet
