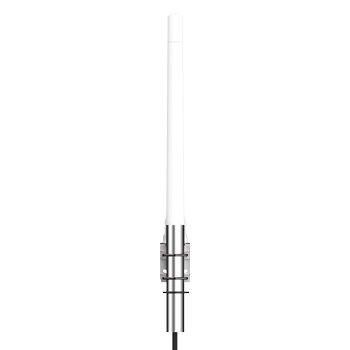

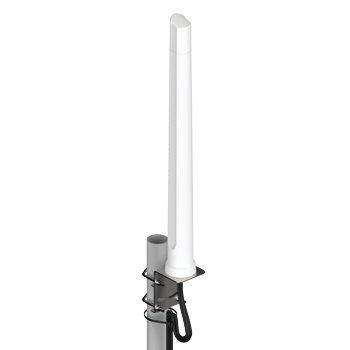

Poynting OMNI-214 Ultra-Wide Omni-Directional 4x4 MIMO LTE 5G Antenna
Part Number: OMNI-214
Out of stock
Bulk Pricing
1+
£178.49
5+
£163.21
10+
£147.94
The Poynting OMNI-214 is an ultra-wideband antenna, which covers all contemporary LTE/5G frequency bands with excellent balanced gain across all frequencies from 617 to 3800 MHz. The OMNI-214 offers 4x4 MIMO capability from its vertically separated radiating elements, all in the same single radome.
Description
The OMNI-241 design allows for superior pattern control over the entire frequency range, making the it a true omni-directional 4x4 MIMO antenna. It is suitable for urban or commercial applications, such as industrial and commercial . The OMNI-214 guarantees signal reception almost everywhere and is usable in all part of the world.
The ultra-wideband performance of the OMNI-241 makes this antenna future proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 3800 MHz for inland use. The antenna comes with an IP65 protection rating against dust and water ingress, making it ideal for urban and commercial deployments.
Key Highlights
- 4x4 MIMO capability
- LTE/5G/4G bands
- Frequency bands: 617 – 960 MHz; 1427 – 1517 MHz; 1710 – 2700 MHz; 3400 – 3800 MHz
- Includes Band 71 (617 to 698 MHz) and 3.5 GHz 5G band
- Robust, dust and water-resistant IP65 rated enclosure
- UV and salt-water resistant enclosure
- Polarisation: Linear (Vertical)
- Peak Gain: 3.5 dBi
- Coax Cable Type: HDF 195
- Coax Cable Length: 2m
- Connector Type: SMA (M)
