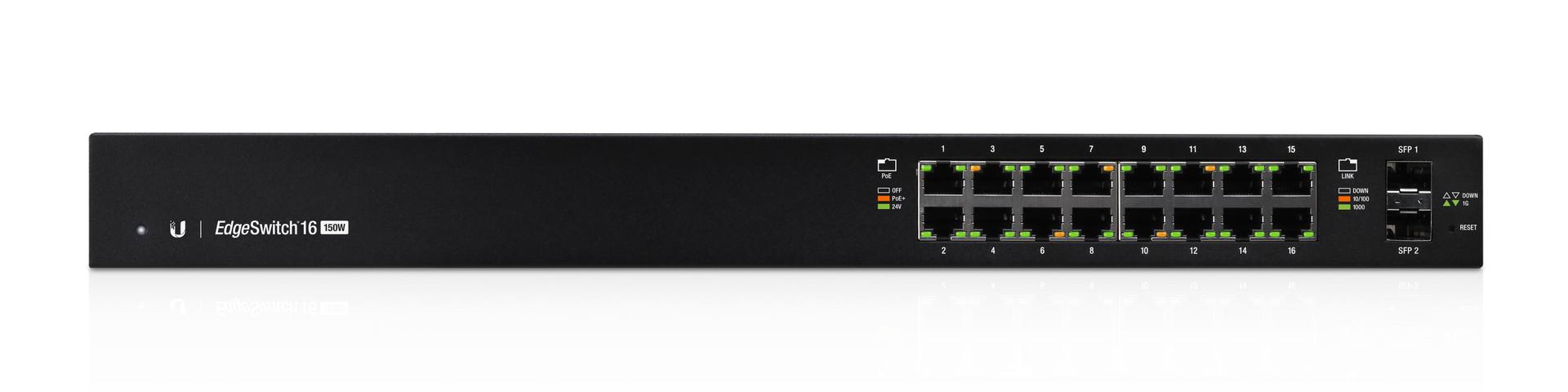

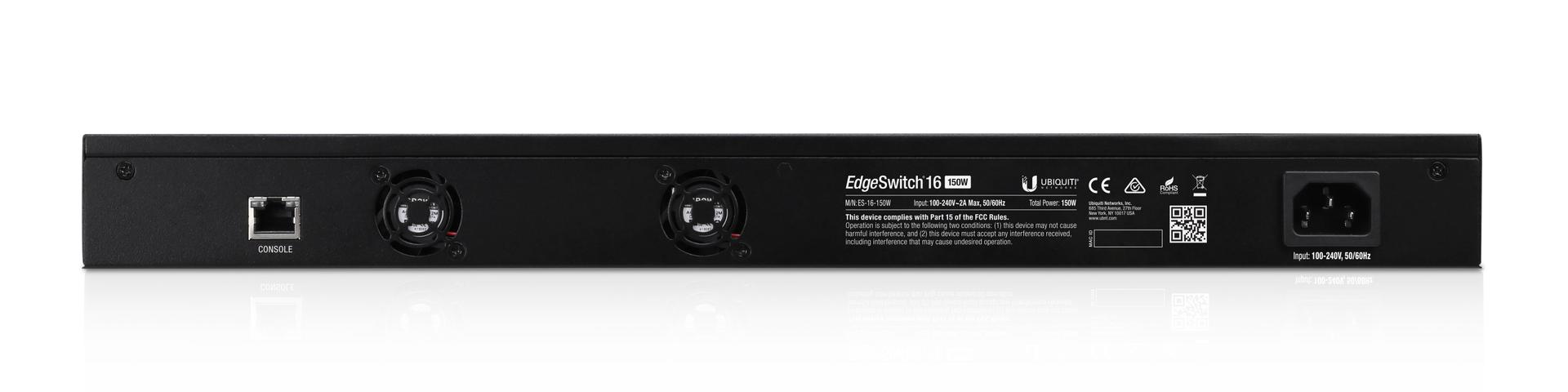

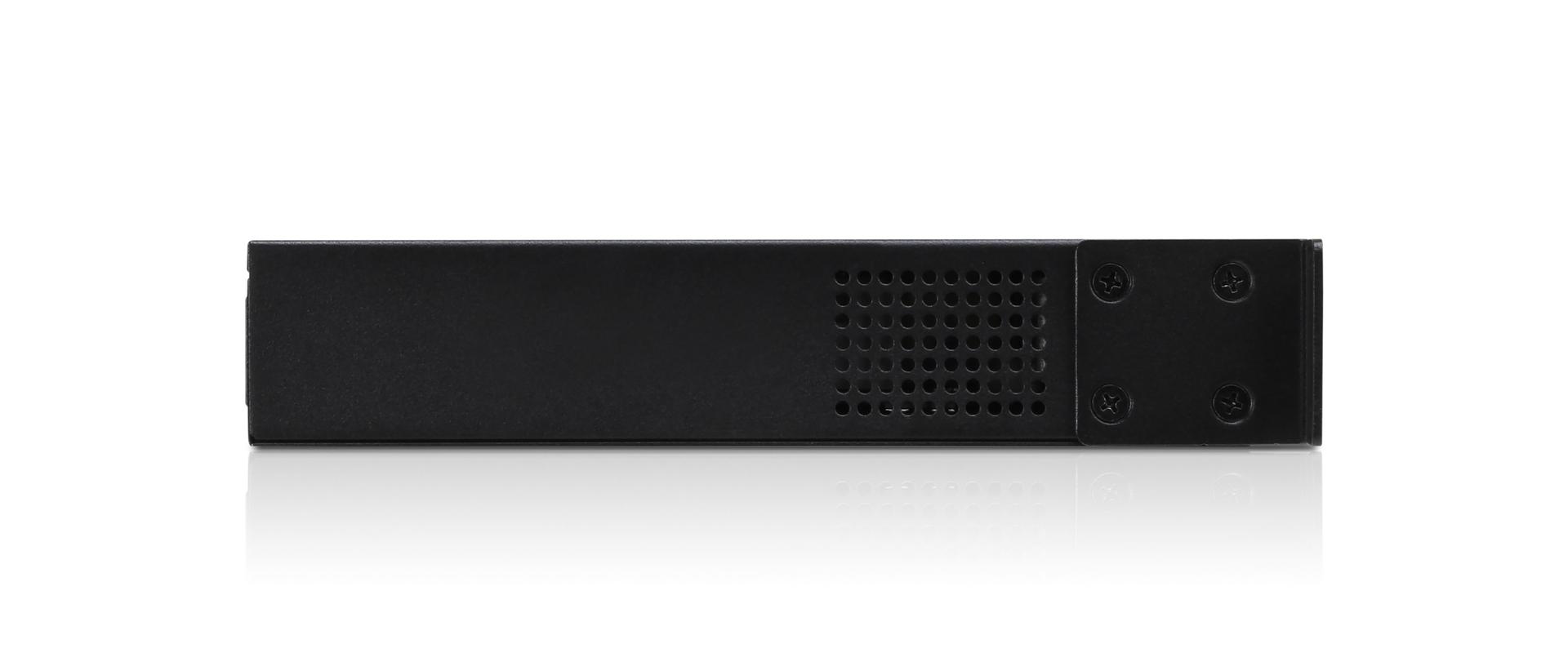

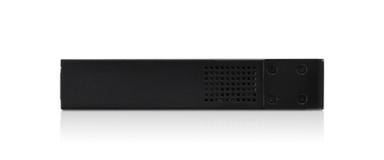

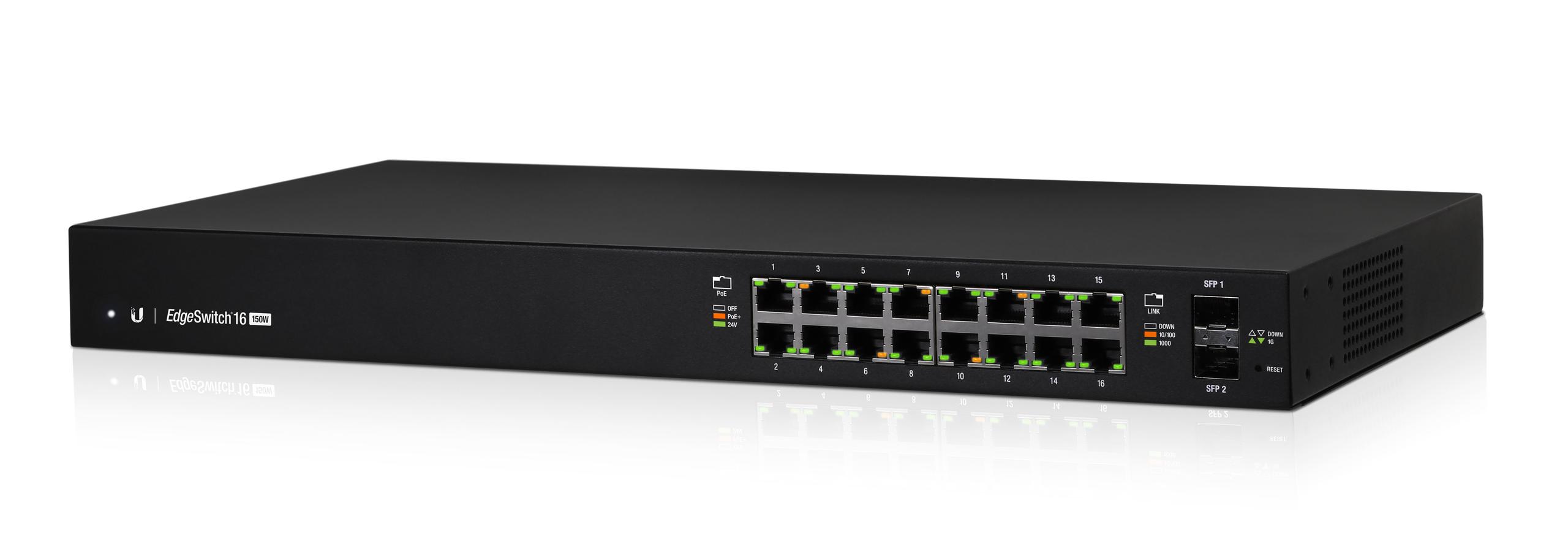

Ubiquiti ES-16-150W EdgeSwitch 16 Port Managed Gigabit PoE+ Switch
Part Number: ES-16-150W
Out of stock
This product is out of stock. Please call on 0330 043 3000 to confirm availability.
Bulk Pricing
1+
£286.99
5+
£280.59
10+
£274.19
The Ubiquiti ES-16-150W EdgeSwitch 16-Port Layer 23 Managed Gigabit PoE+ Switch is a fully managed, high-performance switch that delivers powerful performance and intelligent switching with its sixteen independent switching ports. A DC input option is included for flexibility. This Ubiquiti ES-16-150W includes 24V Passive PoE to simplify your infrastructure and by default, automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.
Description
The Ubiquiti ES-16-150W provides fibre connectivity options for your growing networks with the inclusion of two SFP ports, providing up to 1 Gbps uplinks. For convenient management, this Ubiquiti ES-16-150W EdgeSwitch's Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry -standard command-line interface (CLI) is available through the serial console port, telnet, and SSH. For its total, non-blocking throughput, this Ubiquiti ES-16-150W has a total switching capacity of 36 Gbps.
Key Highlights
- 16 x Gigabit RJ45 Ports, 2 x SFP Ports
- Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
- Maximum of 34.2W per port, total PoE budget 150W
- Non-Blocking Throughput: 18 Gbps
- Switching Capacity: 36 Gbps
- Forwarding Rate: 26.78 Mpps
What’s in the box?
- ES-16-150W
- UK Power Supply
- Mount Brackets (Qty 2)
- Bracket Screws (Qty 8)
- Mounting Screws (Qty 4) & Cage Nuts (Qty 4)
- Rubber Feet (Qty 4)
- Quick Start Guide
Documents
Data Sheet:Unifi EdgeSwitch Datasheet
Quick Start Guide:ES-16-150W_QSG
