Ubiquiti USW-FLEX 5-Port PoE Gigabit Switch for Indoor/Outdoor Use

Part Number: USW-FLEX

USW-FLEX 5 Port Gigabit Switch Front Angle

Hover to zoom

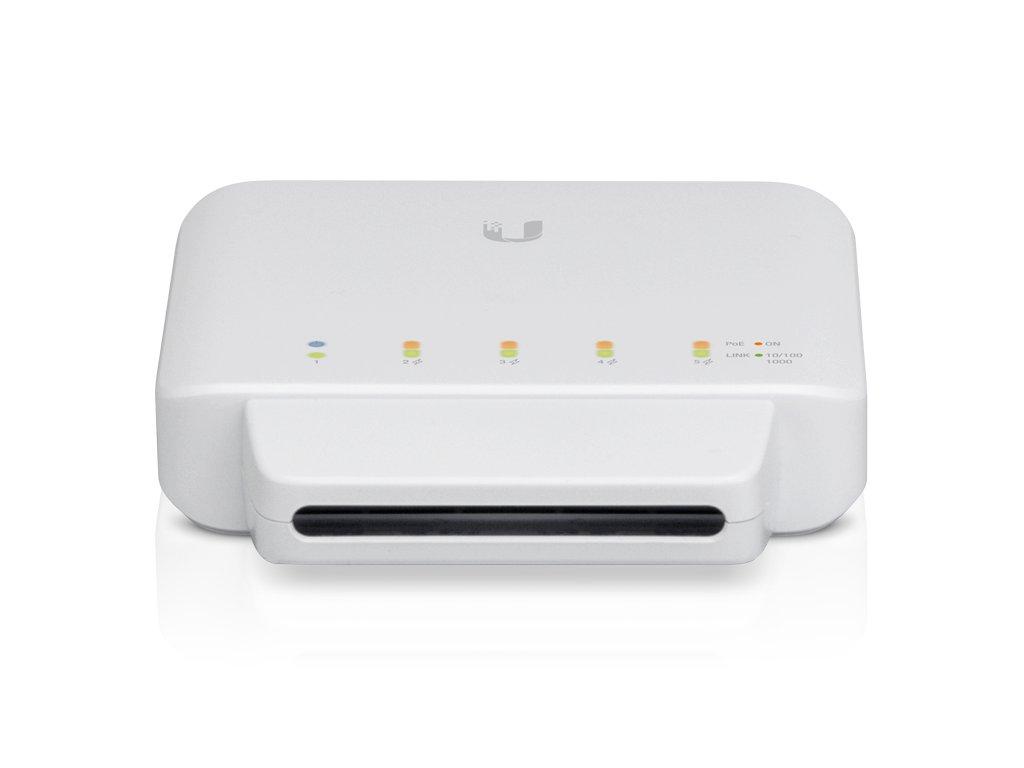

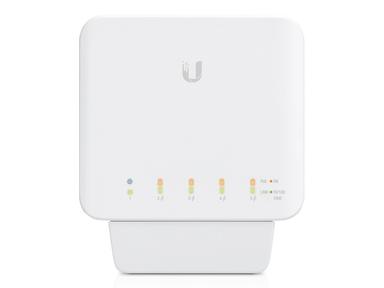

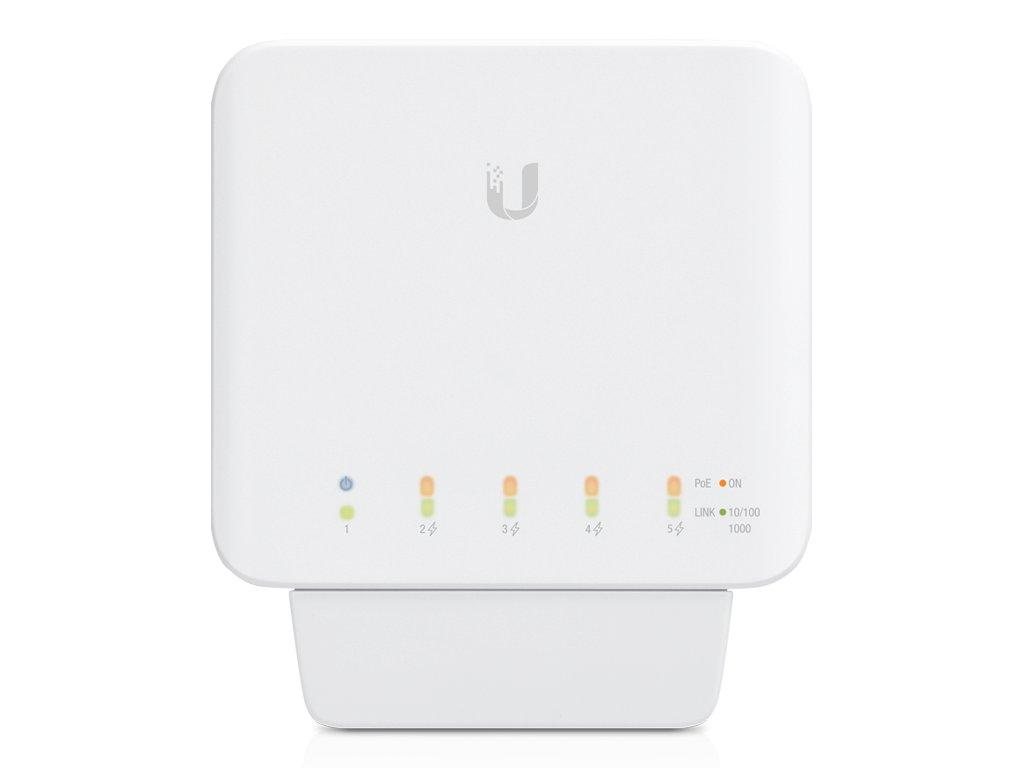

USW-FLEX 5 Port Gigabit Switch Front Angle

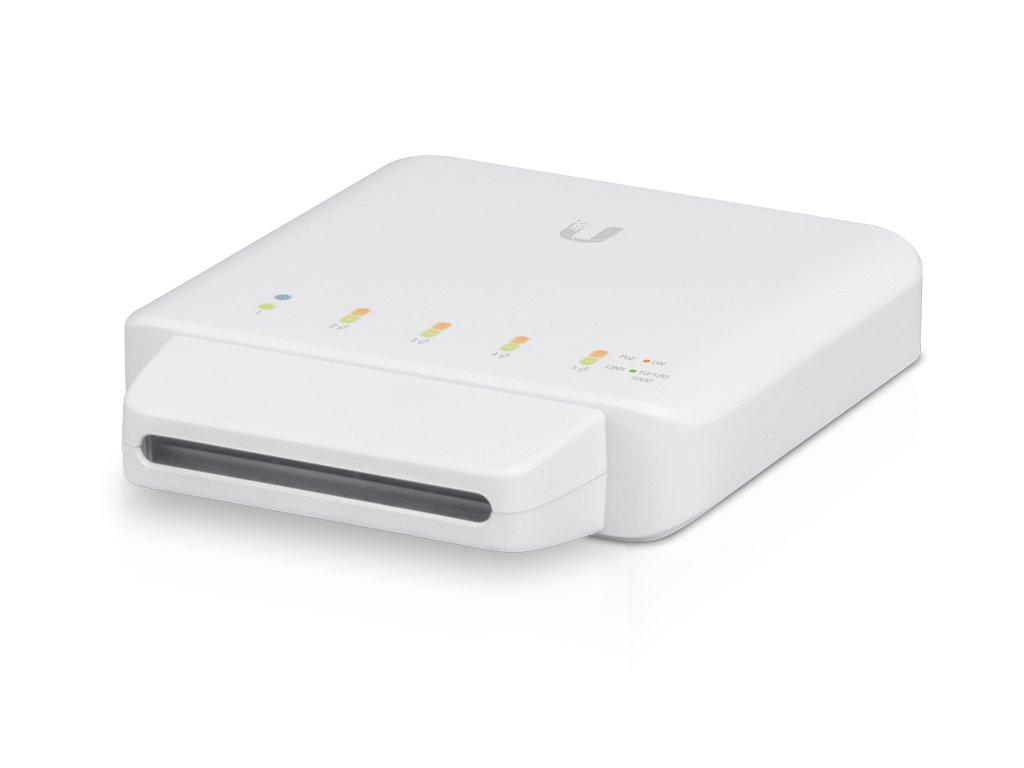

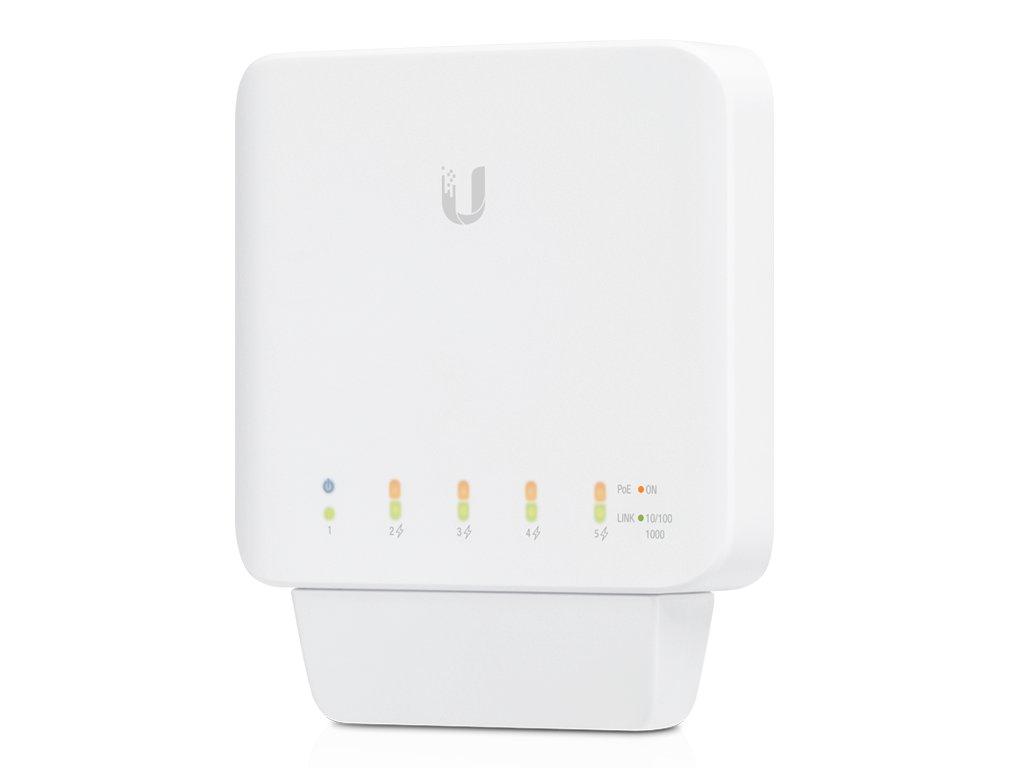

USW-FLEX 5 Port Gigabit Switch Side Angle

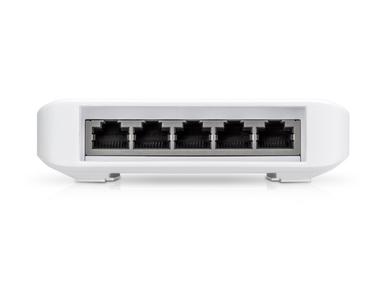

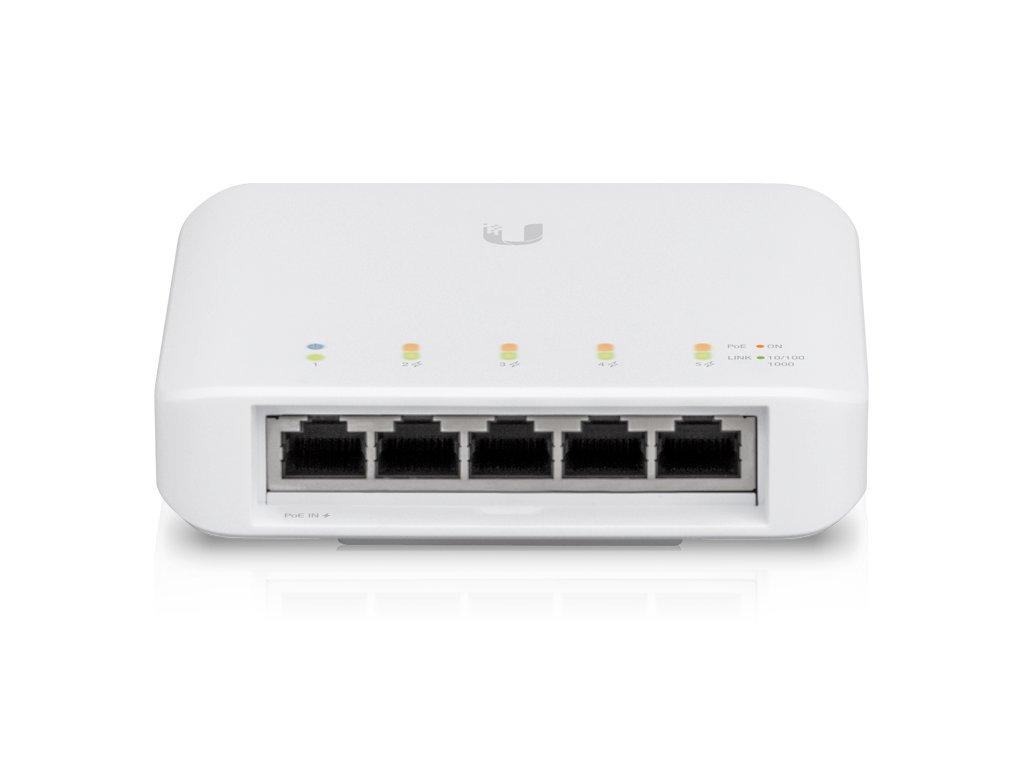

USW-FLEX 5 Port Gigabit Switch Ports

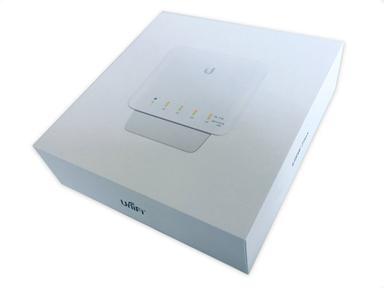

USW-FLEX 5 Port Gigabit Switch Box

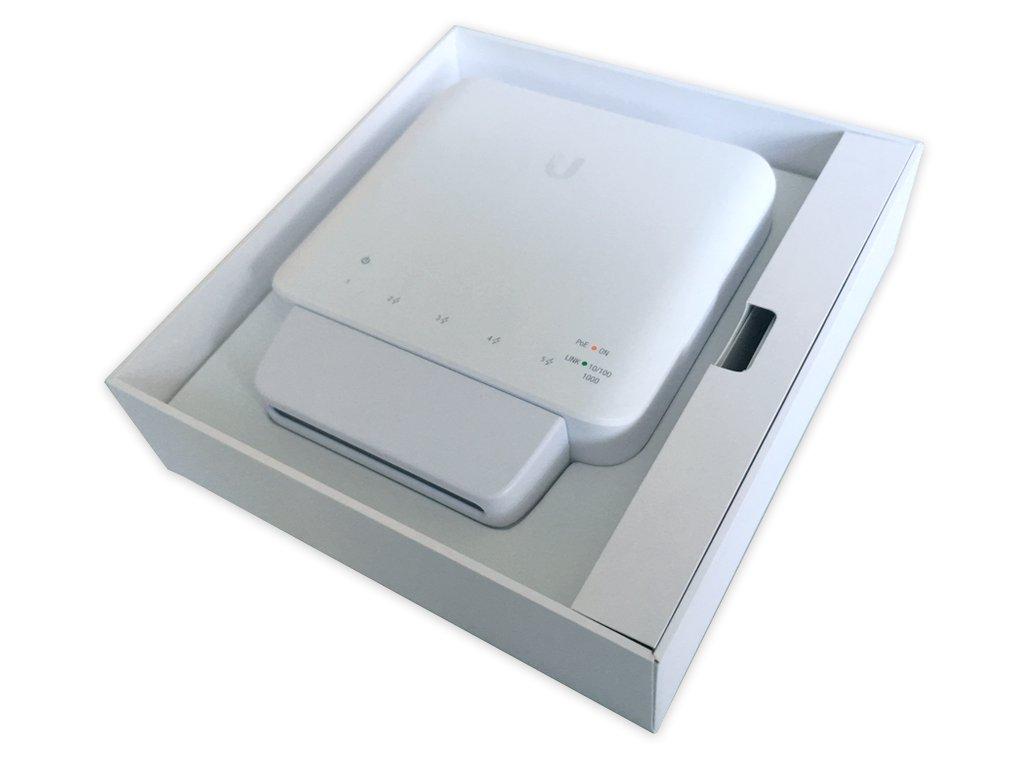

USW-FLEX 5 Port Gigabit Switch Box Open
USW-FLEX 5 Port Gigabit Switch Side Angle 2

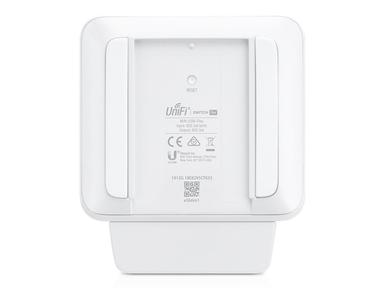

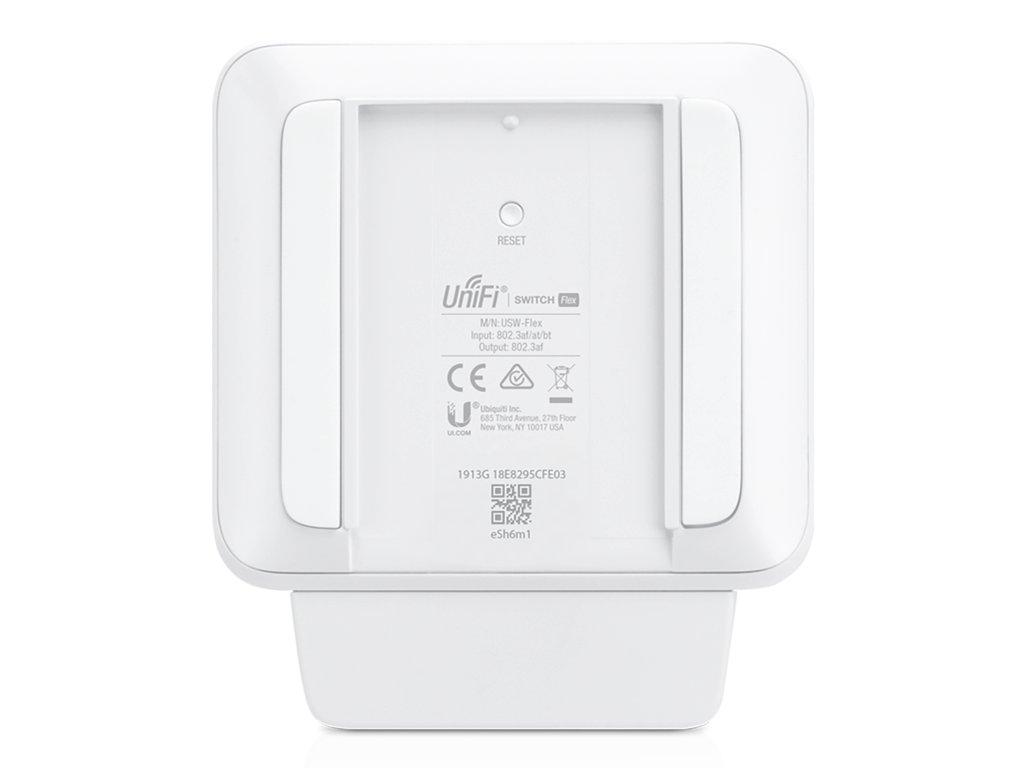

USW-FLEX 5 Port Gigabit Switch Back

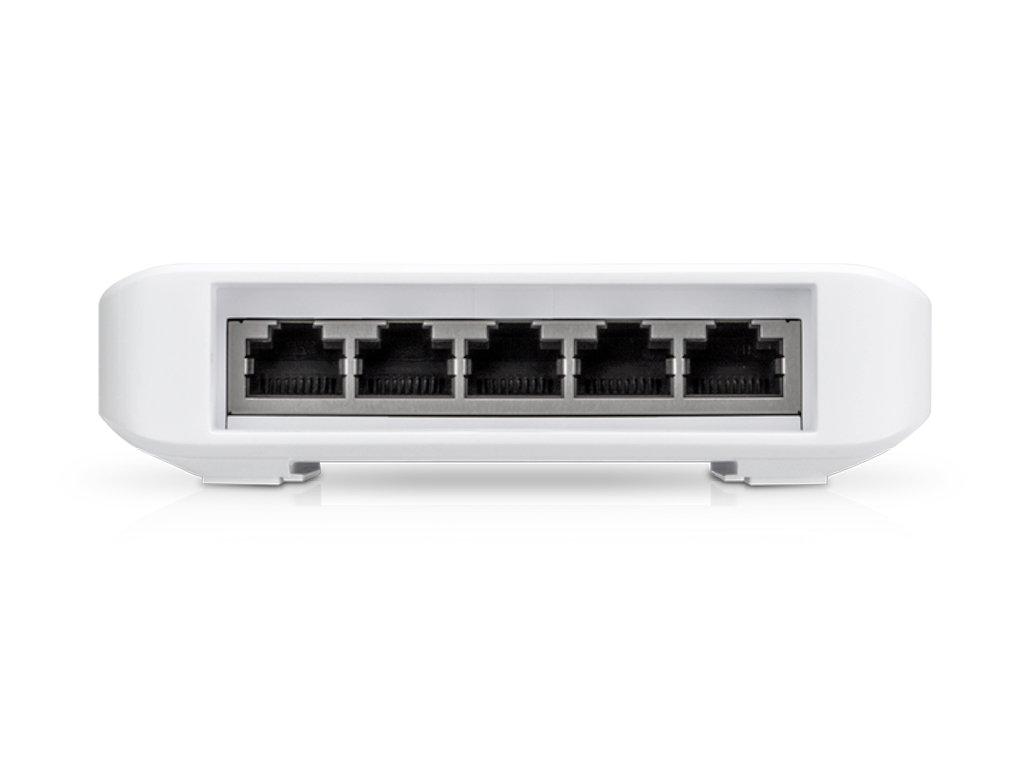

USW-FLEX 5 Port Gigabit Switch Ports 2

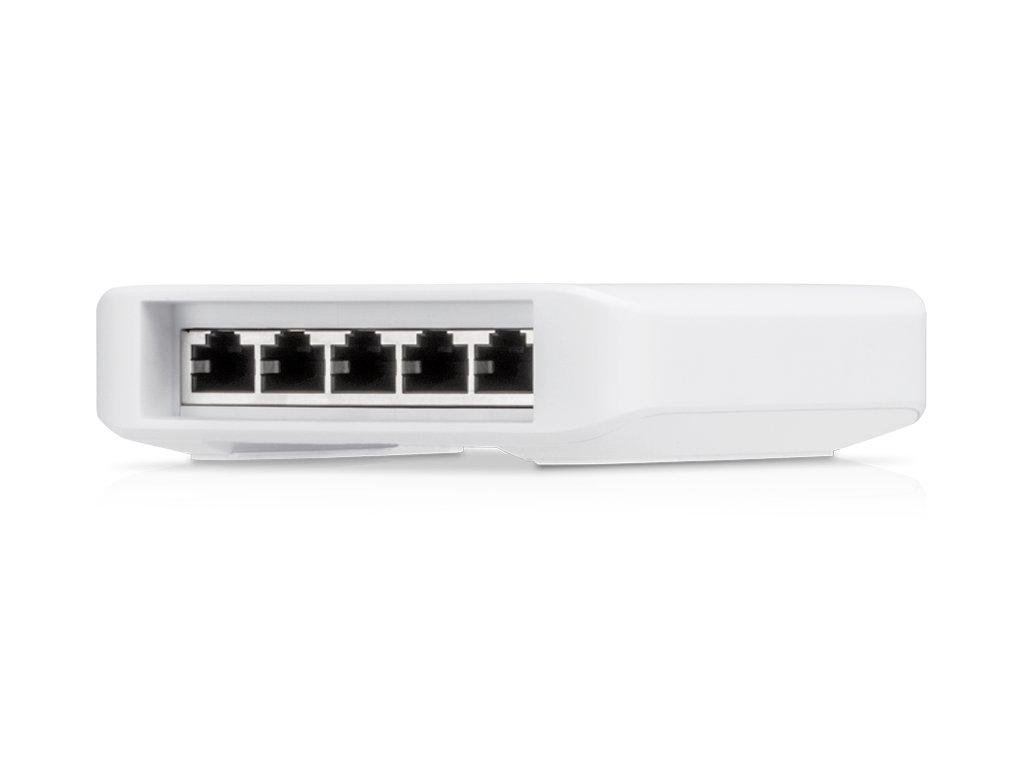

USW-FLEX 5 Port Gigabit Switch Side Angle Ports
USW-FLEX 5 Port Gigabit Switch Cover

Ubiquiti's USW-FLEX is a Gigabit managed Layer 2 switch with an 802.3bt PoE++ input port and 4 x auto-sensing 802.3af PoE output ports. The device can be installed horizontally or vertically and is designed for both indoor and outdoor use, making it ideal for desktop, wall, and pole-mount installations. With its weatherproof housing and versatile mounting options, this switch provides the flexibility and durability in environments with extreme temperature variations.

Out of stock

This product is out of stock. Please call on 0330 043 3000 to confirm availability.

£157.94inc VAT

Shipping from £4.79

Free Returns (Ts&Cs apply)

Price Breaks

  • 1 =

    £157.94

  • 5+ =

    £157.94

  • 10+ =

    £157.94

More Information - Ubiquiti USW-FLEX Switch

The USW-FLEX features 5 x Gigabit RJ45 ports to deliver robust performance and intelligent switching for your network, and is capable of a maximum PoE budget of 46W, depending on the PoE that is powering the USW-FLEX. Please note: for full PoE budget, use the Ubiquiti POE-50-60W (sold separately).

Forwarding capacity enables the device to simultaneously process traffic on all ports at line rate without any packet loss. Use the included mounting kit to mount the USW-Flex on a pole or mount, or attach the wall mount to the rear panel and hang the switch on a magnetic surface.

The UniFi Network Controller allows users to provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organised for a simplified, yet powerful, interface. The controller provides configurable reporting and analytics to manage a large number of users and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

USW-FLEX Key Highlights:

  • 5 x Gigabit RJ45 ports
  • 1 x PoE++ input
  • 4 x PoE output
  • IP55-rated - indoor/outdoor
  • Auto-sensing 802.3af PoE
  • PoE Flexibility
  • Wall / Pole Mountable

Total PoE Power Budget

  • Powered by AF mode 802.3af - 8W
  • Powered by AT mode 802.3at - 20W
  • Powered by BT mode 802.3bt - 46W
  • Powered by PoE Adapter (enabled in controller) - 46W
  • Please note: for full PoE budget, use the Ubiquiti POE-50-60W (sold separately)

What's in the box?

  • Ubiquiti USW-FLEX Switch
  • Wall Mount
  • Pole Mount
  • Port cover
  • 2 x Mounting Screws
  • 2 x Screw Anchors
  • 2 x Zip Ties
