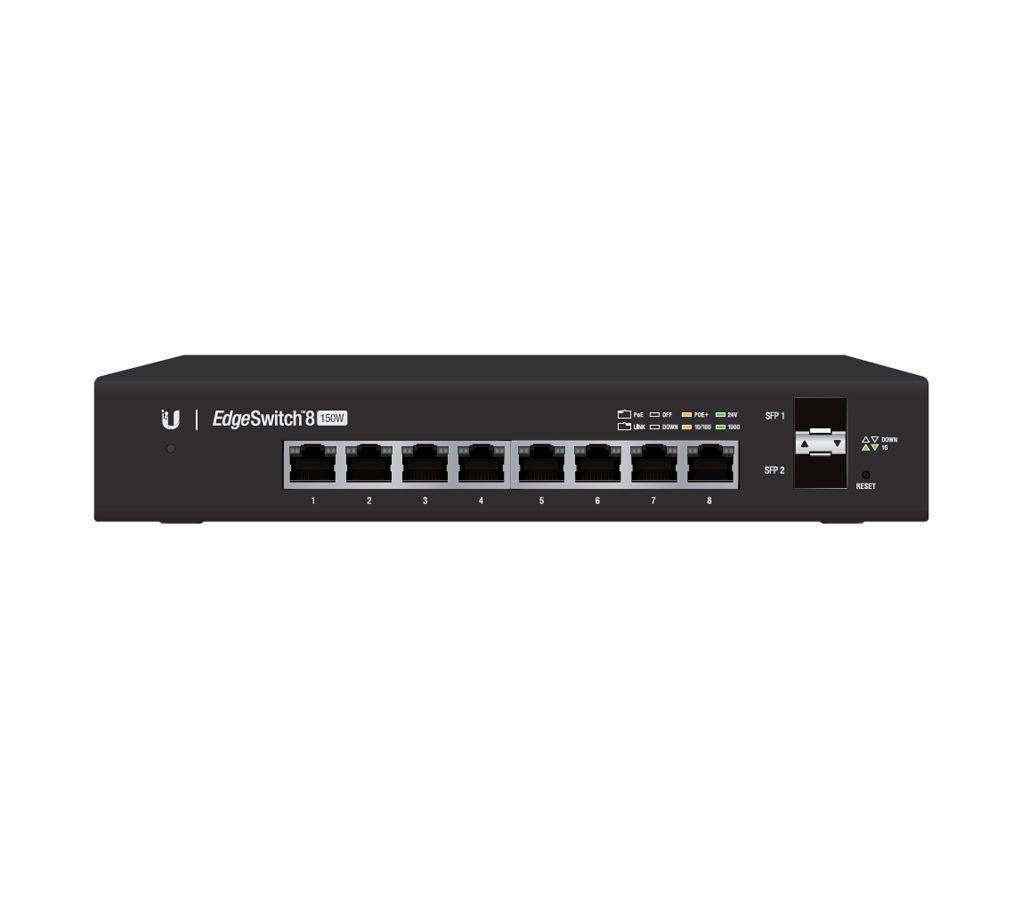

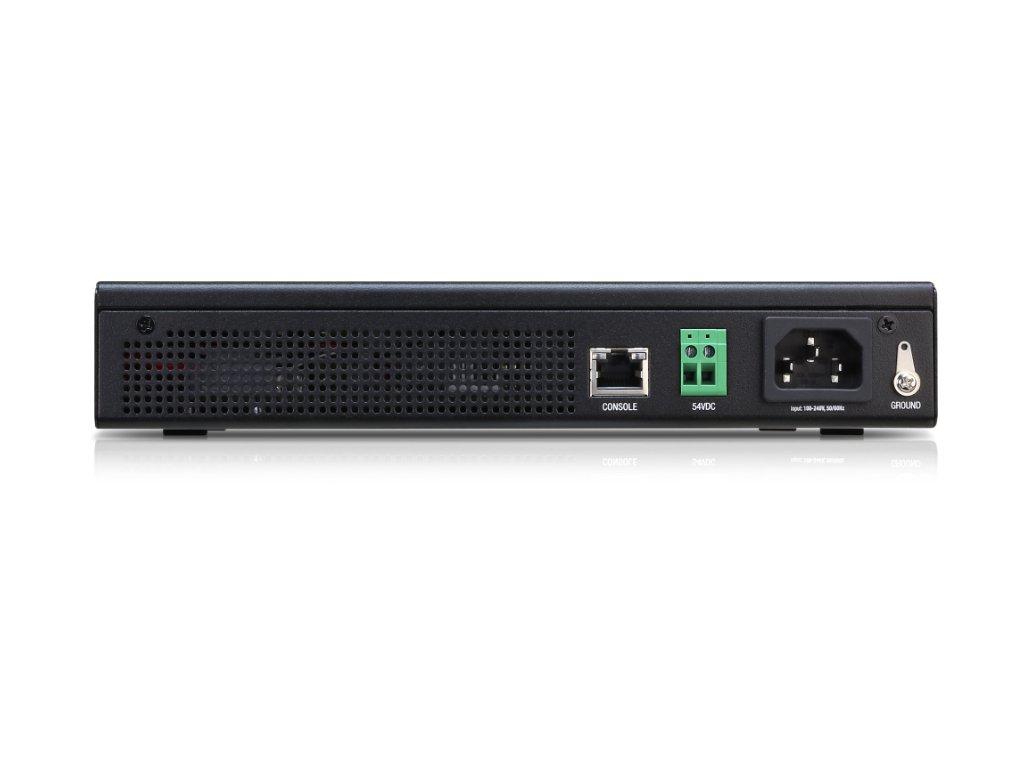

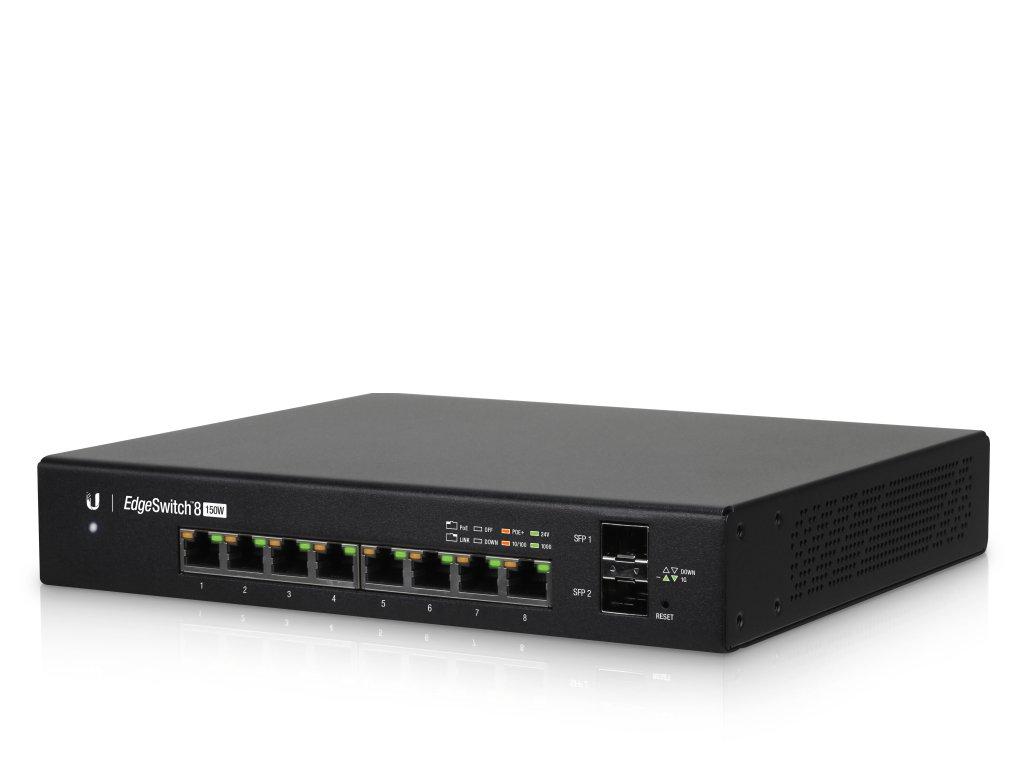

Ubiquiti ES-8-150W EdgeSwitch 8-Port Managed Gigabit PoE+ Switch
Part Number: ES-8-150W
Discontinued
This product has been discontinued.
The Ubiquiti ES-8-150W EdgeSwitch 8-Port Layer 2 Managed Gigabit PoE+ Switch is a fully managed, high-performance switch that delivers powerful performance and intelligent switching with its eight independent switching ports. A DC input option is included for flexibility. This Ubiquiti ES-8-150W includes 24V Passive PoE to simplify your infrastructure and by default, automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.
Description
The Ubiquiti ES-8-150W provides fibre connectivity options for your growing networks with the inclusion of two SFP ports, providing up to 1 Gbps uplinks. For convenient management, this Ubiquiti ES-8-150W EdgeSwitch's Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry -standard command-line interface (CLI) is available through the serial console port, telnet, and SSH. For its total, non-blocking throughput, this Ubiquiti ES-8-150W support up to 10 Gbps and a total switching capacity of 20 Gbps.
Key Highlights
- 8 x Gigabit RJ45 Ports and 2 x SFP Ports
- Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
- Maximum of 30W per port, total PoE budget 150W
- Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
What’s in the box?
- Ubiquiti ES-8-150W EdgeSwitch
- UK Power Supply
- 2 x Mount Brackets
- 8 x Bracket Screws
- 4 x Mounting Screws
- Quick Start Guide
- 4 x Screw Anchors
Specification
| Supports Gigabit | 1 |
|---|---|
| Supports PoE | 1 |
| Gigabit Ports | 8 |
| PoE Ports | 8 |
| RJ45 Ports | 8 |
| SFP Ports | 2 |
| Managed | 1 |
Documents
Data Sheet:Unifi EdgeSwitch Datasheet
Quick Start Guide:ES-8-150W_QSG
