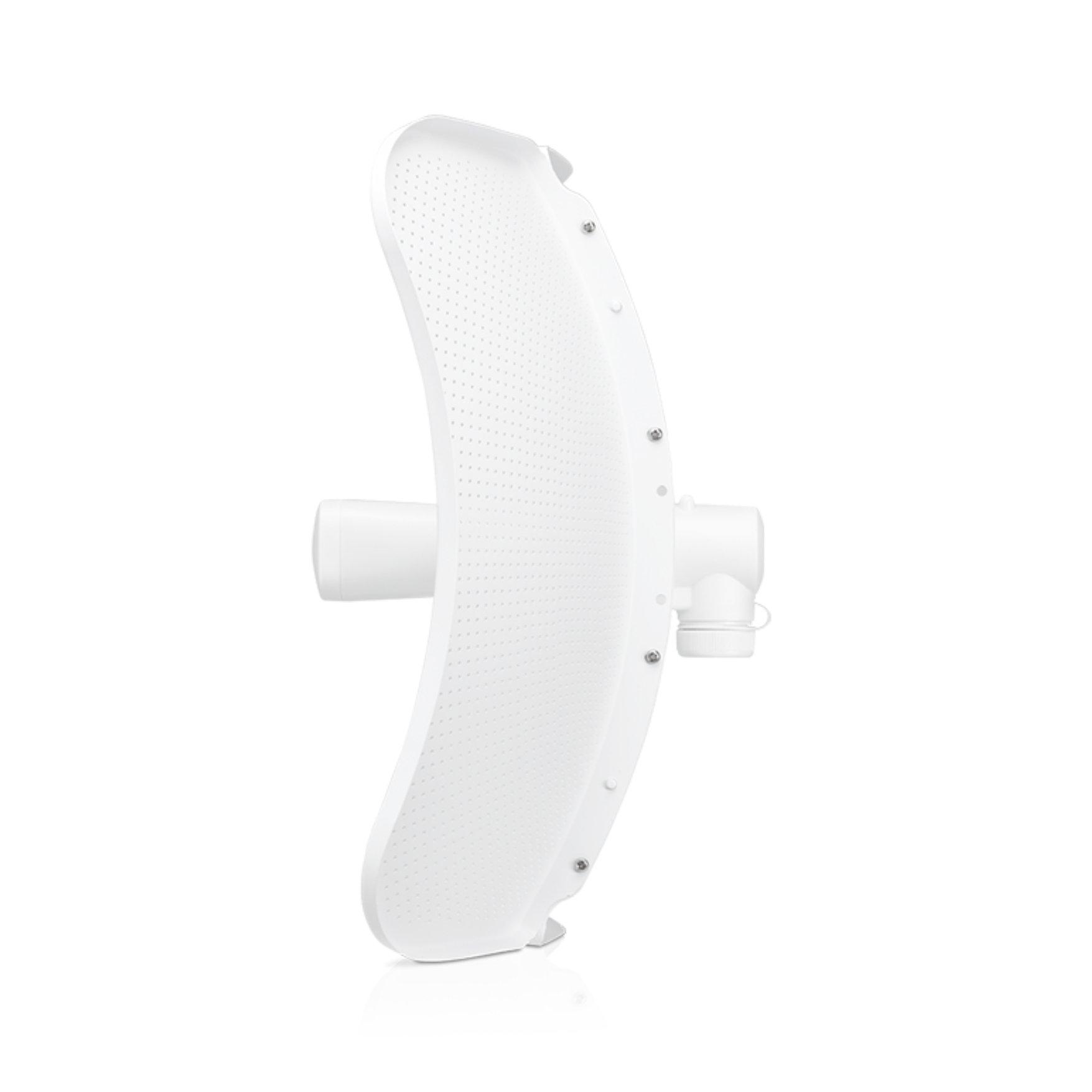

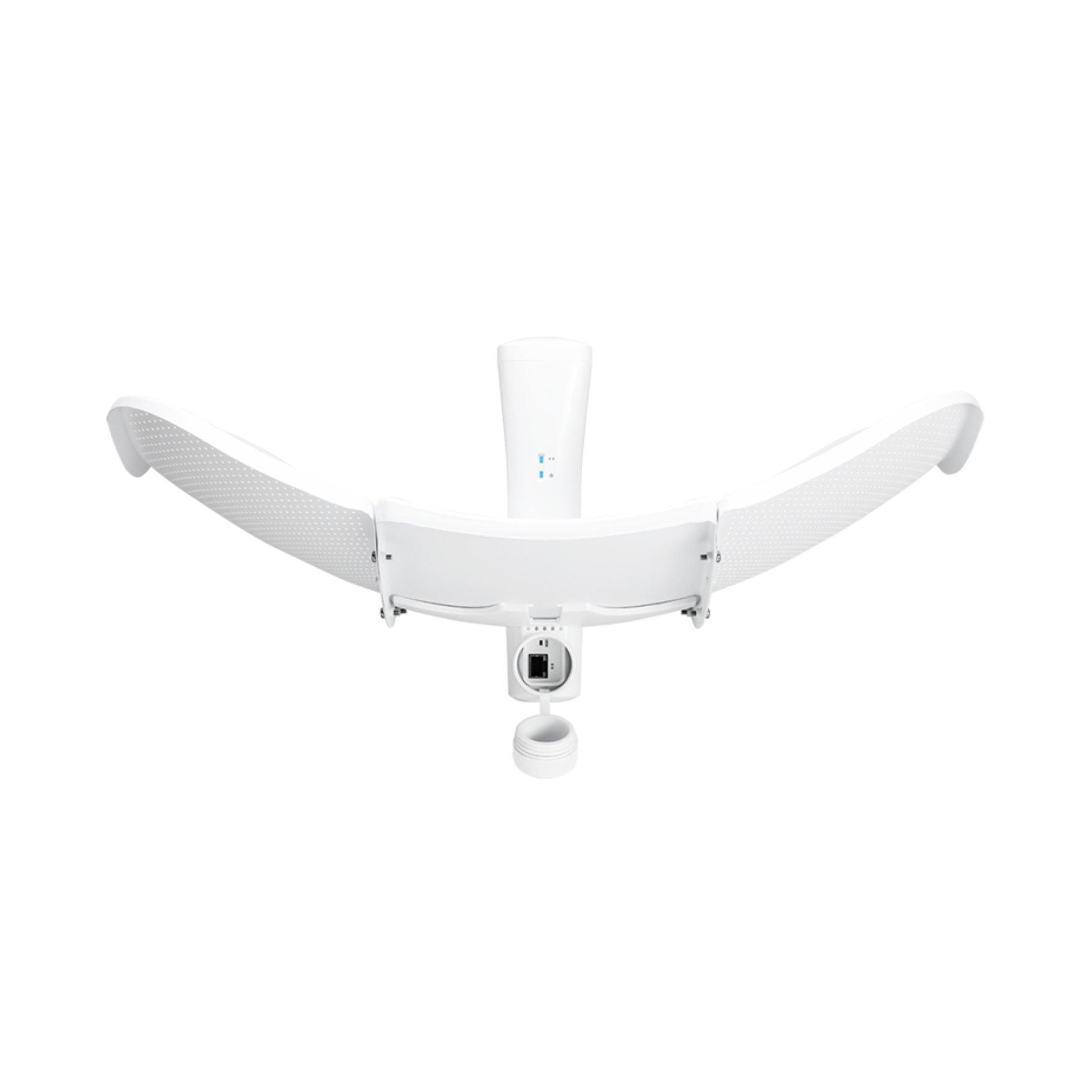

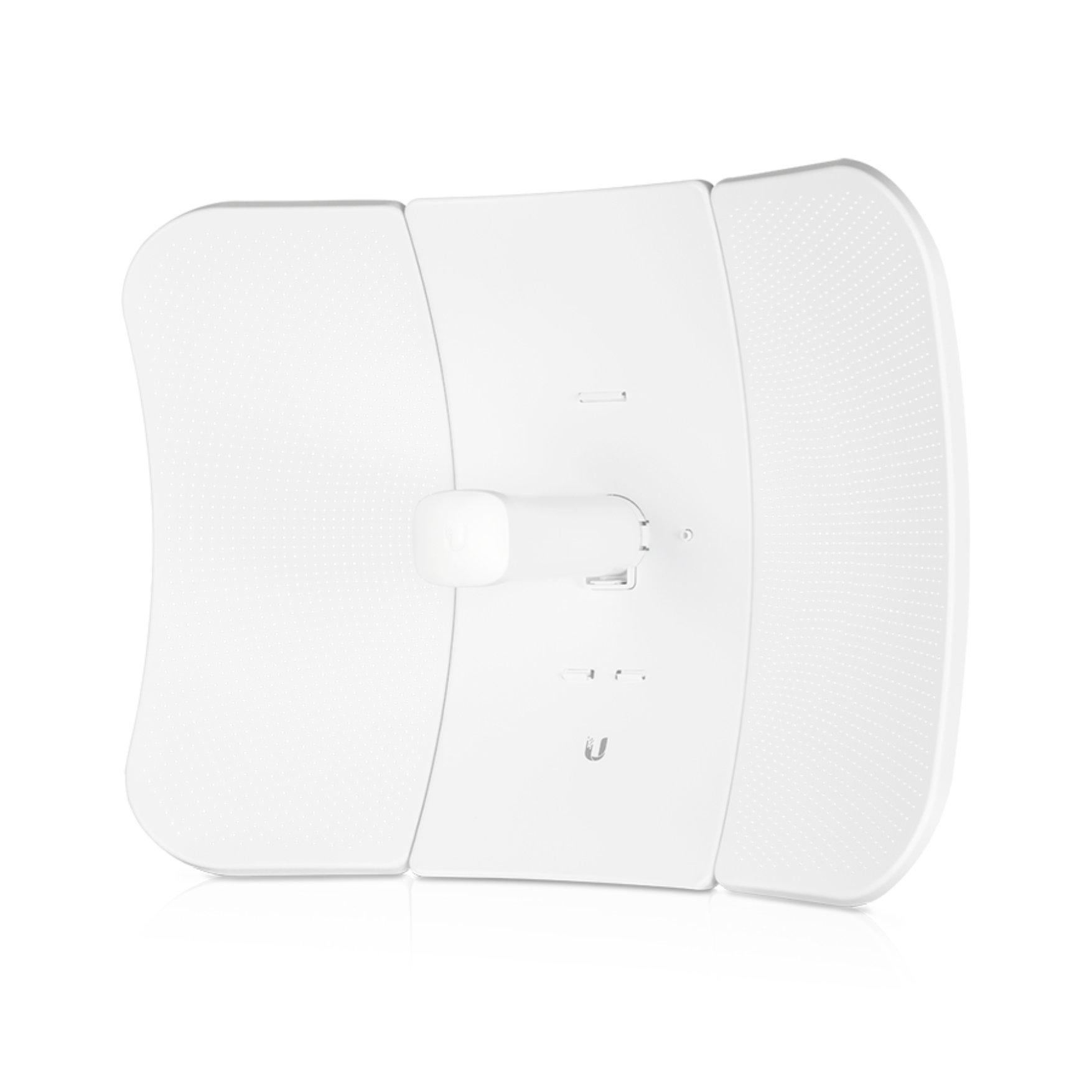

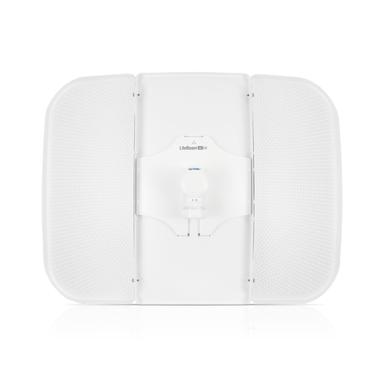

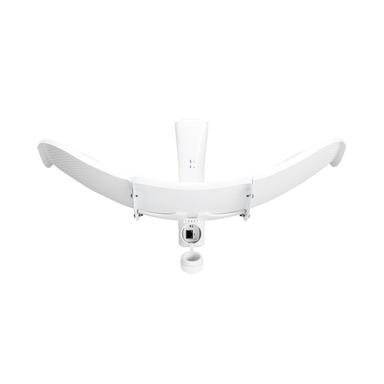

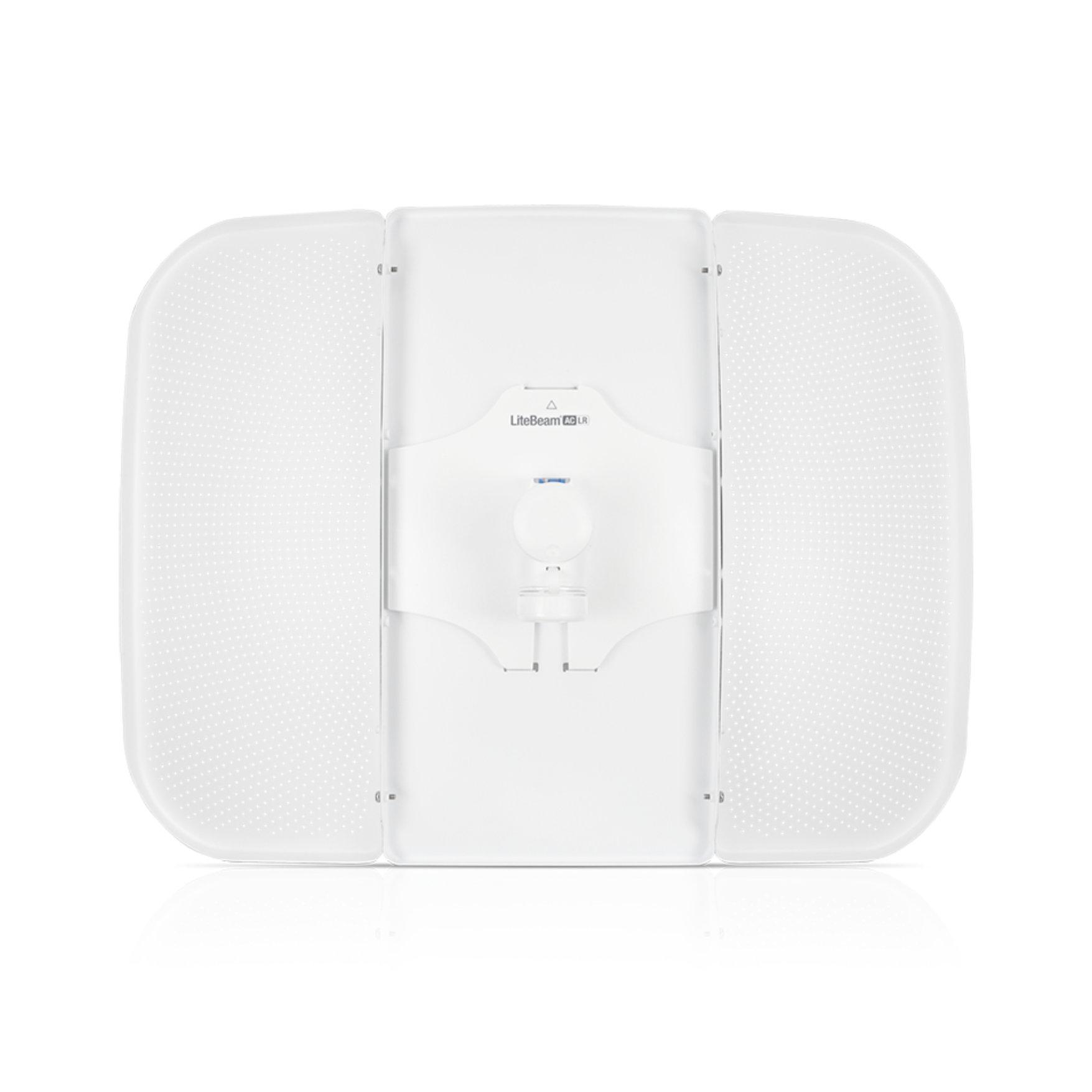

Ubiquiti airMAX LiteBeam AC 5 GHz Long-Range Station
ubiquiti/airmax-lbe-1

Click to zoom

ubiquiti/airmax-lbe-1
ubiquiti/ubiquiti-airmax-lbe-2
ubiquiti/ubiquiti-airmax-lbe-3
ubiquiti/ubiquiti-airmax-lbe-4
ubiquiti/ubiquiti-airmax-lbe-4

Ubiquiti airMAX LiteBeam AC 5 GHz Long-Range Station

Part Number: LBE-5AC-LR

£112.99inc VAT
£94.16ex VAT

Out of stock

This product is out of stock. Please call on 0330 043 3000 to confirm availability.

Easy Returns

Bulk Pricing

  • 1+

    £112.99

  • 5+

    £109.49

  • 10+

    £105.99

The Ubiquiti airMAX LiteBeam AC 5 GHz Long-Range Station represents the newest generation of airMAX point-to-point WiFi solutions, offering 450+Mbps throughput over 25+ km of range. The LBE-5AC-LR includes an integrated WiFi radio for facilitating easy mobile setup, and includes a large reflector size and elevation adjustment to maximise range.

Description

The LBE-5AC-LR improves upon the popular LBE-5AC-GEN2, offering both increased range and improved noise immunity by virtue of the tighter beamwidth. This improves signal in areas crowded with other RF signals, improving performance and reliability over longer ranges.

The LBE-5AC-LR incorporates InnerFeed technology into its design, a process in which the radio is integrated into the feed horn of the antenna, eliminating the need for cabling and thereby improving performance by eliminating cable losses. The LBE-5AC-LR also offers an intuitive setup process, being both easy to assemble and including a WiFi radio for effortless initial setup using a mobile device. A built-in spirit level is coupled with Ubiquiti's innovative mounting system for quick and easy alignment, as well as a two-mount system providing flexible mounting and adjustment.

By virtue of its integrated WiFi radio the airMAX LiteBeam is fully compatible with airOS, offering not only an easy initial setup but intuitive remote monitoring and configuration functionality.

Key Highlights

  • 25+ KM link range
  • 5GHz band with throughput of 450+ Mbps
  • Innerfeed technology eliminates cables and cable loss
  • Integrated WiFi radio
  • Enhanced protection against power surges
  • Built-in spirit level and two-mount system for adjustment flexibility
  • Compatible with airOS 8 software
  • Automatic channel selection
  • airMAX ac protocol support
  • 1 x GbE RJ45 port
  • Powered by 24V PoE

What’s in the box?

  • 1 x LBE-5AC-LR
  • 1 x Antenna Feed
  • 1 x Centre Reflector Panel
  • 2 x Side Reflector Panel
  • 1 x Mounting Bracket
  • 1 x Feed Receiver
  • 2 x Pivot Panels
  • 1 x Screws Set
  • 3 x Metal Straps
  • 1 x UK Power Adapter
  • 1 x Quick Start Guide

Specification

WiFi1
Range (m)Up to 25,000m
PoE1
5Ghz Throughput450+ Mbps

Documents

  • Data Sheet:LBE-5AC-LR Data Sheet
