Ubiquiti NS-5AC NanoStation 5AC 5GHz 16dBi CPE

Part Number: NS-5AC

Ubiquiti Nanostation NS-5AC Front Angle

Hover to zoom

Ubiquiti Nanostation NS-5AC Front Angle

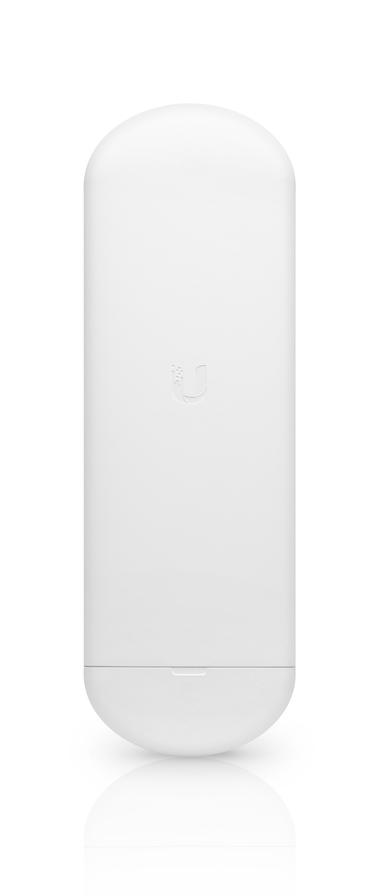

Ubiquiti Nanostation NS-5AC Front

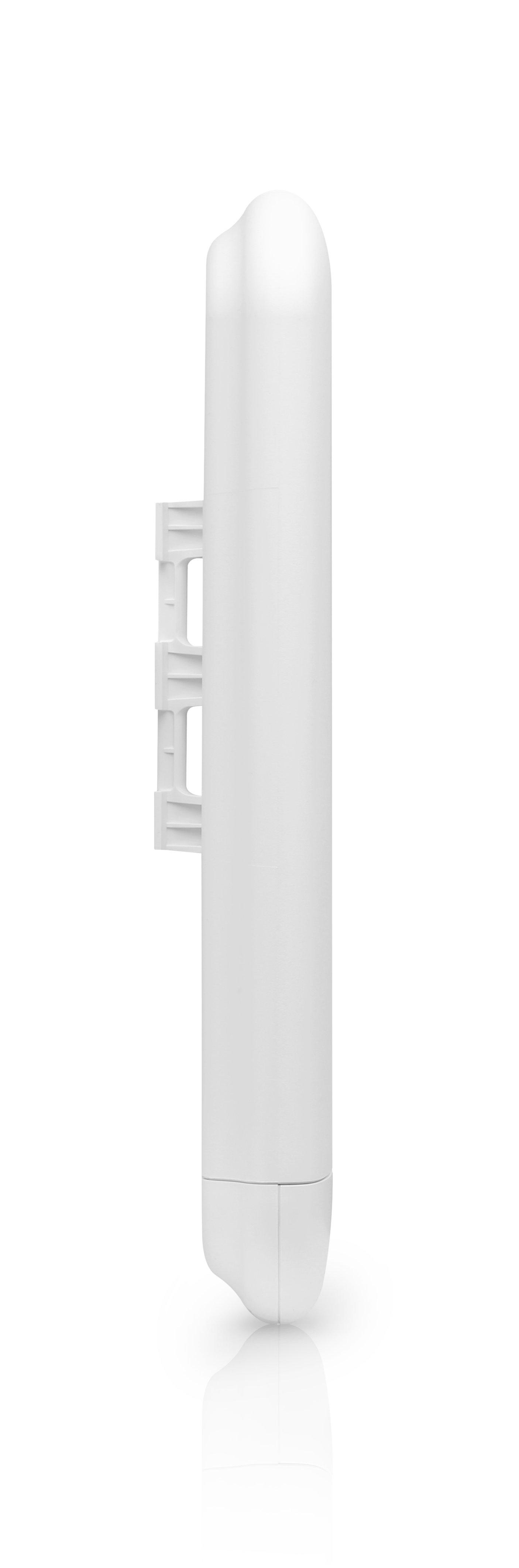

Ubiquiti Nanostation NS-5AC Side

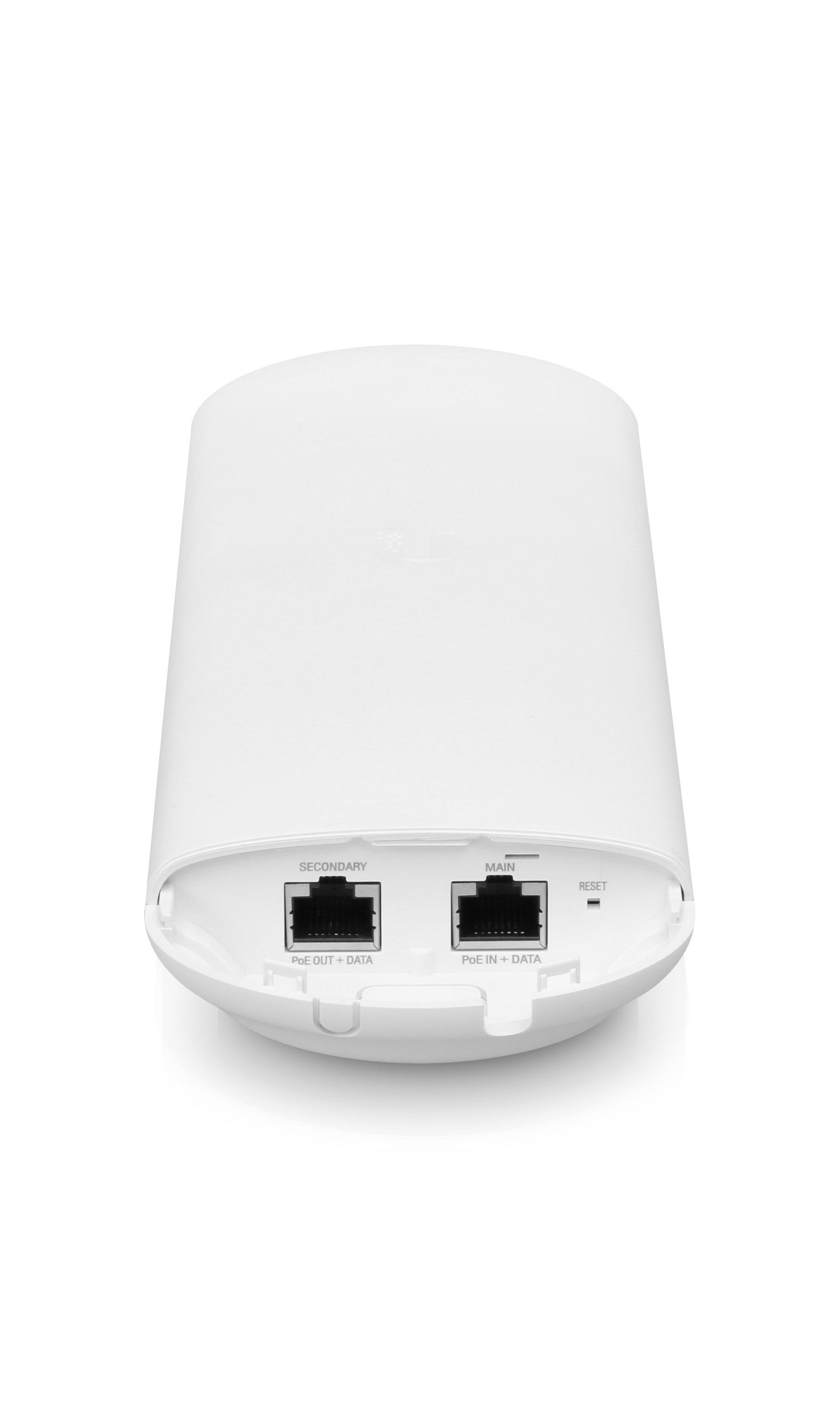

Ubiquiti Nanostation NS-5AC Ports

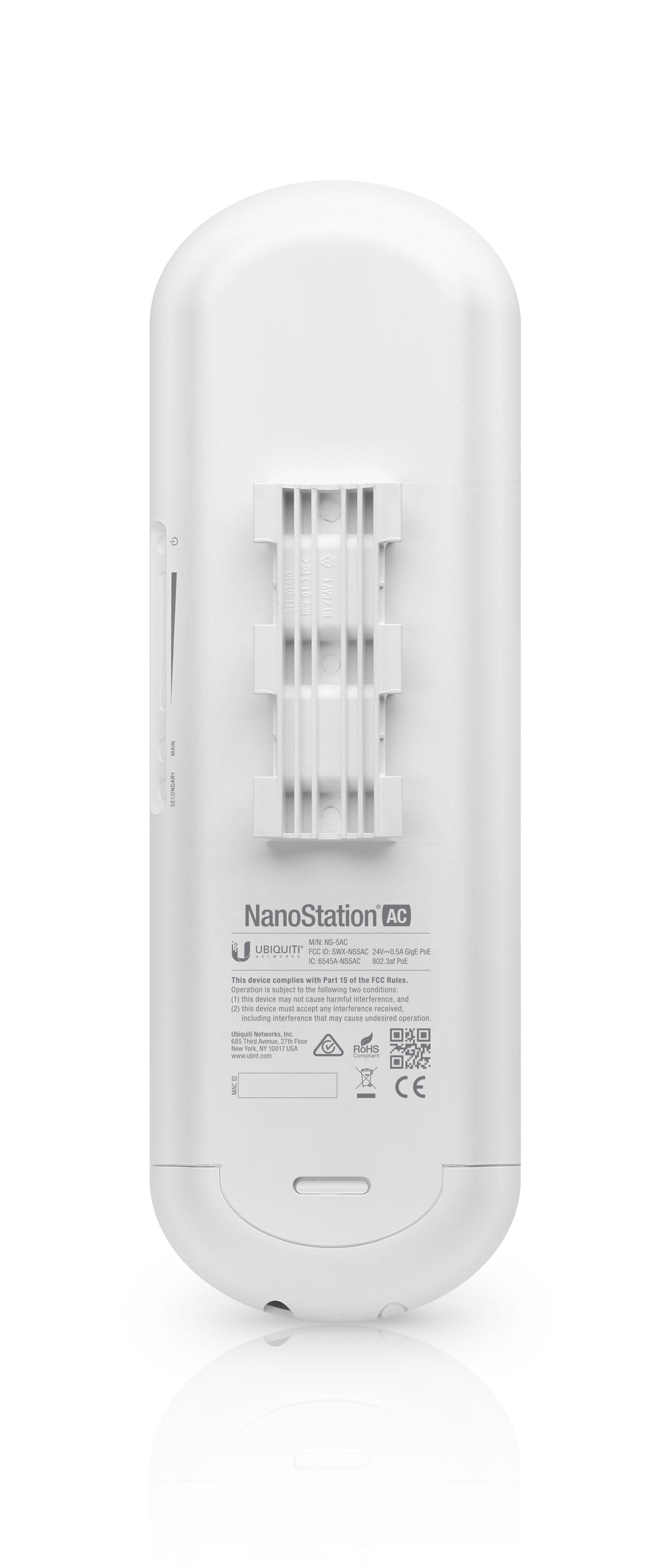

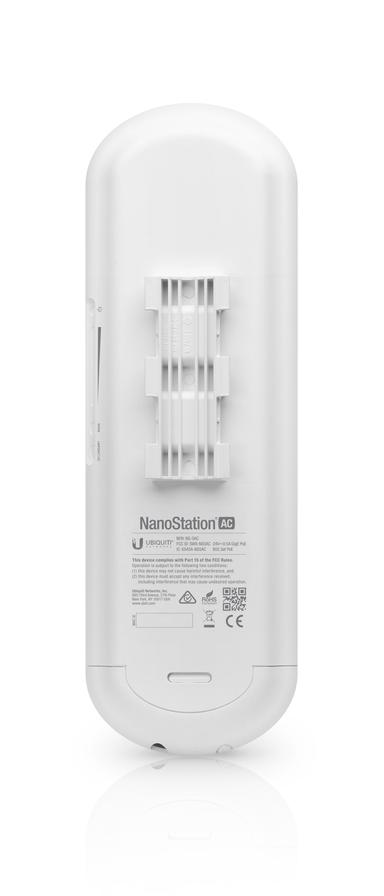

Ubiquiti Nanostation NS-5AC Back

Ubiquiti Networks' NanoStation AC (NS-5AC) is an indoor/outdoor Customer Premises Equipment (CPE) which comes with a dedicated 2.4GHz WiFi radio for management and a single gigabit ethernet port for power and data input. You can easily extend your network by bridging the connection, without the need for multiple ethernet cables! This port can be used to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.

Out of stock

This product is out of stock. Please call on 0330 043 3000 to confirm availability.

£165.09inc VAT

Shipping from £4.79

Free Returns (Ts&Cs apply)

Price Breaks

  • 1 =

    £165.09

  • 5+ =

    £165.09

  • 10+ =

    £165.09

More Information - Ubiquiti NanoStation NS-5AC

The NanoStation AC gets maximum gain out of the smallest footprint - The radio and antenna are combined into a single body that takes up minimal space. It is suitable for indoor and outdoor installations, and provides a secondary ethernet port with software-enabled PoE.

The NS-5AC is capable of throughput speeds of up to 450+Mbps. The 16dBi antenna is integrated to reduce size and improve installation. The NanoStation 5AC utilises the latest ESD protection to help against power surges.

NS-5AC Key Highlights

  • Point to Point & Point to Multi-Point capable
  • Power supply included (POE-24-12W-G)
  • Indoor and outdoor installation
  • Improved surge protection
  • Efficient footprint
  • Dual ethernet connectivity
  • Quick installation

What's in the Box?

  • NanoStation 5AC
  • Wall mount bracket
  • 2 x screws
  • 2 x screw anchors
  • 2 x zip ties
  • 1 x Gigabit PoE Adaptor (24V, 0.5a)
  • UK power cord
  • Quick Start Guide

Documents

Quick Start Guide:

NS-5AC_QSG
