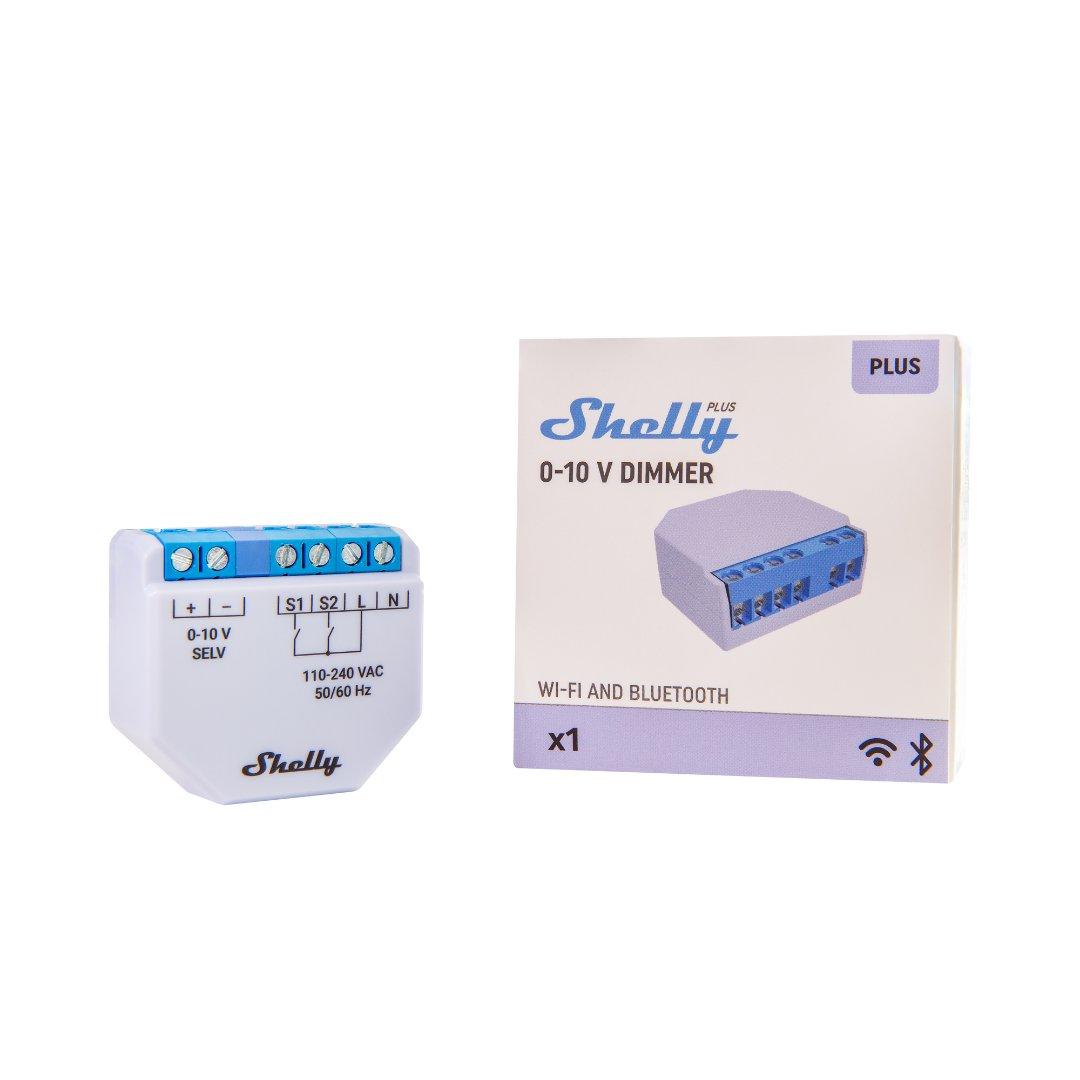

Shelly 0-10V DC Smart Dimming Controller
Part Number: SHELLY-DIMMER-0-10V
Discontinued
This product has been discontinued.
The Shelly Plus Dimmer is a smart dimming switch designed to manage 0-10V DC dimming drivers for extra precise dimming capabilities. The Shelly Plus 0-10V is part of the retrofit range, meaning it can be easily installed behind any regular switch in your home and can be seamlessly integrated with existing single or dual control switches.
Description
The Shelly Plus 0-10V dimmer is widely compatible with most third-party smart home platforms and protocols like Home Assistant, Amazon Alexa or Google Home for total control over your lighting. You can even use custom scripting and webhooks for total customisation of your lighting and routines.
The device supports signal control for multiple types of drivers such as lights, motors, valves, and a one-button dimming mode for physical switches. Compatible with smart routines and schedules, the 0-10V dimmer has a 'night mode' functionality for low lighting during the night hours. When used in conjunction with a motion detector like the Shelly BLUE Motion this smart dimmer can fade the lights if no motion has been detected for some time, and keep them at a low level so they're dimmed and soft when switched on during the night.
Please Note: In order to access this device's full dimming functionality, a custom script needs to be added. NetXL provides a pre-made script for this purpose, which you can find here. For more information on how to add scripts to Shelly devices, take a look at our custom script FAQ!
Key Highlights
- Built-in WiFi - no hub required
- Embedded web server for local management
- 1 channel switch, 16A
- Flexible input control
- Dimming functionality
- Smart schedules
- Smart scenes
- Automatic on/off timer
- Enhanced security (MQTT, WSS and TLS certificate support)
What’s in the box?
- 1 x SHELLY-DIMMER
- 1 x Installation Guide
Documents
User Manual:Shelly Plus 0-10V Dimmer User Manual
