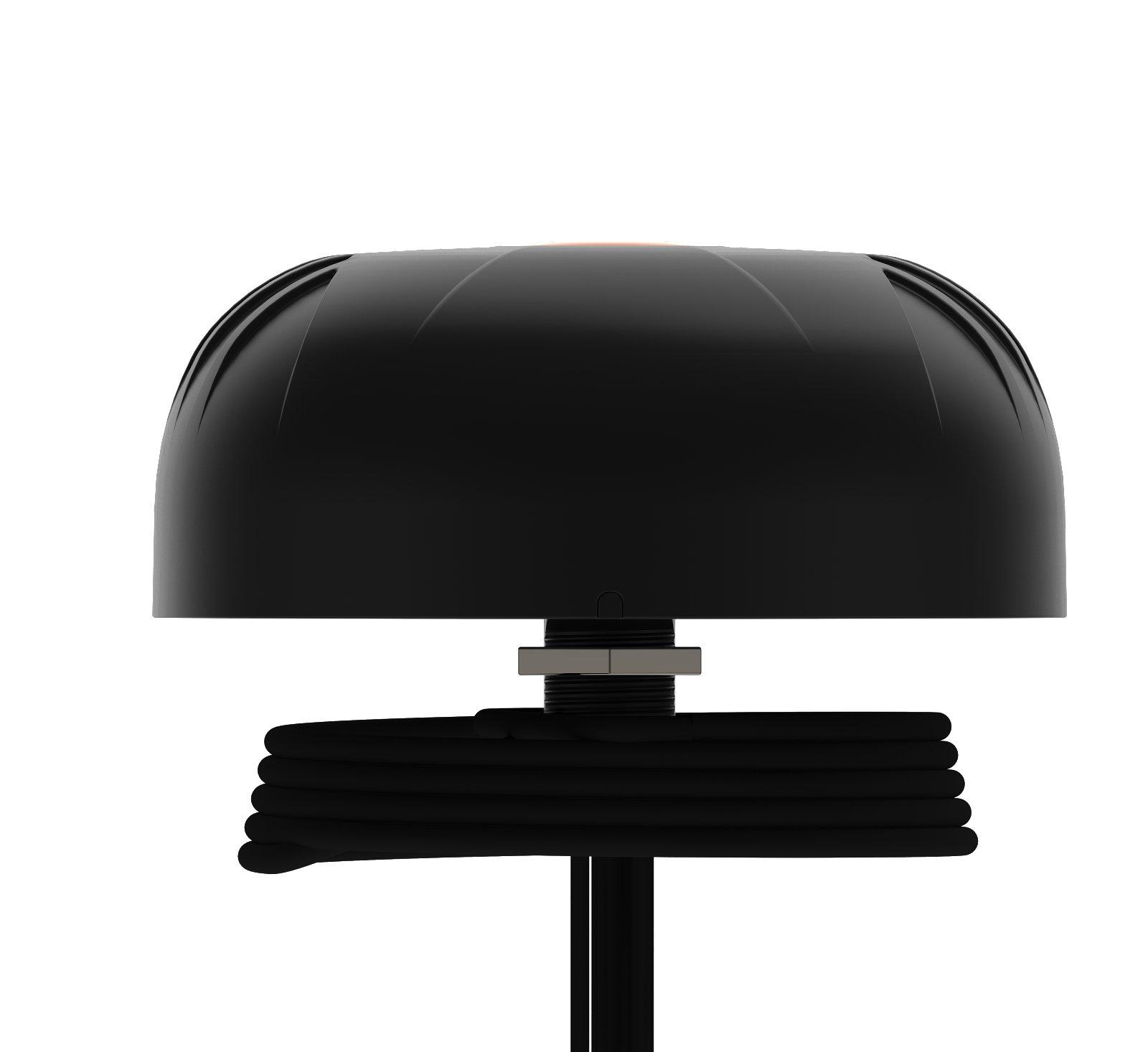

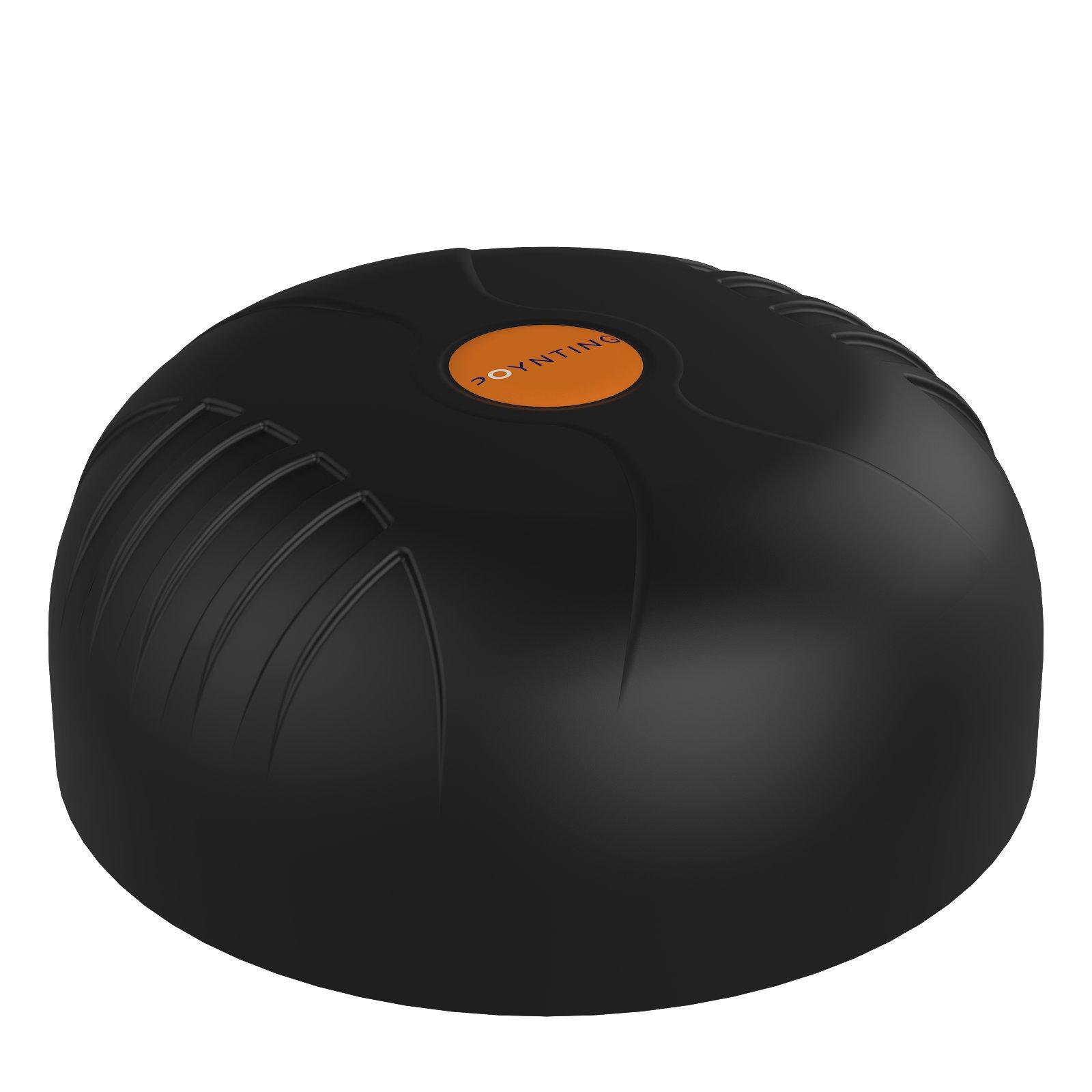

Poynting MIMO-4-19 9-in-1 Transportation & Automotive Antenna (Black)
Part Number: MIMO-4-19-B
2 In Stock
Want it by tomorrow? Order within 4 hours 58 minutes for next business day delivery.
Bulk Pricing
1+
£308.49
5+
£275.71
10+
£242.94
The MIMO-4-19 is a 9-in-1 high performance, multi frequency antenna within a single housing. The antenna provides four cellular, four Wi-Fi and a GPS/GLONASS antenna. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications, as well as Wi-Fi application from 5 to 6 GHz.
Description
The MIMO-4-19 antenna also provides four dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 4x4 MIMO capability.
The MIMO-4-19 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements, provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for.
Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.
Key Highlights
- 9-in-1 High performance multi frequency automotive antenna
- Ultra-wideband coverage from 617 to 6000 MHz for cellular
- 4x4 MIMO LTE/5G, 4x4 MIMO Wi-Fi & GPS/GLONASS
- Robust and weather resistant antenna with an IP69K rating
- Ideal for transportation and marine implementation
- Multi mounting options for ease of installation
- Radome Material: PC+ABS (Halogen Free)
- Ports: 9
- SISO/MIMO: 4x4 MIMO
- Coax Cable Type: RTK-031 – LTE, Wi-Fi & GPS
- Coax Cable Length: 2m – LTE, Wi-Fi & GPS
- Connector Type: SMA (M) – LTE, Wi-Fi & GPS
- Also available in white
