Poynting MIMO-3-V2-15 Transportation and Automotive Omni MIMO Antenna

Part Number: MIMO-3-V2-15

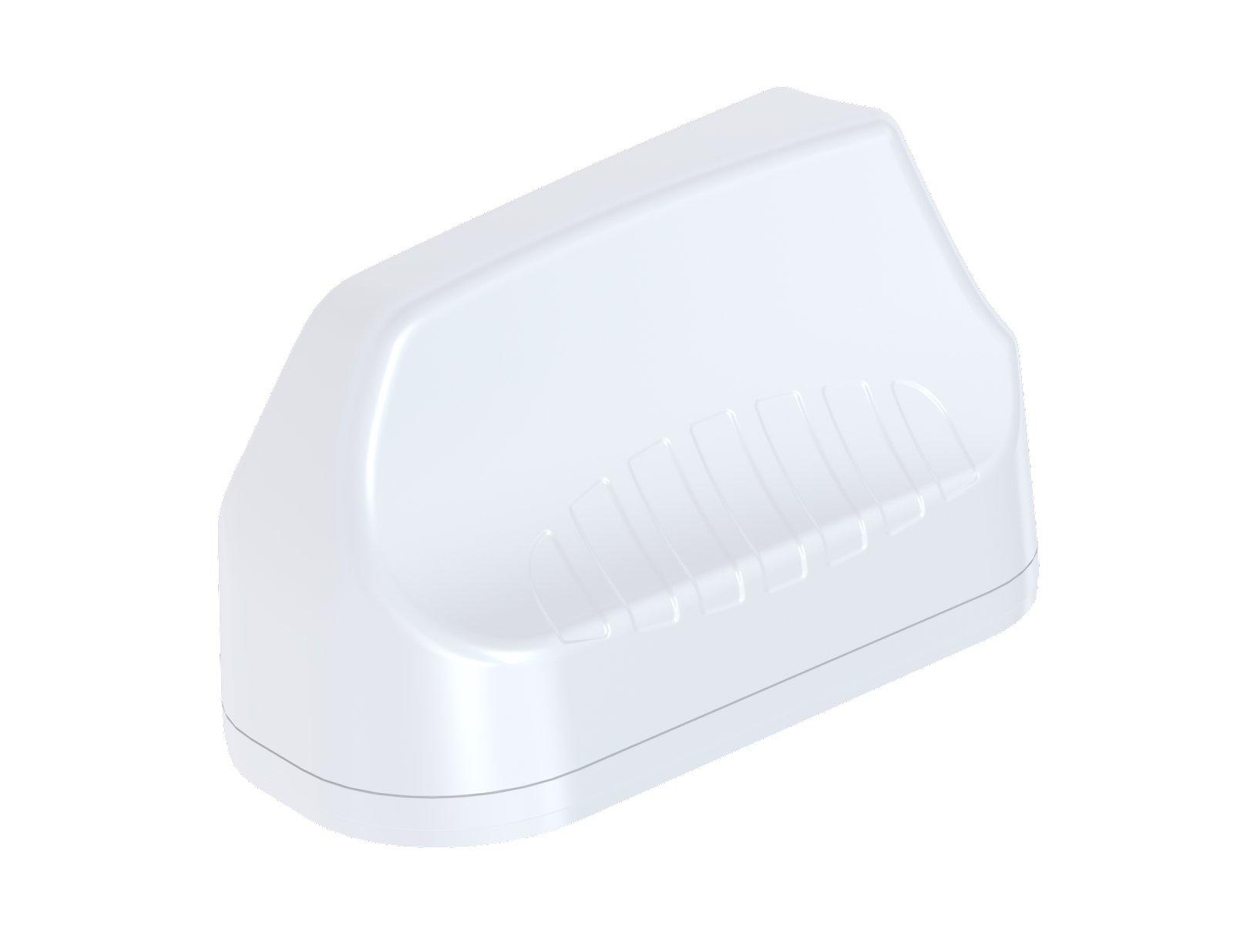

Poynting MIMO-3-V2-15 Antenna White Front Angle

Hover to zoom

Poynting MIMO-3-V2-15 Antenna White Front Angle

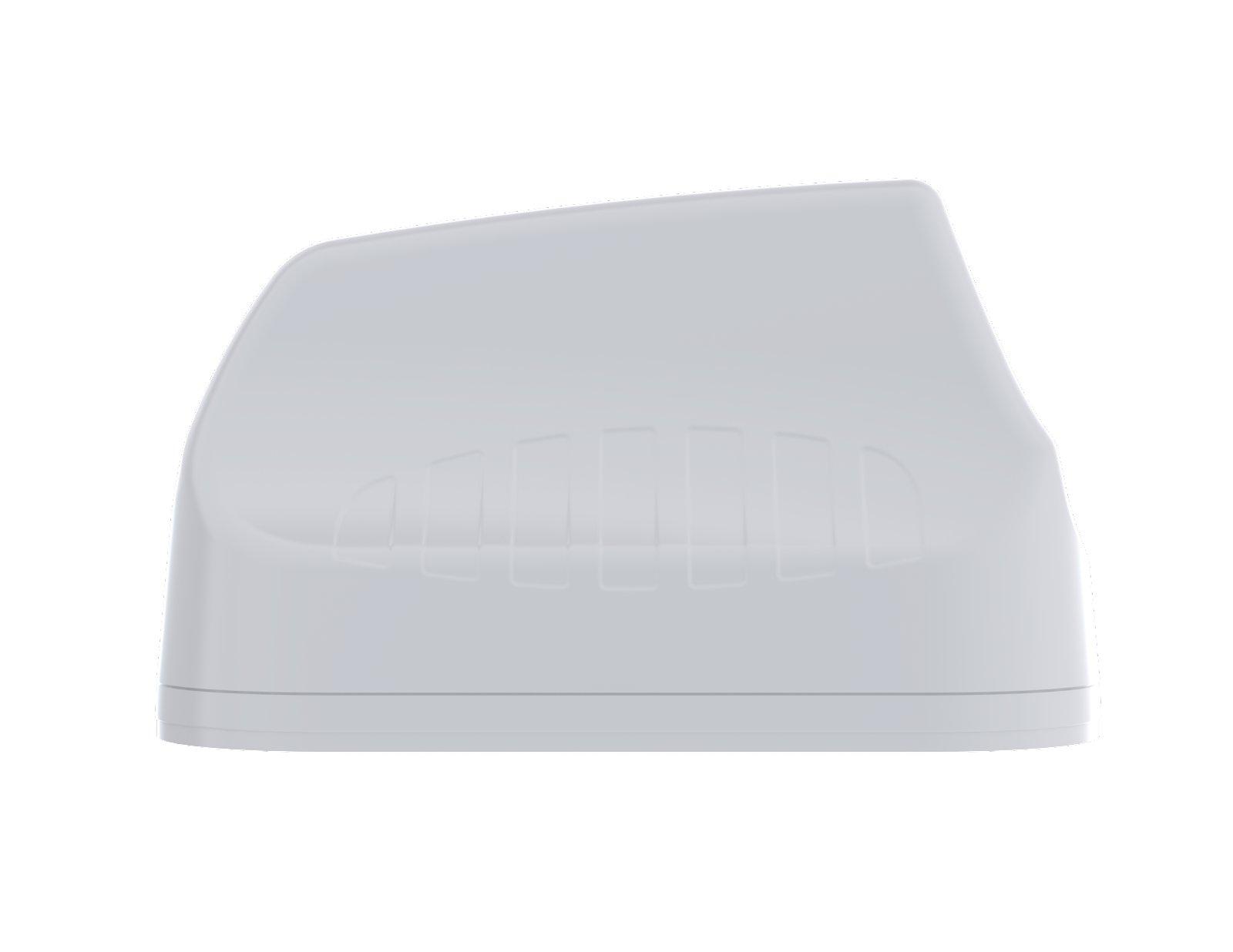

Poynting MIMO-3-V2-15 Antenna White Side View

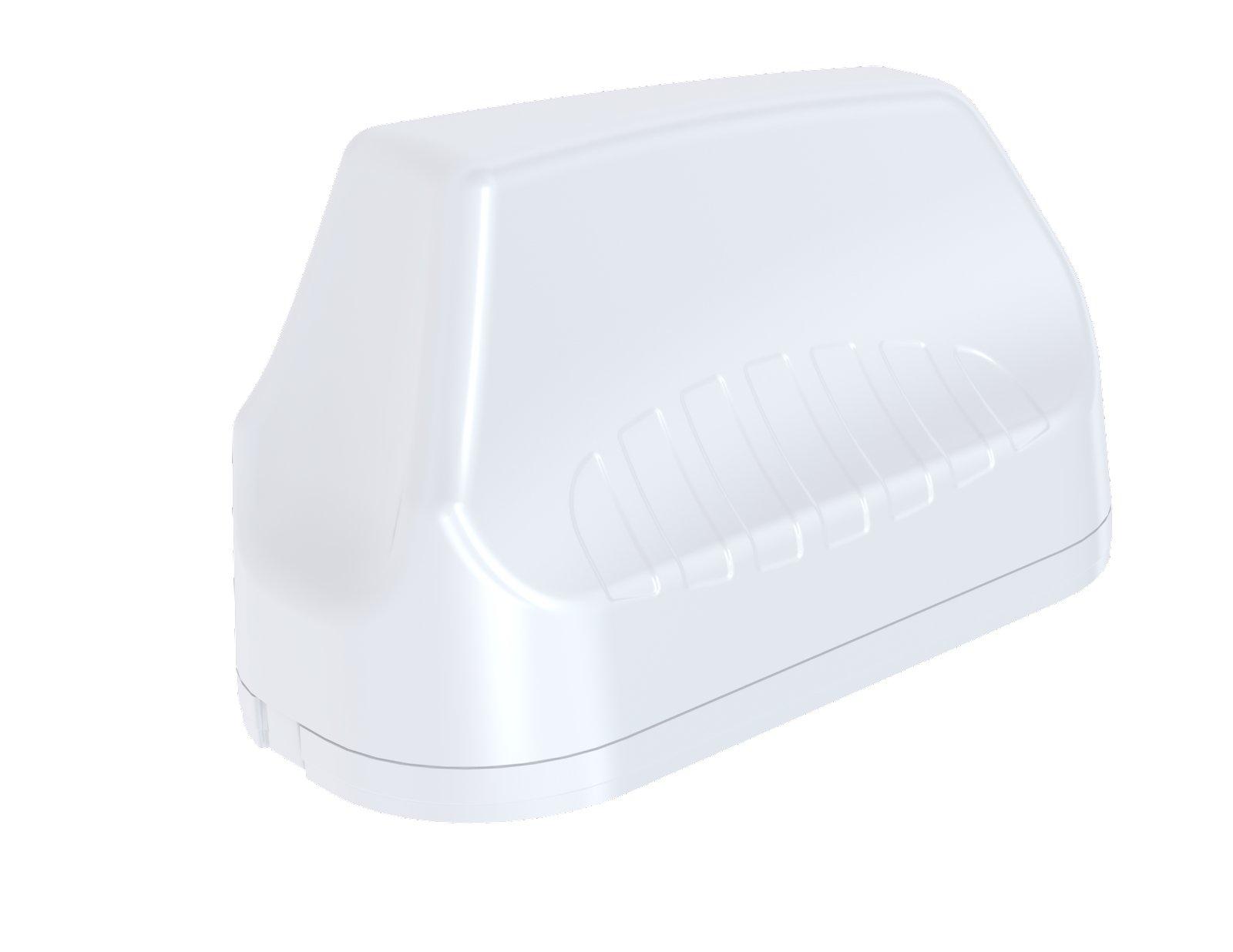

Poynting MIMO-3-V2-15 Antenna White Back Angle

This Poynting MIMO-3-V2-15 is a high performance 5-in-1 antenna system within a single housing, providing 2x Cellular, 2x Wi-Fi and 1x GPS/GLONASS. This antenna is specifically designed for the transportation and marine industries. The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the contemporary 690MHz to 2700MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE.

In stock

2 Available

£245.04inc VAT

Want it by Monday 15th August? Order within 1 day 3 hours 57 minutes and choose DPD Next Working Day delivery at checkout.

Qty

Shipping from £4.79

Free Returns (Ts&Cs apply)

Price Breaks

  • 1 =

    £245.04

  • 5+ =

    £240.51

  • 10+ =

    £235.98

More Information - Poynting MIMO-3-V2-15

Due to its wide band capabilities, the MIMO-3-V2-15 antenna can be used across different operators and provides two separate dual-band Wi-Fi antennas with 2x2 MIMO capability. The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40 degrees. Also, the radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation.

The MIMO-3-V2-15 is designed with an internal ground plane, making this antenna suitable for implementation on all surface types.

Product dimensions (L x W x D): 253 mm x 120 mm x 151 mm


For further information see our blog about MIMO solutions.

MIMO-3-V2-15 Key Highlights

  • 5-in-1 high performance multi frequency 2G/3G/4G/LTE antenna (5G Ready)
  • Ground plane independent
  • GPS/Glonass
  • MIMO performance in both Wi-Fi (dual band) and cellular bands
  • Ultra-wideband
  • Cellular Frequency Bands: 410 - 470 MHz | 690 - 960 MHz | 1710 - 2170 MHz | 2300 - 2500 MHz | 2500 - 2700 MHz | 3400 - 3800 MHz
  • Wi-Fi Frequency Bands: 2400 - 2500 MHz (2.4 - 2.5 GHz) | 5000 - 6000 MHz (5 - 6 GHz)
  • Cellular Max Gain: 5.8 dBi
  • Wi-Fi Max Gain: 7 dBi
  • GPS Max Gain: 21 dBi
  • Corrosion/Water/Dust Resistance (IP68)
  • Multi mounting options for easy installation
  • 2m Factory Mounted Coax Cable
  • Connector type: SMA (Male) - factory mounted

Application Areas

  • Transport Broadband and Wi-Fi: Buses, Utility, Trucking & Public Safety vehicles
  • Industrial factory automation, robotic machinery and other M2M systems telemetry
  • Farming & Agricultural automation such as M2M & IoT
  • Broadband cellular and WiFi distribution for Marine / Boats (inland and near-coastal vessels)
  • Mining Vehicles & Machinery Communications, Telemetry and Automation (M2M & IoT)

What's in the Box?

  • Antenna: A-MIMO-0003-V2-15

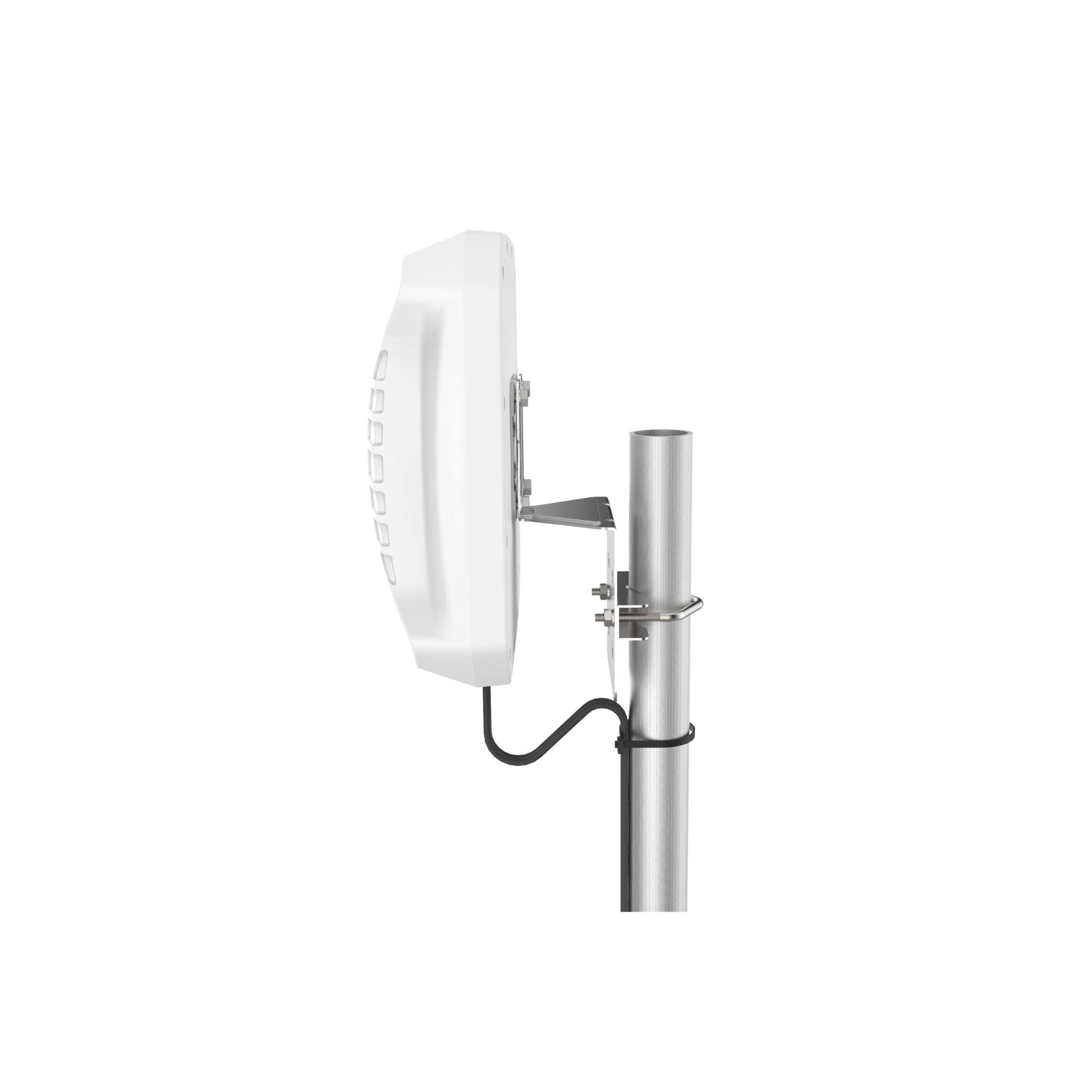

  • Mounting brackets: Threaded Spigots (Up to 60mm clamping thickness) & Adhesive Surface Mount
  • Adapters: RPSMA (Male)) To SMA (Female)
