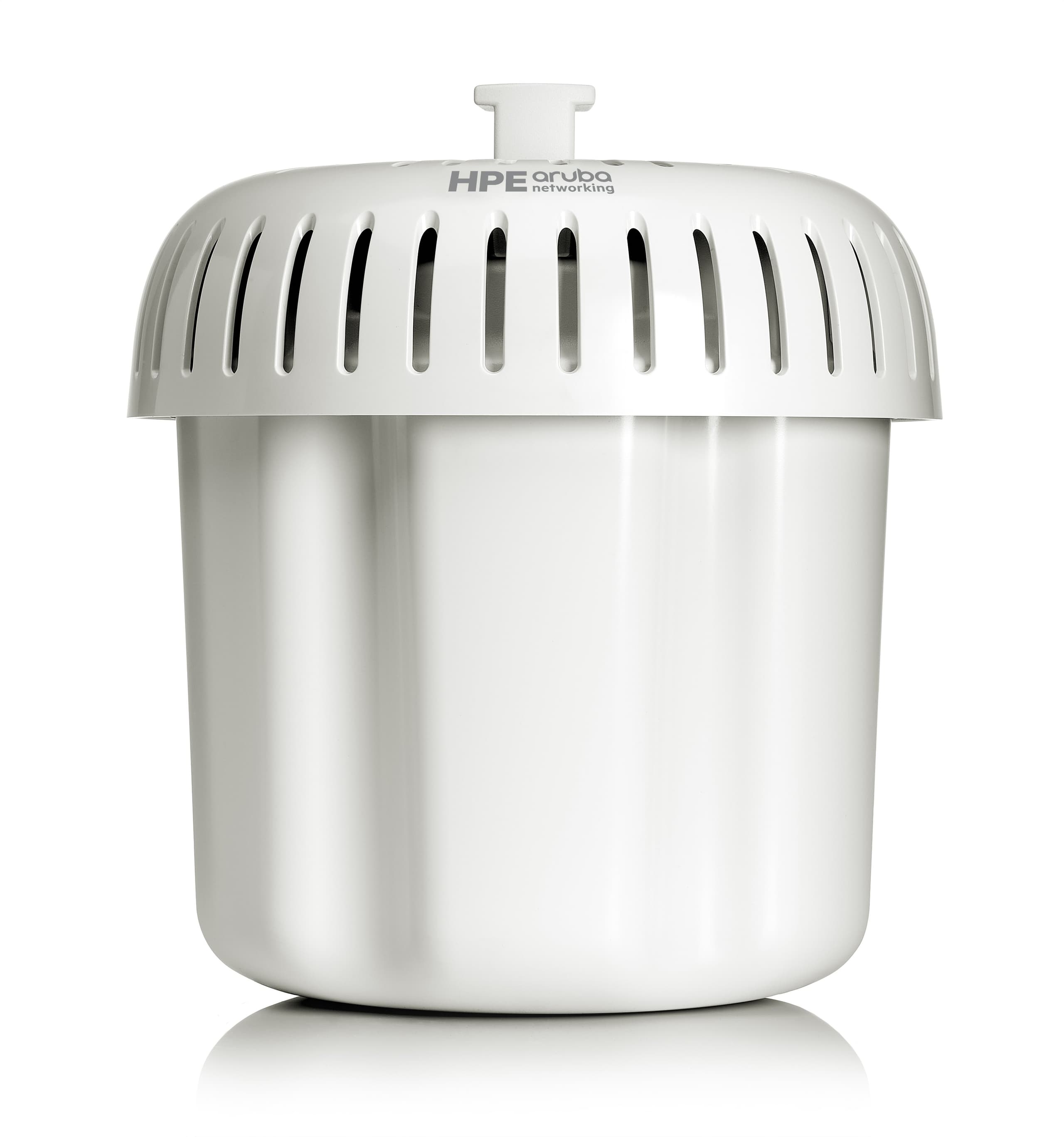

HPE Aruba Networking AP-575 (RW) 802.11ax 2x2/4x4 Dual Radio Integrated Omni Antennas Outdoor Access Point
Part Number: R4H17A
Price coming soon!
The HPE Aruba Networking AP-575 is a high-performance outdoor WiFi 6 access point built for harsh environments. Featuring 2x2 2.4GHz and 4x4 5GHz dual radios with integrated omni-directional antennas, it delivers aggregate data rates up to 2.69 Gbps alongside Bluetooth 5 and Zigbee support for versatile IoT connectivity.
Description
The HPE Aruba Networking AP-575 Outdoor Access Point delivers high-performance WiFi 6 connectivity designed specifically for challenging outdoor weather conditions such as car parks, stadiums, and public venues. Equipped with integrated omni-directional antennas, it provides high-capacity wireless coverage across both 2.4GHz (2x2) and 5GHz (4x4) bands.
Equipped with a 2.5 GbE HPE Smart Rate RJ45 port and a secondary 1 GbE RJ45 interface, the access point ensures high-speed backhaul capacity to support multi-gigabit throughput. Integrated Bluetooth 5 and 802.15.4 Zigbee radios enable seamless IoT integration and location-based services with 802.11 FTM support.
The AP-575 is powered via Power over Ethernet (PoE-PD) and can be managed flexibly on-premises or through cloud management platforms running HPE Aruba Networking Operating System 8, 10, or Instant OS.
Key Highlights
- WiFi 6 (802.11ax) dual-radio technology
- 2x2 MIMO at 2.4GHz & 4x4 MIMO at 5GHz
- Up to 2.69 Gbps aggregate data rate
- Built-in omni-directional antennas
- 1 x 2.5GbE HPE Smart Rate & 1 x 1GbE RJ45 port
- Integrated Bluetooth 5 and Zigbee IoT radios
- Outdoor-rated weather-resistant design
- Powered via Power over Ethernet (PoE-PD)
Specification
| WiFi 4, 5, 6 or 7 | WiFi 6 |
|---|---|
| 2.4Ghz Technology | Wi-Fi 6 (802.11ax) |
| Bluetooth | 1 |
| RJ45 Ports | 2 |
| 2.4Ghz MIMO | 2x2 |
| 5Ghz Technology | Wi-Fi 6 (802.11ax) |
| 5Ghz MIMO | 4x4 |
| Location | Outdoor |
