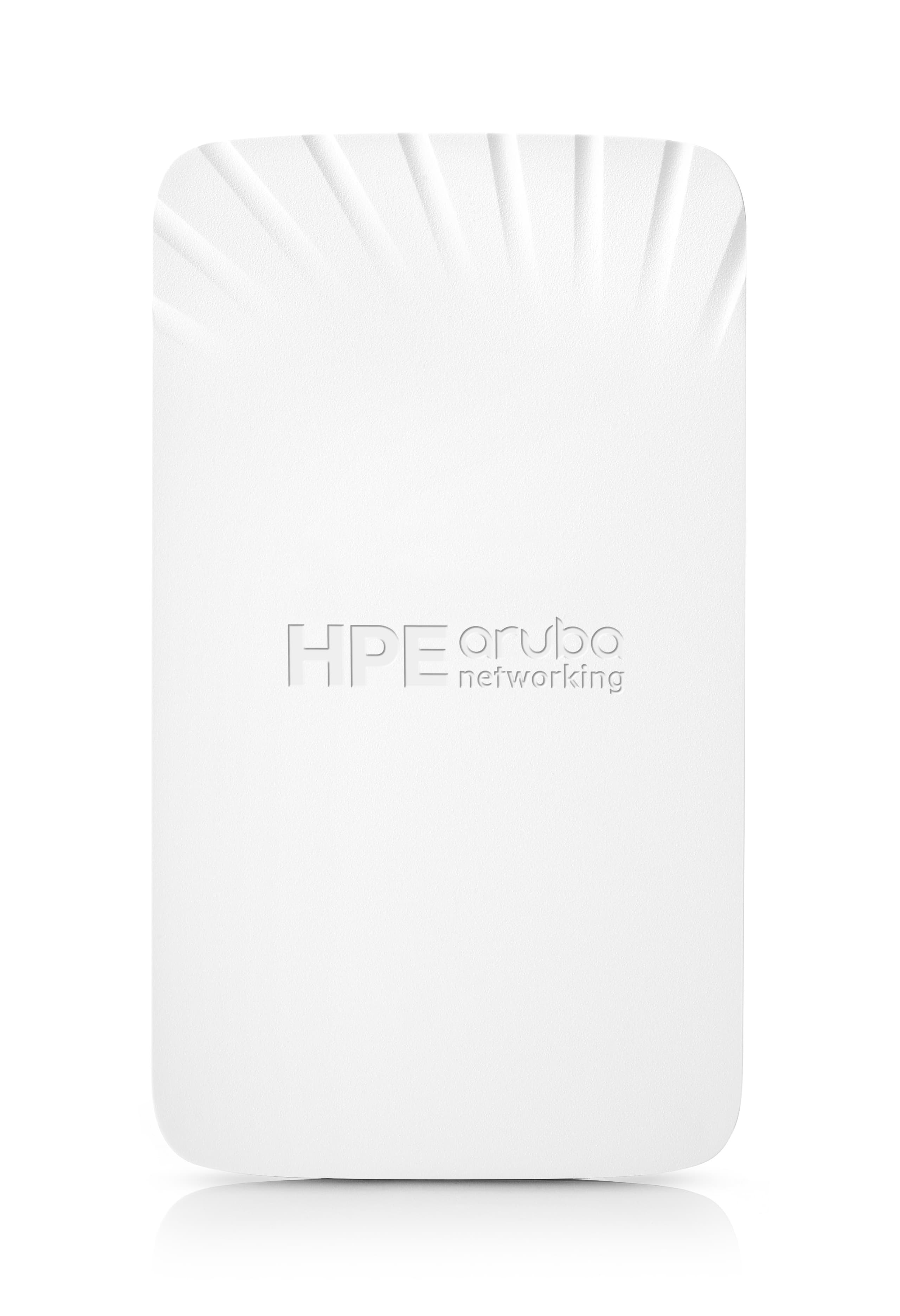

HPE Aruba Networking AP-503H (RW) Dual Radio 802.11ax 2x2 1+2 Ethernet Unified Hospitality AP
Part Number: R3V36A
Out of stock
This product is out of stock. Please call on 0330 043 3000 to confirm availability.
Bulk Pricing
1+
£320.99
5+
£310.63
10+
£300.27
The HPE Aruba Networking AP-503H is a compact dual-radio WiFi 6 hospitality access point delivering up to 1.49 Gbps aggregate data rates. Designed for wall or desk mounting in hotels, residence halls, and branch offices, it combines high-performance wireless coverage with three Gigabit Ethernet ports and integrated IoT connectivity.
Description
The HPE Aruba Networking AP-503H Unified Hospitality Access Point provides high-performance wireless and wired connectivity tailored for multi-dwelling and hospitality environments such as hotels, residence halls, and remote branch offices. Supporting the WiFi 6 (802.11ax) standard across both 2.4 GHz and 5 GHz bands, it features integrated semi-directional antennas engineered specifically for vertical wall or desktop placement.
Equipped with three Gigabit Ethernet ports, the AP-503H offers a single uplink interface alongside two downlink ports capable of delivering Power over Ethernet (PoE-out) to connected local devices. Built-in radios support Bluetooth 5.0 and Zigbee (IEEE 802.15.4) protocols to streamline IoT network deployments, while a USB 2.0 port enables optional cellular modem connectivity for WAN redundancy. Simple deployment is enabled through zero-touch provisioning (ZTP) and management via HPE Aruba Networking OS.
Key Highlights
- WiFi 6 (802.11ax) dual-radio 2x2 MIMO
- Up to 1.49 Gbps maximum peak data rate
- 3 x Gigabit Ethernet ports (1 x uplink, 2 x downlink)
- PoE-PD powered with PoE-out capability
- Integrated Bluetooth 5.0 and Zigbee IoT radios
- USB 2.0 Type-A port for cellular modem expansion
- 802.11 FTM location services support
- Optimised for wall or desk mounting
Specification
| WiFi | 1 |
|---|---|
| WiFi Dual Band (2.4/5Ghz) | 1 |
| WiFi 4, 5, 6 or 7 | WiFi 6 |
| 2.4Ghz Technology | Wi-Fi 6 (802.11ax) |
| 2.4Ghz MIMO | 2x2 |
| 5Ghz Technology | Wi-Fi 6 (802.11ax) |
| 5Ghz MIMO | 2x2 |
| Location | Indoor |
