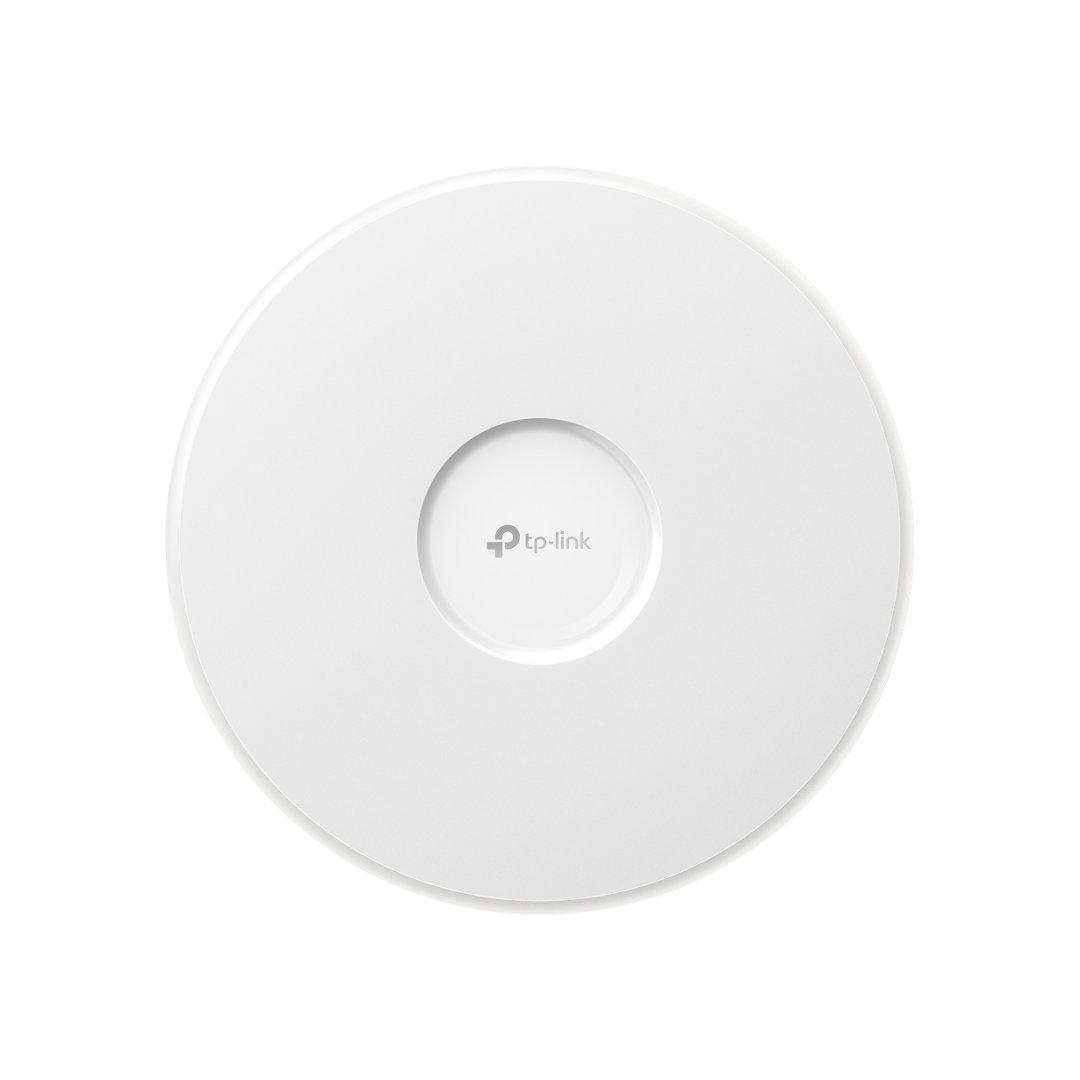

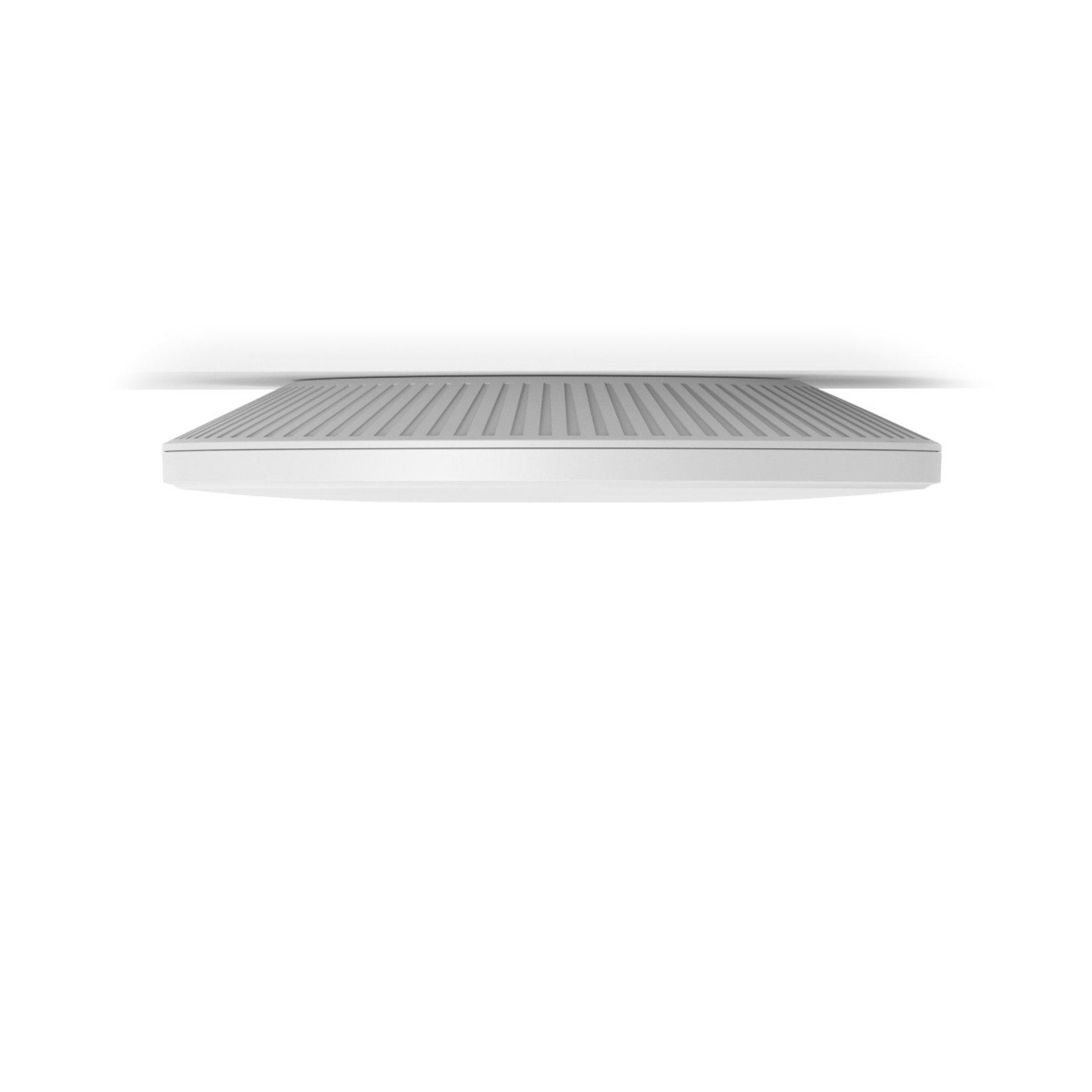

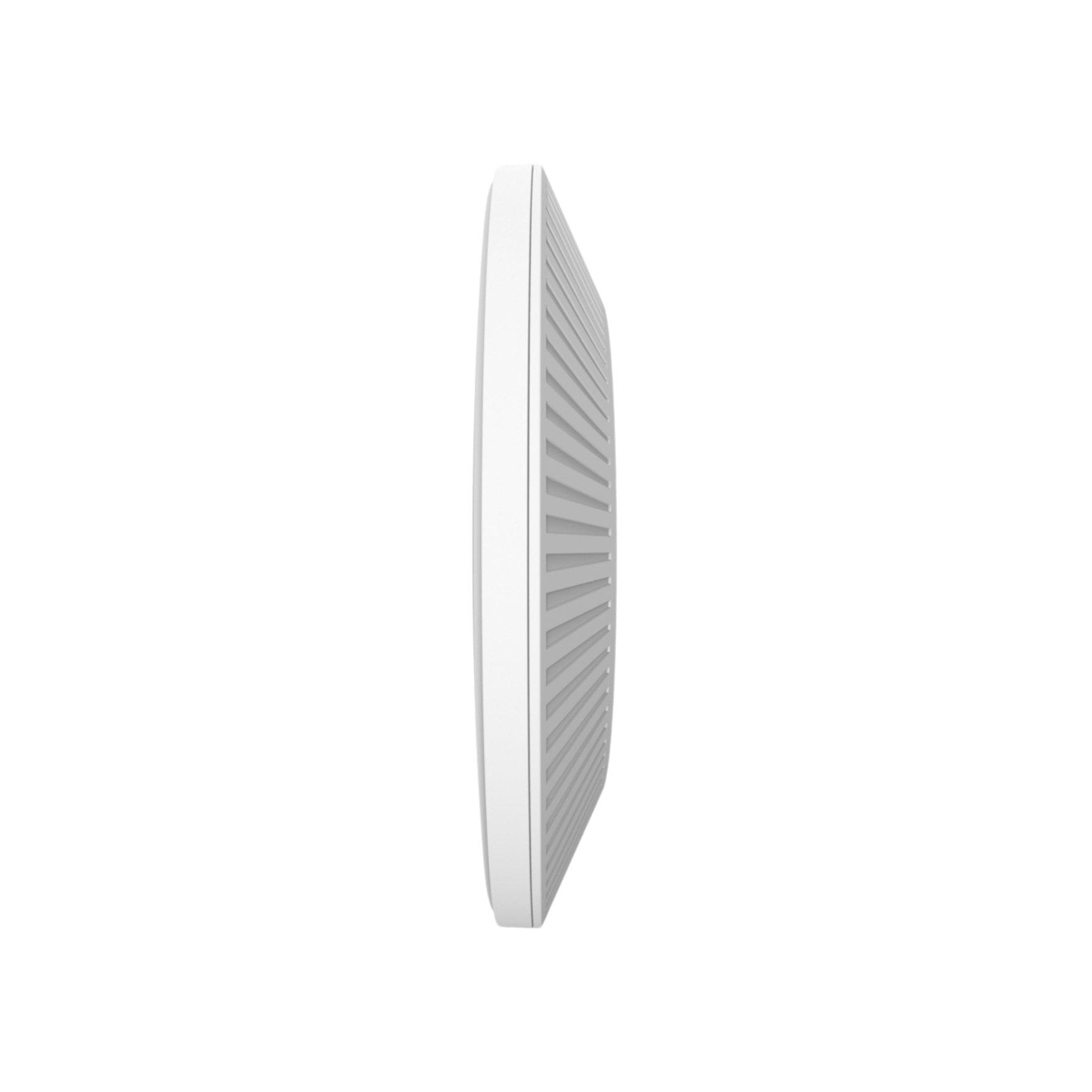

TP-Link Omada EAP772 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Part Number: EAP772
78 In Stock
Want it by Monday 19th October? Order within 1 day 15 hours 30 minutes and choose DPD Next Working Day delivery at checkout for next day delivery.
Bulk Pricing
1+
£165.49
5+
Call to quote
10+
Call to quote
The TP-Link EAP772 is a tri-band WiFi 7 access point, capable of delivering over 9.2 Gbps across all three frequency bands and with a client capacity of over 380 simultaneous connections. The EAP772 also features a 2.5G port for high-speed wired connections and includes a suite of software like centralised management and WiFi meshing, making it an ideal access point to service high-density, demanding networks.
Description
The TP-Link EAP772 is a powerful, versatile WiFi 7 (802.11be) access point, designed to offer high-throughput wireless connectivity in traffic-intensive networks. Offering aggregate throughputs of up to 9.2 Gbps on the 2.4, 5 and 6 GHz bands, the EAP772 focuses on client capacity as well as speed and incorporates features like MU-MIMO and compatibility with the 320 MHz band to deliver the highest possible throughput to the greatest number of devices.
To support larger, busy spaces, the EAP772 has a maximum range of up to 140m² (1500 ft²), and can seamlessly mesh with other TP-Link access points through meshing and AI roaming for devices to seamlessly switch between access points with no drop in connectivity. Also featured in its software portfolio is captive portals to create secure guest networks, load balancing to evenly distribute traffic, VLAN support and a wide variety of others designed to boost resilience, speed and range.

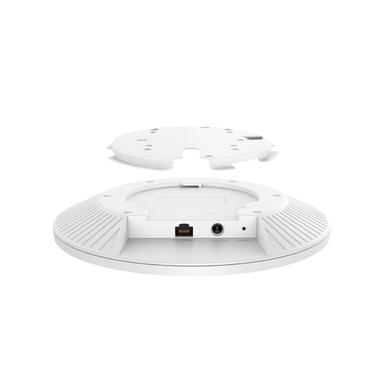

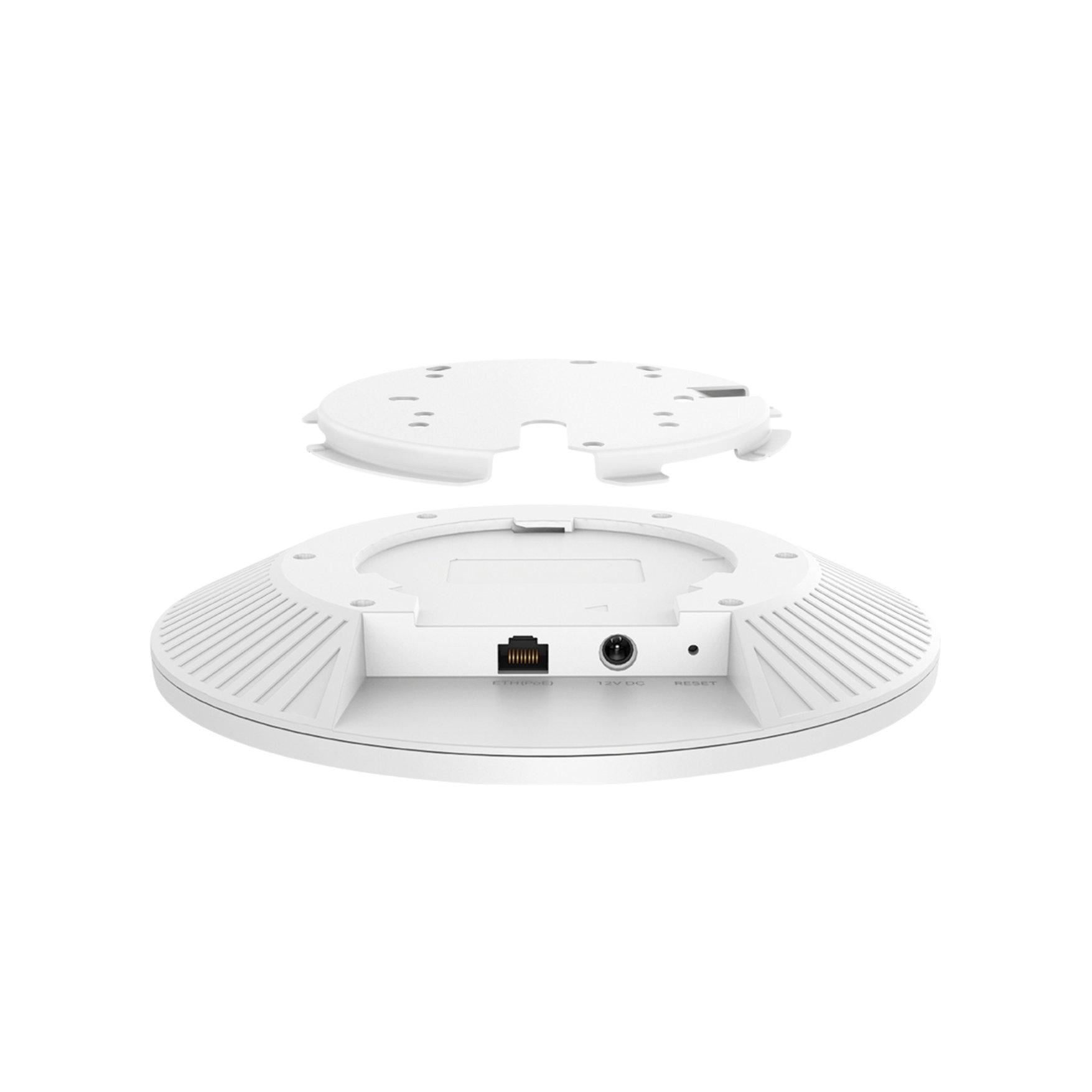

The EAP772 can be powered via 802.3at PoE or 12V/2.5A DC, and can be ceiling mounted with the included mounting kit.
Key Highlights
- WiFi 7 (802.11be) technology
- 2.4 GHz band (MU-MIMO) with throughput of 688 Mbps
- 5 GHz band (MU-MIMO) with throughput of 2880 Mbps
- 6 GHz band (MU-MIMO) with throughput of 5760 Mbps
- 380+ concurrent clients
- 1 x 2.5G RJ45 port
- 320 MHz frequency compatible
- Multi-Link Operation
- WiFi mesh and AI roaming compatible
- Powered by 802.3at PoE or 12V/2.5A DC
- Ceiling mountable
What’s in the box?
- 1 x EAP772
- 1 x Ceiling Mounting Kit
- 1 x Installation Guide
Specification
| 2.4Ghz Technology | WiFi 7 (802.11be) |
|---|---|
| PoE | 1 |
| 2.4Ghz Throughput | 688 Mbps |
| 5Ghz Technology | Wi-Fi 7 (802.11be) |
| 5Ghz Throughput | 2880 Mbps |
| MU-MIMO | Yes |
| Location | Indoor |
| 6Ghz Throughput | 5760 Mbps |
| 6Ghz Technology | Wi-Fi 7 (802.11be) |
Documents
Data Sheet:EAP772 Data Sheet
Installation Guide:EAP772 Installation Guide
