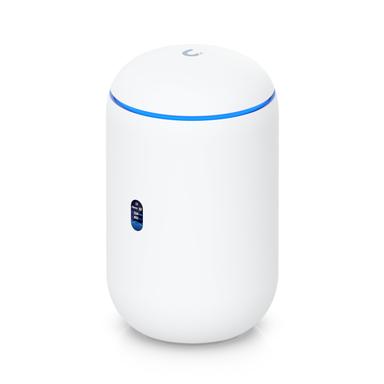

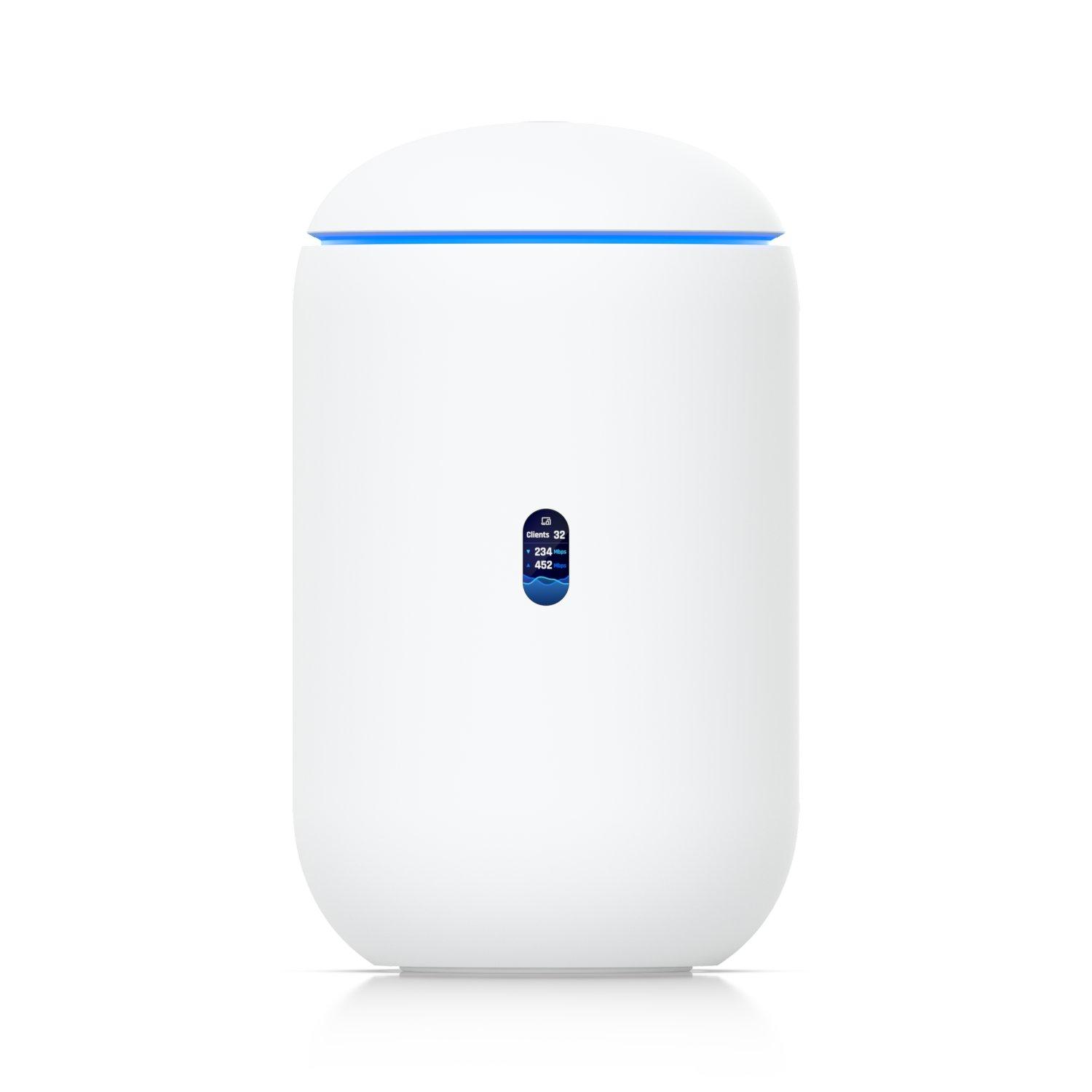

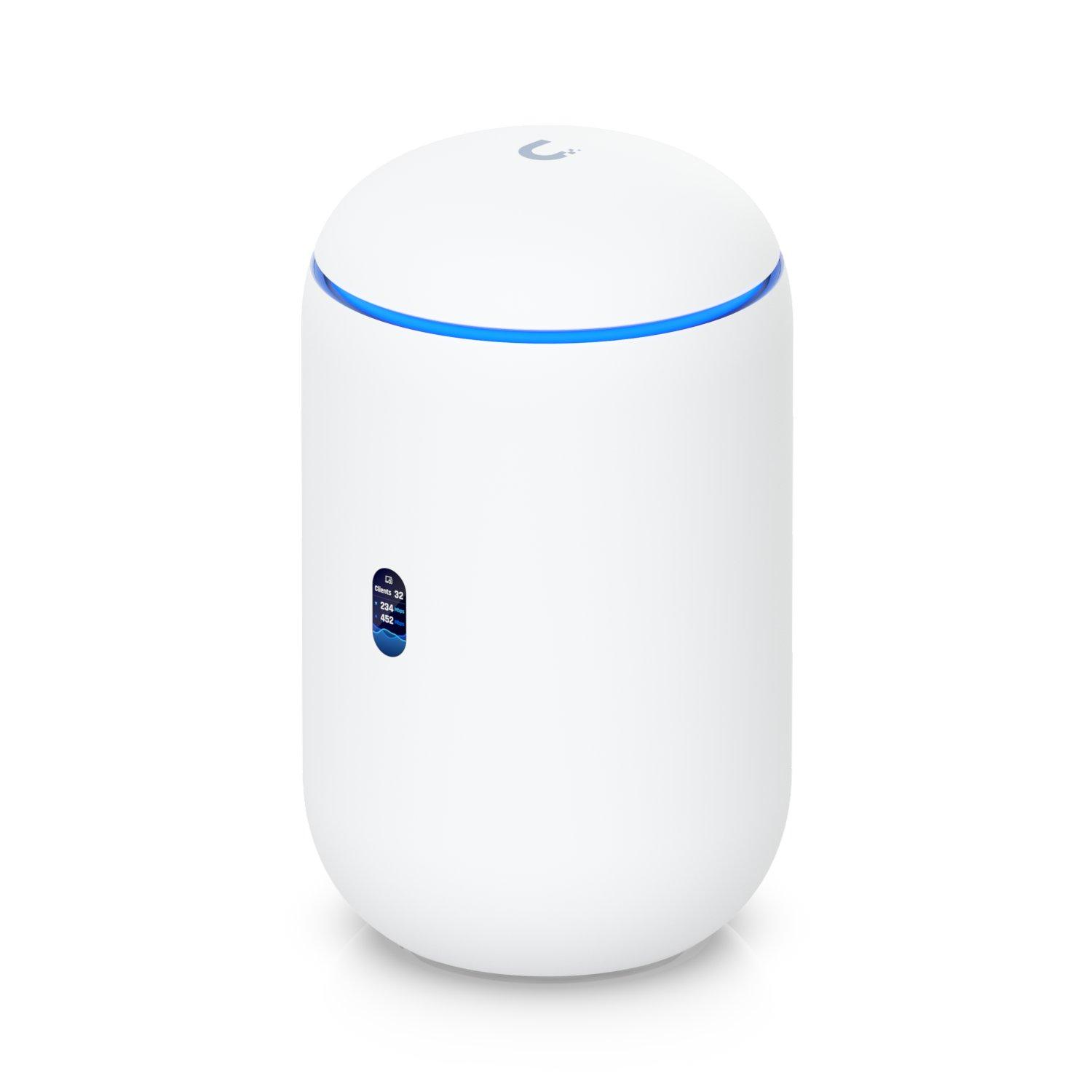

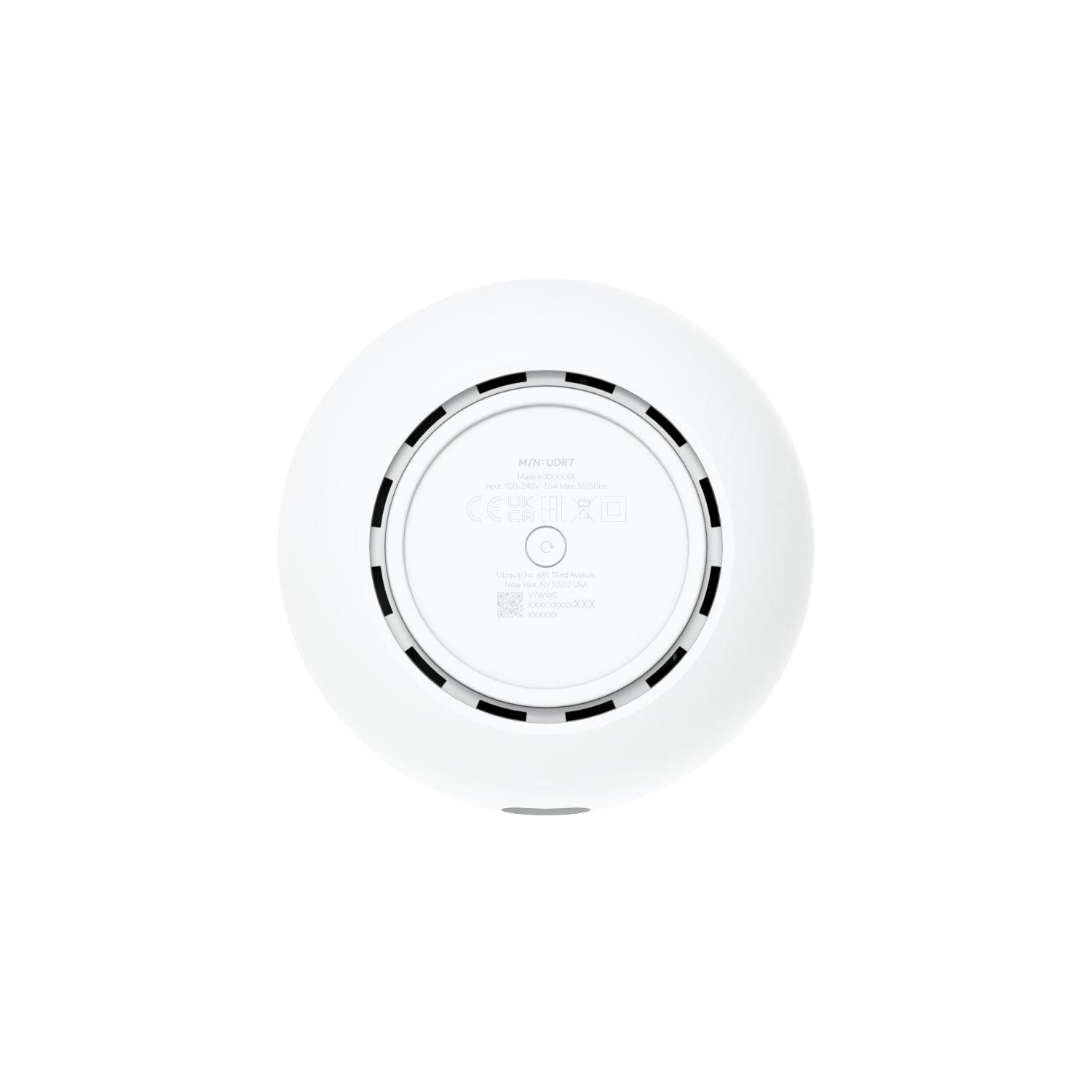

Ubiquiti UniFi Dream Router WiFi 7 10G Gateway (UDR7)
Part Number: UDR7
68 In Stock
Want it by tomorrow? Order within 15 hours 25 minutes for next business day delivery.
Bulk Pricing
1+
£261.49
5+
£258.42
10+
£255.36
The Ubiquiti UDR7 is the successor to the UniFi Dream Router, featuring a suite of significant performance and connectivity enhancements. The UDR7 incorporates full tri-band WiFi 7 technology, capable of delivering aggregate speeds of over 10.5 Gbps to 300+ simultaneous devices, and features 3 x 2.5G LAN ports for high-speed wired connectivity. This cloud gateway also offers full UniFi application support to streamline entire Ubiquiti installations, and can power PoE devices like VoIP phones and access points through its 15.4W PoE budget.
Description
The UDR7 is an upgraded, WiFi 7 successor to Ubiquiti's popular and versatile UDR, but featuring a rich and varied suite of upgraded and new features and capabilities. Its wireless capacity has been upgraded to support tri-band WiFi 7 up to an aggregate speed of 10.5 Gbps for over 300 simultaneous connections, and it features six spatial streams across the 2.4, 5 and 6GHz frequency bands with DL/UL MU-MIMO antenna arrangements to maximise performance in client-dense areas.

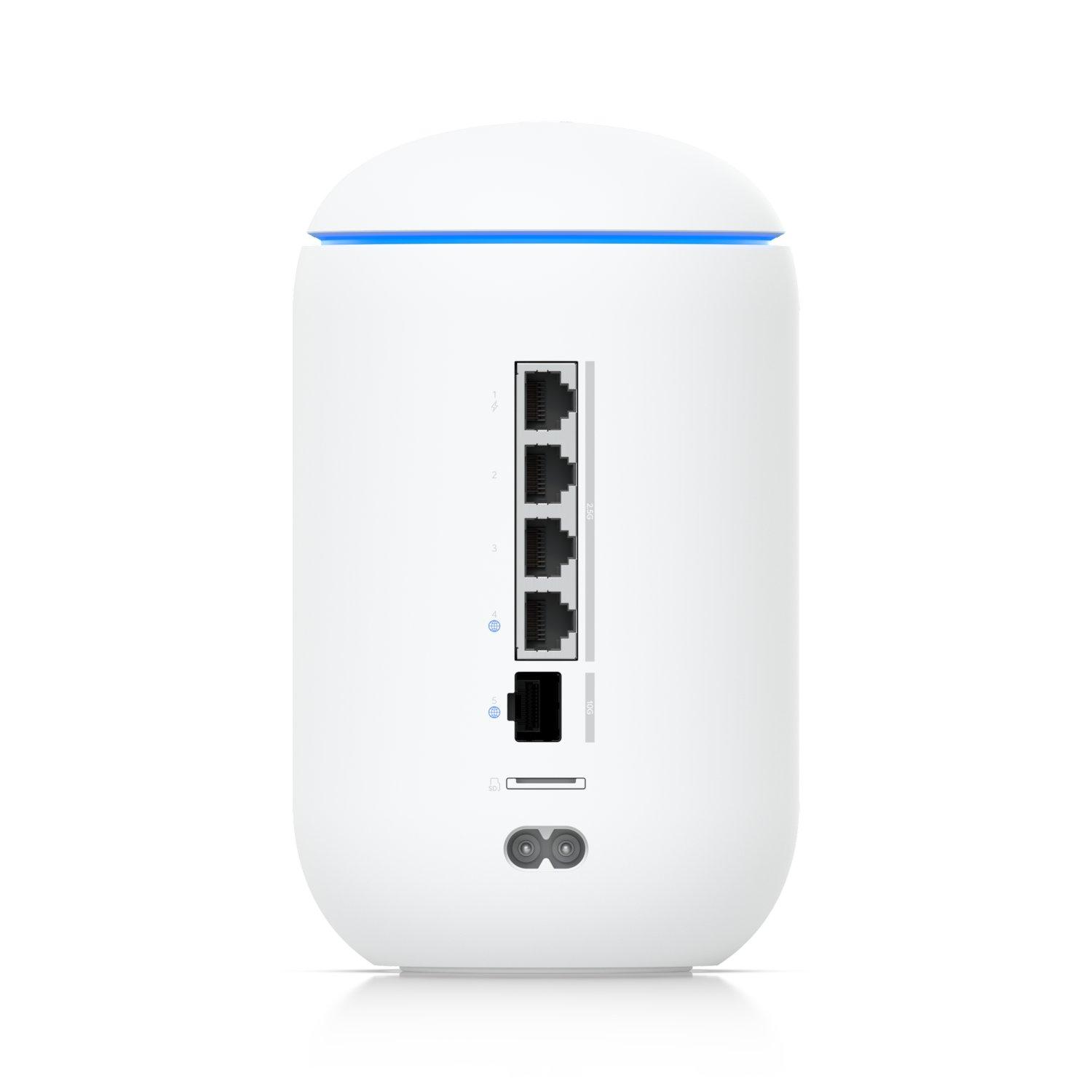

In addition to its WiFi capabilities, the UDR7 also features dual-WAN ports - 1 x 2.5G RJ45 and 1 x 10G SFP+ - as well as 3 x 2.5GbE RJ45 LAN ports to create dependable high-speed wired local networks. Notably, one of these RJ45 ports can support PoE-Out, providing compatible devices with both power and network connectivity through a single ethernet cable with up to 15.4W power budget. The UDR7 also features a MicroSD expansion slot and includes a pre-installed 64GB microSD card for storing surveillance footage recorded by UniFi Protect IP cameras.
The UDR7 supports a rich portfolio of security features and protocols such as an application-aware layer 7 stateful firewall, content filtering, and built-in ad-blocking. This router is also compatible with all UniFi applications, delivering an easy and intuitive management interface across an entire Ubiquiti installation.
Key Highlights
- WiFi 7 (802.11be) technology
- 2.4GHz band (2x2 MU-MIMO) with throughput of 688 Mbps
- 5GHz band (2x2 MU-MIMO) with throughput of 4300 Mbps
- 6GHz band (2x2 MU-MIMO) with throughput of 5700 Mbps
- 300+ Concurrent clients
- 1 x 10G SFP+ WAN port
- 1 x 2.5GbE RJ45 WAN port
- 3 x 2.5G RJ45 LAN ports
- 1 x PoE RJ45 port
- Total available PoE: 15.4W
- 0.96" LCM status display
- Multi-WAN Load Balancing
- License-Free SD-WAN
- Stateful Firewall
- Powered with UK PSU
- Desktop mountable
What’s in the box?
- 1 x UDR7
- 1 x MicroSD Card
- 1 x PSU
- 1 x Installation Guide
Specification
| WiFi | 1 |
|---|---|
| WiFi 4, 5, 6 or 7 | WiFi 7 |
| Supports Gigabit | 1 |
| Range (m) | Not specified |
| LAN Ports | 3 |
| WAN Ports | 2 |
| Supports PoE | 1 |
| 2.4Ghz Technology | WiFi 7 (802.11be) |
| PoE Ports | 1 |
| 2.4Ghz Throughput | 688 Mbps |
| SFP Ports | 1 |
| 2.4Ghz MIMO | 2x2 |
| 5Ghz Technology | Wi-Fi 7 (802.11be) |
| 5Ghz Throughput | 4300 Mbps |
| 5Ghz MIMO | 2x2 |
| 6Ghz Throughput | 5700 Mbps |
| 6Ghz Technology | Wi-Fi 7 (802.11be) |
Documents
Data Sheet:UDR7 Data Sheet
Installation Guide:UDR7 Installation Guide
User Manual:UDR7 - User Manual
Simplified RED DoC:UDR7 - Simplified RED DoC
EU DoC:UDR7 - EU DoC
UK DoC:UDR7 - UK DoC
