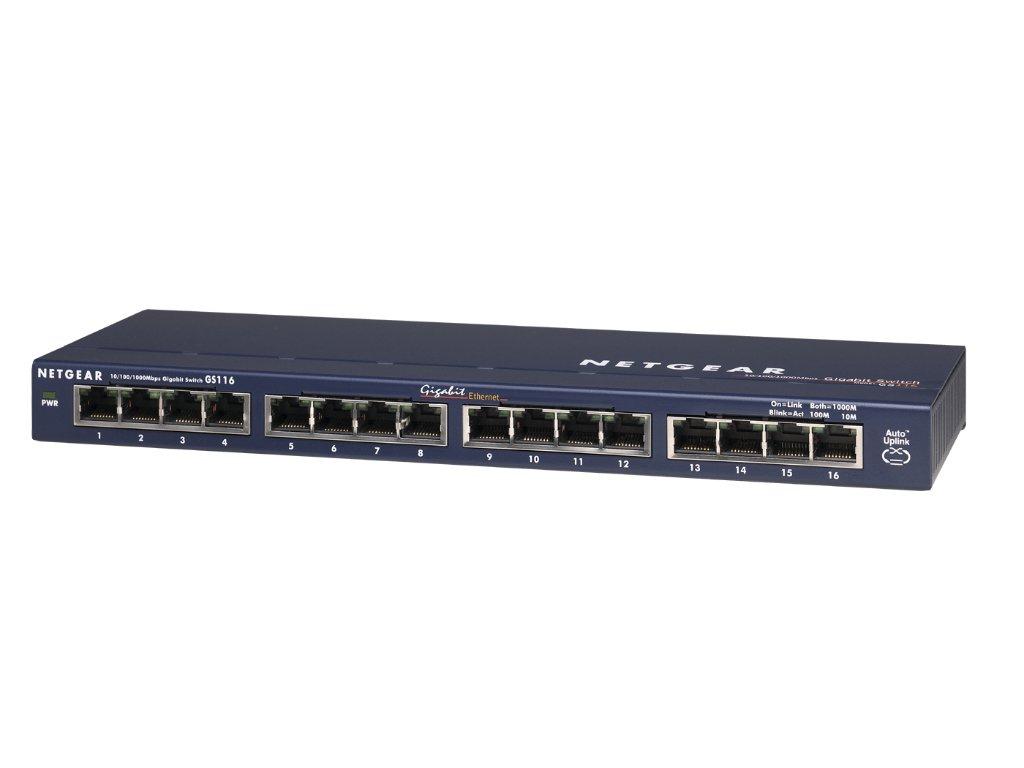

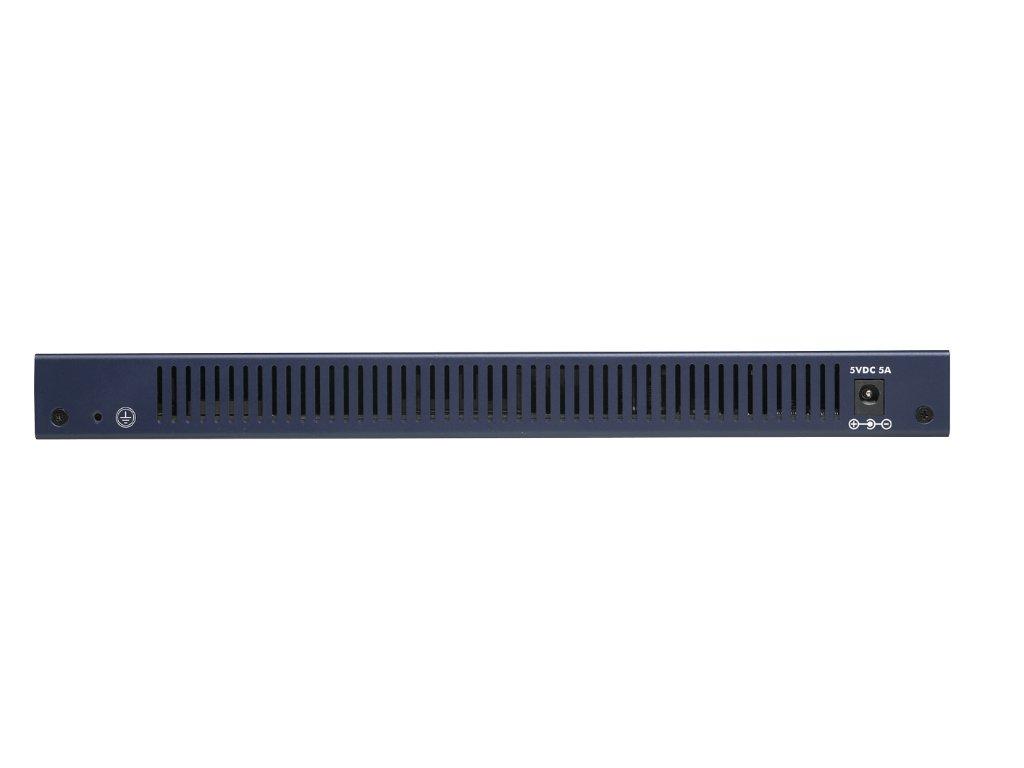

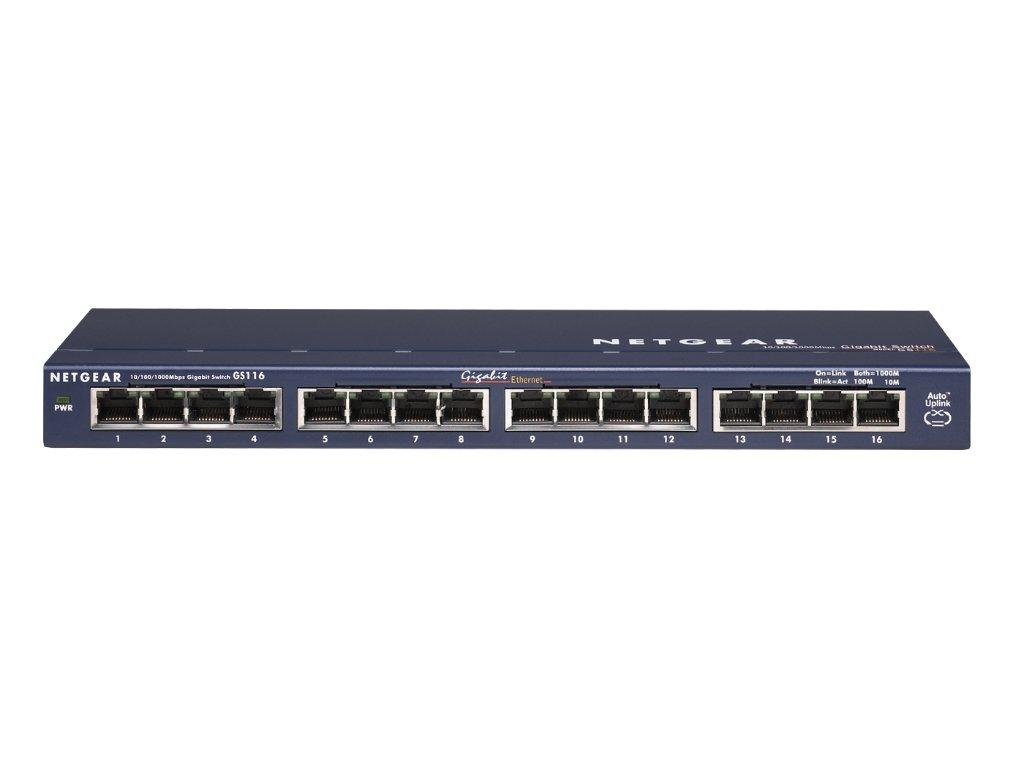

Netgear GS116UK ProSafe 16-Port Gigabit Switch
Part Number: GS116UK
Discontinued
This product has been discontinued.
The Netgear GS116UK ProSafe Unmanaged Switch features 16-Port Gigabit ports. It can deliver gigabit speeds up to 10 times faster than Fast Ethernet. It allows for Integration of 10/100/1000 Mbps devices onto the same network.
Description
Each port on the GS116UK delivers up to 2000 Mbps of network speed and feature auto-switching and auto-sensing. The 16 switched ports provide bandwidth for PCs, servers or switches. Auto Uplink automatically adjusts for straight-through or crossover cables, and Auto power-down mode saves energy when port is unused. Auto green mode detects cable length and adjusts power usage automatically in order to save energy.
The GS116UK is a small, compact switch that is designed to fit neatly into your work space, suitable for either desktop or wall mount placement. The metal housing offers protection and durability and its fan-less design means silent operation.
Key Highlights
- 16 x auto-sensing 10/100/1000 Mbps Ethernet ports
- Up to 2000 Mbps per port
- PowerConsumption: 18W
- Bandwidth: 32 Gbps (non-blocking)
- Forward rate (10 Mbps port): 14,800 packets/sec
- Forward rate (100 Mbps port): 148,000 packets/sec
- Forward rate (1000 Mbps port): 1,488,000 packets/sec
- Supports jumbo frames up to 9 KB
What’s in the box?
- 1 x Netgear GS116UK 16-Port Switch
- Wall-mount kit
- AC adapter
- Installation guide
Specification
| Supports Gigabit | 1 |
|---|---|
| Supports PoE | 0 |
| Gigabit Ports | 16 |
| PoE Ports | 0 |
| RJ45 Ports | 16 |
| SFP Ports | 0 |
| Managed | 0 |
Documents
Data Sheet:GS116UK Datasheet
