TP-Link TL-SG1048 48-Port Gigabit Rackmount Switch

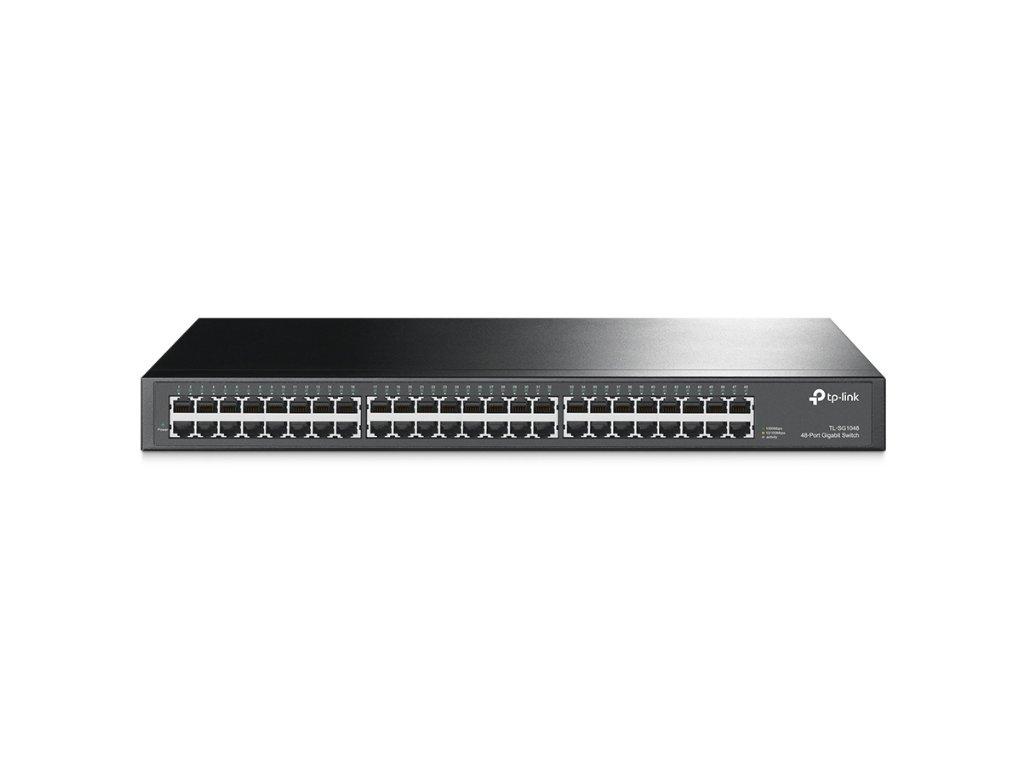

TP-Link TL-SG1048 Switch Front

Click to zoom

TP-Link TL-SG1048 Switch Front

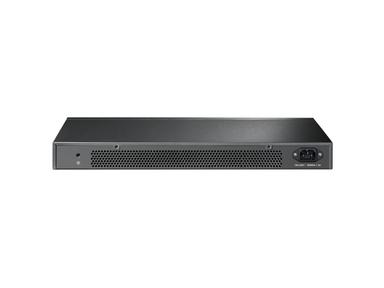

TP-Link TL-SG1048 Switch Back

TP-Link TL-SG1048 48-Port Gigabit Rackmount Switch

Part Number: TL-SG1048

£225.49inc VAT
£187.91ex VAT

30 In Stock

Want it by tomorrow? Order within 9 hours 55 minutes and choose Saturday Delivery at checkout for next day delivery.

Easy Returns

Bulk Pricing

  • 1+

    £225.49

  • 5+

    Call to quote

  • 10+

    Call to quote

The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports.

Description

The auto features of this gigabit switch mean that no configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and adjusts for compatibility and optimal performance. It is Rackmountable, but its compact size shell also makes it ideal for desktops with limited space. LED lights provide real-time work status display and basic fault diagnosis.

The TL-SG1048 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 803.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

This new generation TL-SG1048 Gigabit Rackmount Switch features the latest energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials.

Key Highlights

  • 48 x 10/100/1000Mbps RJ45 Ports
  • LED indicator: work status display and basic fault diagnosis
  • Supports MAC address self-learning and auto MDI/MDIX
  • Energy-efficient technology saves power up to 18%
  • IEEE 802.3x flow control provides reliable data transfer
  • Standard 19-inch rack-mountable steel case

What’s in the box?

  • TP-Link TL-SG1048 Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kits
  • Rubber Feet

Specification

Supports Gigabit1
Supports PoE0
Gigabit Ports48
PoE Ports0
RJ45 Ports48
SFP Ports0
Managed0

Documents

  • Data Sheet:TP-Link TL-SG1048 Switch Datasheet
