Poynting OMNI-404 Omni-Directional Marine and Coastal LTE 5G Antenna

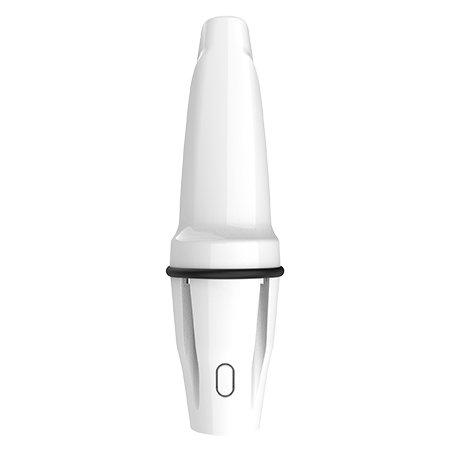

Poynting OMNI-404 5G Antenna Image

Click to zoom

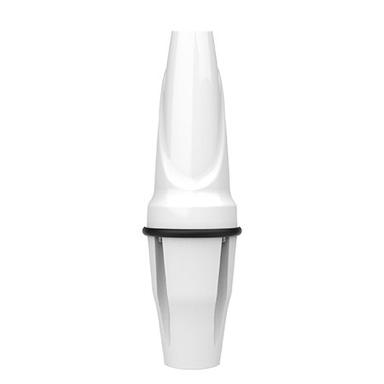

Poynting OMNI-404 5G Antenna Image

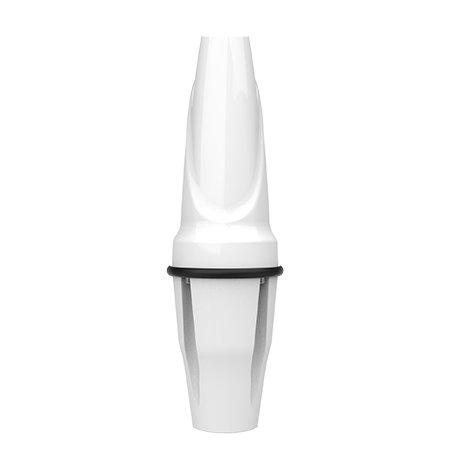

Poynting OMNI-404 5G Antenna Side View

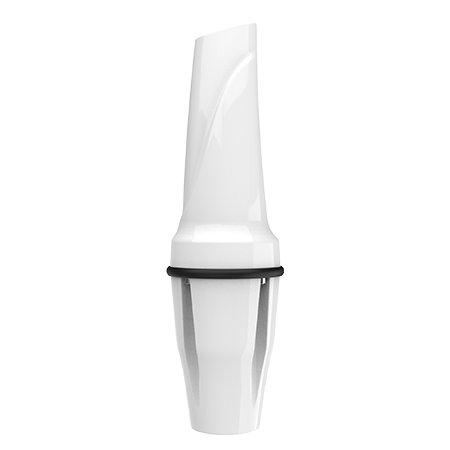

Poynting OMNI-404 5G Antenna Side Angle

Poynting OMNI-404 Omni-Directional Marine and Coastal LTE 5G Antenna

Part Number: OMNI-404

£62.99inc VAT
£52.49ex VAT

2 In Stock

Want it by tomorrow? Order within 7 hours 10 minutes and choose DPD Next Working Day delivery at checkout.

Easy Returns

Bulk Pricing

  • 1+

    £62.99

  • 5+

    £62.38

  • 10+

    £61.77

The Poynting OMNI-404 is a wide band LTE/5G antenna with a smaller profile radome which is specifically designed for adverse marine & coastal environments. This antenna covers all contemporary LTE operating frequencies, from 698 to 3800 MHz, with excellently balanced gain across all frequencies, enhancing LTE performance features, such a multi carrier aggregation (CA). This antenna is also suitable on all 5G networks up to 3800 MHz.

Description

This Poynting antenna is designed for superior pattern control over the entire frequency range, making the OMNI-404 an exceptional omni-directional antenna for its size and application. Poynting Antennas achieves this through a new antenna design using multiple dipoles and a unique (patented) feed network. A standard 1-inch (14 TPI) marine mount connector is used for simplified installation to most standard marine attachments.

Key Highlights

  • Medium gain omni-directional SISO antenna
  • The antenna is purpose-built for marine and coastal applications
  • Fits directly to standard 1-inch (14 TPI) marine mount
  • UV and salt-water resistant
  • Robust and weather resistant with IP68 rating
  • Frequency bands: 698 – 3800 MHz
  • Peak Gain: 2 dBi
  • Connector type: N-Type (F)
  • Polarisation: linear vertical
  • Please note - the OMNI-404 comes with a Marine Adapter (1'' -14 TPI) as standard. It also supports mounting to the following brackets which are sold separately: *|URL:BRKT-37|* (flat mount), *|URL:BRKT-38|* (ratchet mount), *|URL:BRKT-39|* (rail mount)

What’s in the box?

  • Poynting OMNI-404
  • Marine adapter bracket included (1'', BRKT-40)

Documents

  • Data Sheet:Poynting OMNI-404 Datasheet

  • Poynting OMNI-404 User Guide
