Poynting OMNI-280-1 All-Weather LTE SISO Omni-Directional Antenna

Part Number: OMNI-280-1

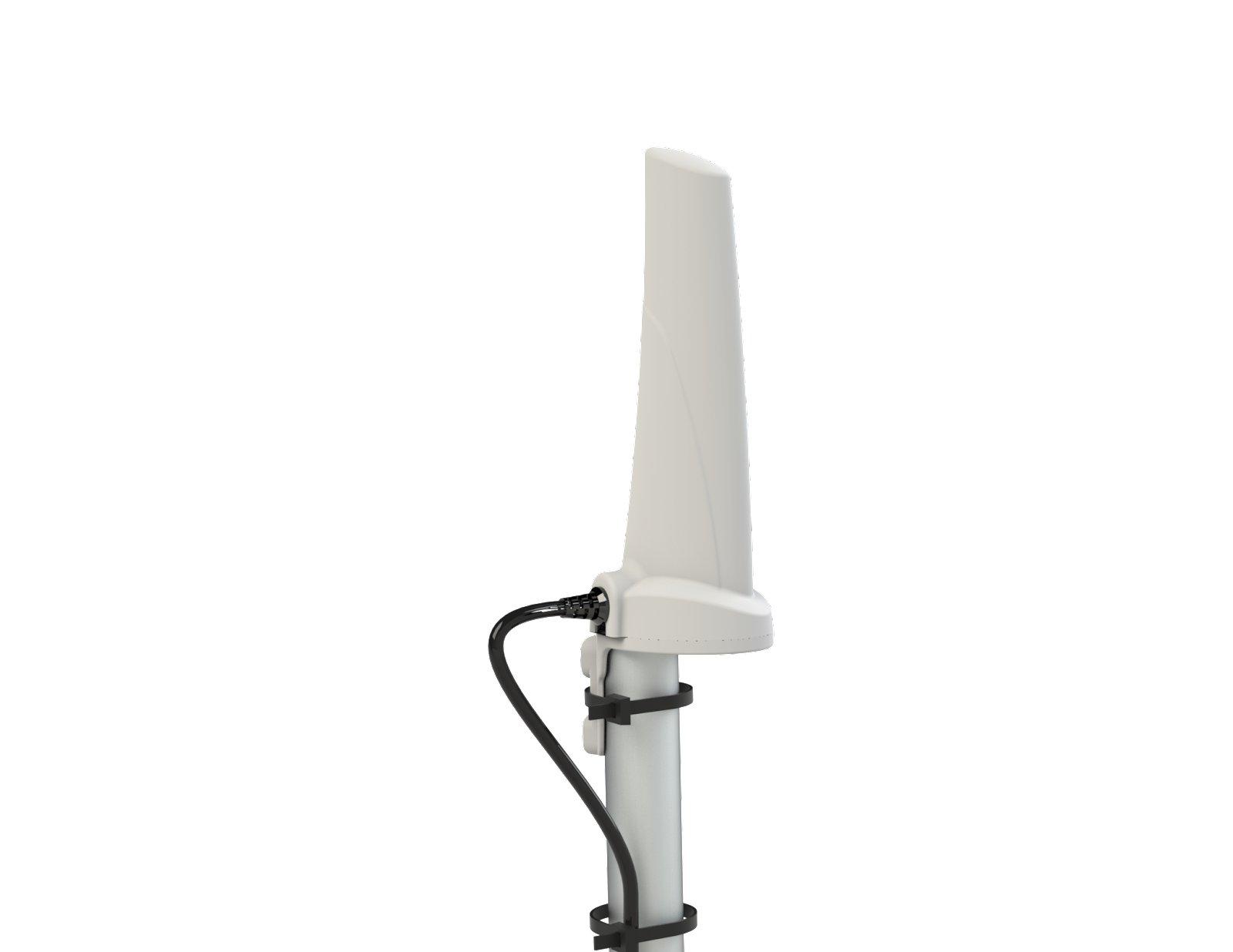

Poynting OMNI-280 Side View

Hover to zoom

Poynting OMNI-280 Side View
Poynting OMNI-280 Front View
Poynting OMNI-280 Back View

Poynting's OMNI-280-1 All-Weather LTE Omni-Directional Antenna provides an innovative solution for the signal enhancement of 4G / 3G and 2G networks. This antenna is a cost effective solution for enhancing signal reception and throughput.

In stock

10 Available

£25.99inc VAT

Want it by Monday 23rd May? Order within 1 day 51 minutes and choose DPD Next Working Day delivery at checkout.

Qty

Shipping from £3.59

Free Returns (Ts&Cs apply)

Price Breaks

  • 1 =

    £25.99

  • 5+ =

    £25.62

  • 10+ =

    £25.26

More Information - Poynting OMNI-280-1

The OMNI-280-01 increases signal reliability, ensures higher data throughput for users and provides a stable, high quality connection. This improves user experience and secures client retention, and is ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/GPRS).

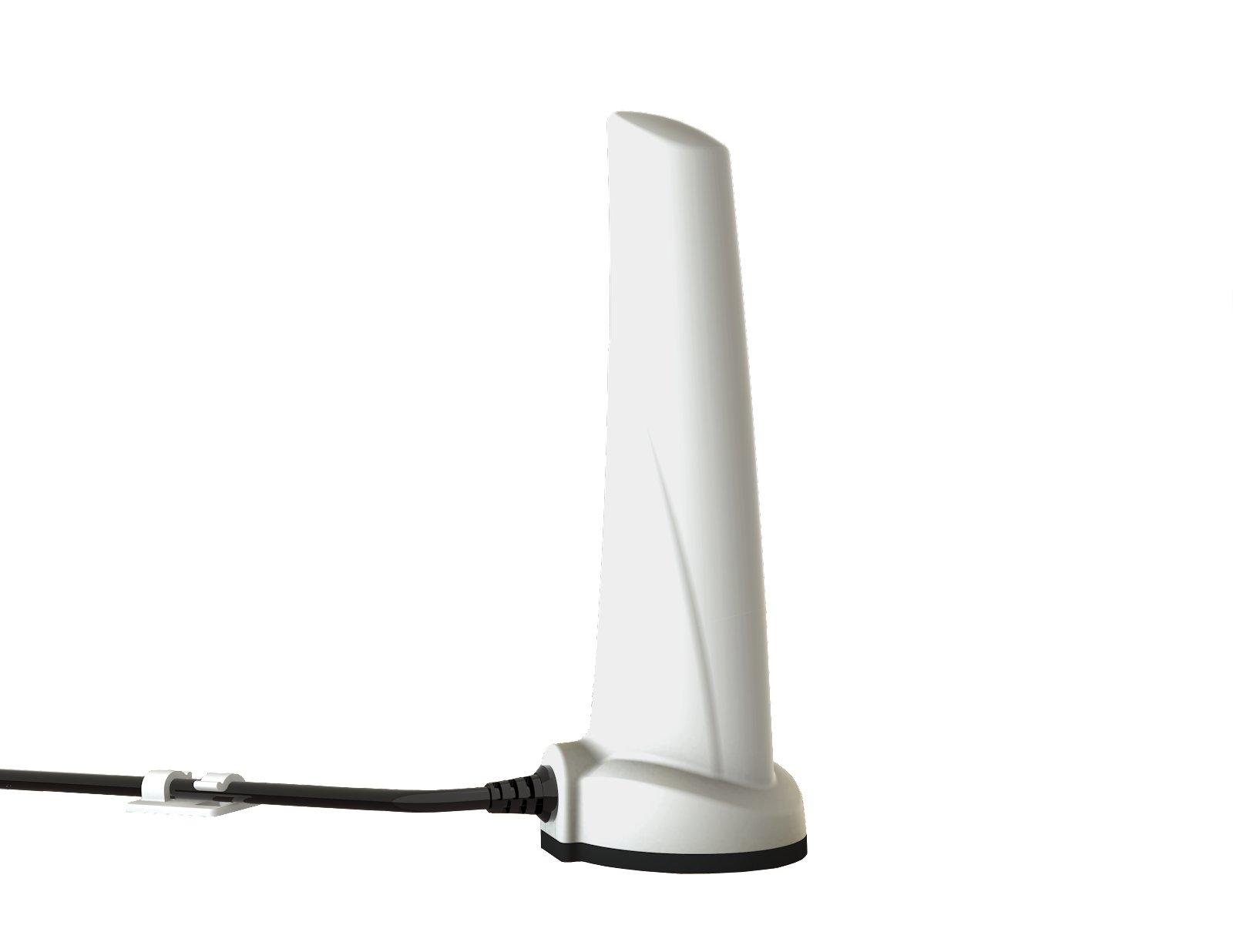

Magnetic, wall- or pole-mountable, single polarised, full LTE band antenna that incorporates an ultra wideband element in a single housing.

OMNI-280-1 dimensions: 154 mm x 45 mm x 45 mm


For further information about using the OMNI-280-1 in marine settings, read our blog!


A-OMNI-0280-01 Key Highlights

  • Max Gain: 4 dBi
  • Backwards compatible with 3G, 2G Technologies
  • Weather-proof Enclosure
  • Pole / Wall / Magnetic Mountable
  • Wideband - Frequency Bands: 698 - 960 MHz | 1710 - 2700 MHz | 3400 - 3800 MHz
  • Cable: 1m RG58
  • Connector: SMA (male)

Applications

  • M2M Applications - Where machines and measurement devices need to be connected for real-time monitoring and information transfer
  • Utilities for power and water metering
  • Security industry where cameras and other security equipment needs to be monitored
  • Retail point of sale equipment
  • Areas with poor data signal reception (indoor and outdoor)

What's in the Box?

  • Poynting A-OMNI-0280-01 Antenna
  • Pole/Wall and Desk (Magnetic/Velcro) Mount
  • Please note: pole in the images if for illustrative purposes only
