Aruba Instant On 1830 8-Port Switch with Class4 PoE 65W - JL811A

Part Number: JL811A-ACC

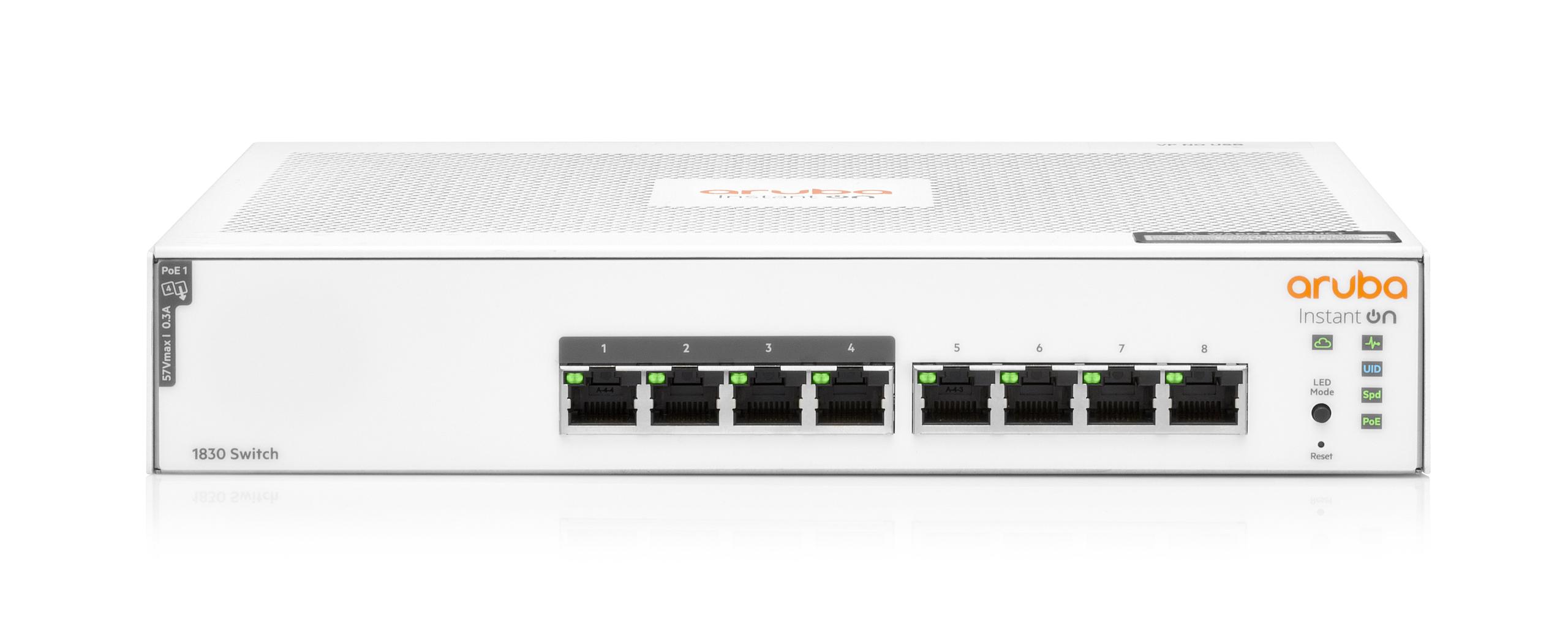

Aruba Instant On 1830 JL811A 8 Port Class4 PoE 65W Switch Front Image

Hover to zoom

Aruba Instant On 1830 JL811A 8 Port Class4 PoE 65W Switch Front Image

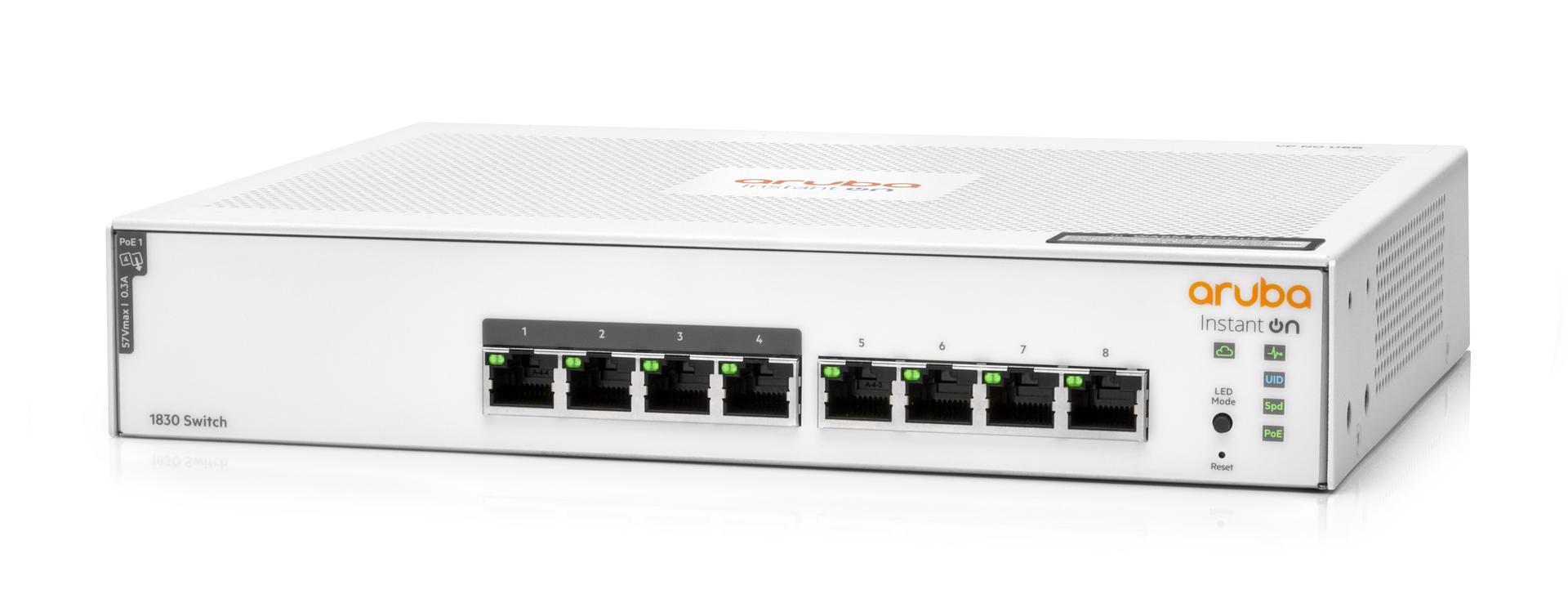

Aruba Instant On 1830 JL811A 8 Port Class4 PoE 65W Switch Side Angle
Aruba Instant On 1830 JL811A 8 Port Class4 PoE 65W Switch Back Image

Aruba Instant On 1830 8-Port Switch with Class4 PoE 65W - JL811A

Part Number: JL811A-ACC

The Aruba Instant On JL811A is a smart-managed Layer 2 Ethernet 8-port PoE Switch from the 1830 series. Featuring 4 PoE ports the JL811A switch provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications.

Out of stock

This product is out of stock. Please call on 0330 043 3000 to confirm availability.

£228.14inc VAT

Shipping from £10.79

Free Returns (Ts&Cs apply)

Price Breaks

  • 1 =

    £228.14

  • 5+ =

    £226.92

  • 10+ =

    £225.71

More Information - Aruba Instant On 8-Port PoE Switch

The Aruba JL811A is an easy-to-deploy, smart-managed switch that is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands.

The JL811A has 8 x auto-sensing ports, 4 of which have Class 4 PoE with up to 65 W power making this switch suitable for devices such as access points, surveillance cameras and VoIP phones.

The JL811A offers Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes. With a flexible management dashboard and energy-efficient features, it can deliver a solid business network for SMBs with limited budgets.

The Aruba Instant On 1830 Switch Series can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

The 1830 switches are enhanced with security features such as IEEE 802.1x, Global Storm Control, TPM (Trusted Platform module) based security, and VLANs to guard your network from unwanted or unauthorised access. Leverage 802.1X with a RADIUS server to verify only known and authorised users can access your network.

This JL811A has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.

This switch mounts in an EIA standard 19 inch telco rack or equipment cabinet. It also supports table-top mounting, under-table mounting and wall mounting with ports facing either up or down.

For further information about Aruba's range of switches and access points, please see our blog!

Aruba Instant On 8-port PoE Switch Key Highlights

  • 8 x RJ-45 autosensing 10/100/1000 ports
  • 4 x IEEE 802.3at Class 4 PoE ports (ports 1-4)
  • Memory & Flash: ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash
  • Packet Buffer: 1.5MB
  • Throughput (Mpps): 11.90 Mpps
  • Capacity: 16 Gbps
  • MAC address table size (number of entries): 8,000 entries
  • Fanless design
  • Frequency: 50Hz/60Hz
  • AC voltage: 100-127VAC / 200-240VAC
  • Current: 1.0A/0.5A
  • PoE Power: 65 W Class 4 PoE
  • Internal power supply
  • Supports rack mounting, table top mounting and wall mounting
  • Device management: Aruba Instant On Cloud; Web browser; SNMP Manager
  • Product Dimensions (DxWxH): 195.1 x 245.1 x 43.9 mm
  • Weight: 1.54 kg; 3.40 lb

What's in the Box?

  • Aruba JL811A 8-Port PoE Switch
  • Rack mount kit included
