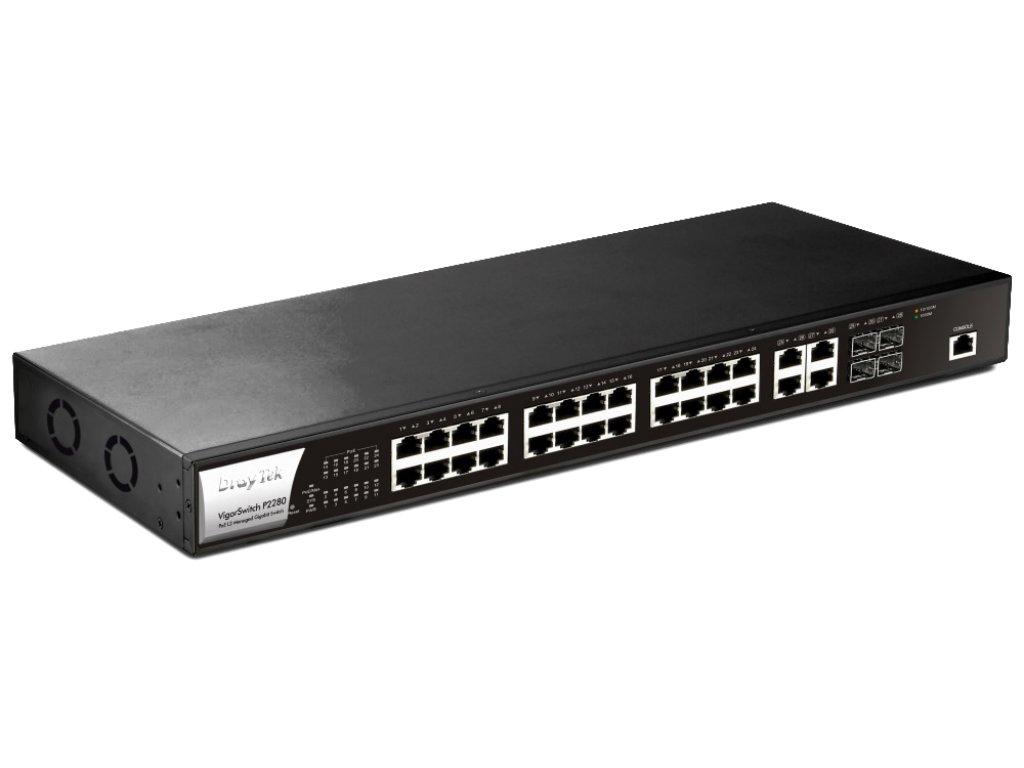

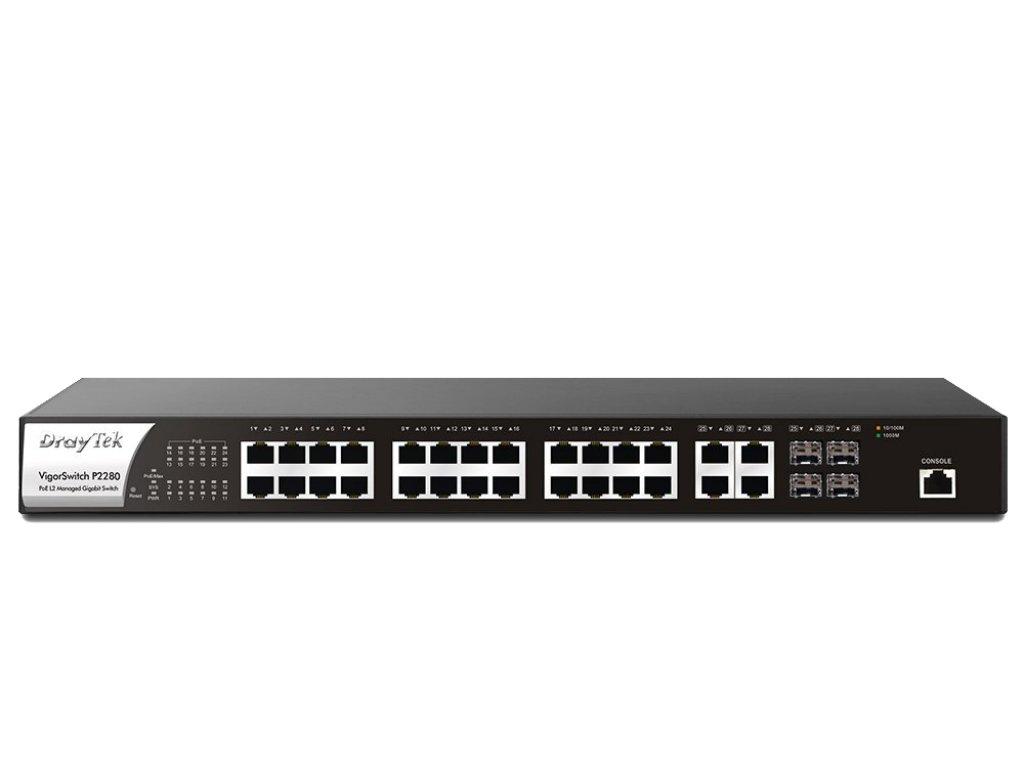

DrayTek VigorSwitch P2280 High-Power PoE 28 Port Gigabit Switch
Part Number: VSP2280-K
Discontinued
This product has been discontinued. See the latest model: Draytek VSG2280X 24-Port
The VigorSwitch P2280 is a high-performance, Gigabit smart switch with PoE+ (Power over Ethernet) on 24 RJ-45 ports (plus 4 additional Gigabit ports). With the increase in PoE powered devices requiring full power, notably wireless access points and IP cameras, the generous 340W power budget is much higher than many other products in its class.
Description
VigorSwitch P2280 features the latest generation of DrayTek's own switch operating system which is used across their range of enhanced switches. The P2280's specification is packed with advanced features to aid reliability and switching performance to your network and is ready for the next generation with both IPv4 and IPv6 support. The P2280 has 24 standard (RJ45/copper) Gigabit Ethernet Ports, all with PoE+ and four selectable ports (which can be set to either RJ-45 or SFP slots). Features for Quality of Service (QoS), VLANs and network/switch security provide additional flexibility.
Key Highlights
- 24 10/100/1000BaseT Ethernet Ports (RJ-45 IEEE 802.3/3u/ab)
- 4 Selectable Ports (Nos. 25-28), use as either: 10/100/1000BaseT (Gigabit) Ethernet or SFP (802.3z)
- PoE (Power-over-Ethernet) for IP phones, wireless access points, IP Cameras etc
- Power budget (340W total)
- 802.3af (PoE) and 802.3at (High Power PoE)
- 802.3az Power Saving
- 802.1q VLANs (Tag, Port & MAC-based)
- QoS for Application traffic prioritisation
- Voice VLAN for QoS (OUI Mode)
- Access Control List (ACL)
- Port Mirroring & Link Aggregation
- 8IPv4 and IPv6 Support
- Centrally managed or standalone operation
- Console Port
What’s in the box?
- Draytek VigorSwitch P2280
- Ethernet Cable
- Rack Mounting Kit
Documents
Quick Start Guide:VigorSwitch P2280 QSG
Data Sheet: VSP2280-K-DataSheet
