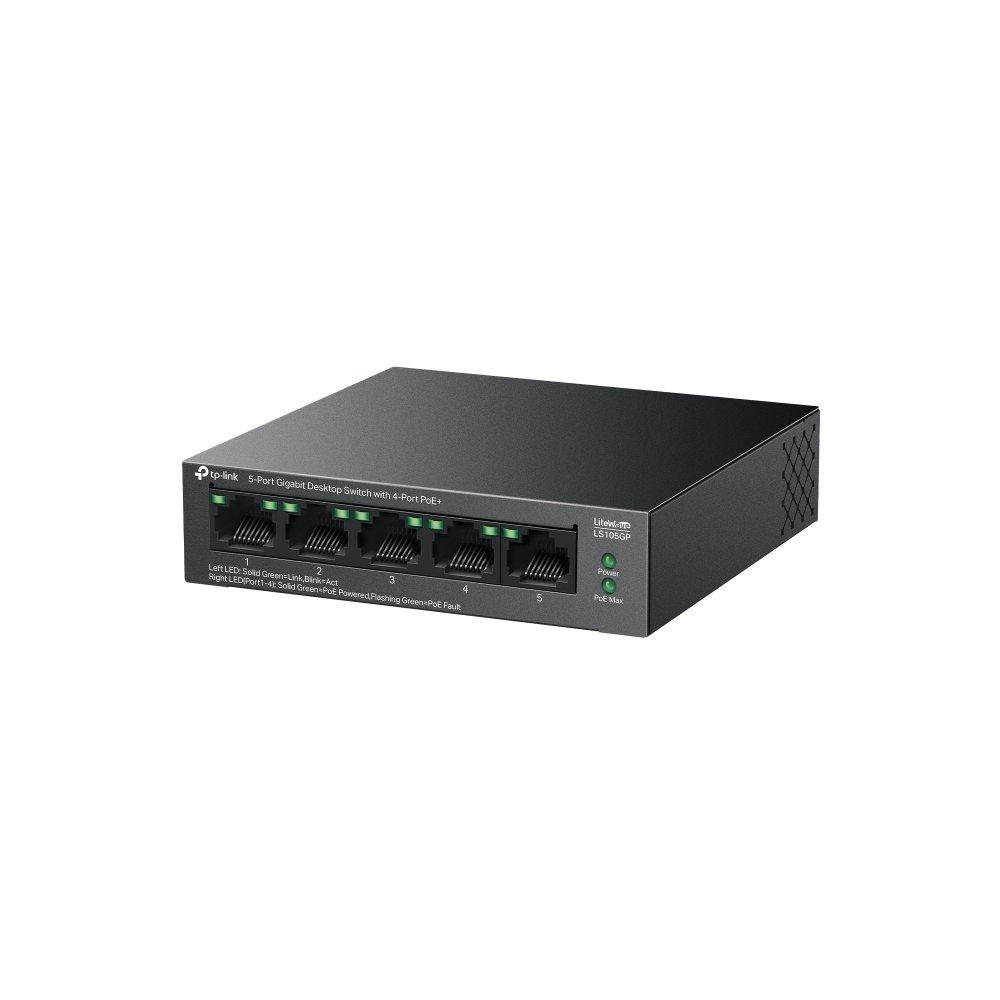

TP-Link LS105GP 5-Port Gigabit PoE Switch with 4-Port PoE+
Part Number: LS105GP
33 In Stock
Want it by Wednesday 21st October? Order within 23 hours 30 minutes for next business day delivery.
Bulk Pricing
1+
£39.99
5+
Call to quote
10+
Call to quote
The TP-Link LS105GP is a 5-port unmanaged Gigabit desktop network switch, featuring gigabit auto-negotiation to provide up to 10 Gbps switching capacity, and 4 PoE+ ports to provide power and network connectivity to power-hungry devices like IP cameras, access points, and IP phones via a single cable. The LS105GP features a fanless design, engineered both to reduce power consumption and ensures silent operation, as well as a robust metal casing and a variety of desk/wall mounting options, positioning the unit as a solution for budget and space-conscious small businesses or residential properties looking to easily expand their network.
Description
The TP-Link LS105GP includes five gigabit ethernet ports providing up to 10Gbps switching capacity, featuring both auto-negotiation and auto MDI/MDIX technology to ensure speedy and reliable data transmission, as well as MAC address auto-learning, IGMP snooping and IEEE 802.3x Flow Control.

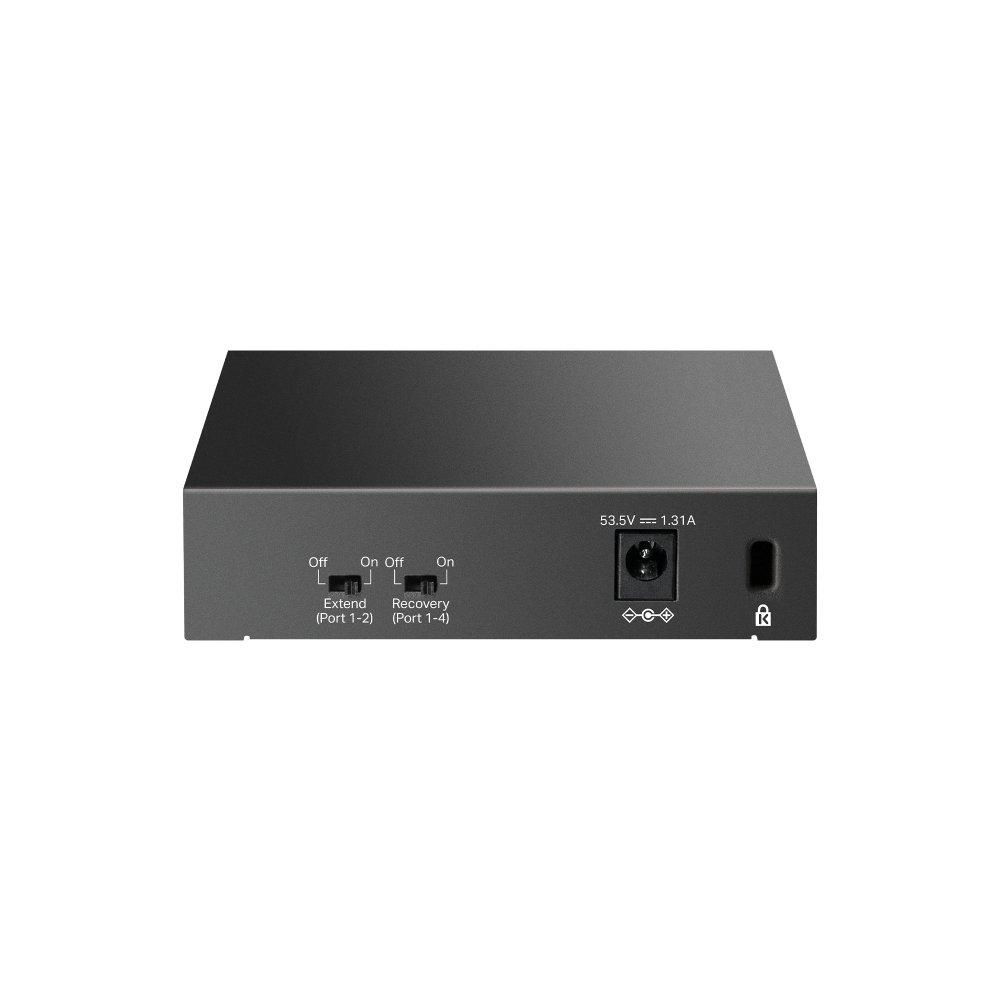

The LS105GP also offers an 802.3af/at-compliant PoE+ budget of 65W (up to 30W output per port), simplifying IoT deployments in locations with insufficient power outlets and reducing cable clutter. The unit's PoE+ capacity can extend over a range of 250m through TP-Link's Extend Mode (offered on ports 1-2), ideal for surveillance camera installations to cover a wide area. The LS105GP also supports a PoE+ Auto Recovery feature, automatically rebooting dropped or unresponsive connected devices.
The compact chassis is comprised of a durable metal casing with a discrete form-factor, and can be wall-mounted to most efficiently utilise the space and reduce clutter.
Key Highlights
- Layer 2 unmanaged switch

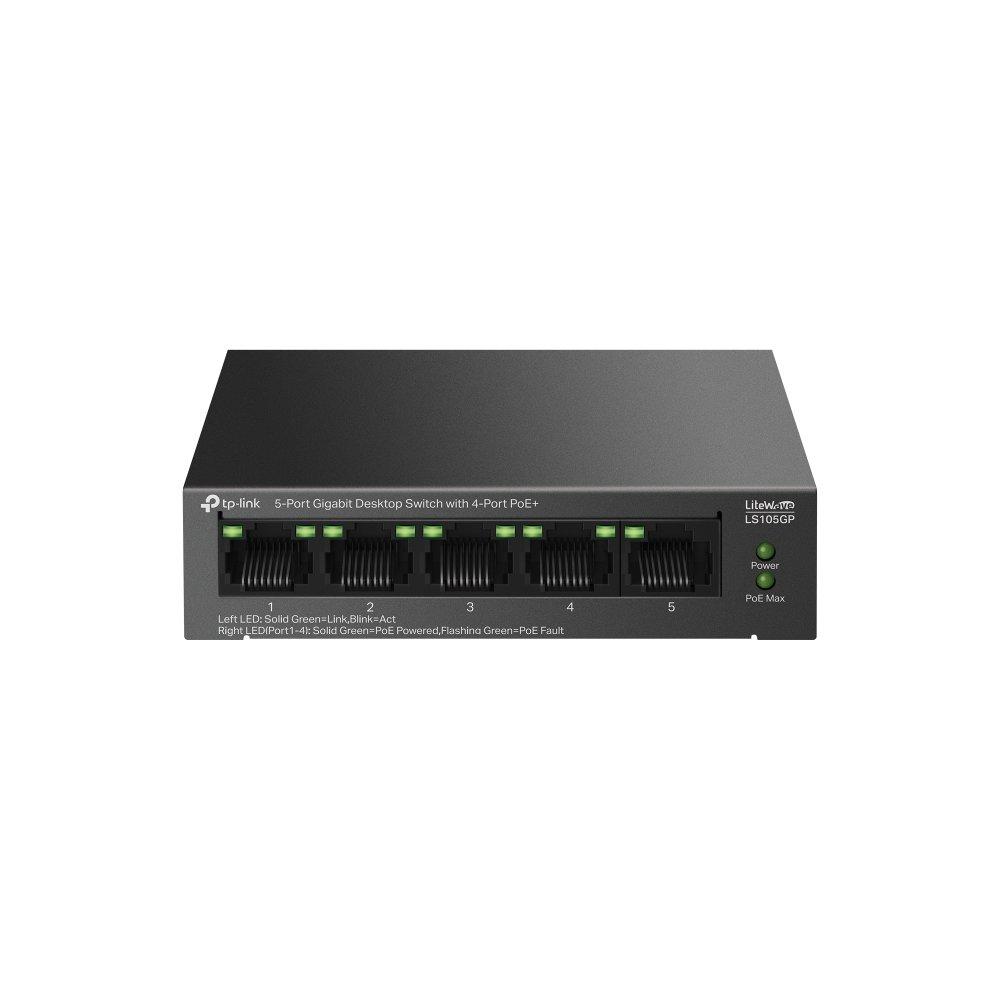

- 5 x RJ45 Gigabit Ethernet ports
- 4 x PoE+ ports
- Total available PoE: 65W
- Maximum PoE wattage per port: 30W
- Switching capacity: 10Gbps
- Supports auto-negotiation
- PoE auto-recovery
- Fanless design
- Up to 250m range for PoE+ transmission
- Desktop/wall mounted
What’s in the box?
- 1 x LS105GP
- 1 x UK Power Adapter
- 1 x Installation Guide
Specification
| Supports PoE | 1 |
|---|---|
| Gigabit Ports | 5 |
| PoE Ports | 4 |
| RJ45 Ports | 5 |
| SFP Ports | 0 |
| Managed | 0 |
Documents
Data Sheet:LS105GP Data Sheet
Quick Start Guide:LS105GP Quick Start Guide
