Ubiquiti US-48-500W UniFi 48port Managed Gigabit PoE+ Switch (500W)

Part Number: US-48-500W

Ubiquiti US-48-500W Front Top

Hover to zoom

Ubiquiti US-48-500W Front Top

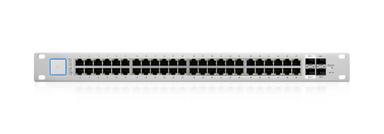

Ubiquiti US-48-500W Front Angle

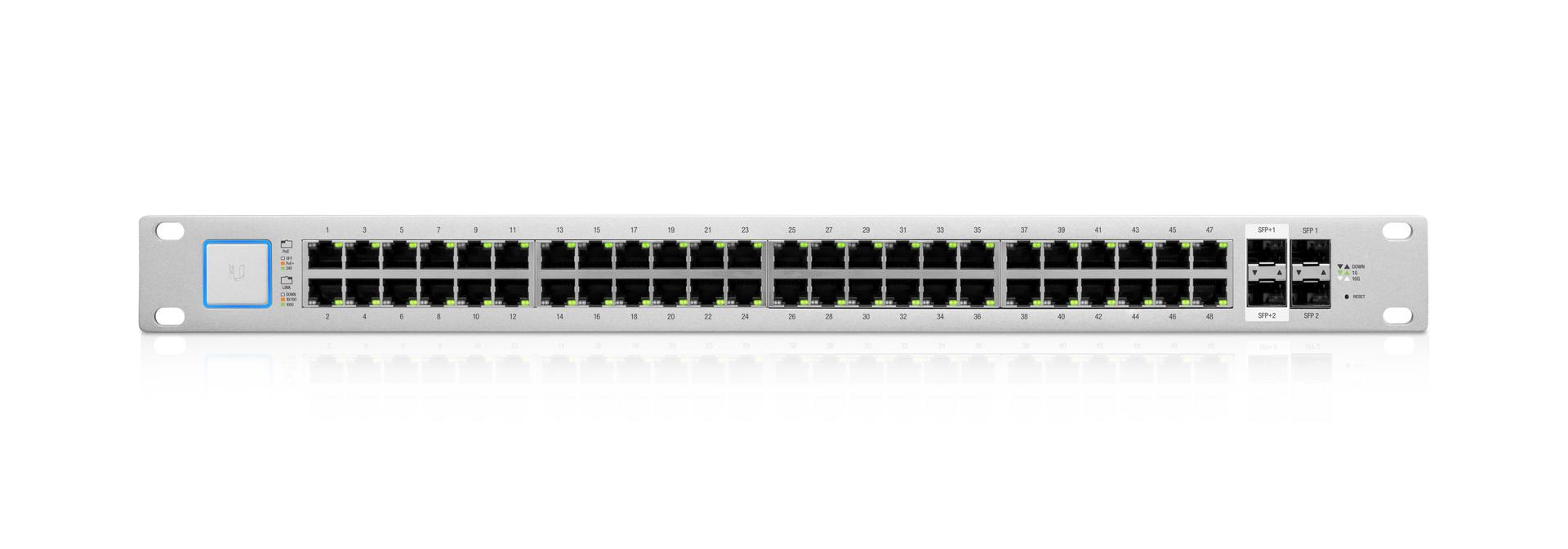

Ubiquiti US-48-500W Front

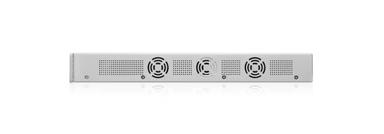

Ubiquiti US-48-500W Side

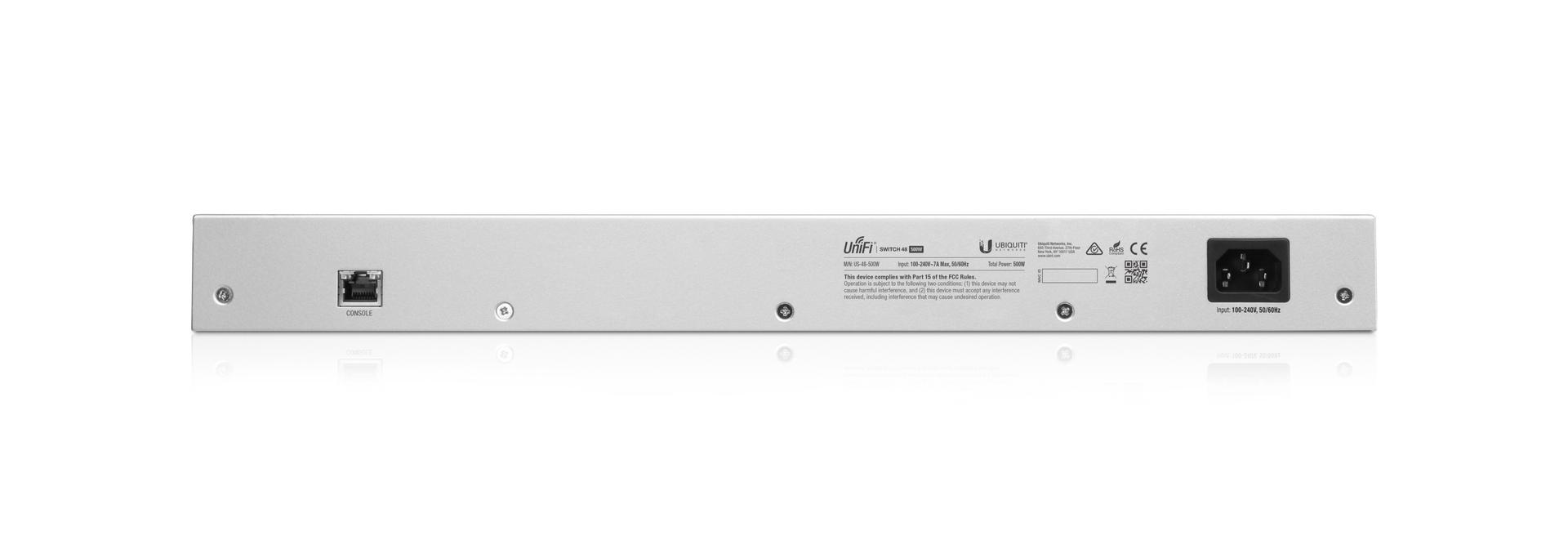

Ubiquiti US-48-500W Back

This Ubiquiti US-48-500W UniFi Switch is a fully managed 48 port PoE+ Gigabit switch that delivers robust performance and intelligent switching for growing networks. The Ubiquiti US-48-500W UniFi Switch also offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Ubiquiti UniFi switch enables you to expand your business network with unbeatable performance.

Out of stock

This product is out of stock. Please call on 0330 043 3000 to confirm availability.

£963.94inc VAT

Shipping from £4.79

Free Returns (Ts&Cs apply)

Price Breaks

  • 1 =

    £963.94

  • 5+ =

    £963.94

  • 10+ =

    £950.72

More Information - US-48-500W 48 Port Switch 500W

This Ubiquiti US-48-500W UniFi Switch features 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure. By default, this UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software. This Ubiquiti US-48-500W UniFi Switch provides fibre connectivity options for easy expansion of your networks. Each UniFi Switch model includes 2 SFP ports for uplinks of up to 1 Gbps.

Sold with genuine UK Power Cable. Warning: Many discount online sellers, sell with Euro Power Cable.

US-48-500W Key Highlights

  • 48 x 10/100/1000 Gigabit Ethernet RJ45 ports
  • 4 x Small form factor SFP ports for Gigabit uplinks
  • 1 x Serial console port
  • Non-blocking throughput: 70 Gbps
  • Switching capacity: 140 Gbps, Forwarding rate: 104.16 Mbps
  • Maximum power consumption: 500W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE

What's in the Box?

  • UniFi Switch US-48-500W
  • 4 x mounting screws
  • 4 x cage nuts
  • UK power cord
  • Quick start guide

Documents

Quick Start Guide:

US-48_QSG
