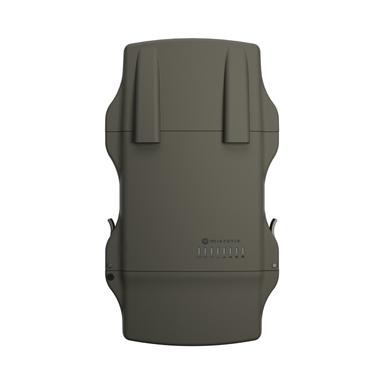

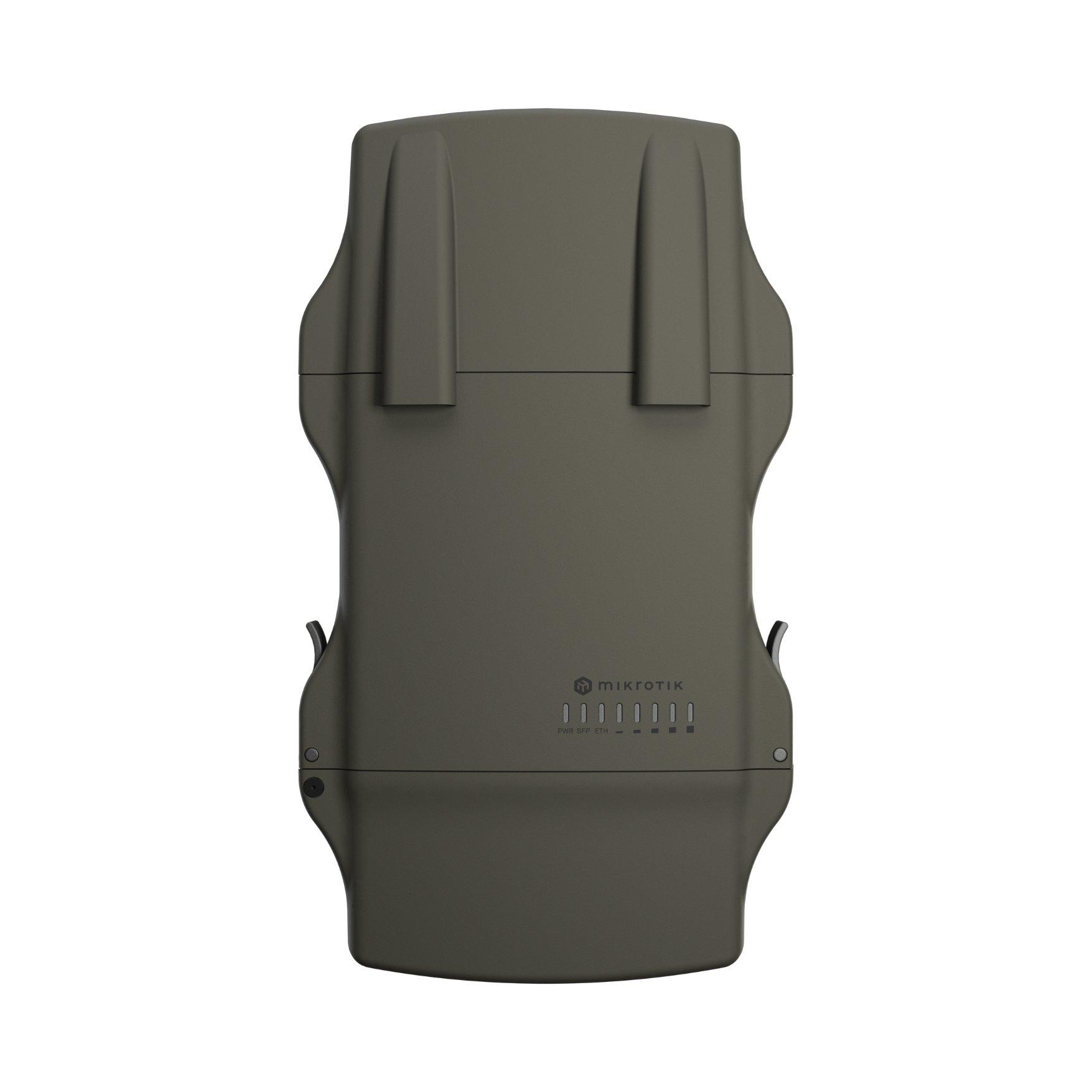

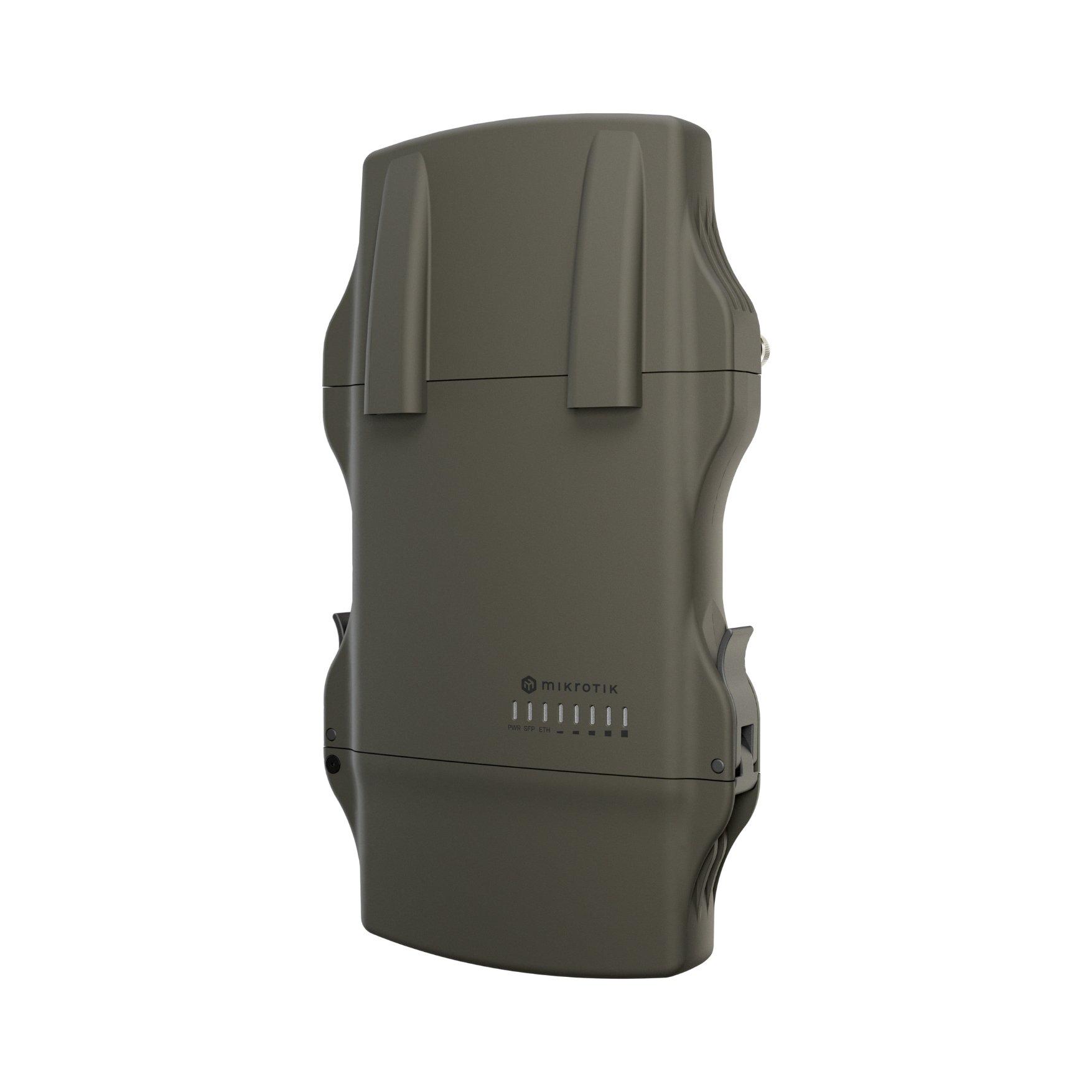

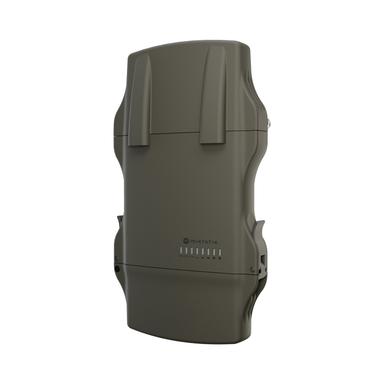

MikroTik NetMetal Outdoor WiFi 6 Access Point (L23UGSR-5HAXD2HAXD-NM)
Part Number: L23UGSR-5HAXD2HAXD-NM
Out of stock
Bulk Pricing
1+
£159.71
5+
£159.71
10+
£159.71

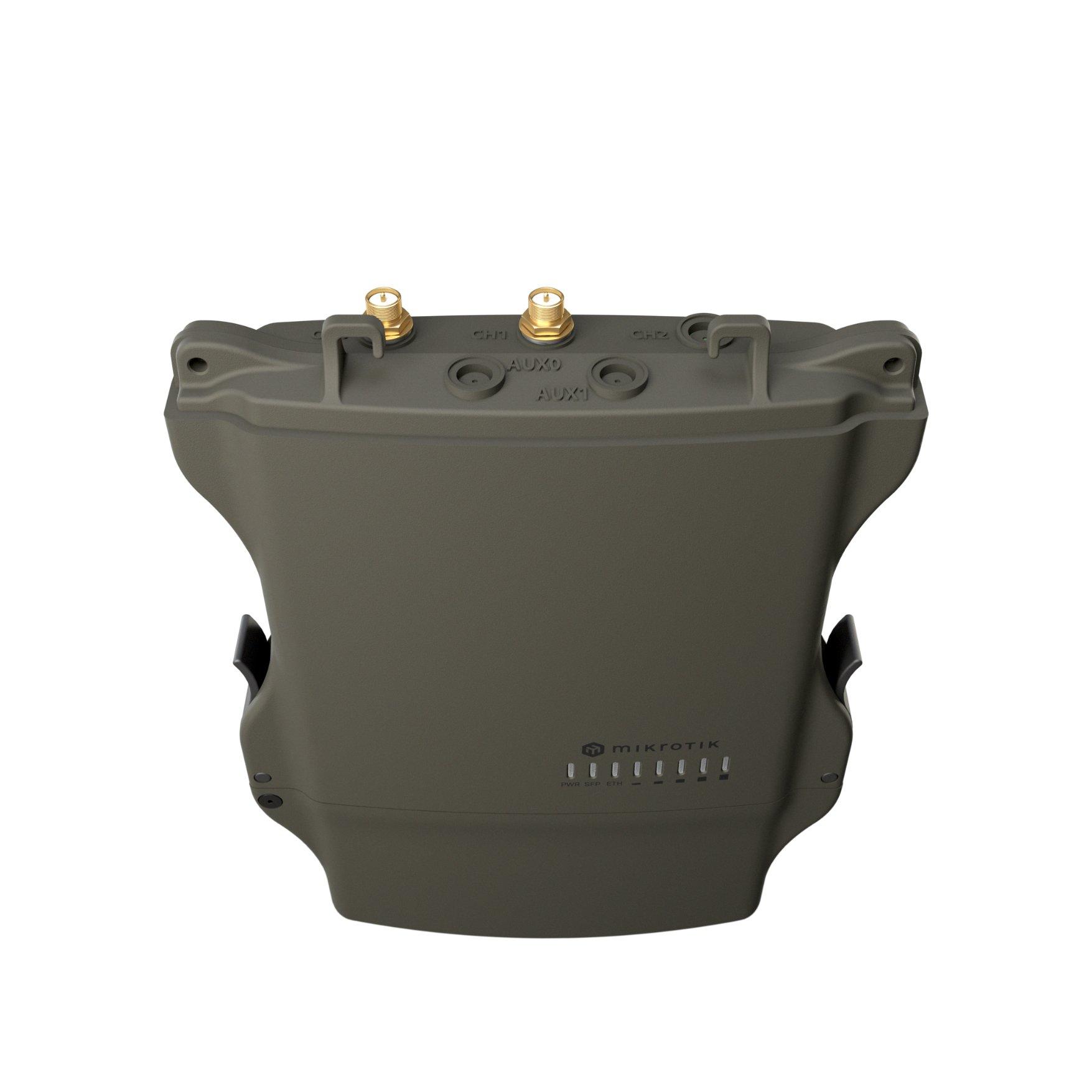

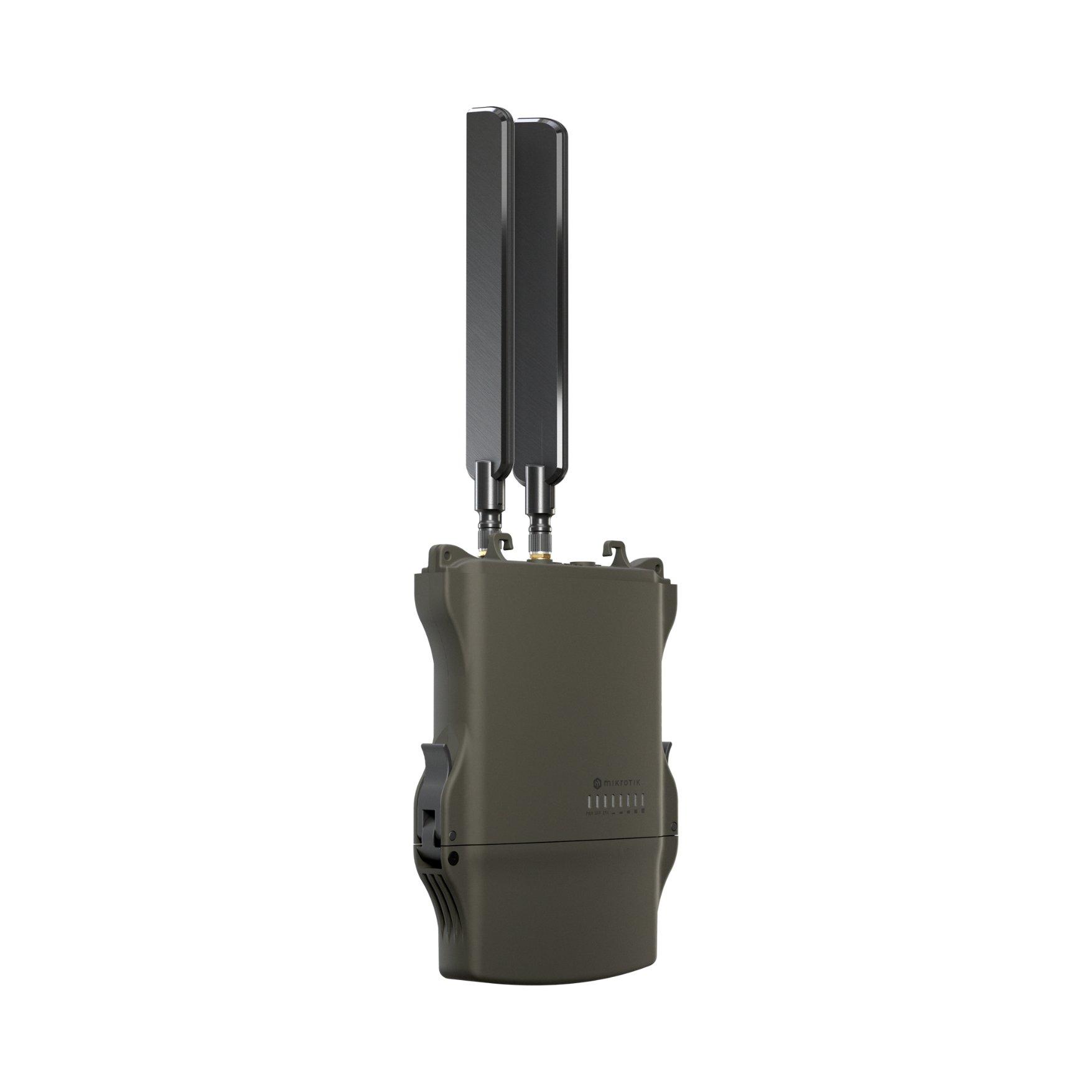

The MikroTik NetMetal ax (L23UGSR-5HAXD2HAXD-NM) is a long-range WiFi 6 (802.11ax) outdoor access point, engineered for durability even in punishing weather conditions. Featuring a dual-core ARM CPU, the NetMetal access point can offer both Gigabit ethernet and a 2.5 Gigabit SFP port for extremely high-speed fibre connectivity. Also included are 2 x RP-SMA connecting ports, offering compatibility with third-party antennas for signal ranges of up to 30 kilometres.
Description
The MikroTik NetMetal ax (L23UGSR-5HAXD2HAXD-NM) provides WiFi 6 connectivity to connected devices, offering 574Mbps throughput on the 2.4GHz band and 2400Mbps on the 5GHz. In addition to the high-speed and dependable WiFi 6 capacity, the NetMetal ax can also offer Gigabit wired connections and fibre connectivity through its integrated 2.5G SFP port, aqs well as a USB port and a free miniPCIe slot for further customisation like LTE modems for mobile backup or a gateway for LoRa IoT setups. ***Please note: the USB Type-A and mini-PCIe slots share the same USB line, and so cannot be used simultaneously.

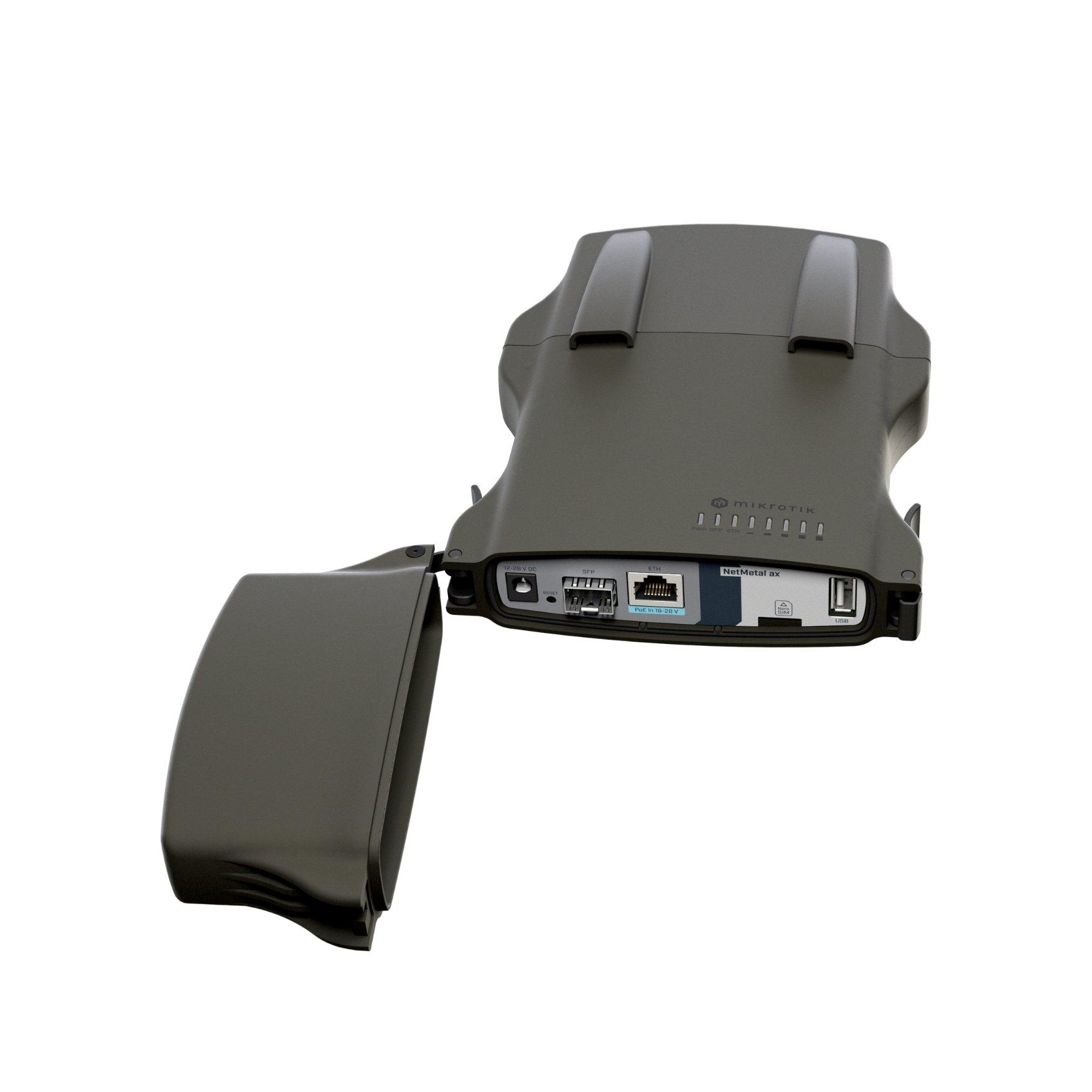

Precision-engineered for outdoor deployments, the NetMetal ax's enclosure boasts an IP66 rating for protection against both water and dust ingress, and features an ergonomic catch that can be opened to grant access to the access point's ports and closed to protect against damp and dust.
Key Highlights
- WiFi 6 (802.11ax) technology
- 2.4 GHz band with throughput of 574 Mbps
- 5 GHz band with throughput of 2400 Mbps
- 1 x GbE RJ45 port (PoE-in)
- 1 x 2.5 Gigabit SFP port
- 1 x NanoSIM slot
- 1 x USB-A port
- 1 x miniPCIe port
- IP66 weather-resistant rating
- Powered by PoE-In, 12-28V DC
What’s in the box?
- 1 x L23UGSR-5HAXD2HAXD-NM
- 1 x Gigabit PoE Injector
- 1 x Mounting Kit
- 1 x 24V 1.2A Power Adapter
- 1 x Quick Start Guide
Specification
| WiFi | 1 |
|---|---|
| WiFi Dual Band (2.4/5Ghz) | 1 |
| Range (m) | Not specified |
| 2.4Ghz Technology | Wi-Fi 6 (802.11ax) |
| Gigabit Ports | 1 |
| 2.4Ghz Throughput | 573 Mbps |
| SFP Ports | 1 |
| 5Ghz Technology | Wi-Fi 6 (802.11ax) |
| 5Ghz Throughput | 2400 Mbps |
| Location | Outdoor |
Documents
Data Sheet:L23UGSR-5HAXD2HAXD-NM Data Sheet
