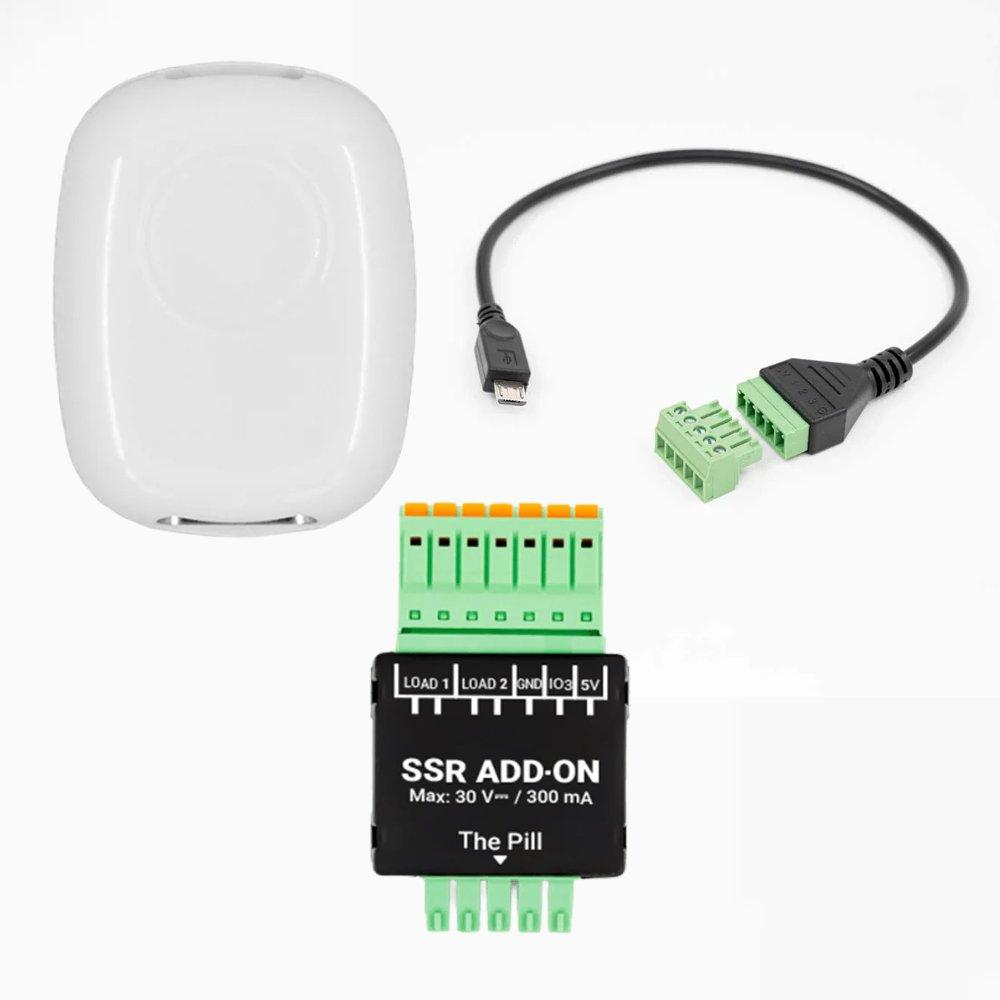

Shelly Pill, 5-Terminal Add-on & SSR Add-on Bundle

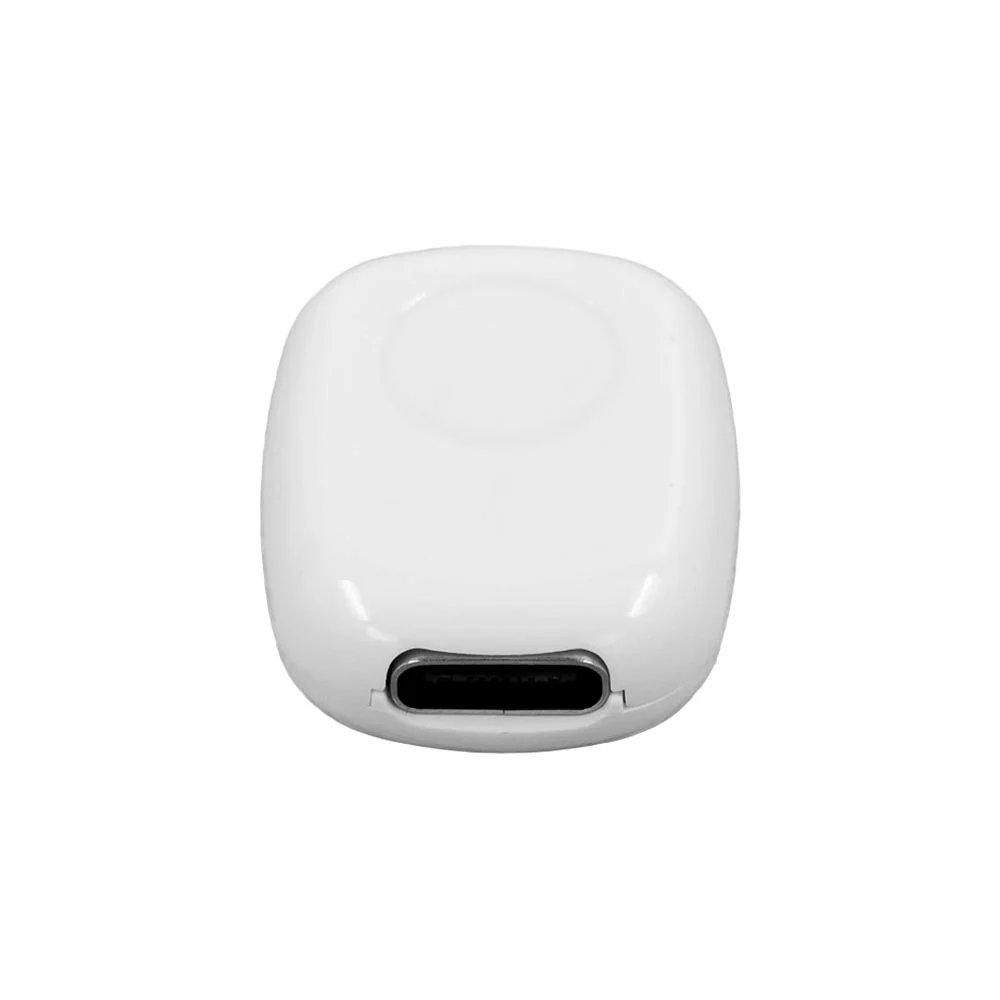

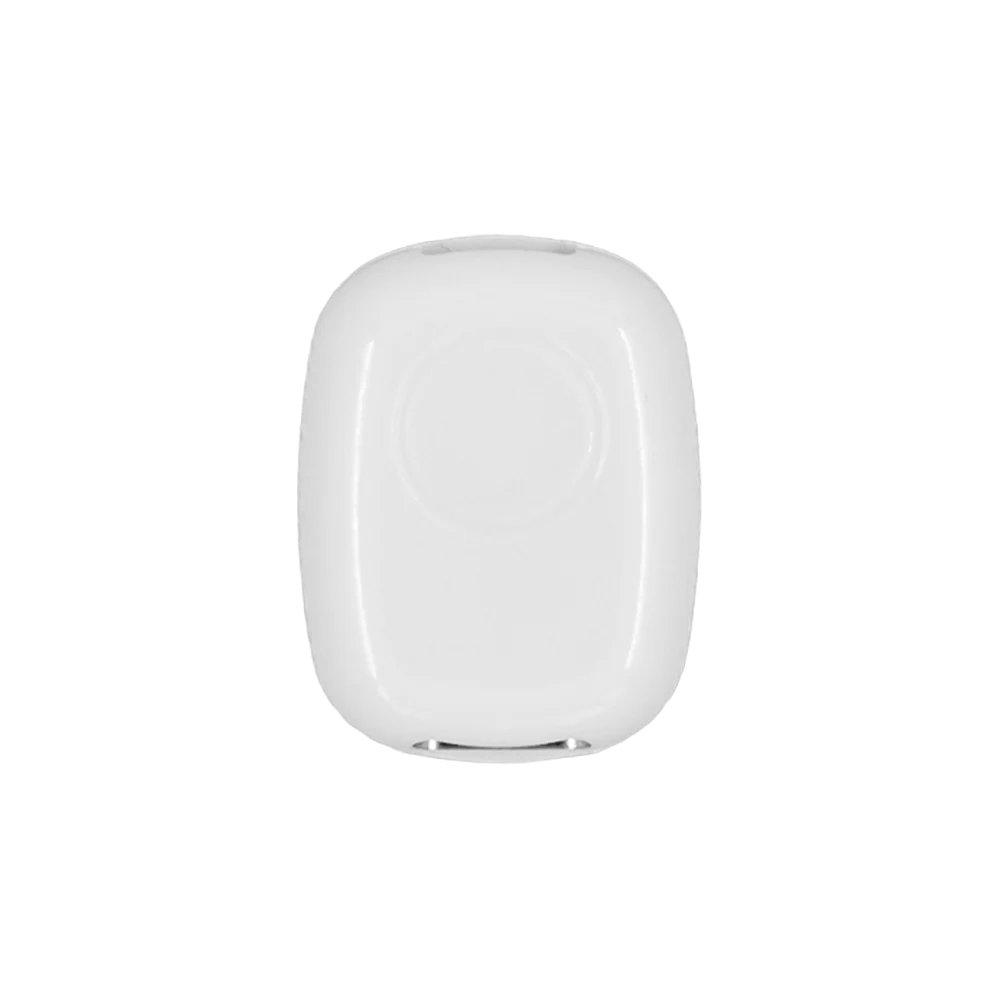

The Shelly Pill is a compact USB-C powered WiFi and Bluetooth device that is compatible with a range of sensors and low-voltage devices and can be used for power-monitoring, temperature sensing and smart home control. Users can manage the device and set scenes/schedules within the Shelly App to control their smart home and connected devices - such as turning on the heating when the temperature drops below a certain level.

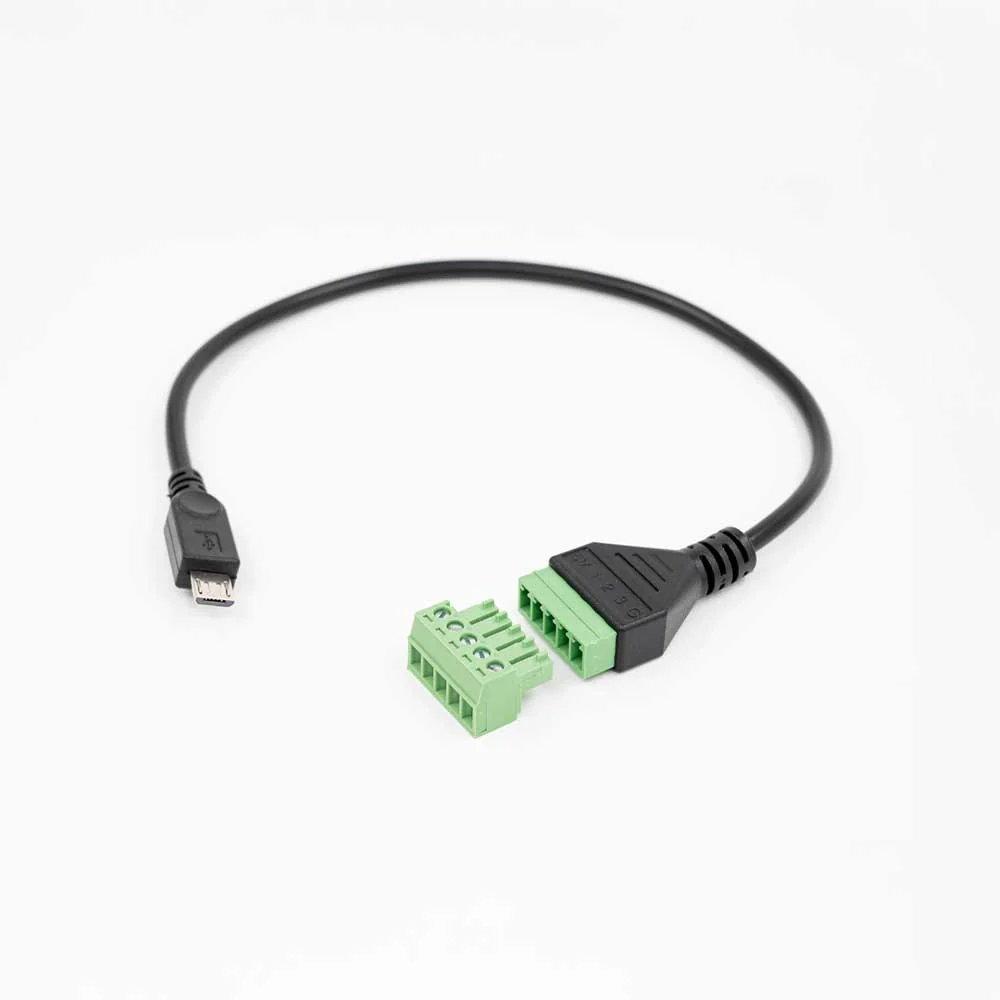

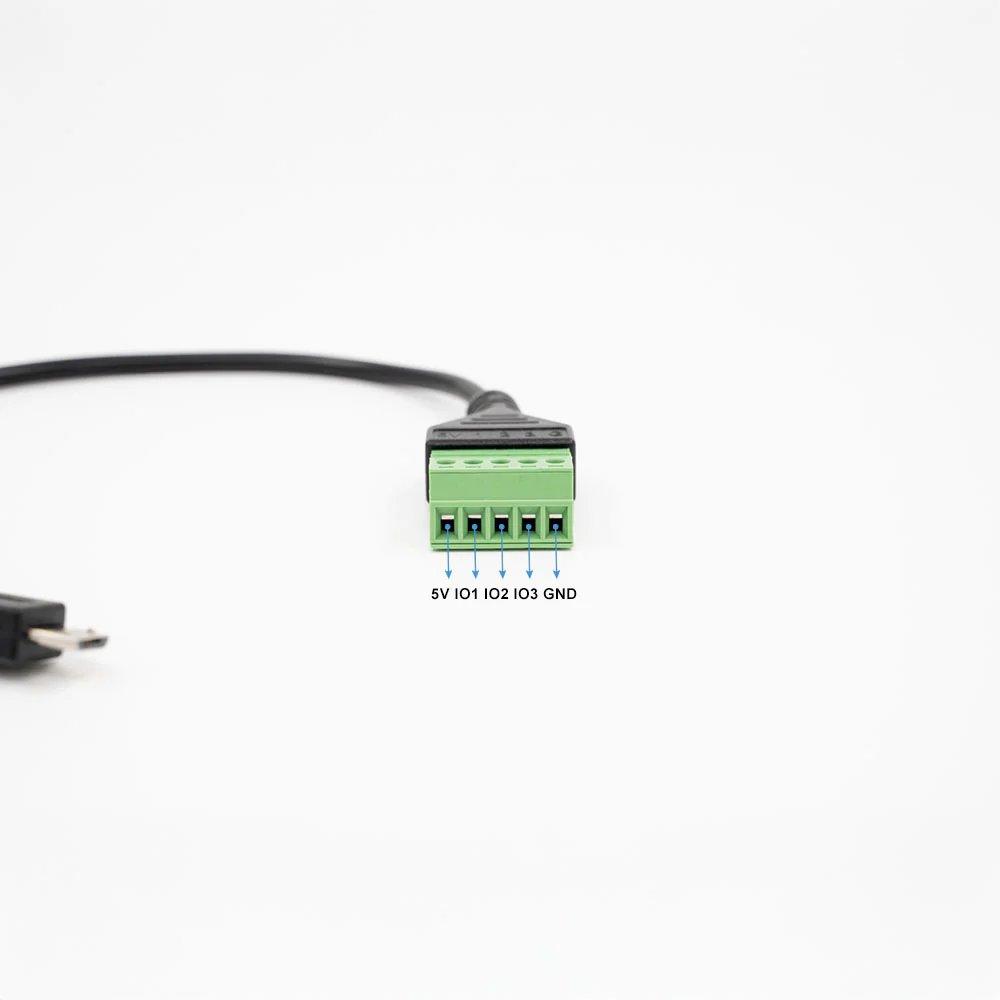

The Shelly 5-Terminal Add-on is a required base module for external add-ons to the Shelly Pill, supporting digital inputs/outputs, analog input and temperature sensors (DS18B20, DHT22). This module is also built with a compact interface for prototyping and integration and provides power, ground and 3 configurable I/O terminals.

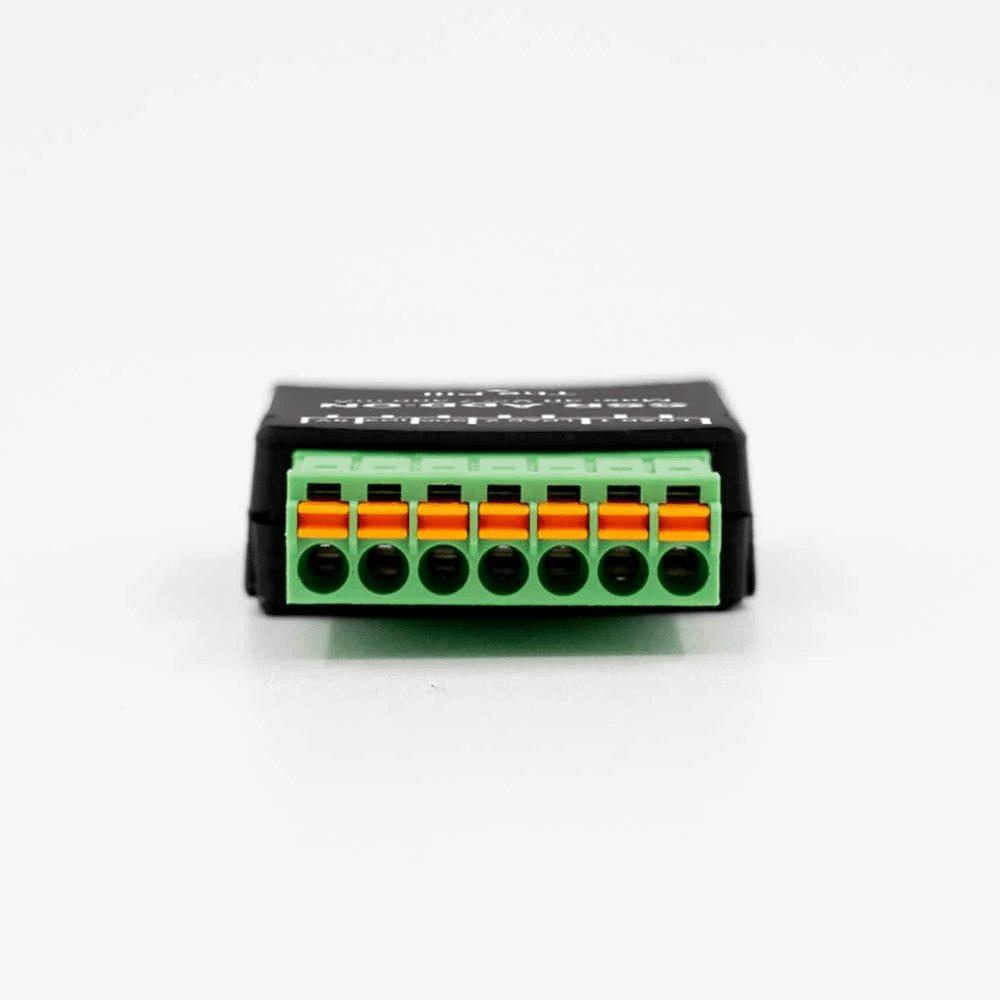

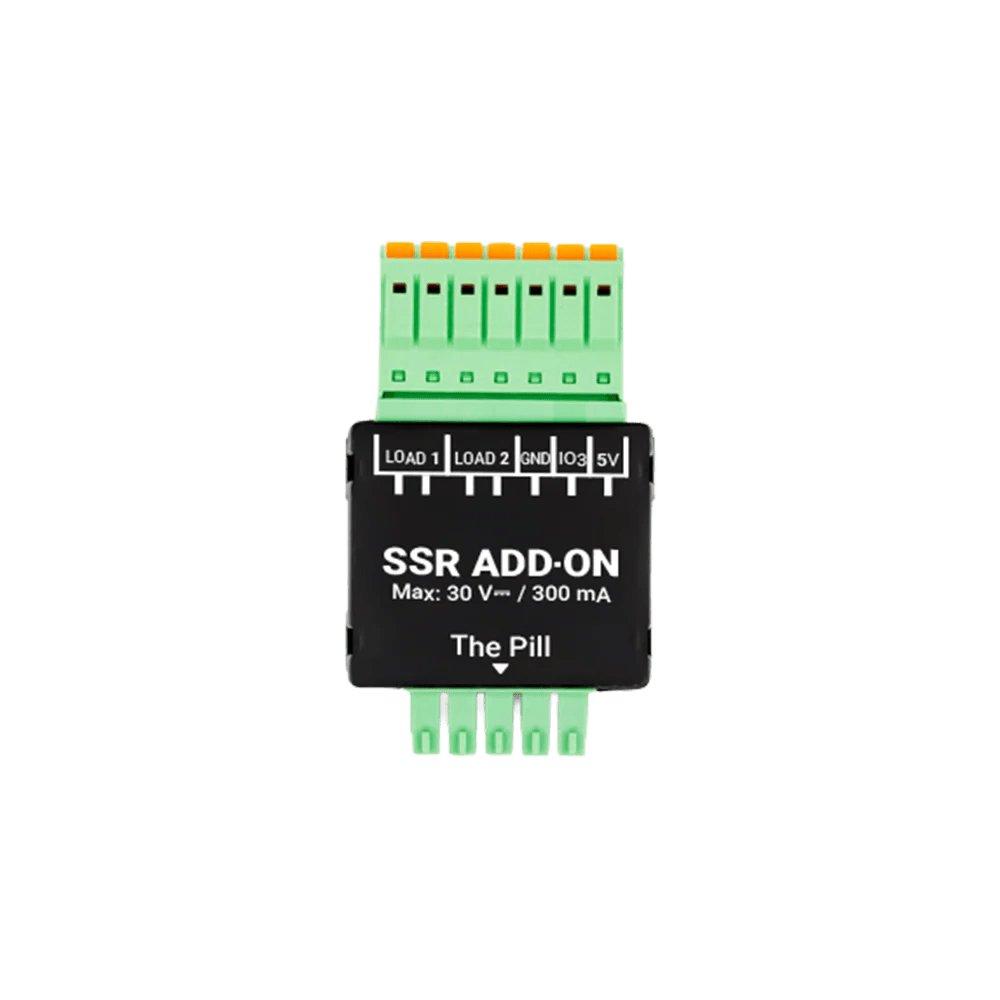

The Shelly SSR Add-on is a dual-channel solid-state relay module that allows users to control 2 independent DC loads up to 30 V/ 300 mA, enabling smart control of external devices such as lights and fans through the Shelly App. This device features 2 x galvanically isolated solid-state relays, ensuring reliable switching. It is also equipped with 1 configurable I/O (3.3 V logic-level).
