Aruba Instant On 1830 24-port Switch with 2 x SFP ports - JL812A

Part Number: JL812A-ACC

Aruba Instant On 1830 JL812A 24-Port Switch Front Image

Hover to zoom

Aruba Instant On 1830 JL812A 24-Port Switch Front Image

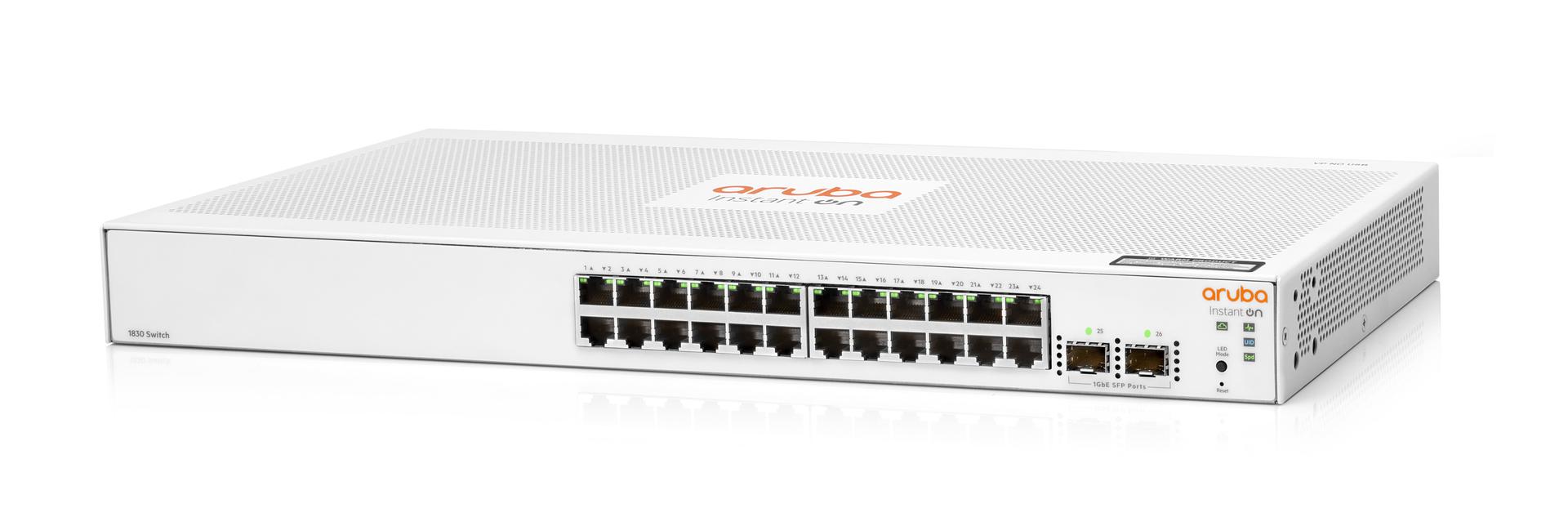

Aruba Instant On 1830 JL812A 24-Port Switch Front Angle

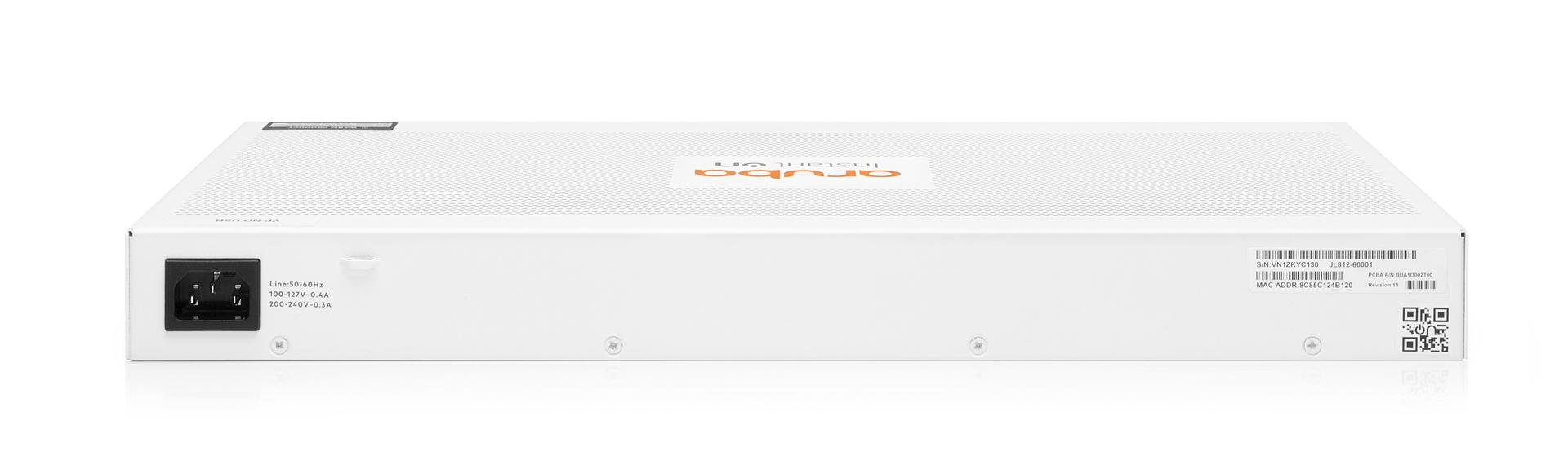

Aruba Instant On 1830 JL812A 24-Port Switch Back Image

Aruba Instant On 1830 24-port Switch with 2 x SFP ports - JL812A

Part Number: JL812A-ACC

The Aruba Instant On JL812A is a smart-managed Layer 2 Ethernet 24-port Switch from the 1830 series. Featuring 24 ports with 2 SFP ports the JL812A switch provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications.

In stock

30 Available

£194.99inc VAT

Want it by Monday 12th December? Order within 1 day 9 hours 13 minutes and choose DPD Next Working Day delivery at checkout.

Qty

Shipping from £10.79

Free Returns (Ts&Cs apply)

Price Breaks

  • 1 =

    £194.99

  • 5+ =

    £189.62

  • 10+ =

    £184.25

More Information - Aruba Instant On 1830 24-port Switch

The Aruba JL812A is an easy-to-deploy, smart-managed switch that is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands.

The JL812A offers Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes. With a flexible management dashboard and energy-efficient features, it can deliver a solid business network for SMBs with limited budgets.

The Aruba Instant On 1830 Switch Series can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

The 1830 switches are enhanced with security features such as IEEE 802.1x, Global Storm Control, TPM (Trusted Platform module) based security, and VLANs to guard your network from unwanted or unauthorised access. Leverage 802.1X with a RADIUS server to verify only known and authorised users can access your network.

This JL812A has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.

This switch is suitable for mounting in an EIA standard 19 inch telco rack or equipment cabinet. It also supports table-top mounting, under-table mounting and wall mounting with ports facing either up or down.

For further information about Aruba's range of switches and access points, please see our blog!

Aruba Instant On 1830 24-port Switch Key Highlights

  • 24 x RJ-45 auto-sensing 10/100/1000 ports
  • 2 x SFP 1 GbE ports
  • Memory & Flash: ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash
  • Packet Buffer: 1.5MB
  • Throughput (Mpps): 38.68 Mpps
  • Capacity: 52 Gbps
  • MAC address table size (number of entries): 16,000 entries
  • Fanless design
  • Frequency: 50Hz/60Hz
  • AC voltage: 100-127VAC / 200-240VAC
  • Current: 0.4A/0.3A
  • Internal power supply
  • Supports rack mounting, table top mounting and wall mounting
  • Device management: Aruba Instant On Cloud; Web browser; SNMP Manager
  • Product Dimensions (DxWxH): 215.9mm x 443.0mm x 43.9mm
  • Weight: 2.49 kg; 5.50 lb

What's in the Box?

  • Aruba JL812A 24-port Switch
  • Rack mount kit included
