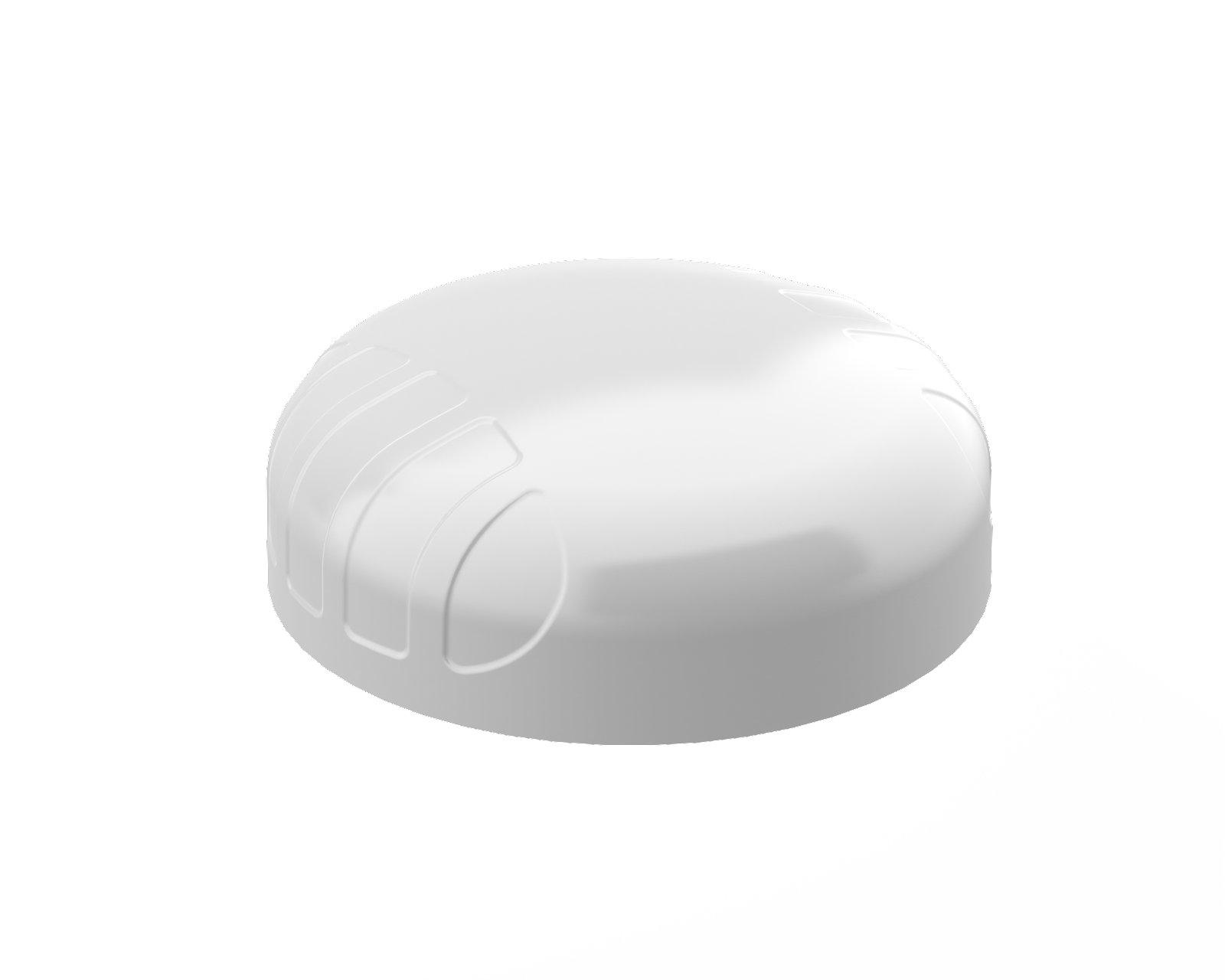

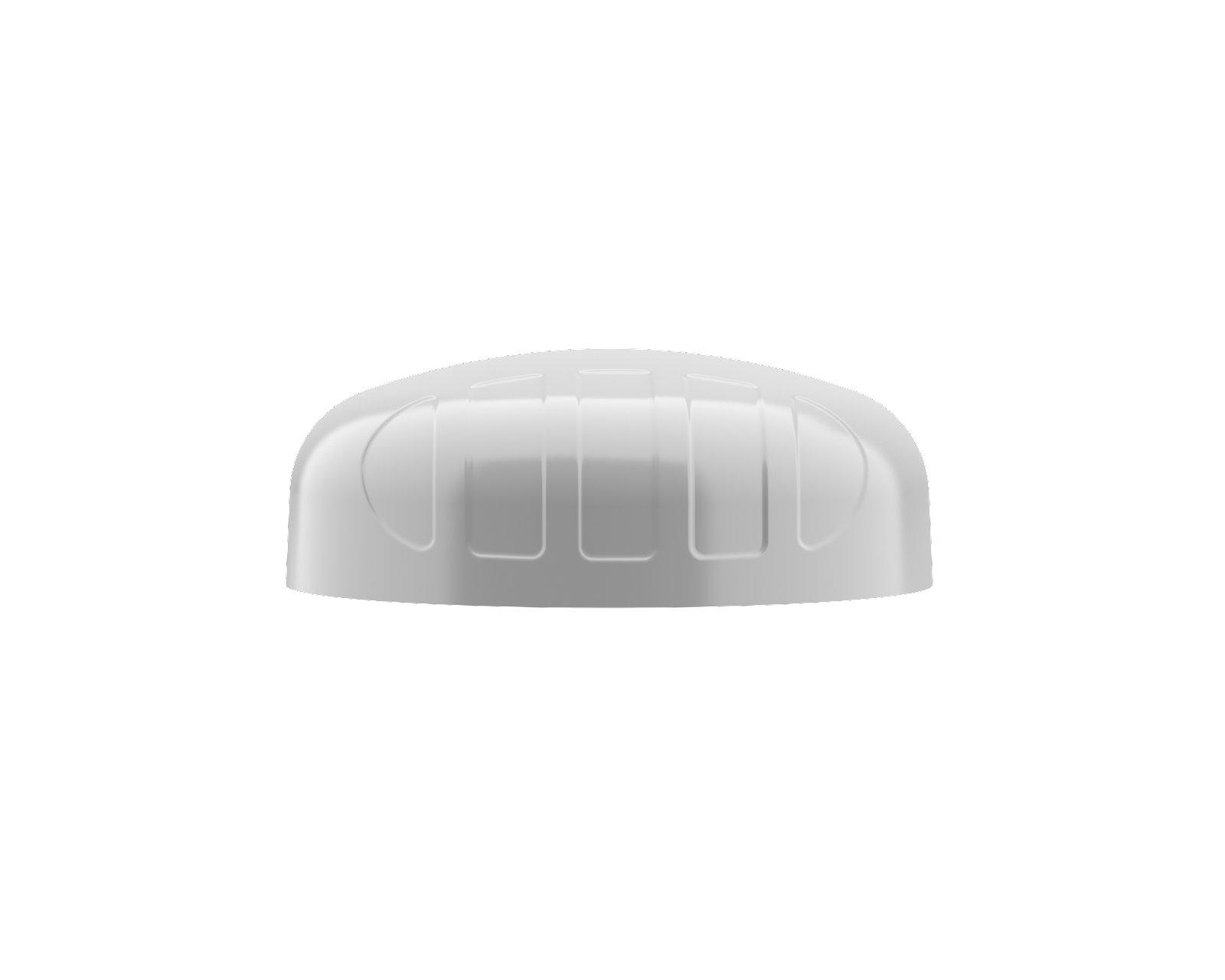

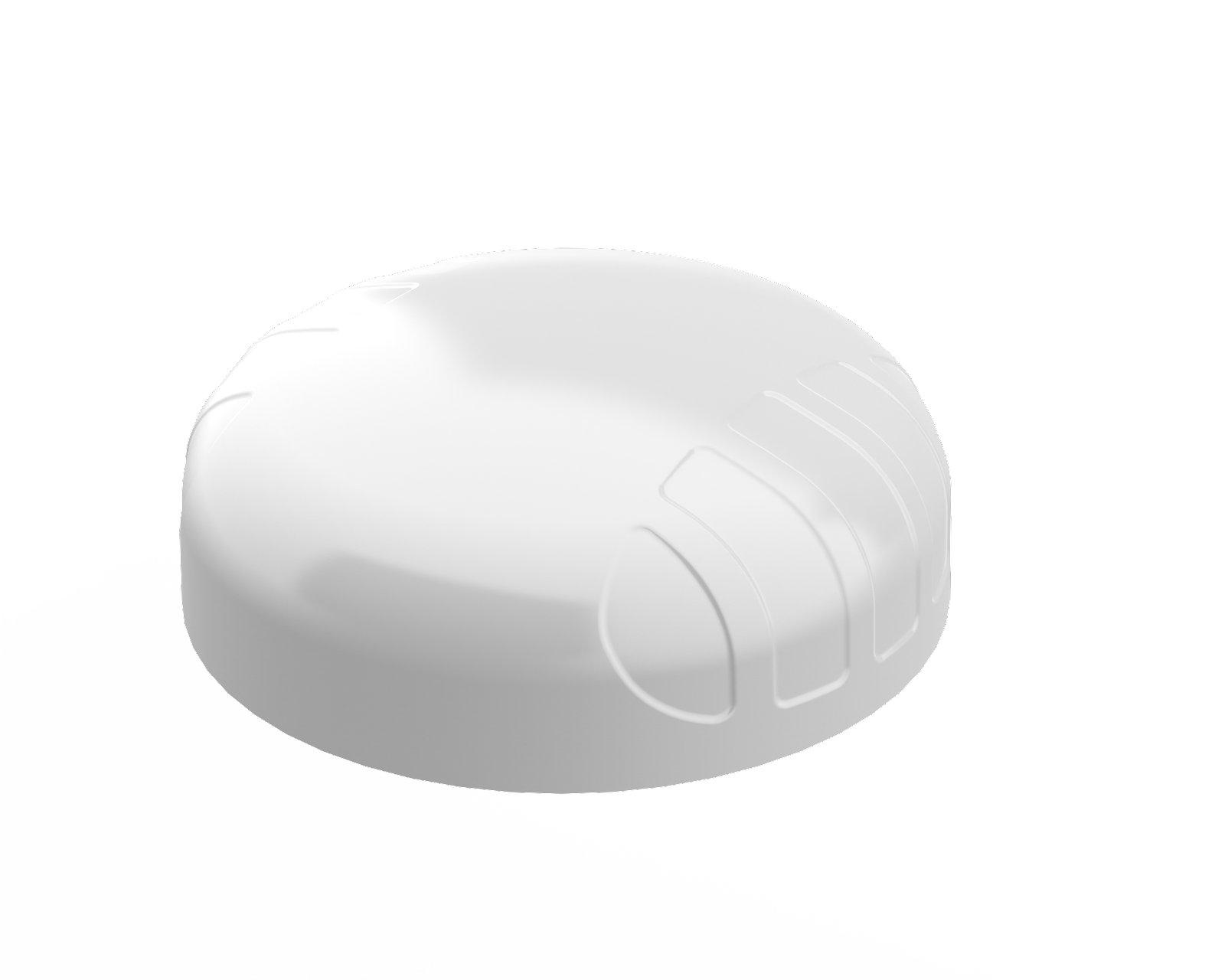

Poynting Vandal Resistant PUCK-12-W Omni-Directional IOT M2M Antenna
Part Number: PUCK-12-W
Out of stock
This product is out of stock. Please call on 0330 043 3000 to confirm availability.
Bulk Pricing
1+
£50.99
5+
£50.11
10+
£49.23
Poynting's PUCK-12-W consists of a 2-in-1 antenna system within a single housing. It provides two separate dual-band WiFi antennas offering concurrent 2.4GHz and 5GHz bands, capable of 802.11n and 802.11ac/ax with 2x2 MIMO.
Description
The PUCK-12-W's radiation patterns of all radiating elements provide a good balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This antenna gives great performance at the higher frequency bands.
For further information about our antennas see our blogs for Poynting in marine applications and MIMO solutions.
Product dimensions: Ø99.3 mm x h 36 mm
Key Highlights
- Industrial Omni-Directional Wi-Fi PUCK Antenna
- Small and low-profile
- 2-in-1 IOT/M2M multi frequency
- 2X2 Dualband WiFi (MIMO)
- 2.4 & 5 GHz
- Gain (Max): 7 dBi
- SMA-RP
- Ground plane independent - performs consistently with and without a ground plane
- Robust, vandal resistant and water proof (IP68) antenna
- Fire Resistant (complies with ECE-R 118.02)
- UV stable enclosure
- Versatile mounting options for easy installation
- Mounting Type: Ø20 Threaded Spigot, Pole, Wall, Surface and Magnetic mount (not all included - see 'What's in the Box?' section below)
What’s in the box?
- Antenna: PUCK-12-W
- Adapters: 2x RPSMA(m) To SMA (f)
- Magnetic mount
- Ø20 Threaded Spigots
- Surface mount
- User guide
Documents
Data Sheet:Poynting PUCK-12 Datasheet
