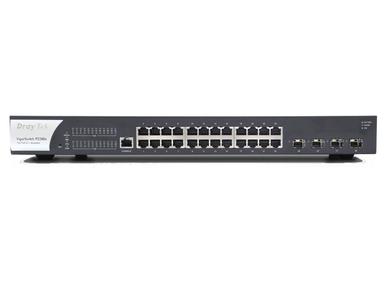

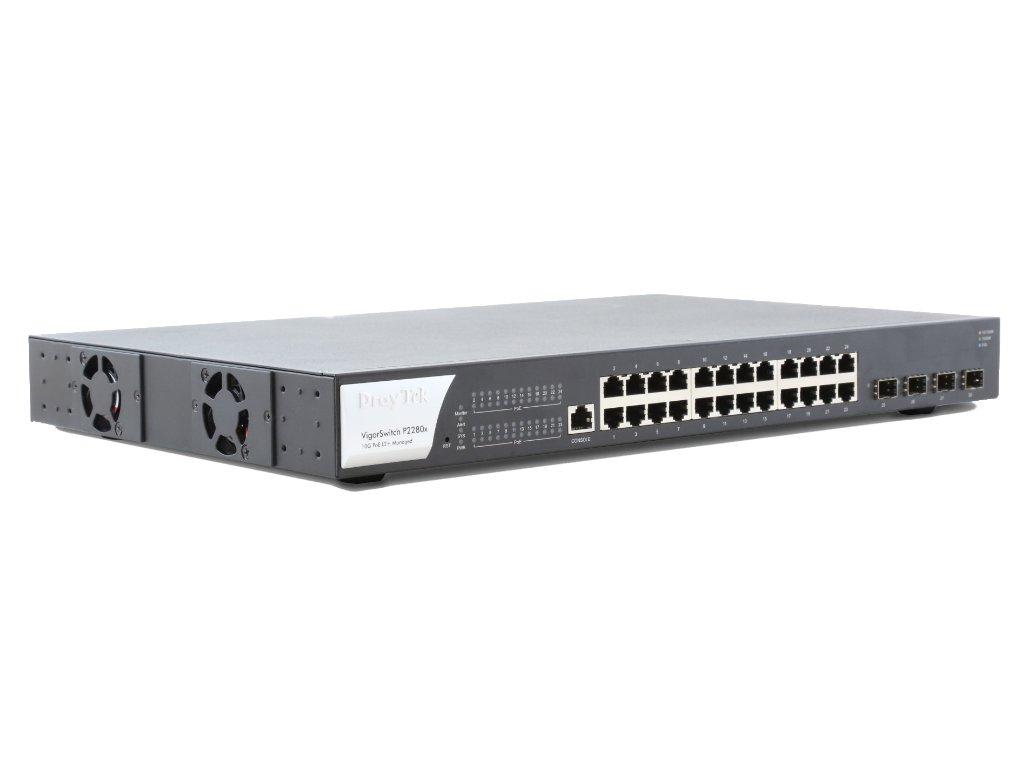

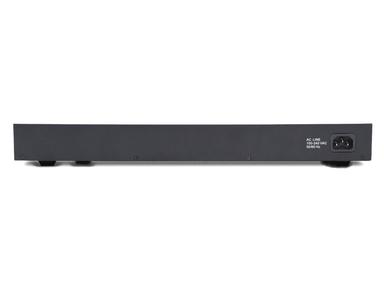

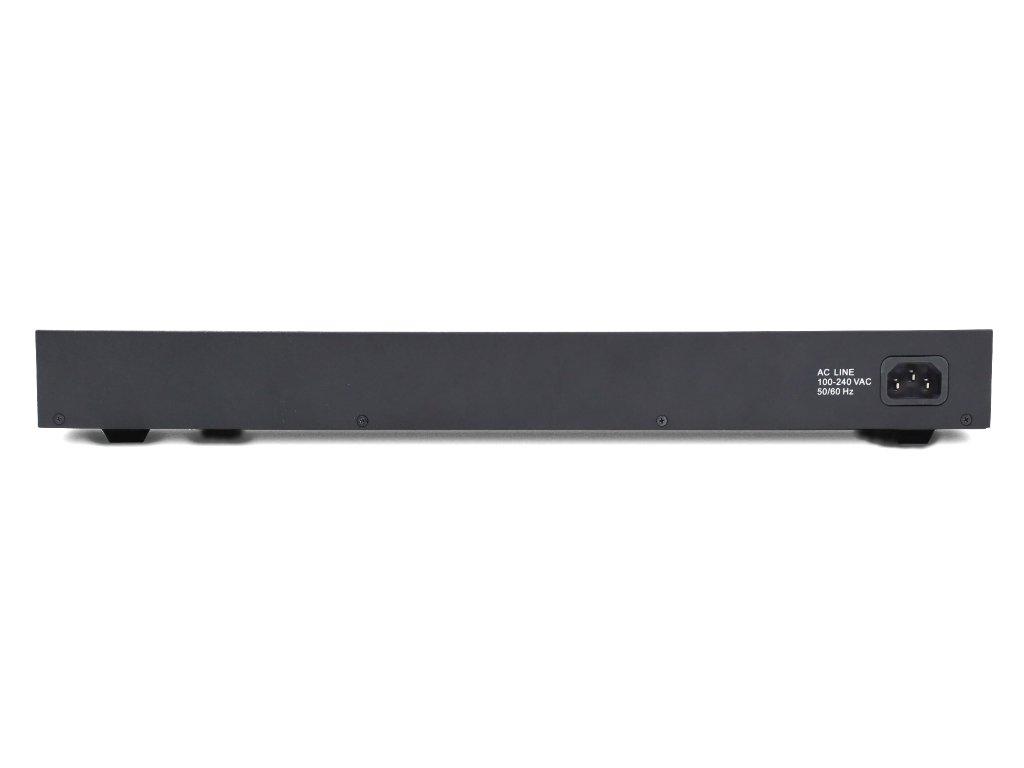

Draytek VigorSwitch P2280x 24-Port Gigabit PoE+ 4 Port 10Gb/s Switch
Part Number: VSP2280X-K
Discontinued
This product has been discontinued. See the latest model: Draytek VigorSwitch P2282X
The Draytek VigorSwitch P2280x is a PoE (Power over Ethernet) switch, providing power to any PoE-enabled device, most commonly IP phones, wireless access points or IP cameras over the Ethernet cable. The VSP2280x supports both standard PoE (802.3af) and High-Power PoE (802.3at) devices.
Description
The DrayTek VigorSwitch P2280x has 4 dedicated SFP+ ports for uplinks, each operating at up to 10 Gigabits per second. The faster 10 Gigabit uplink capability allows you to make high bandwidth links to Network Attached Storage, Servers and other switches, to help reduce the risk of bottlenecks occurring within your network. The SFP+ ports provide compatibility with your choice of SFP / SFP+ modules (not included) and therefore the most appropriate medium for your application.
Key Highlights
- 24 x RJ-45 Ethernet Ports – 10/100/1000Mbps
- 10 x Gigabit SFP+ Ports for High Speed Uplinks
- Console Port (RJ-45 physical, RS-232 electrical)
- Network Security and Management Features
- Manage Centrally or Stand-Alone
- 400W PoE Power Budget
- Voice VLAN & Surveillance VLAN
- Layer 2+ Routing Features
- Hardware Monitoring
- Energy-Efficient PoE
- Supports 802.3af and 802.3at Devices
- QoS
- Rack mountable: 1U
- Warranty: 2 Year Manufacturer’s RTB
What’s in the box?
- DrayTek VP2280x Switch
- Brackets
Documents
Data Sheet:P2280x VigorSwitch Data Sheet
