Poynting MIMO-4-17 7-in-1 Transportation & Automotive Antenna (Black)

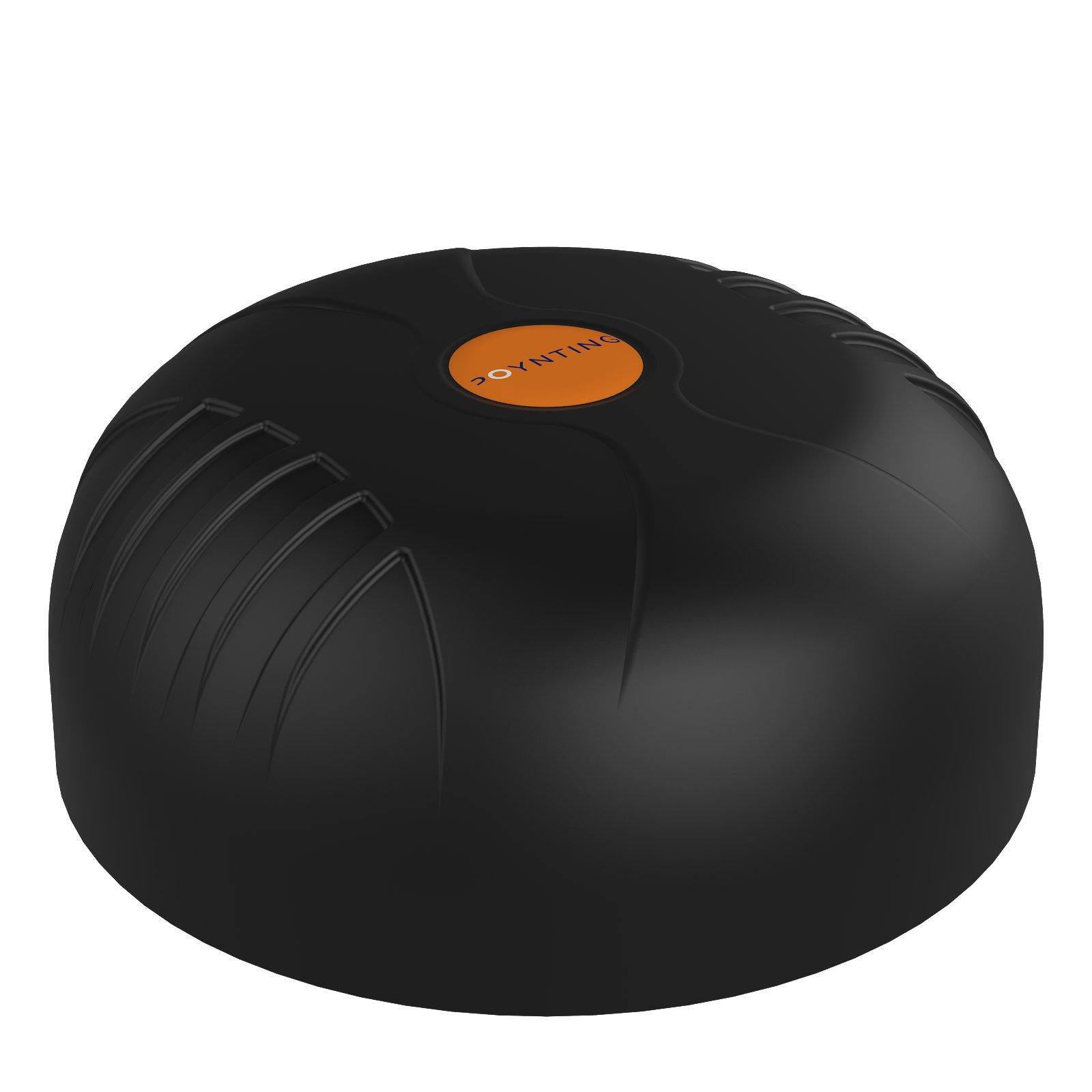

Poynting MIMO-4-17 7-in-1 Transportation & Automotive Antenna Front View Image

Click to zoom

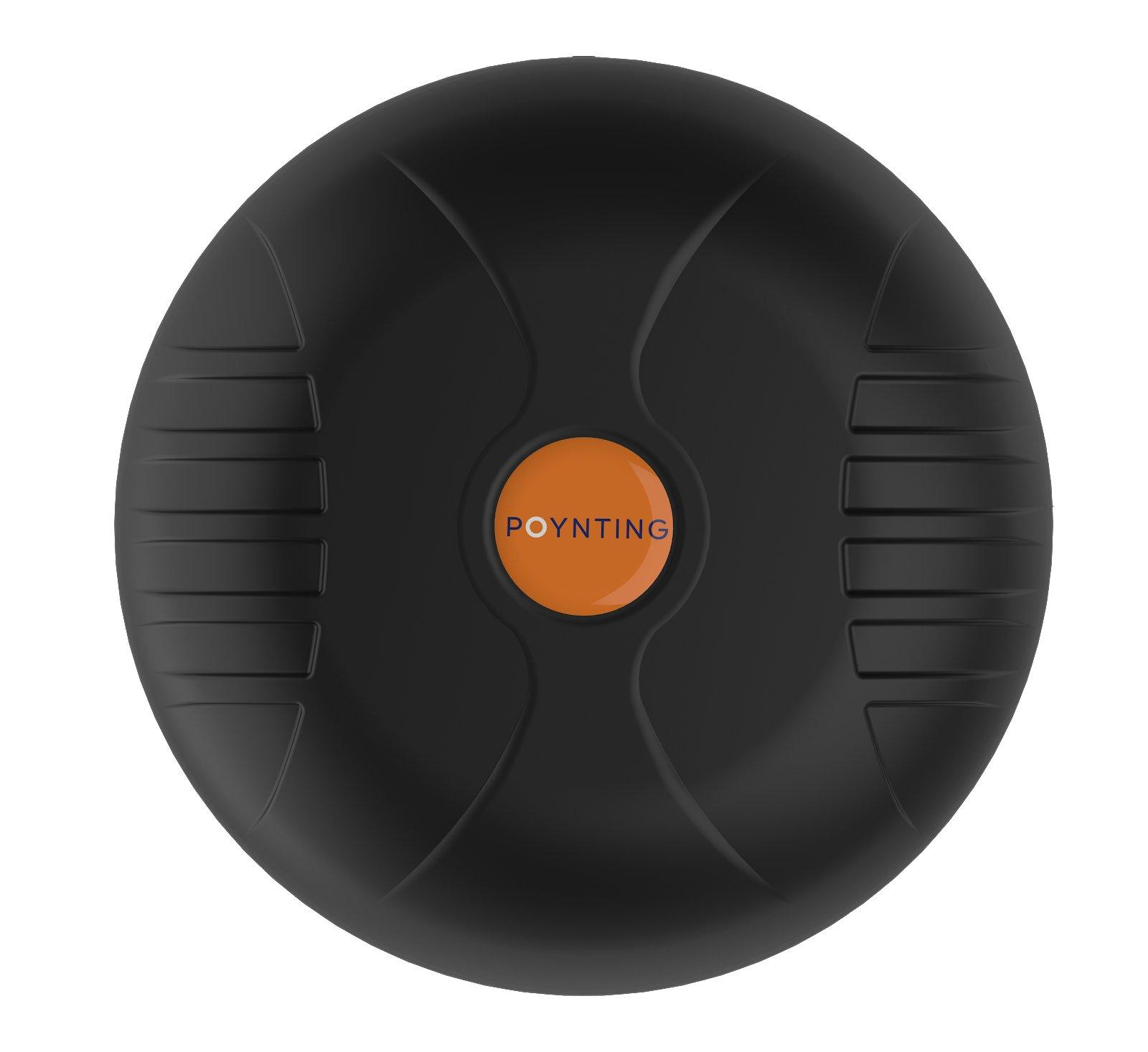

Poynting MIMO-4-17 7-in-1 Transportation & Automotive Antenna Top View Image

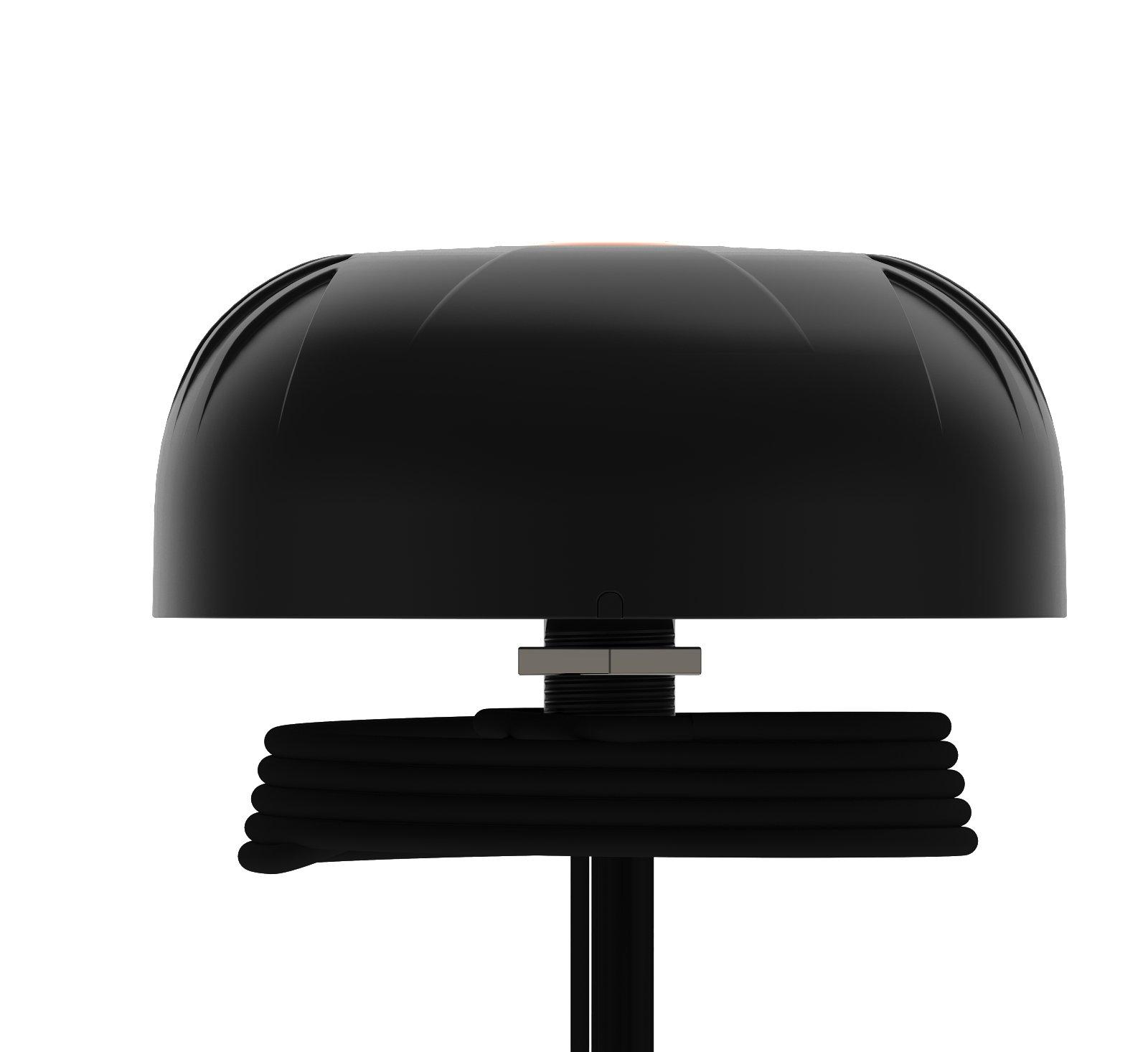

Poynting MIMO-4-17 7-in-1 Transportation & Automotive Antenna Side View Image

Poynting MIMO-4-17 7-in-1 Transportation & Automotive Antenna (Black)

Part Number: MIMO-4-17-B

£303.99inc VAT

£253.33ex VAT

Out of stock

Easy Returns

Bulk Pricing

1+
£303.99
5+
£294.08
10+
£284.16

The MIMO-4-17 is a 7-in-1 high performance, multi frequency antenna within a single housing. The antenna provides four cellular, two Wi-Fi and a GPS/GLONASS antenna. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications.

Description

The antenna also provides two dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 2x2 MIMO capability.

The MIMO-4-17 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements, provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for.

Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.

Key Highlights

7-in-1 High performance multi frequency automotive antenna
Ultra-wideband coverage from 617 to 6000 MHz for cellular
4x4 MIMO LTE/5G, 2x2 MIMO Wi-Fi & GPS/GLONASS
Robust and weather resistant antenna with an IP69K rating
Ideal for transportation and marine implementation
Multi mounting options for ease of installation
Radome Material: PC+ABS (Halogen Free)
Ports: 7
SISO/MIMO: 4X4 MIMO LTE & 2X2 Wi-Fi
Coax Cable Type: RTK-031 – LTE, Wi-Fi & GPS
Coax Cable Length: 2m – LTE, Wi-Fi & GPS
Connector Type: SMA (M) – LTE, Wi-Fi & GPS
Also available in white

Documents

Brochure:Poynting MIMO-4-17 7-in-1 Transportation & Automotive Antenna Datasheet
