Poynting EPNT-2 X-Polarised High Gain Uni-Directional 5G LTE Antenna

Part Number: EPNT-2

Poynting EPNT-2 Antenna Front Angle

Hover to zoom

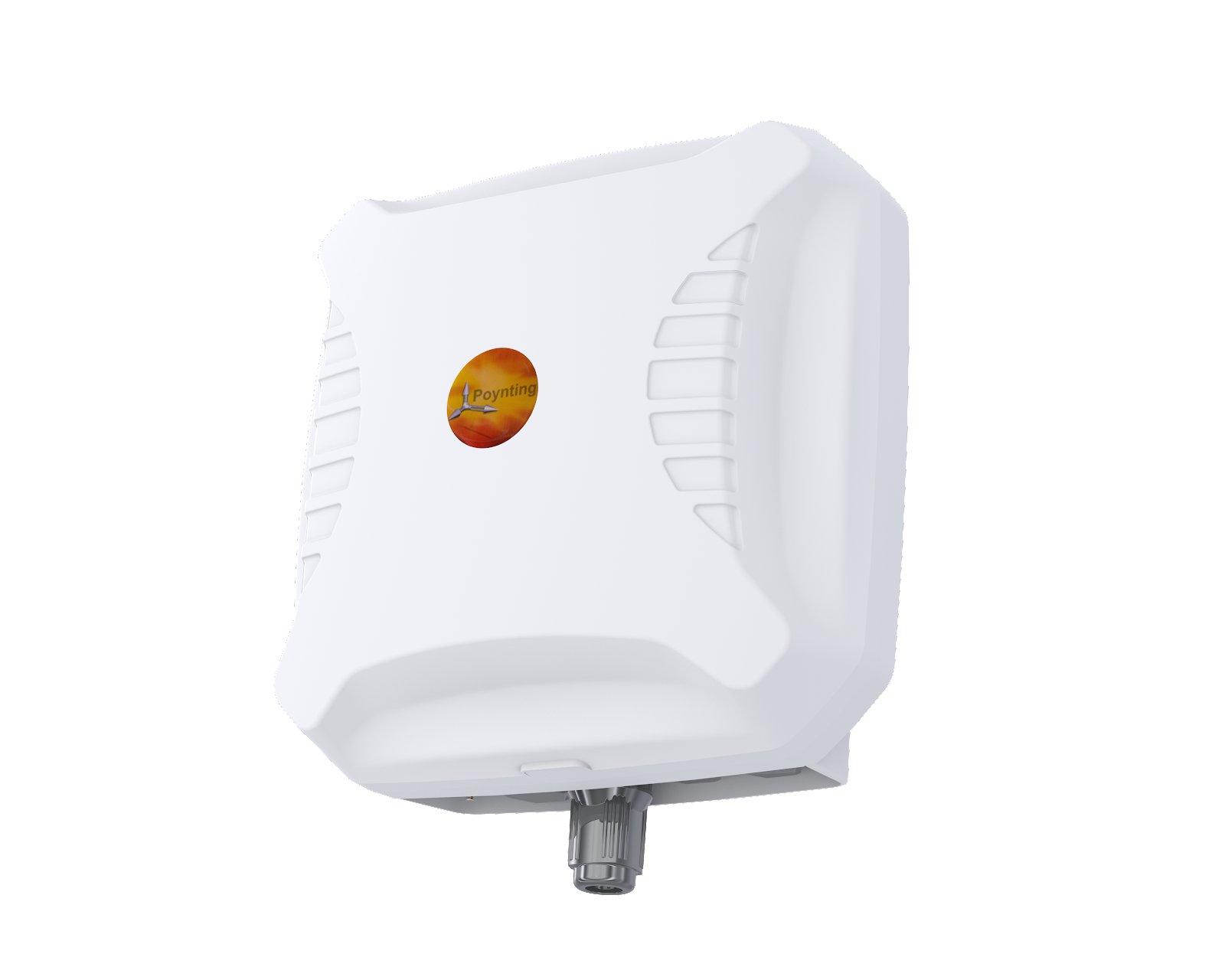

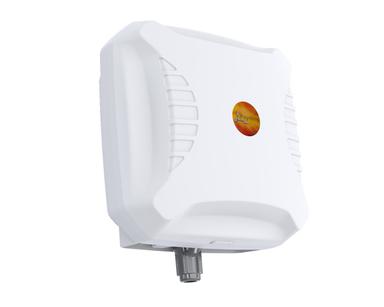

Poynting EPNT-2 Antenna Front Angle

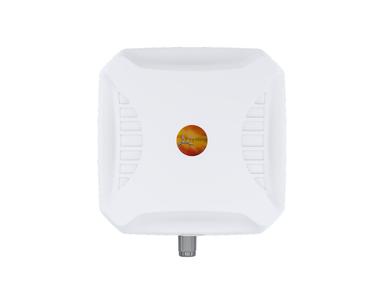

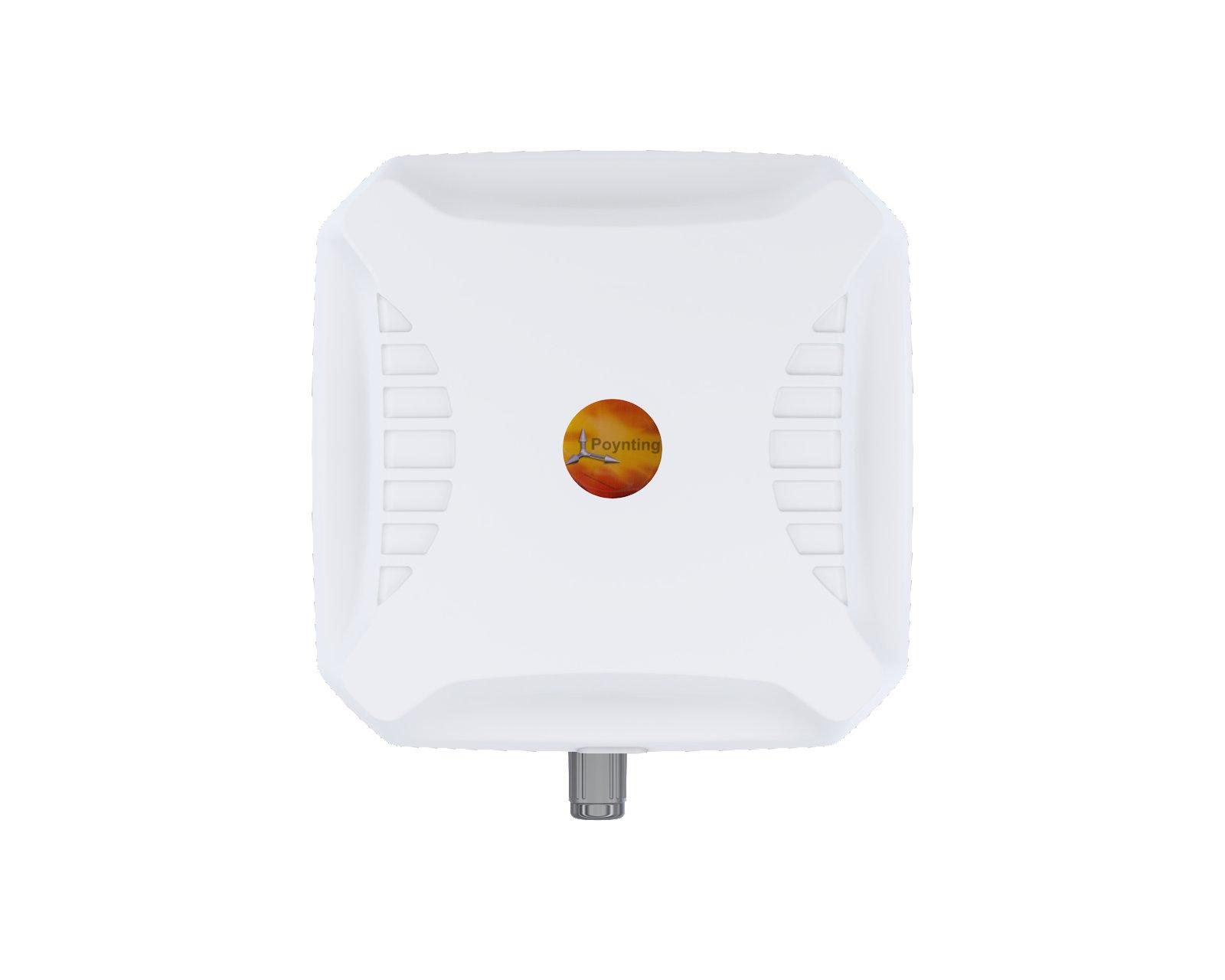

Poynting EPNT-2 Antenna Front View

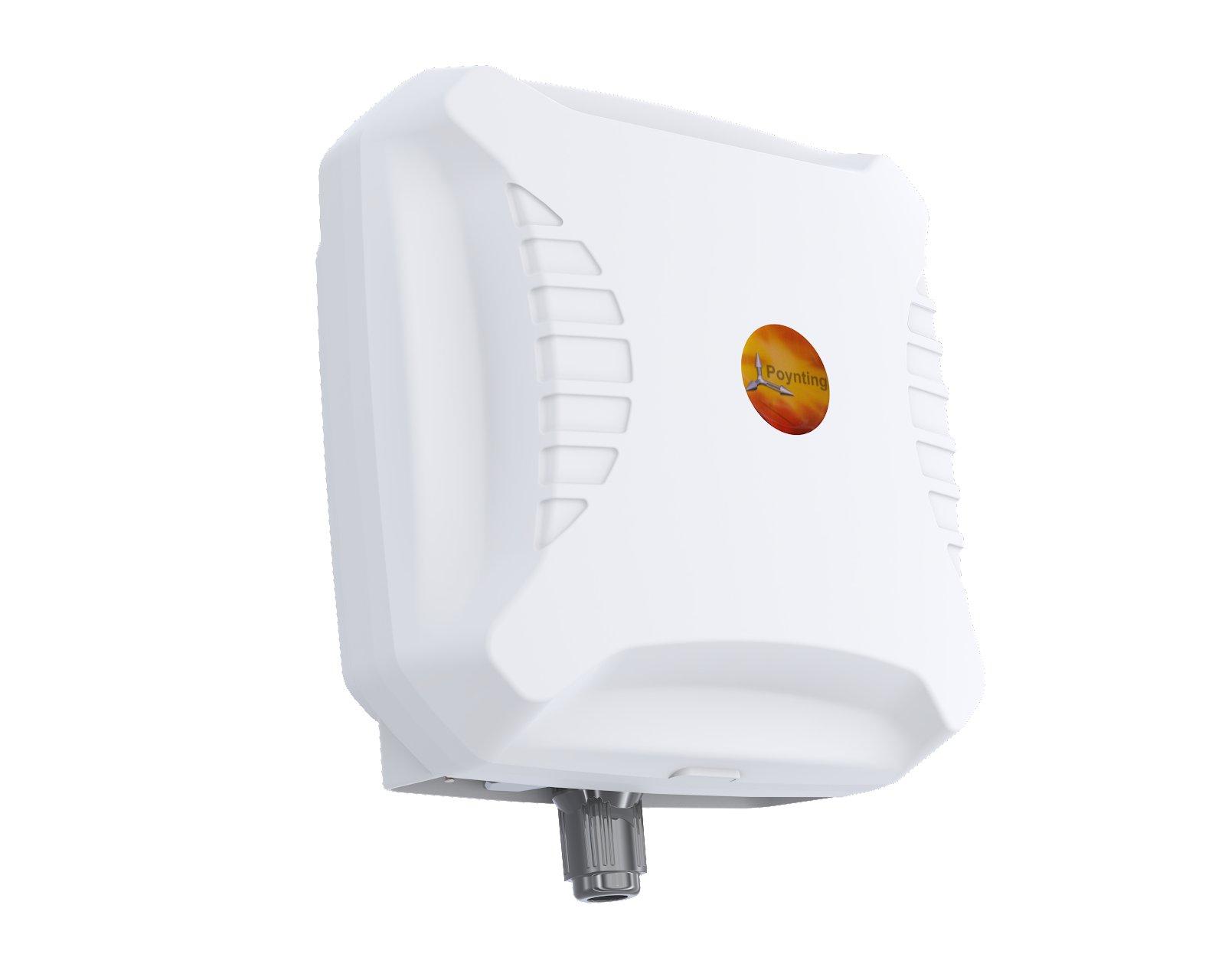

Poynting EPNT-2 Antenna Front Angle

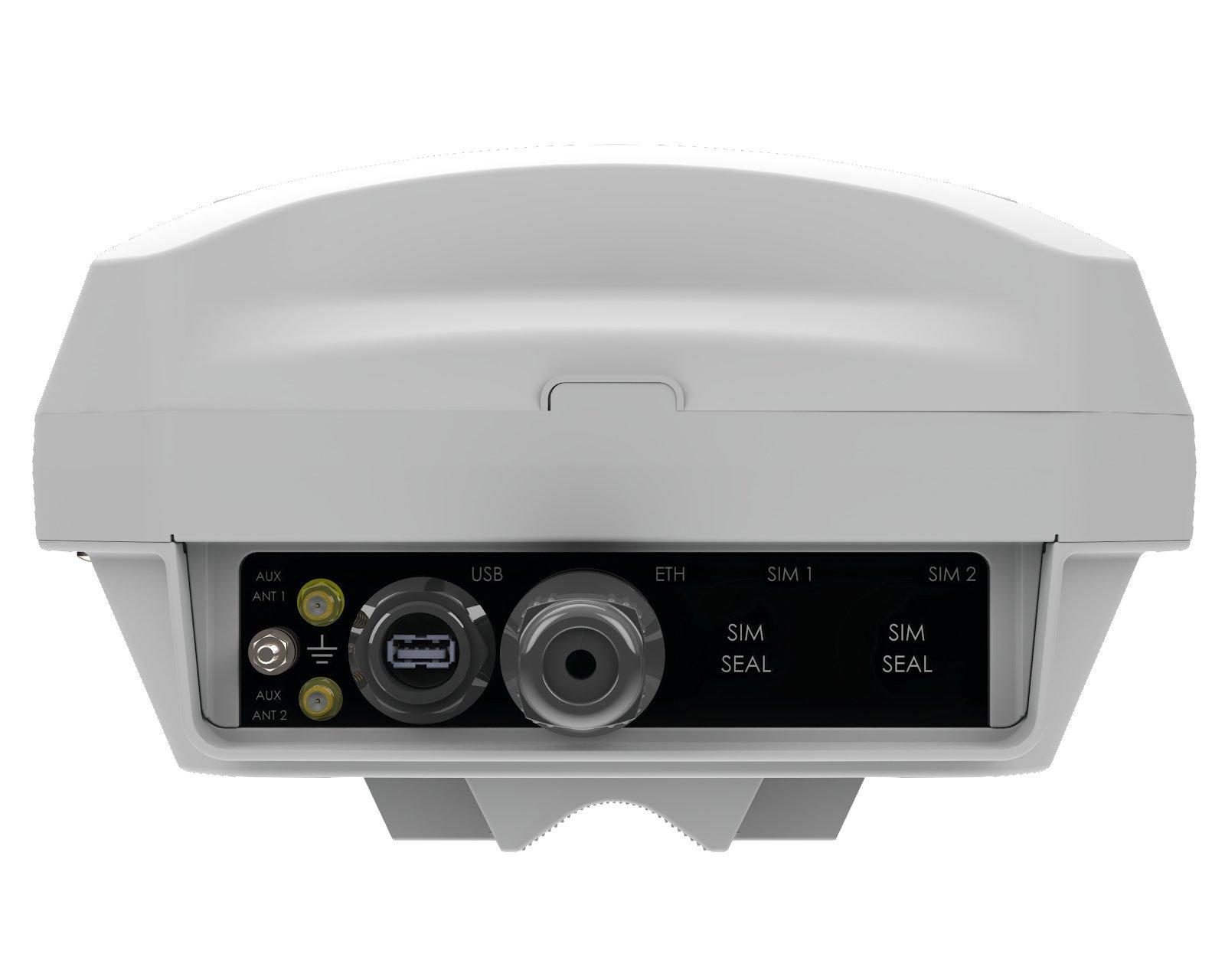

Poynting EPNT-2 Antenna Bottom View

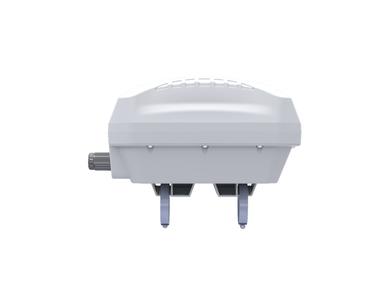

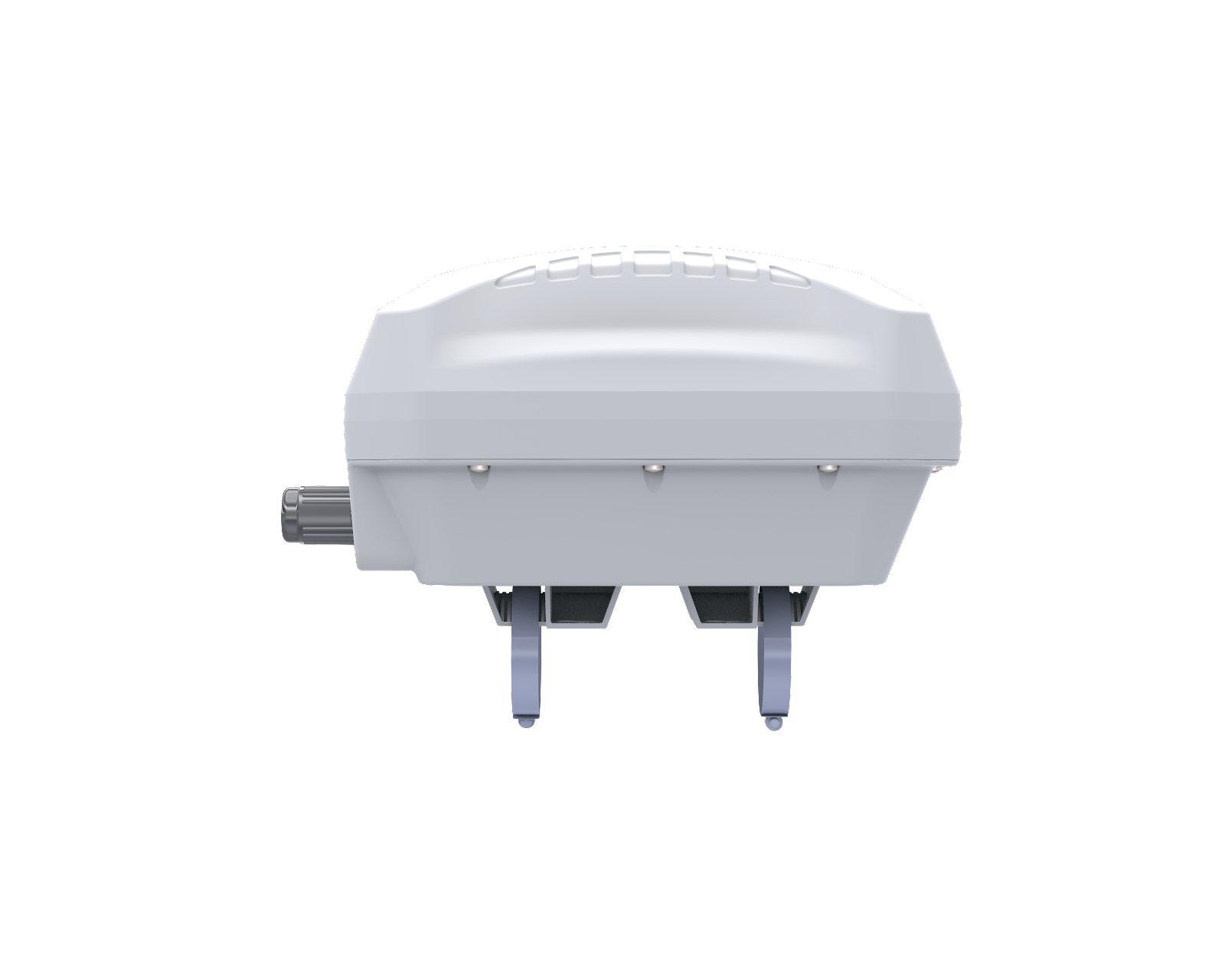

Poynting EPNT-2 Antenna Side View

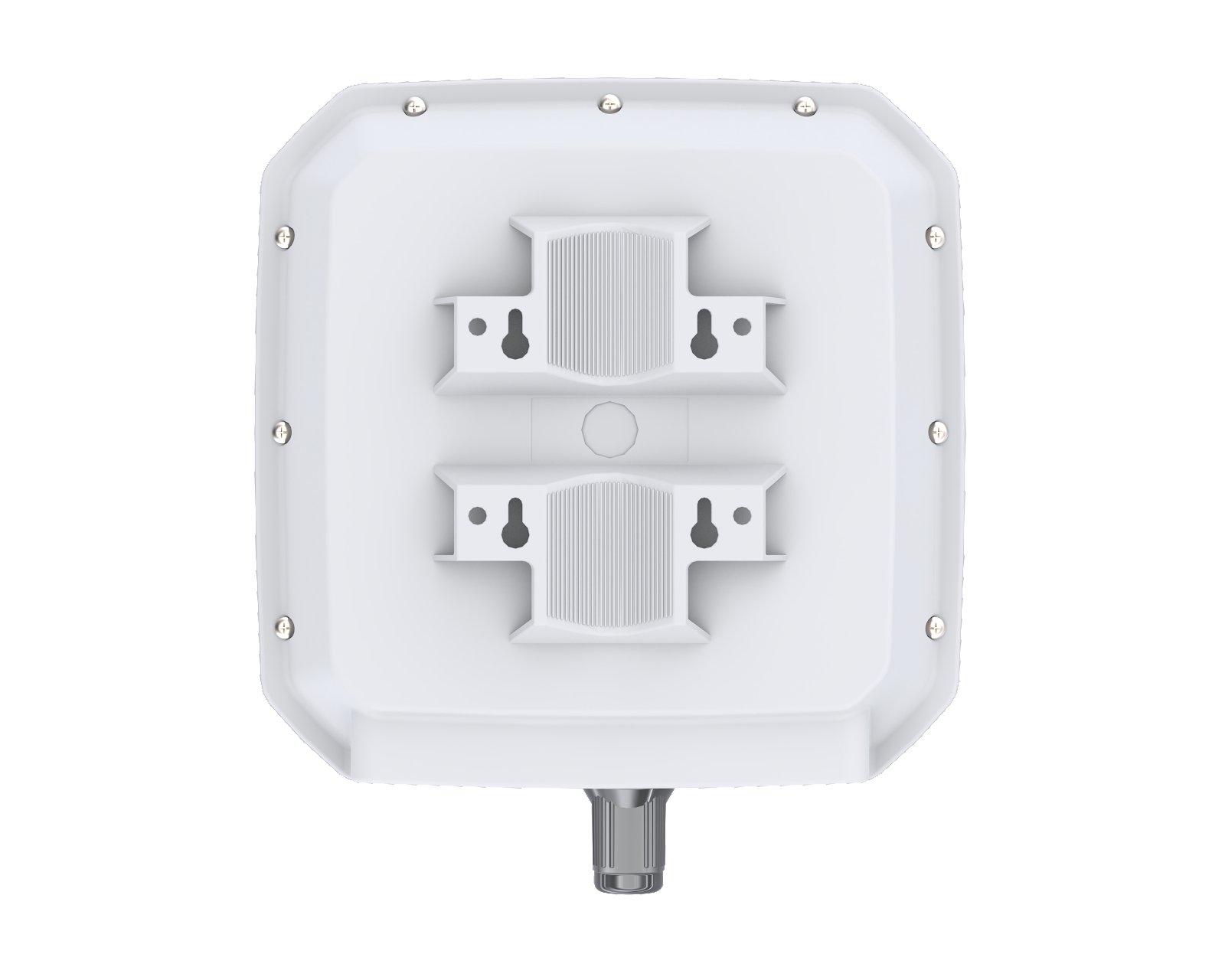

Poynting EPNT-2 Antenna Back View

The new Poynting ePoynt-2 (EPNT-2) enclosure is designed to fit a variety of router modules, transforming the antenna enclosure into a Customer Premises Equipment (CPE) – just add your own LTE/5G router. The ePoynt enclosure can accommodate routers up to the size of 185 x 145 x 45 mm³. The ePoynt-2 antenna enclosure uses Poynting's Artificial Magnetic Conductor (AMC) technology from their XPOL-2-5G antenna. Providing a cross-polarised, high gain, uni-directional antenna that offers wideband coverage from 698 to 960 MHz and 1710 to 3800 MHz, making it ideal for LTE & 5G implementations.

In stock

8 Available

£268.44inc VAT

Want it by Thursday 26th May? Order within 19 hours 12 minutes for next business day delivery.

Qty

Shipping from £4.79

Free Returns (Ts&Cs apply)

Price Breaks

  • 1 =

    £268.44

  • 5+ =

    £263.32

  • 10+ =

    £258.19

More Information - Poynting EPNT-2 Antenna

The EPNT-2 contains four cross-polarised cellular antennas, with two uni-directional antennas offering a peak gain of 11 dBi and two omni-directional antennas with a peak gain of 5 dBi. Making it ideal for 4×4 MIMO or dual 2×2 MIMO routers.

The EPNT-2 also includes two omni-directional dual-band Wi-Fi antennas that cover the 2.4 GHz and 5 to 6 GHz Wi-Fi bands for 2×2 MIMO. The combination of our uni-directional XPOL-2-5G antenna with a world class router delivers exceptional performance along with increased data throughput. The EPNT-2 enclosure was also designed to withstand adverse weather condition, making the antenna weatherproof and waterproof with an IP65 rating.

Suitable routers which fit the EPNT-12 enclosure include: Teltonika RUT240, Teltonika RUTX11, Teltonika RUTX09, Teltonika RUTX10.

EPNT-2 Key Highlights

  • Ultra-wideband coverage for 2G, 3G, 4G and 5G
  • High gain directional antenna, with a peak gain of 11 dBi
  • 2x2 MIMO High gain directional antennas
  • Weatherproof and waterproof enclosure (IP65)
  • 1 x Ethernet port
  • Frequency Bands: 698 – 960 MHz | 1710 – 2700 MHz | 3400 – 3800 MHz; Wi-Fi frequency bands: 2400 - 2500 MHz | 5000 - 6000 MHz
  • Wall, pole, and window mountable

Applications

  • Outdoor antenna for Fixed Wireless Access (FWA)
  • Consumer LTE/G internet connectivity
  • Industrial and commercial LTE/G deployment
  • Urban and rural household reception enhancement
  • Agricultural and farming LTE/G data distribution

What's in the Box?

  • A-EPNT-0002-V1-01
  • Please note: the connectors are factory mounted to the antenna. Additional pigtails (not supplied) are required to connect the antenna to the router

Documents

Data Sheet:

Poynting EPNT-2 Antenna Datasheet
