Poynting EPNT-4 V1-15 X-Polarised Omni 5G LTE WiFi CPE Antenna

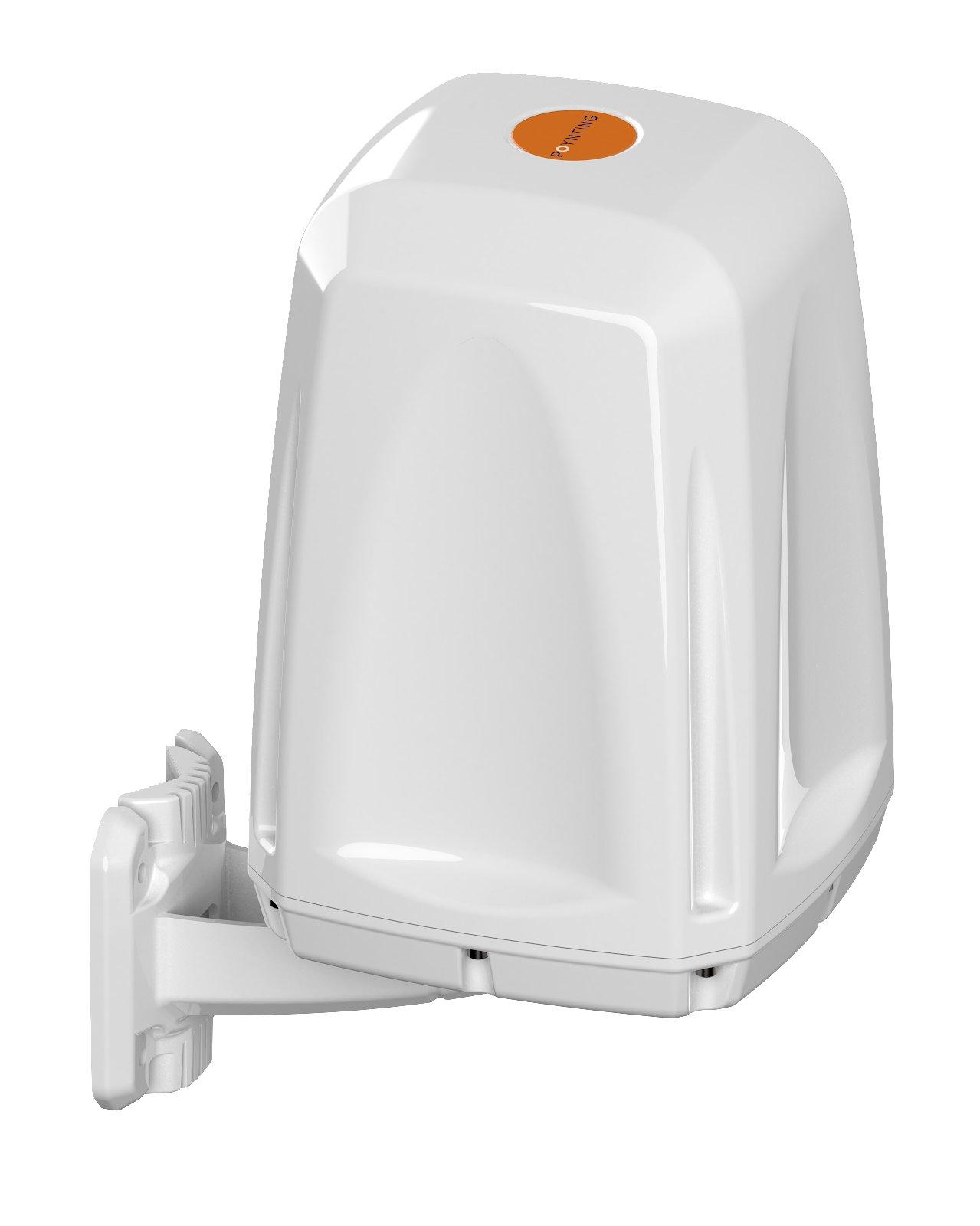

Poynting EPNT-4 5G LTE WiFi CPE Antenna Front Angle Image

Click to zoom

Poynting EPNT-4 5G LTE WiFi CPE Antenna Front Angle Image

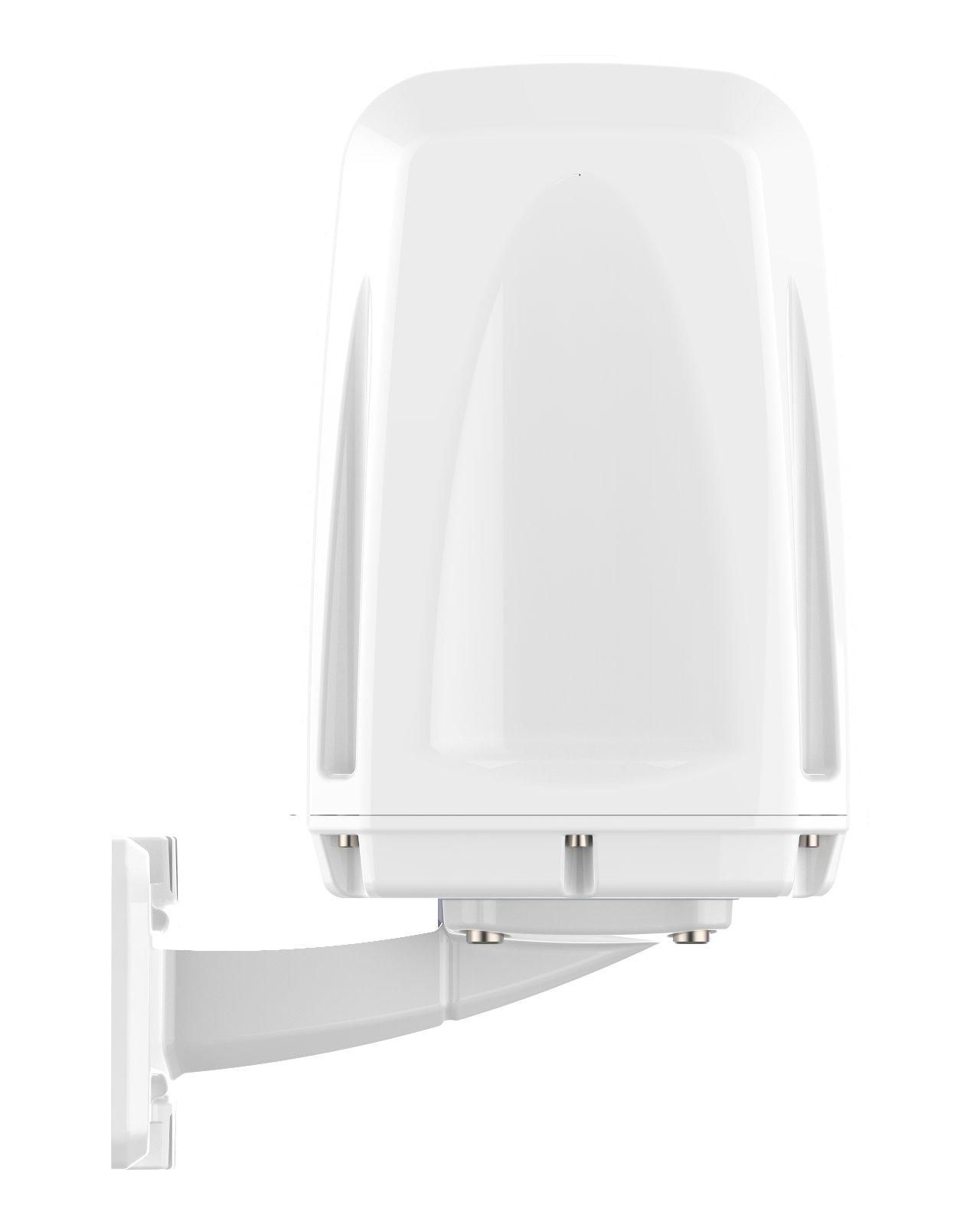

Poynting EPNT-4 5G LTE WiFi CPE Antenna Side View Image

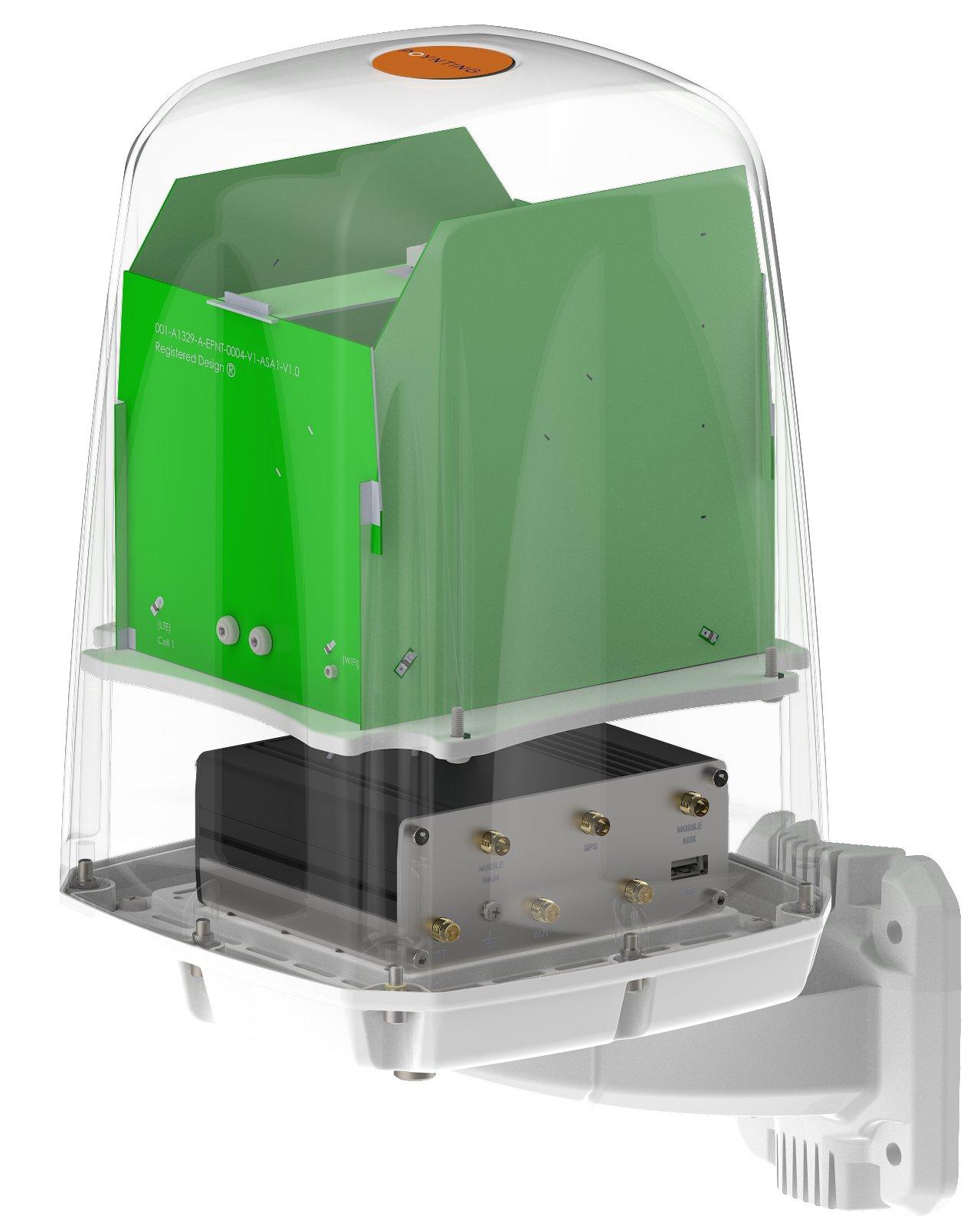

Poynting EPNT-4 5G LTE WiFi CPE Antenna Inside View Image

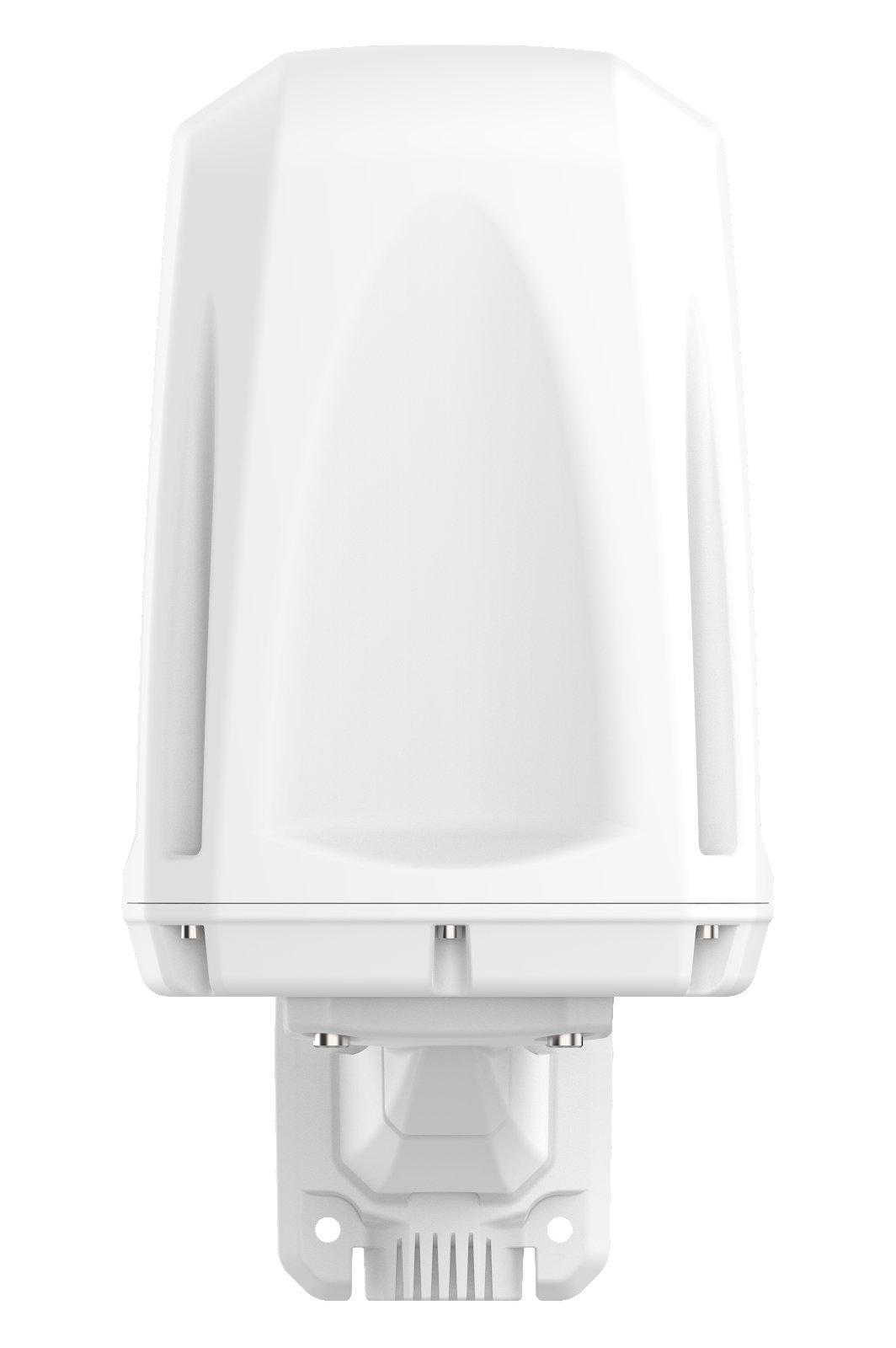

Poynting EPNT-4 5G LTE WiFi CPE Antenna Side Angle Image

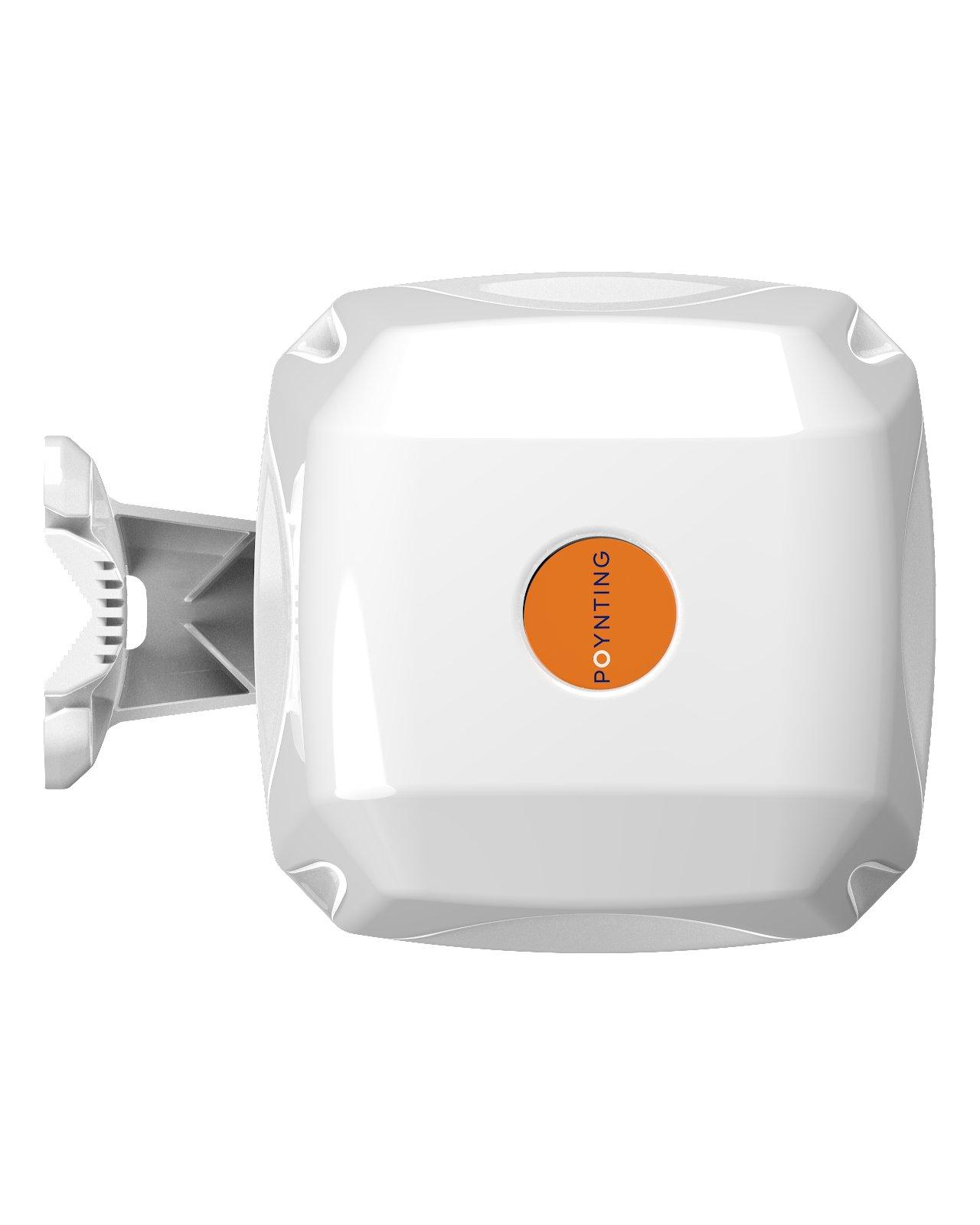

Poynting EPNT-4 5G LTE WiFi CPE Antenna Top View Image

Poynting EPNT-4 V1-15 X-Polarised Omni 5G LTE WiFi CPE Antenna

Part Number: EPNT-4

£479.49inc VAT
£399.58ex VAT

Out of stock

This product is out of stock. Please call on 0330 043 3000 to confirm availability.

Bulk Pricing

  • 1+

    £479.49

  • 5+

    £427.99

  • 10+

    £376.48

The Poynting EPNT-4-V1-15 is an X-Polarised, omni-directional, customer-premises equipment (CPE).

Description

The EPNT-4 offers a variety of antennas in one package, such as 4x4 5G/LTE MIMO, 2x2 Wi-Fi MIMO, as well as an additional GPS antenna. The cellular 5G/LTE antennas are wideband and operate from 617 to 4200 MHz, covering the major 5G/LTE bands with excellent gain across all frequencies, enhancing the 5G performance features, such as multi carrier aggregation (CA) for communication.

The Wi-Fi antennas in the EPNT-4 offer dual band operation and cover the 2.4 GHz and 5 to 7.2 GHz Wi-Fi bands with a peak gain of 5 dBi. In addition, the antenna elements within the enclosure are cross-polarised, further improving the overall performance of the antenna. The combination of the cellular and Wi-Fi antennas, with a router will deliver a CPE with exceptional performance along with increased data throughput.

Key Highlights

  • Wideband cellular coverage from 617 to 4200 MHz, with up to 4x4 MIMO
  • 2x2 MIMO dual-band Wi-Fi at 2.4 & 5 to 7.2 GHz
  • Cleverly designed decorrelated antennas give superior MIMO performance in both cellular and Wi-Fi bands
  • Includes high-performance GPS/GLONASS antenna
  • Precise mechanical design provides ruggedness, water, and dust resistance (IP67)
  • Wall, pole, and surface mountable

What’s in the box?

  • EPOYNT-4 CPE
  • Wall Knock-in Screws (x4)
  • 3mm Allen Key
  • 5mm Allen Key
  • Pipe clamp (x2)
  • Surface Mount Gasket
  • M6x90mm Stainless Steel U-Bolts (x2)
  • PCB Mounting Screws (x4)
  • Cable Ties (x4)
  • M6 Nyloc and Standard Stainless Steel Nuts (x4)
  • M6 Stainless Steel Flat Washers (x4)

Specification

WiFi1
